FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )3F

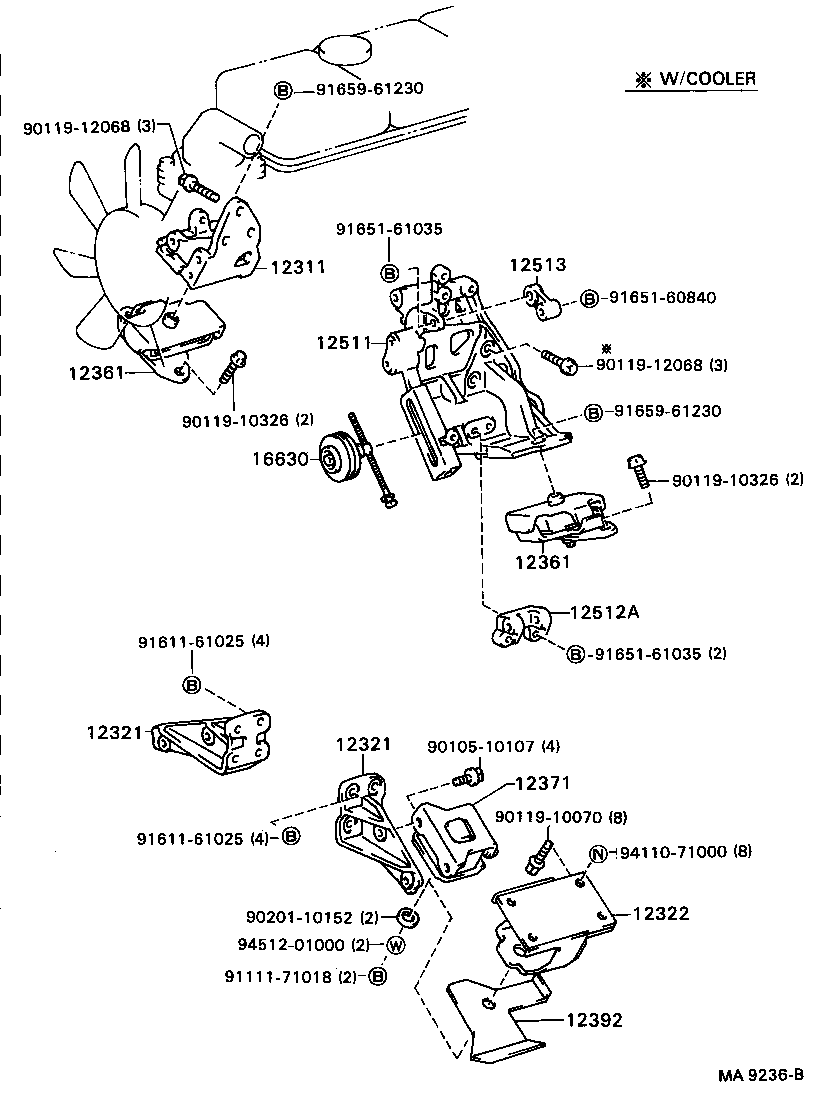

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-61080 |
3F..FB30 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12325-61010 |
3F..FB30 LH |
1 | ||
| 12321-61020 |
3F..FB30 RH |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12325-61010 |
3F..FB30 LH |
1 | ||
| 12321-61020 |
3F..FB30 RH |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-68030 |
3F..FB30 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-61040 |
3F..FB30 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-61040 |
3F..FB30 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-68060 |
3F..FB30 |
2 | ||
| 12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH | ||||
| 12392-61010 |
3F..FB30 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-61050 |
3F..FB30 |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-61010 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 90105-10107 | ||||
| 90119-10070 | ||||
| 90119-10326 | ||||
| 90119-12068 | ||||
| 90201-10152 | ||||
| 91111-71018 | ||||
| 91611-61025 | ||||
| 91651-60840 | ||||
| 91651-61035 | ||||
| 91659-61230 | ||||
| 94110-71000 | ||||
| 94512-01000 | ||||
