FB30L-MDR (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )3F

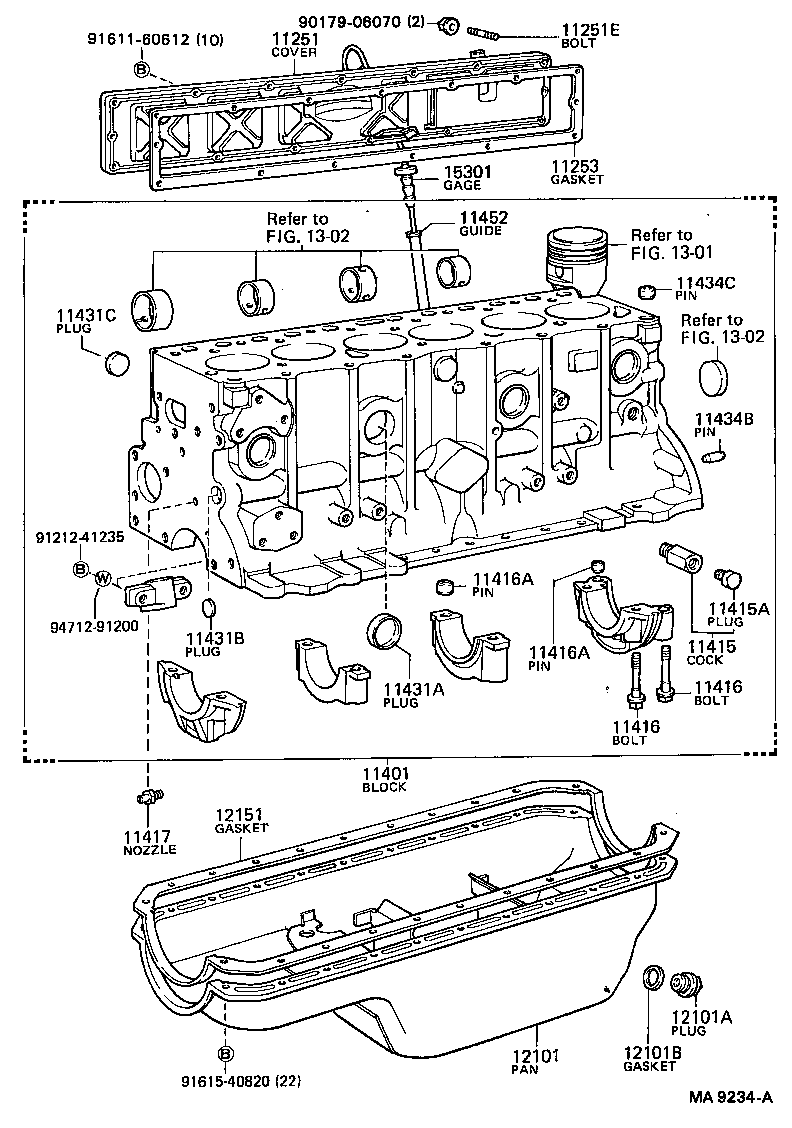

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-61020 |
3F..FB30 |
1 | ||
| 11251E - BOLT, STUD(FOR VALVE PUSH ROD COVER) | ||||
| 90116-06022 |
3F..FB30 |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-61010 |
3F..FB30 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69187 |
3F..FB30 |
1 | ||
| 11401-69186 |
3F..FB30 |
1 | ||
| 11401-69305 |
3F..FB30 |
1 | ||
| 11401-69307 |
3F..FB30 |
1 | ||
| 11401-69306 |
3F..FB30 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02057 |
3F..FB30 NO.4,*12-1.75PX68-26 |
4 | ||
| 90105-14033 |
3F..FB30 NO.1,2,3,*18-2PX65-27 |
6 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02057 |
3F..FB30 NO.4,*12-1.75PX68-26 |
4 | ||
| 90105-14033 |
3F..FB30 NO.1,2,3,*18-2PX65-27 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-16014 |
3F..FB30 NO.4 |
2 | ||
| 90253-18003 |
3F..FB30 NO.1,2,3 |
6 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-16014 |
3F..FB30 NO.4 |
2 | ||
| 90253-18003 |
3F..FB30 NO.1,2,3 |
6 | ||
| 11417 - NOZZLE, OIL | ||||
| 90915-01014 |
3F..FB30 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3F..FB30 OD=50 |
5 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90344-54003 |
3F..FB30 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3F..FB30 OD=25 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
3F..FB30 L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-17003 |
3F..FB30 L=7,OD=16.5 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-61010 |
3F..FB30 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-61012 |
3F..FB30 |
1 | ||
| 12101-61013 |
3F..FB30 |
1 | ||
| 12101-61030 |
3F..FB30 |
1 | ||
| 12101-61050 |
3F..FB30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
3F..FB30 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
3F..FB30 |
1 | ||
| 90430-18013 |
3F..FB30 |
1 | ||
| 90430-12011 |
3F..FB30 |
1 | ||
| 90430-12027 |
3F..FB30 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-61010 |
3F..FB30 |
1 | ||
| 12151-61011 |
3F..FB30 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-61010 |
3F..FB30 |
1 | ||
| 15301-61050 |
3F..FB30 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91212-41235 | ||||
| 91611-60612 | ||||
| 91615-40820 | ||||
| 94712-91200 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
