BZB50R-ZCMSC (2003)
Toyota Coaster
Production
Feb 2003
-
Jan 2015
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 4 OF 4(9301-1501)
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 62429-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 62429-36010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90333-48001 | ||||
| 90950-01348 | ||||
| 90950-01370 | ||||
| 90950-01444 | ||||
| 90950-01506 | ||||
| 90950-01557 | ||||
| 90950-06034 | ||||

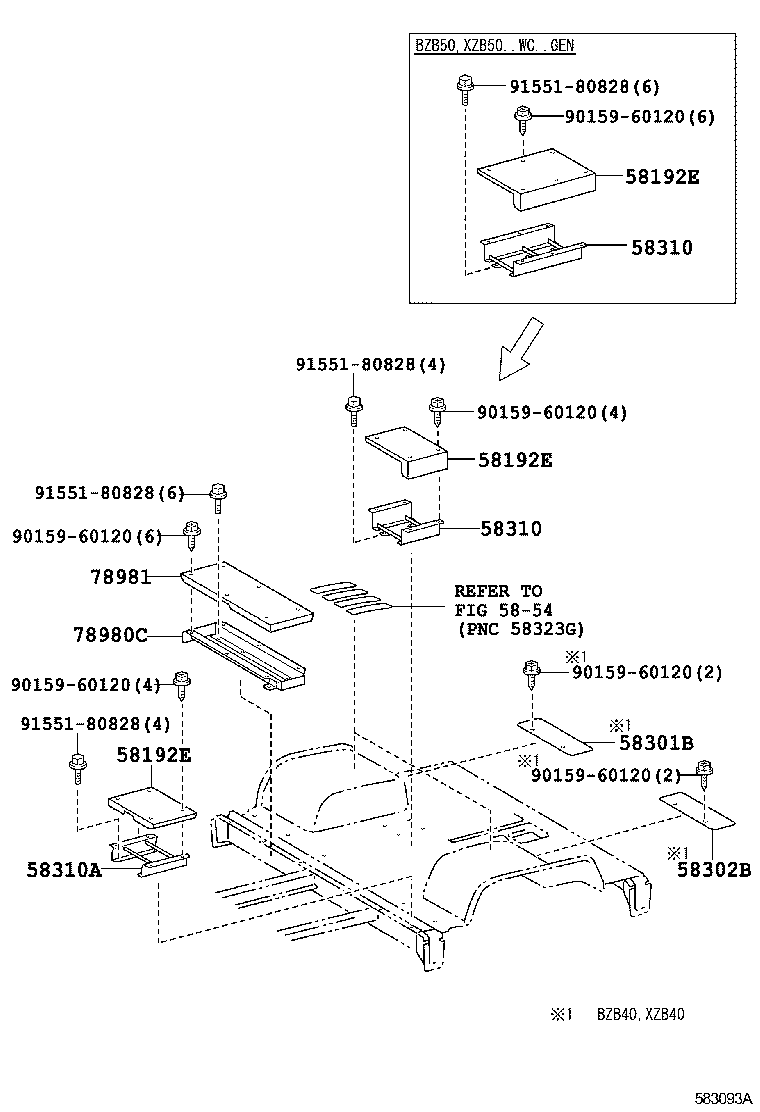

ILLUST NO. 2 OF 4(0708-1501)BZB40,50,XZB40,50..RHD..DX,STD..CBU
Click highlighted areas on diagram
FOOT REST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58192E - PANEL, FOOTREST | ||||
| 58192-36030B0 |
BZB50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58192E - PANEL, FOOTREST | ||||
| 58192-36030B0 |
BZB50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58192E - PANEL, FOOTREST | ||||
| 58192-36030B0 |
BZB50 MD.CHARCOAL,TRIM1# |
1 | ||
| 58310 - FOOTREST ASSY, NO.1 | ||||
| 58331-36020 |
BZB50 |
1 | ||
| 58310 - FOOTREST ASSY, NO.1 | ||||
| 58331-36020 |
BZB50 |
1 | ||
| Common parts | ||||
| 90159-60120 | ||||
| 91551-80828 | ||||
| Linked diagrams | ||||
| 5854 | ||||
ILLUST NO. 3 OF 4(9301-1501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90161-40029 | ||||
| 90161-50002 | ||||
| 93540-14010 | ||||
