BB60R-ZRMSS (2017)
Toyota Coaster
(1701- )BB60,BZB60,HZB60,70,XZB60,70..RHD ; (1908- )BZB70

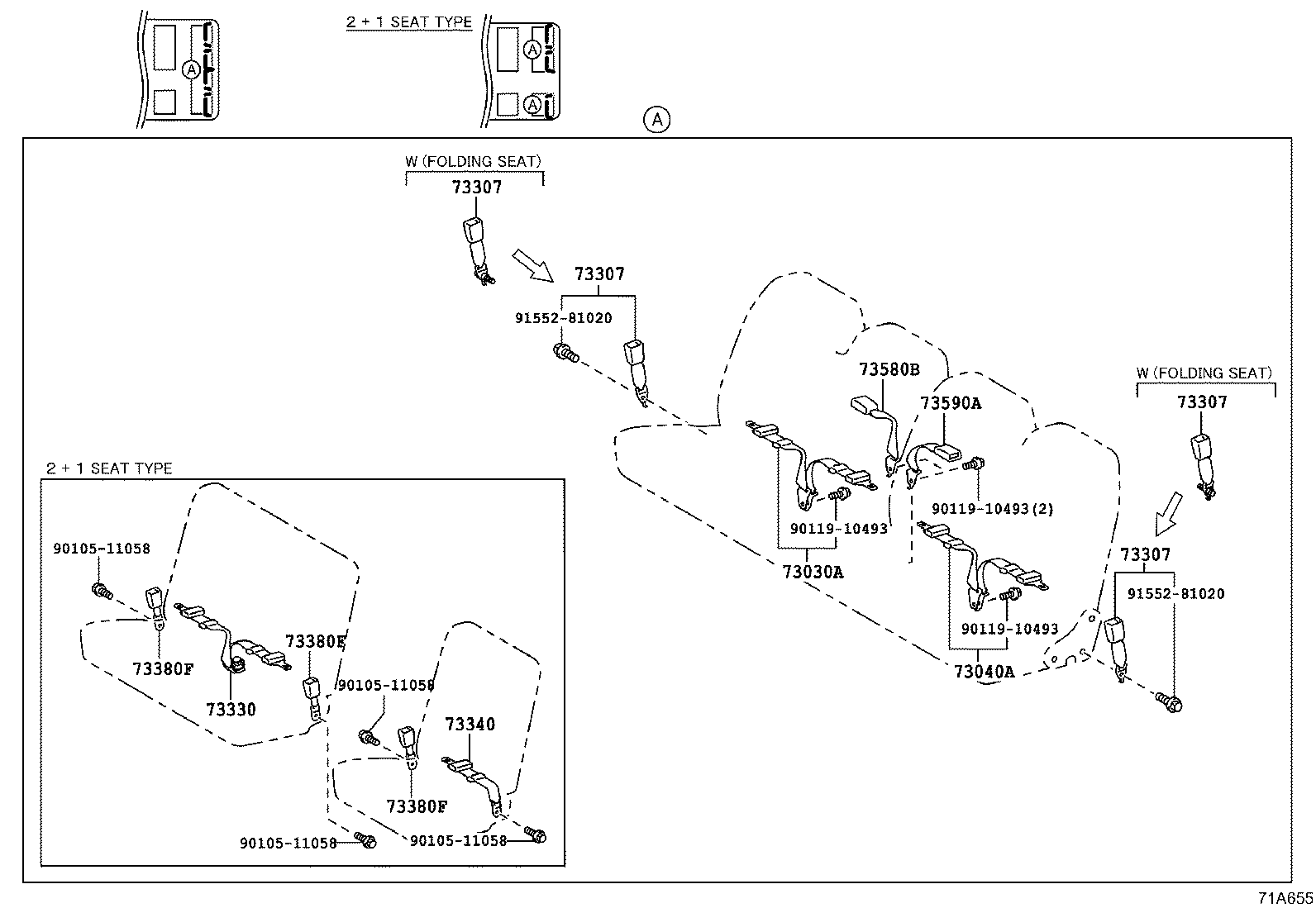

REAR SEAT(NO.2-NO.7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73137-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
5 | ||
| 73137-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
6 | ||
| 73137-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
5 | ||
| 73137-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
6 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73137-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
5 | ||
| 73137-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
6 | ||
| 73137-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
5 | ||
| 73137-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
6 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73138-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73138-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73138-36010 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE) |
8 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73178-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73178-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73178-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73178-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73178-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73178-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179A - CAP, SEAT BELT ANCHOR COVER, LH | ||||
| 73179-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73179-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73302 - BELT SUB-ASSY, REAR SEAT OUTER | ||||
| 73380-36190C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73380-36190C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73306 - BELT SUB-ASSY SEAT, INNER | ||||
| 73360-36140C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73360-36140C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73330G - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36150C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36150C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73360-36160C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73360-36160C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
10 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73343-36010C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
4 | ||
| 73343-36010C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73350-36060C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73350-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73350-36060C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36140C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36140C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36140C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73360-36140C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-36100C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73370-36100C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73370-36100C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73370-36100C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73373-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73373-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73373-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73373-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73373-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73373-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
6 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73375-36050C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
8 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36160C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36160C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36160C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36160C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36190C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73380-36190C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73380-36190C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73380-36190C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
3 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36170C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-WITHOUT(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36170C0 |
BB60..RHD COOL BOX-WITH(REFRIGERATOR)&FRONT SEAT-W/O(SEAT BACK BOARD) & W(NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36170C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD & NO.1 SUB SEAT)&REAR SEAT-WITH(BACK BOARD & NO.8SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73380-36170C0 |
BB60..RHD FRONT SEAT-WITH(SEAT BACK BOARD)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
5 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-36201C0 |
BB60..RHD;BB60..LHD..WOC COOL BOX-WITH(REFRIGERATOR)&REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
13 | ||
| 73380-36201C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
14 | ||
| Common parts | ||||
| 90105-11058 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1701- )RHD
*DRS & *RES(NO.1) & SUB SEAT(NO.1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-36140C0 |
BB60..RHD FRONT SEAT BELT-WITH(*DRS-PRETENSIONER), WITH(*PAS),BLACK,TRIM1# |
1 | ||
| 73210-36140C0 |
BB60..RHD FRONT SEAT BELT-W(*DRS-PRETENSIONER), W(*PAS & SUB SEAT),BLACK,TRIM1# |
1 | ||
| 73210-36130C0 |
BB60..RHD BLACK,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73370-36120C0 |
BB60..RHD BLACK,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73173-36030B0 |
BB60..RHD LT.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-36110C0 |
BB60..RHD BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
BB60,XZB60..20S,26S BLACK,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73380-36210C1 |
BB60..RHD BLACK,TRIM1# |
1 | ||
| 73303 - BELT SUB-ASSY, SUB SEAT, OUTER | ||||
| 73303-36040C0 |
BB60..RHD FRONT SEAT BELT-WITH(*DRP & SUB SEAT),BLACK,TRIM1# |
1 | ||
| 73303-36040C0 |
BB60..RHD FRONT SEAT BELT-W(*DRS-PRETENSIONER), W(*PAS & SUB SEAT),BLACK,TRIM1# |
1 | ||
| 73308 - BELT SUB-ASSY, SUB SEAT, INNER | ||||
| 73308-36031C0 |
BB60..RHD FRONT SEAT BELT-W(*DRS-PRETENSIONER), W(*PAS & SUB SEAT),BLACK,TRIM1# |
1 | ||
| 73308-36031C0 |
BB60..RHD FRONT SEAT BELT-WITH(*DRP & SUB SEAT),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90467-07221 | ||||
| 90901-19040 | ||||
| 91553-80614 | ||||
(1701- )

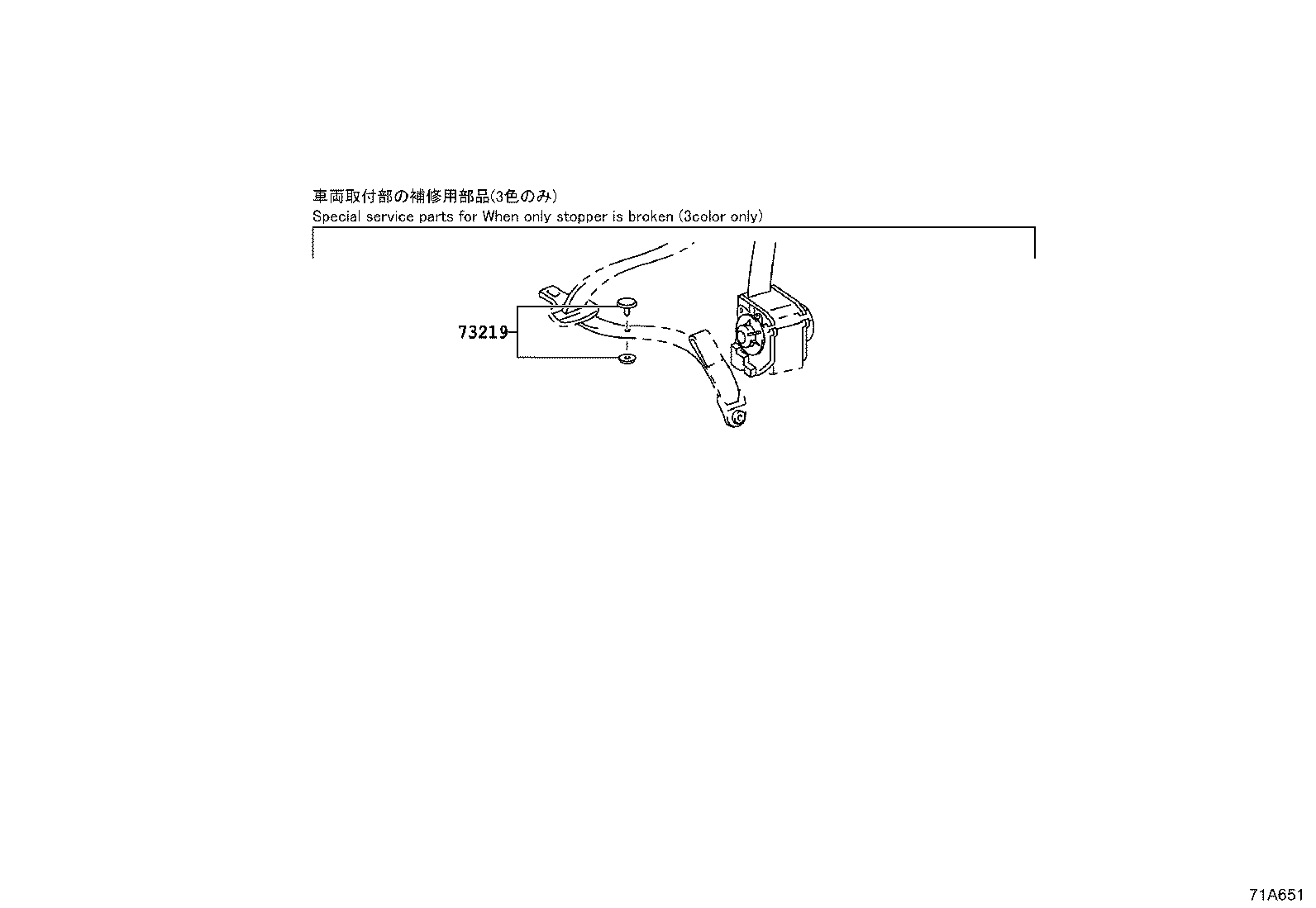

TONGUE STOPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
BB60,XZB60..20S,26S BLACK |
1 | ||
| 73219-33020 |
BB60,XZB60..20S,26S GRAY |
1 | ||
| 73219-33030 |
BB60,XZB60..20S,26S BEIGE |
1 | ||
(1701- )RHD..26S,29S,30S..STD
LAST ROW SEAT(NO.8),2-POINT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36021C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73360-36140C0 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36021C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73370-36100C0 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36030C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
2 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73350-36060C0 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73590-36020C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73350-36050C0 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),BLACK,TRIM1# |
1 | ||
| 73580-36020C0 |
BB60 REAR SEAT BELT-WITH(2-POINT TYPE),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10493 | ||||
| 91552-81020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
