BB60R-ZRMSS (2017)
Toyota Coaster

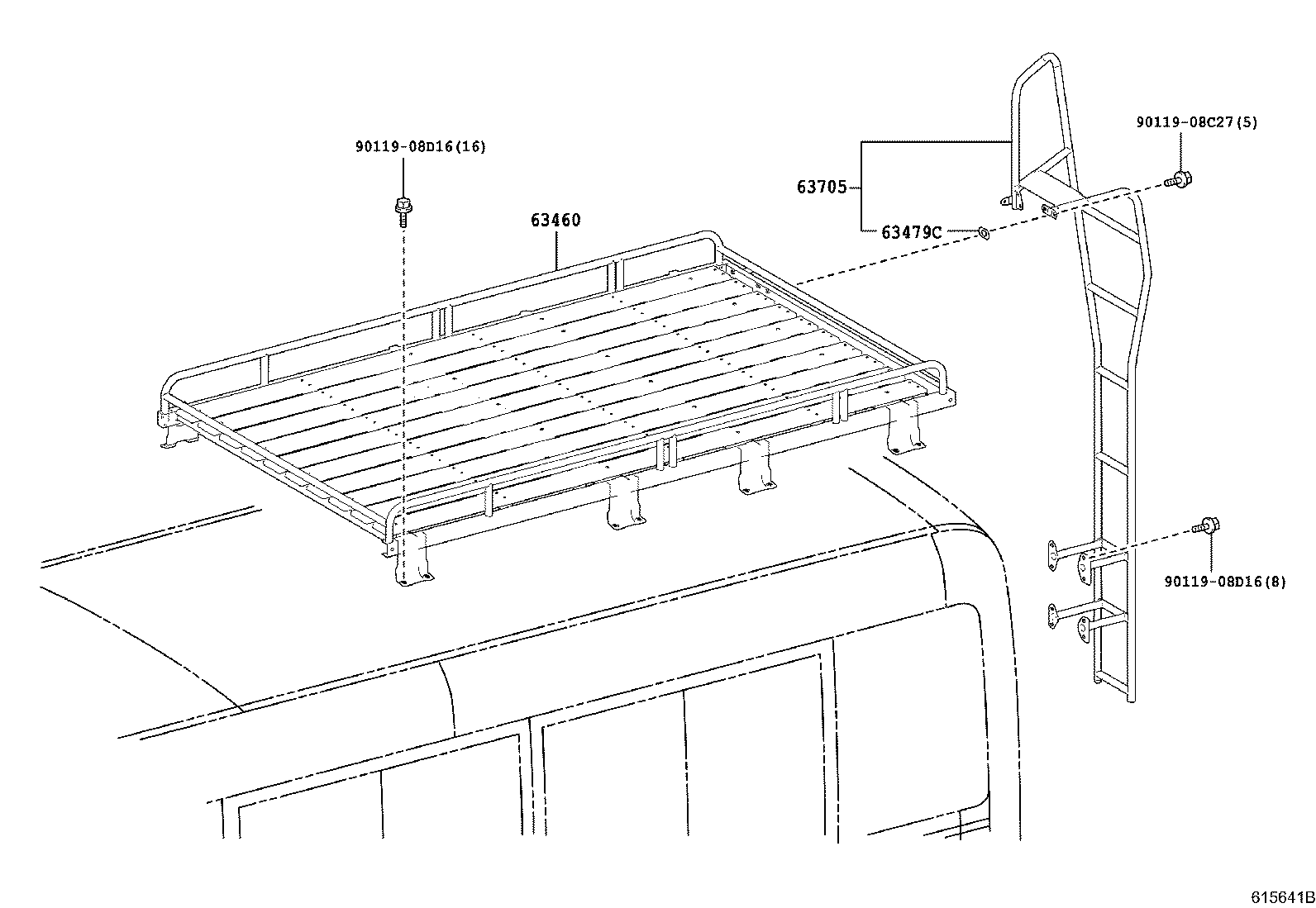

ILLUST NO. 5 OF 5(1701- )
ROOF RACK & LADDER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63460 - RACK ASSY, ROOF | ||||
| 63460-36030 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63460-36030 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63460-36030 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63479C - PLATE, ROOF RACK LEG | ||||
| 63479-36010 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
13 | ||
| 63479-36010 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
13 | ||
| 63479-36010 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
13 | ||
| 63705 - LADDER SUB-ASSY, RACK | ||||
| 63705-36030 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63705-36030 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63705-36030 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| Common parts | ||||
| 90119-08C27 | ||||
| 90119-08D16 | ||||

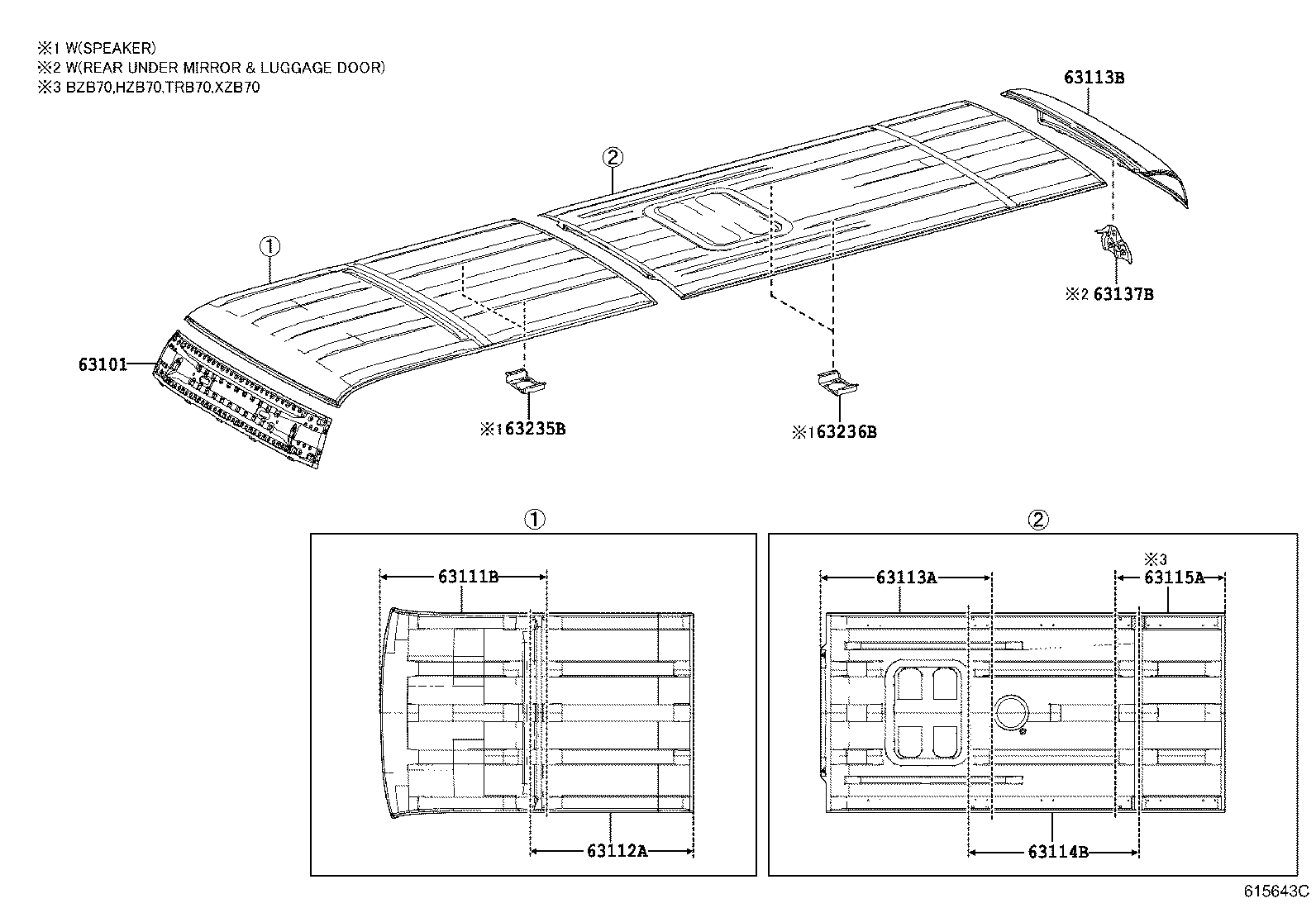

ILLUST NO. 1 OF 5(1701- )BB60,BZB60,70,HZB60,70,TRB60,70,XZB60,70
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-36040 |
BB60,XZB60..20S,26S |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63116-36100 |
BB60,XZB60..20S,26S |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63117-36130 |
BB60,XZB60..20S,26S |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63118-36120 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63118-36120 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63118-36110 |
BB60,XZB60..20S,26S |
1 | ||
| 63118-36120 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-36170 |
BB60 REAR WINDOW WIPER-WITH |
1 | ||
| 63113-36160 |
BB60 REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 63113-36210 |
BB60 |
1 | ||
| 63113-36150 |
BB60 REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63113-36180 |
BB60 HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63113-36140 |
BB60 REAR WINDOW WIPER-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63113-36200 |
BB60 REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63113-36190 |
BB60 HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63119-36150 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63119-36150 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63119-36150 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63119-36140 |
BB60,XZB60..20S,26S |
1 | ||
| 63137B - RETAINER, OUTER UNDER REAR VIEW MIRROR | ||||
| 63137-36030 |
BB60 REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63137-36030 |
BB60 REAR WINDOW WIPER-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63137-36030 |
BB60 HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63137-36030 |
BB60 REAR WINDOW WIPER-WITH&HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR) |
1 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63236-36030 |
BB60 AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
2 | ||
| 63236-36030 |
BB60,XZB60..20S,26S AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36030 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
2 | ||
| 63236-36030 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
| 63236-36030 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
2 | ||
| 63236-36030 |
BB60 AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
2 | ||
| 63236-36030 |
BB60,XZB60..20S,26S AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
| 63236-36030 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
| 63236-36030 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA) |
2 | ||
| 63236-36030 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER |
2 | ||
ILLUST NO. 4 OF 5(1701- )RHD
ROOF VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55788C - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH | ||||
| 55788-36010 |
BB60,XZB60..20S,26S |
1 | ||
| 55789E - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH | ||||
| 55788-36010 |
BB60,XZB60..20S,26S |
1 | ||
| 63085A - LOUVER SUB-ASSY, ROOF VENTILATOR, RH | ||||
| 63085-36040 |
BB60,XZB60..20S,26S |
1 | ||
| 63086A - LOUVER SUB-ASSY, ROOF VENTILATOR, LH | ||||
| 63086-36040 |
BB60,XZB60..20S,26S |
1 | ||
| 63830 - DUCT ASSY, ROOF VENTILATOR | ||||
| 63830-36090 |
BB60,XZB60..(20S,26S)..WC |
1 | ||
| 63830 - DUCT ASSY, ROOF VENTILATOR | ||||
| 63830-36090 |
BB60,XZB60..(20S,26S)..WC |
1 | ||
| 63849 - HOSE, ROOF VENTILATOR DRAIN | ||||
| 63805-36030 |
BB60..RHD |
1 | ||
| 63859 - HOSE, ROOF VENTILATOR DRAIN, NO.2 | ||||
| 63806-36020 |
BB60..RHD..WC |
1 | ||
| 63873 - MOULDING, ROOF VENTILATOR, RH | ||||
| 63874-36030 |
BB60,XZB60..20S,26S |
1 | ||
| 63874 - MOULDING, ROOF VENTILATOR, LH | ||||
| 63874-36030 |
BB60,XZB60..20S,26S |
1 | ||
| 87243C - HOSE, WATER, NO.4 | ||||
| 87246-36010 |
BB60,XZB60..(20S,26S)..WC |
1 | ||
| Common parts | ||||
| 63669-36010 | ||||
| 63829-36030 | ||||
| 63829-36040 | ||||
| 63829-36050 | ||||
| 63829-36060 | ||||
| 81199-36010 | ||||
| 82711-34480 | ||||
| 82711-48210 | ||||
| 82711-52090 | ||||
| 90467-09241 | ||||
| 90467-10162 | ||||
| 90467-10167 | ||||
| 91553-80614 | ||||
| 96136-41801 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 3 OF 5(1701- )
BACK GLASS & PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64013A - RAIL SUB-ASSY, BACK | ||||
| 64013-36120 |
BB60..RHD REAR WINDOW WIPER-WITH&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45 |
1 | ||
| 64013-36140 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45 |
1 | ||
| 64013-36140 |
BB60,XZB60..20S,26S |
1 | ||
| 64013-36130 |
BB60,XZB60..20S,26S REAR WINDOW WIPER-WITH |
1 | ||
| 64013-36150 |
BB60..RHD REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45 |
1 | ||
| 64810 - WINDOW ASSY, BACK | ||||
| 64810-36020 |
BB60 REAR WINDOW DEFOGGER-WITH |
1 | ||
| 64810-36010 |
BB60 |
1 | ||
| 64811D - RETAINER, BACK WINDOW | ||||
| 56114-36010 |
BB60 |
4 | ||
| 64811D - RETAINER, BACK WINDOW | ||||
| 56114-36010 |
BB60 |
4 | ||
| 64819A - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-36010 |
BB60,XZB60..20S,26S |
4 | ||
| 64819A - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-36010 |
BB60,XZB60..20S,26S |
4 | ||
| 64827D - CLIP, BACK WINDOW GLASS | ||||
| 64827-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64827D - CLIP, BACK WINDOW GLASS | ||||
| 64827-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64827D - CLIP, BACK WINDOW GLASS | ||||
| 64827-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64828C - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64828C - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 64828C - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-36050 |
BB60,XZB60..20S,26S |
1 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
| 68299A - SPACER, BACK DOOR GLASS | ||||
| 68294-26030 |
XZB70..23S,29S,30S;BB60,HZB70,TRB60,70,XZB60..20S,23S,24S,26S,30S |
14 | ||
| 68294-26030 |
BB60,XZB60 |
8 | ||
ILLUST NO. 2 OF 5(1701- )BB60,BZB60,HZB60,TRB60,XZB60
STRENGTH & REINFORCEMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63043A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1 | ||||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A | ||||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63045 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63044-36080 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPACITY = 100KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36080 |
BB60..RHD..WC PARCEL RACK-WITH |
1 | ||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63044-36080 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 160KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36080 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 70KG)&PARCEL RACK-WITH |
1 | ||
| 63046 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A | ||||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPACITY = 100KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 70KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36080 |
BB60..RHD..WC PARCEL RACK-WITH |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63044-36130 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 160KG)&PARCEL RACK-WITH |
1 | ||
| 63047C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 70KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPACITY = 100KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63044-36080 |
BB60..RHD..WC PARCEL RACK-WITH |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 160KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63044-36130 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63048B - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPACITY = 100KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63044-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 70KG)&PARCEL RACK-WITH |
1 | ||
| 63044-36130 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63044-36080 |
BB60..RHD..WC PARCEL RACK-WITH |
1 | ||
| 63044-36130 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63044-36090 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 160KG)&PARCEL RACK-WITH |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63104-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63043-36060 |
BB60,XZB60..20S,26S |
1 | ||
| 63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63103-36050 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 70KG)&PARCEL RACK-WITH |
1 | ||
| 63103-36050 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPACITY = 100KG)&PARCEL RACK-WITH |
1 | ||
| 63103-36070 |
BB60 ROOF RACK-WITH(LOAD CAPACITY = 100KG) |
1 | ||
| 63103-36050 |
BB60..RHD..WC ROOF RACK-WITH(LOAD CAPASITY = 160KG)&PARCEL RACK-WITH |
1 | ||
| 63103-36040 |
BB60,XZB60..20S,26S |
1 | ||
| 63103-36020 |
BB60..RHD..WC PARCEL RACK-WITH |
1 | ||
| 63103-36070 |
BB60 ROOF RACK-WITH(LOAD CAPASITY = 160KG) |
1 | ||
| 63103-36070 |
BB60..RHD ROOF RACK-WITH(LOAD CAPASITY = 70KG) |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-36020 |
BB60,XZB60..20S,26S |
2 | ||
| 63254D - STRENGTH, ROOF PANEL, CENTER NO.4 | ||||
| 63254-36011 |
BB60,XZB60 |
2 | ||
| 63254-36010 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
2 | ||
| 63255E - STRENGTH, ROOF PANEL, CENTER NO.5 | ||||
| 63255-36030 |
BB60,XZB60..20S,26S |
2 | ||
| 63256E - STRENGTH, ROOF PANEL, CENTER NO.6 | ||||
| 63254-36011 |
BB60,XZB60 |
2 | ||
| 63254-36010 |
BB60,BZB60,70,HZB70,TRB60,70,XZB60,70 |
2 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63257-36030 |
BB60,XZB60..20S,26S |
1 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63259-36020 |
BB60,XZB60..20S,26S |
2 | ||
| 63267C - STRENGTH, ROOF PANEL, CENTER NO.7 LH | ||||
| 63259-36010 |
BB60,XZB60..20S,26S |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-36050 |
BB60,XZB60..20S,26S |
2 | ||
| 63274E - STRENGTH, ROOF PANEL, NO.4 | ||||
| 63274-36030 |
BB60,XZB60..20S,26S |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-36010 |
BB60,XZB60..20S,26S |
2 | ||
| 63276D - STRENGTH, ROOF PANEL, NO.6 | ||||
| 63274-36030 |
BB60,XZB60..20S,26S |
2 | ||
| 63277L - STRENGTH, ROOF PANEL, NO.7 | ||||
| 63275-36010 |
BB60,XZB60..20S,26S |
2 | ||
| 63278F - STRENGTH, ROOF PANEL, NO.8 | ||||
| 63279-36080 |
BB60,XZB60..20S,26S |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
