BB60R-ZRMRS (2017)

Toyota Coaster

Production Jan 2017 - Sep 9999
Engine 14B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )BB60..RHD

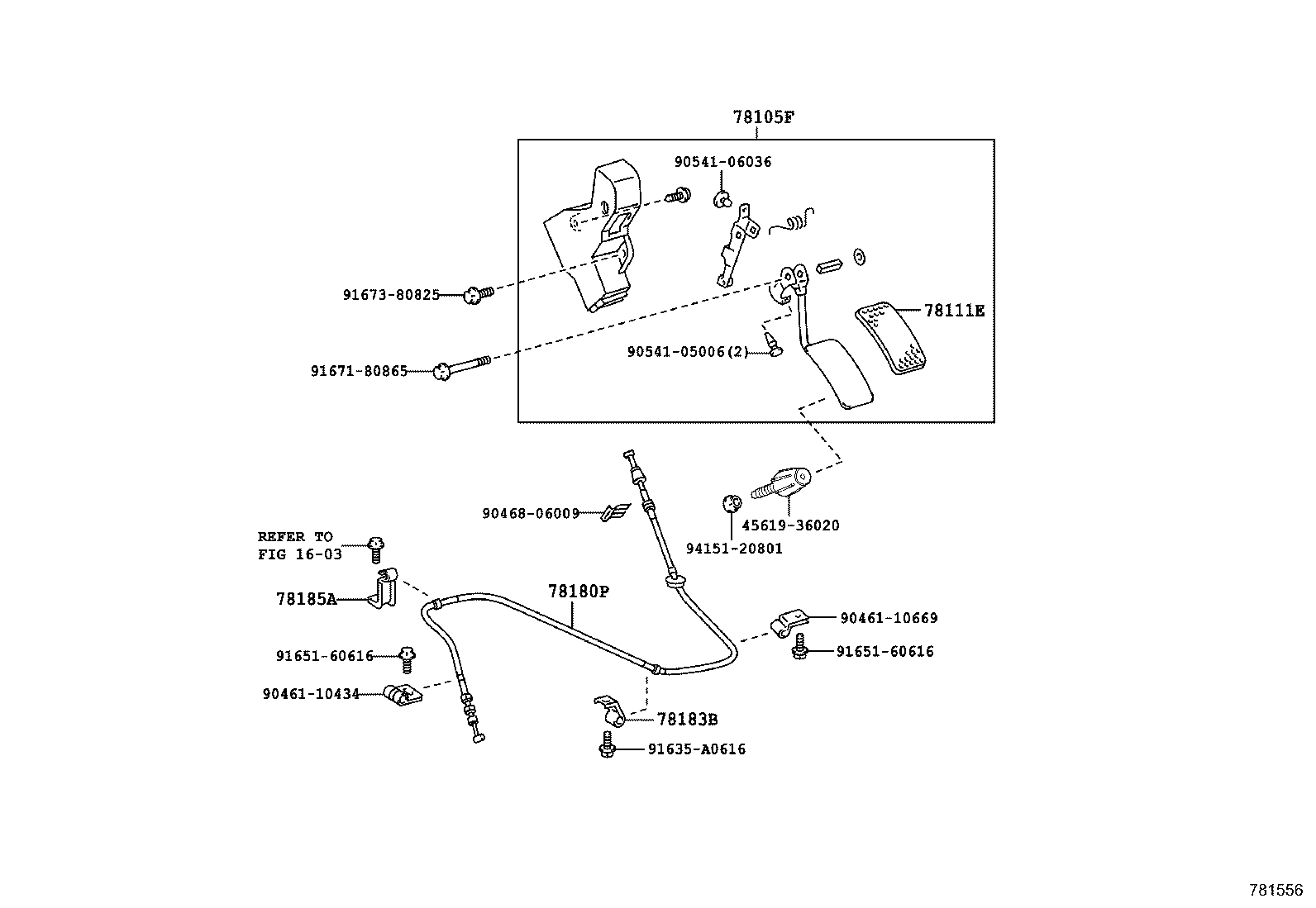

Click highlighted areas on diagram

diagram 1603 4561936020 78105F 78111E 78180P 78183B 78185A 9046110434 9046110669 9046806009 9054105006 9054106036 91635A0616 9165160616 9165160616 9167180865 9167380825 9415120801
Part # Description Qty Price
78105F - LINK SUB-ASSY, ACCELERATOR
78105-36080

BB60..RHD

 1
78111E - PAD, ACCELERATOR PEDAL
78111-95110

BB60,XZB60..20S,26S

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-36031

BB60..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-36010

BB60..RHD

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-36020

BB60

 1
Common parts
45619-36020
90461-10434
90461-10669
90468-06009
90541-05006
90541-06036
91635-A0616
91651-60616
91671-80865
91673-80825
94151-20801
Linked diagrams
1603
