BB60R-ZRMRS (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
14B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )BB60,HZB60..RHD

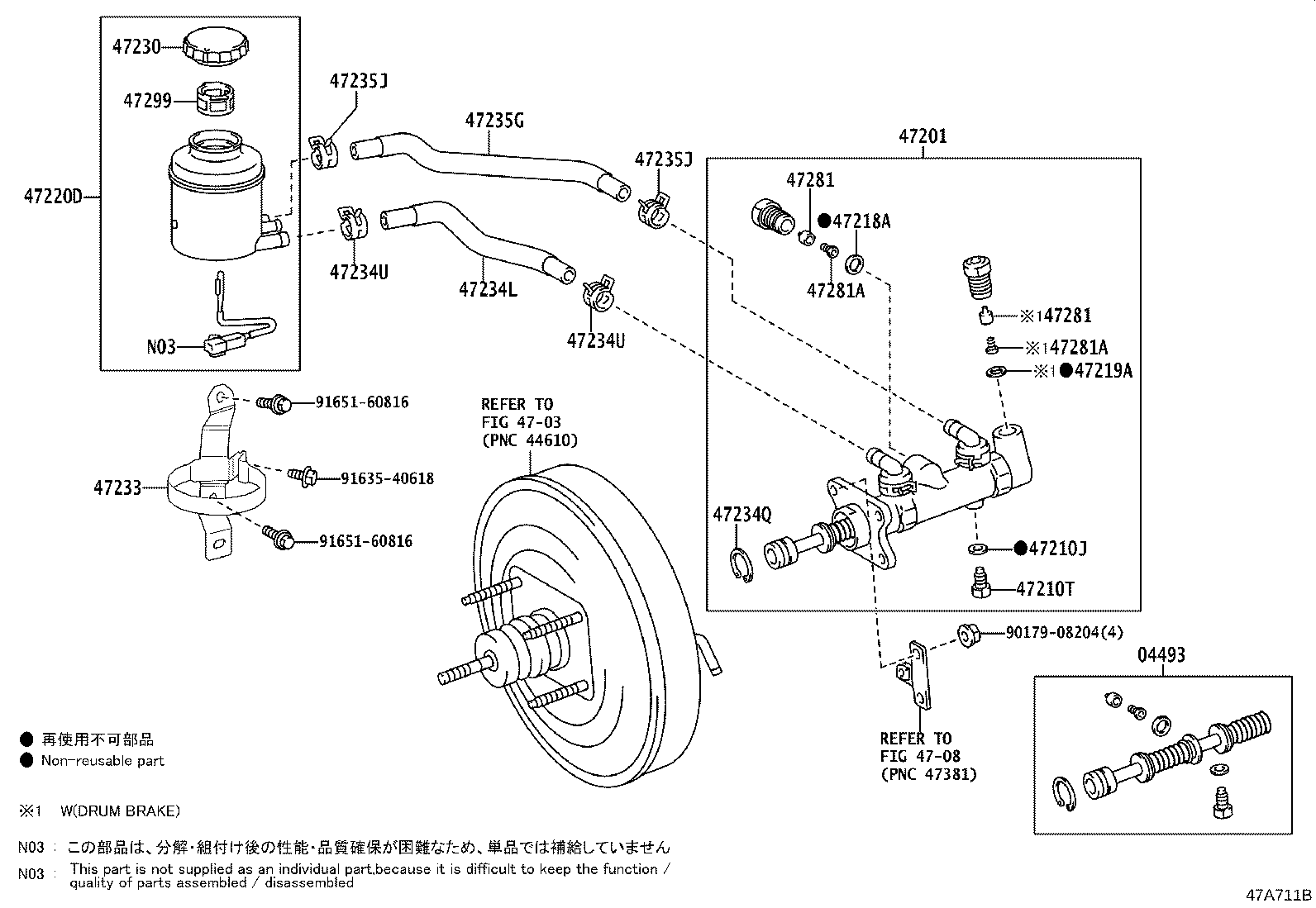

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-36171 |
BB60 FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 04493-37022 |
BB60 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-36402 |
BB60..RHD FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47201-36382 |
BB60..RHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BB60 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BB60 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BB60 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
BB60 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36120 |
BB60..RHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
BB60,XZB60..20S,26S |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-36060 |
BB60..RHD |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-36160 |
BB60..RHD |
1 | ||
| 47234Q - RING, SNAP(FOR RESERVOIR TUBE) | ||||
| 96151-03000 |
BB60 |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
BB60,XZB60..20S,26S |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96133-41500 |
BB60,XZB60..20S,26S |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-36160 |
BB60..RHD |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
BB60,XZB60..20S,26S |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96133-41500 |
BB60,XZB60..20S,26S |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB60 |
2 | ||
| 47281-30020 |
BB60..RHD FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BB60 |
2 | ||
| 47281-30020 |
BB60..RHD FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
BB60..RHD FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
BB60 |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
BB60..RHD FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90501-05012 |
BB60 |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
BB60,XZB60..20S,26S |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91635-40618 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
