BB60R-ZRMRS (2017)
Toyota Coaster
Production
Jan 2017
-
Sep 9999
Engine
14B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

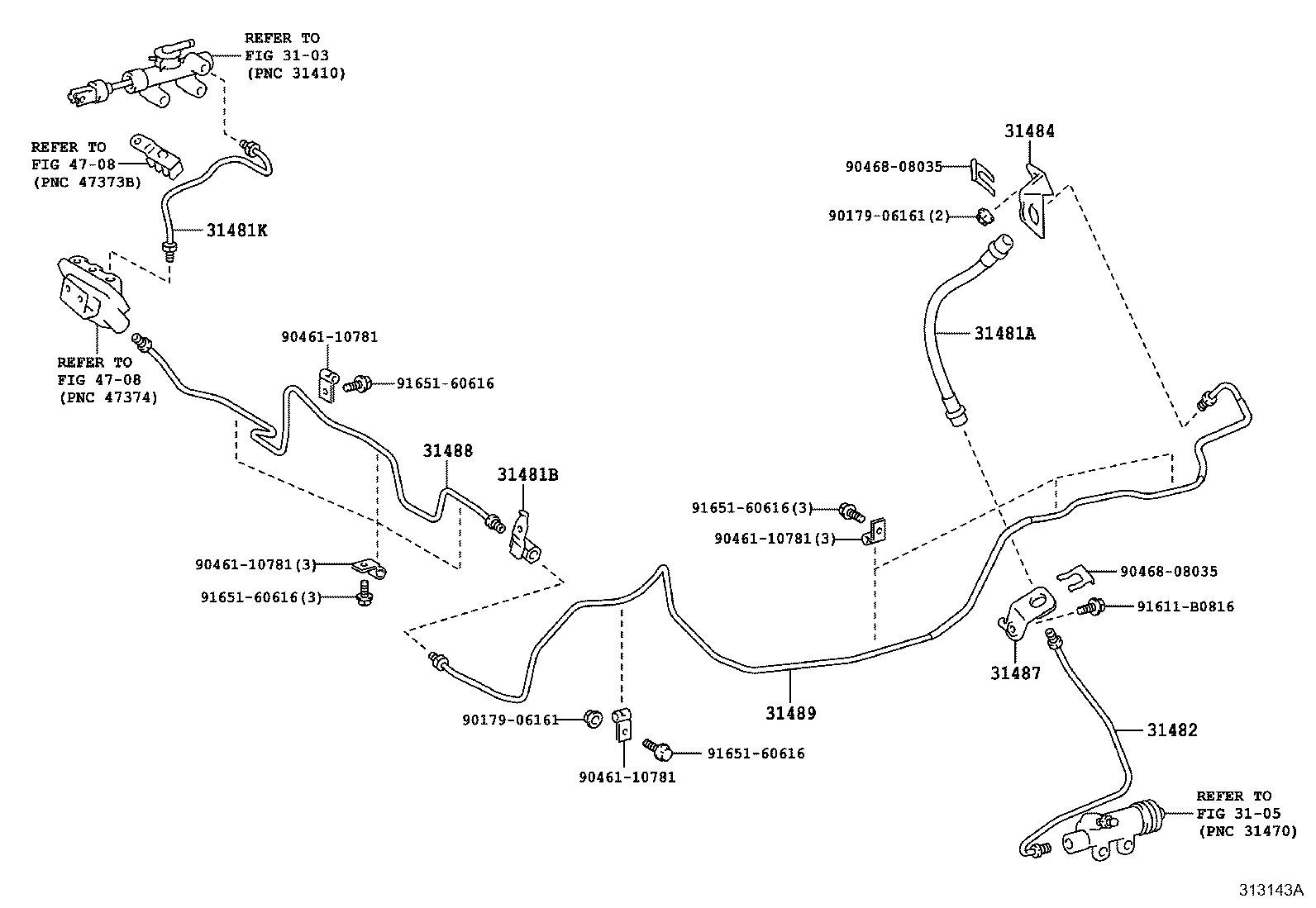

ILLUST NO. 2 OF 2(1701- )BB60..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02K78 |
BB60 |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12048 |
BB60 |
1 | ||
| 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR | ||||
| 31481-36461 |
BB60..RHD |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36220 |
BB60 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-36230 |
BB60 |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36230 |
BB60 |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36592 |
BB60 |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-36241 |
BB60..RHD |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 90468-08035 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(1701- )BB60,BZB60,70,TRB60,70,XZB60,70,80..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-36210 |
BB60 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35013 |
BB60,XZB60..20S,26S |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BB60,XZB60..20S,26S |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB60,XZB60..20S,26S |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB60,XZB60..20S,26S |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BB60,XZB60..20S,26S |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-61070 |
BB60 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BB60 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BB60,XZB60..20S,26S L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BB60,XZB60..20S,26S |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55136-36010 |
BB60 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4701 | ||||
