Toyota Coaster BB58 POWER STEERING TUBE

Manufacturers Home
Toyota
GR
COASTER
BB58L-ZEFSZ (1999)
4503 - POWER STEERING TUBE

BB58L-ZEFSZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2006

Engine 15BFTE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9907- )LHD..TDEFI

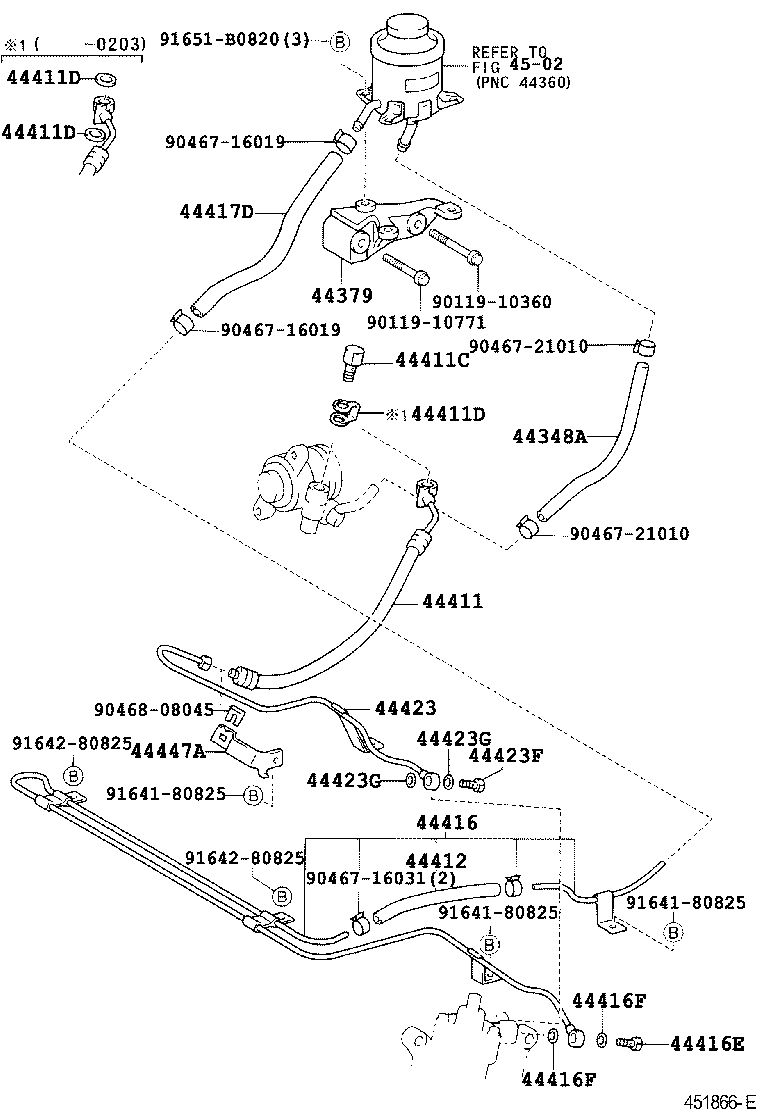

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36310	BB5#..TDEFI	07/1999 - 08/2004	1
44348-36310	BB5#..TDEFI	08/2004 - 08/2006	1
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36190	BB5#..TDEFI	07/1999 - 08/2004	1
44379-36190	BB5#..TDEFI	08/2004 - 08/2006	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36510	BB50,58..LHD..TDEFI	07/1999 - 08/2004	1
44411-36510	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90904-01001	RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB5#,RZB50..(ARL,EUR,GCC,GEN)..(EFI,TDEFI)	07/1999 - 08/2004	1
90904-01001	BB5#..TDEFI	08/2004 - 08/2006	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44412 - HOSE, RETURN
90445-18137	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90445-18137	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18109	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
90445-18109	BB50,58..LHD..TDEFI	07/1999 - 08/2004	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44423F - BOLT, UNION
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
Common parts
90119-10360
90119-10771
90467-16019
90467-16031
90467-21010
90468-08045
91641-80825
91642-80825
91651-B0820
Linked diagrams
4502

(9907- )LHD..TD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36310	BB5#..TDEFI	07/1999 - 08/2004	1
44348-36310	BB5#..TDEFI	08/2004 - 08/2006	1
44411 - HOSE, PRESSURE FEED
44411-36371	BB42,5#..LHD	01/1993 - 07/1999	1
44411-36510	BB50,58..LHD..TDEFI	07/1999 - 08/2004	1
44411-36510	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BB4#,5#,HZB50	01/1993 - 07/1999	1
90904-01001	RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB5#,RZB50..(ARL,EUR,GCC,GEN)..(EFI,TDEFI)	07/1999 - 08/2004	1
90904-01001	BB5#..TDEFI	08/2004 - 08/2006	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-16168	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 03/2002	2
44327-30030	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44327-30030	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	03/2002 - 08/2004	1
44412 - HOSE, RETURN
90445-18137	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90445-18137	BZB50..EX;BB5#..TDEFI	08/2004 - 08/2006	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44416-36361	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44416-36361	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44416F - GASKET(FOR RETURN TUBE)
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36241	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44423-36241	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44423F - BOLT, UNION
90401-14003	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90401-14003	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44423G - GASKET, UNION BOLT
90430-14235	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90430-14235	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210	BB42,5#,HZB50..LHD	01/1993 - 07/1999	1
44447-36210	BB50,58..LHD..TDEFI	08/2004 - 08/2006	1
44447-36210	BB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)	07/1999 - 08/2004	1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040	BB4#,5#	01/1993 - 07/1999	1
Common parts
90464-00550
90464-00783
90467-16019
90467-16031
90467-21010
90468-08045
91641-80825
91642-80825
91651-60816

BB58L-ZEFSZ (1999)

(9907- )LHD..TDEFI

(9907- )LHD..TD
