BB58L-ZEFSZ (1999)
Toyota Coaster
(9907-0608)15BFTE

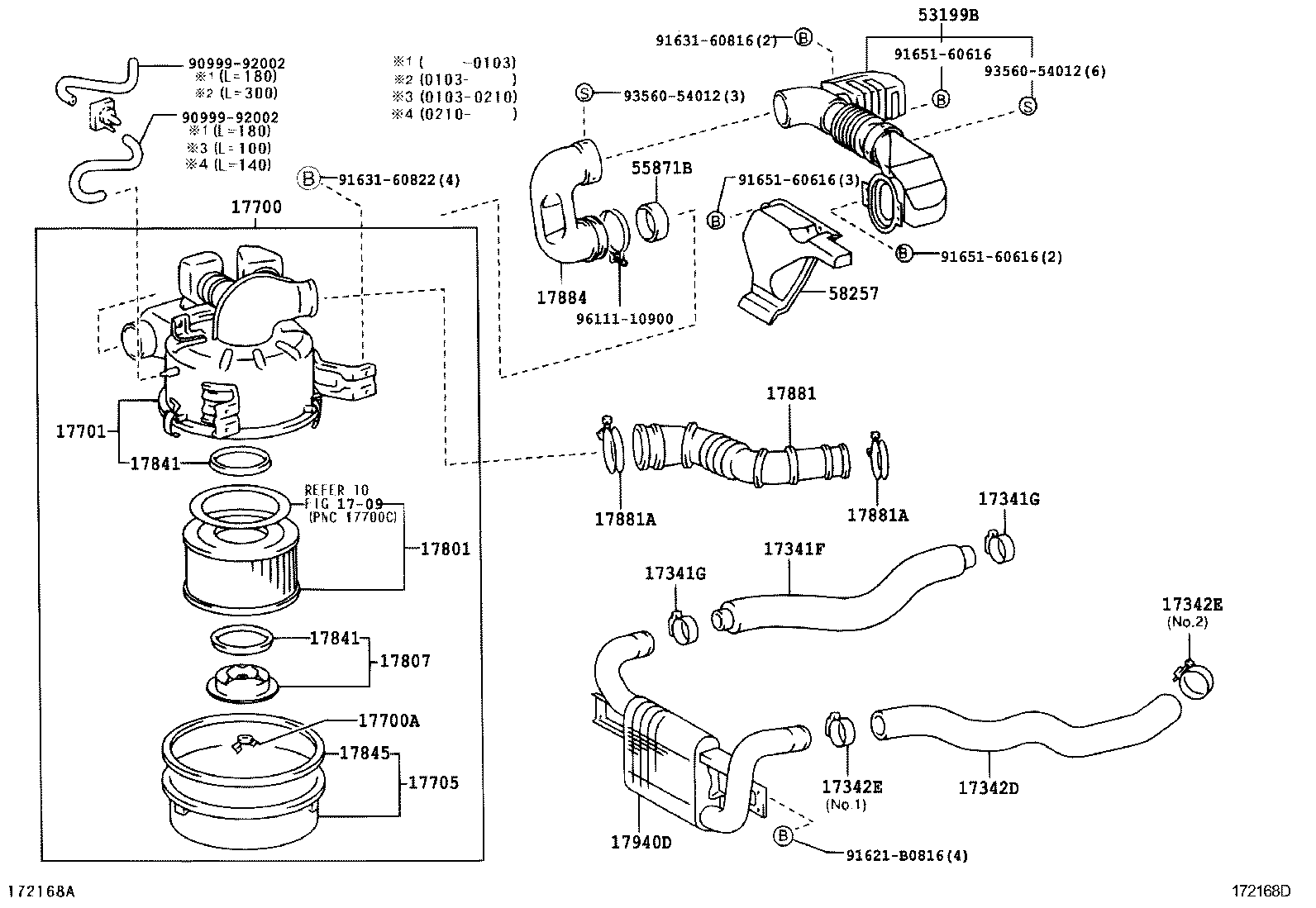

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-58160 |
15BFTE..BB50,58..LHD |
1 | ||
| 17341-58160 |
15BFTE..BB50,58..LHD |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67004 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) |
2 | ||
| 90460-67004 |
15BFTE..BB5# |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67004 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) |
2 | ||
| 90460-67004 |
15BFTE..BB5# |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-58140 |
15BFTE..BB50,58..LHD |
1 | ||
| 17342-58140 |
15BFTE..BB50,58..LHD |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67004 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) NO.1 |
1 | ||
| 90460-74002 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) NO.2 |
1 | ||
| 90460-67004 |
15BFTE..BB5# NO.1 |
1 | ||
| 90460-74002 |
15BFTE..BB5# NO.2 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67004 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) NO.1 |
1 | ||
| 90460-74002 |
15BFTE..BB50..LHD..WOC;15BFTE..BB50,58..STD..WC..(EUR,GEN) NO.2 |
1 | ||
| 90460-67004 |
15BFTE..BB5# NO.1 |
1 | ||
| 90460-74002 |
15BFTE..BB5# NO.2 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58680 |
15BFTE..BB5#..ARL,GEN;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17700-58680 |
15BFTE..BB5#..ARL,GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90175-08008 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..LHD..CBU..5F |
1 | ||
| 90175-08008 |
15BFTE..BB5# |
1 | ||
| 90175-08008 |
14B,15B#..BB42,5#..ARL,EUR,GCC,GEN |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-58350 |
15BFTE..BB5#..ARL,GEN;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17701-58350 |
15BFTE..BB5#..ARL,GEN |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17180 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17705-17180 |
15BFTE..BB5# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58040 |
15BFTE..BB5#..ARL,GEN;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17801-58040 |
15BFTE..BB5#..ARL,GEN |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58020 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17807-58020 |
15BFTE..BB5# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17841-68010 |
15BFTE..BB5# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17841-68010 |
15BFTE..BB5# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
15BFTE..BB5# |
1 | ||
| 17845-58010 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58350 |
15BFTE..BB5# |
1 | ||
| 17881-58350 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F ENGINE SIDE |
1 | ||
| 96111-10900 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
15BFTE..BB5# ENGINE SIDE |
1 | ||
| 96111-10900 |
15BFTE..BB5# AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F ENGINE SIDE |
1 | ||
| 96111-10900 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F AIR CLEANER SIDE |
1 | ||
| 96111-10650 |
15BFTE..BB5# ENGINE SIDE |
1 | ||
| 96111-10900 |
15BFTE..BB5# AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36020 |
15BFTE..BB5#;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 59132-36020 |
15BFTE..BB5# |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-58110 |
15BFTE..BB5# |
1 | ||
| 17940-58110 |
15BFTE..BB5# |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36030 |
BB58,59;BB50..EX..TDEFI;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 53207-36030 |
BB5#..TDEFI |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
BZB50..EX;BB5#..TDEFI |
1 | ||
| 55871-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36020 |
BB58,59;BB50..EX..TDEFI;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 58257-36020 |
BB5#..TDEFI |
1 | ||
| Common parts | ||||
| 90999-92002 | ||||
| 91621-B0816 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 93560-54012 | ||||
| 96111-10900 | ||||
| Linked diagrams | ||||
| 1709 | ||||

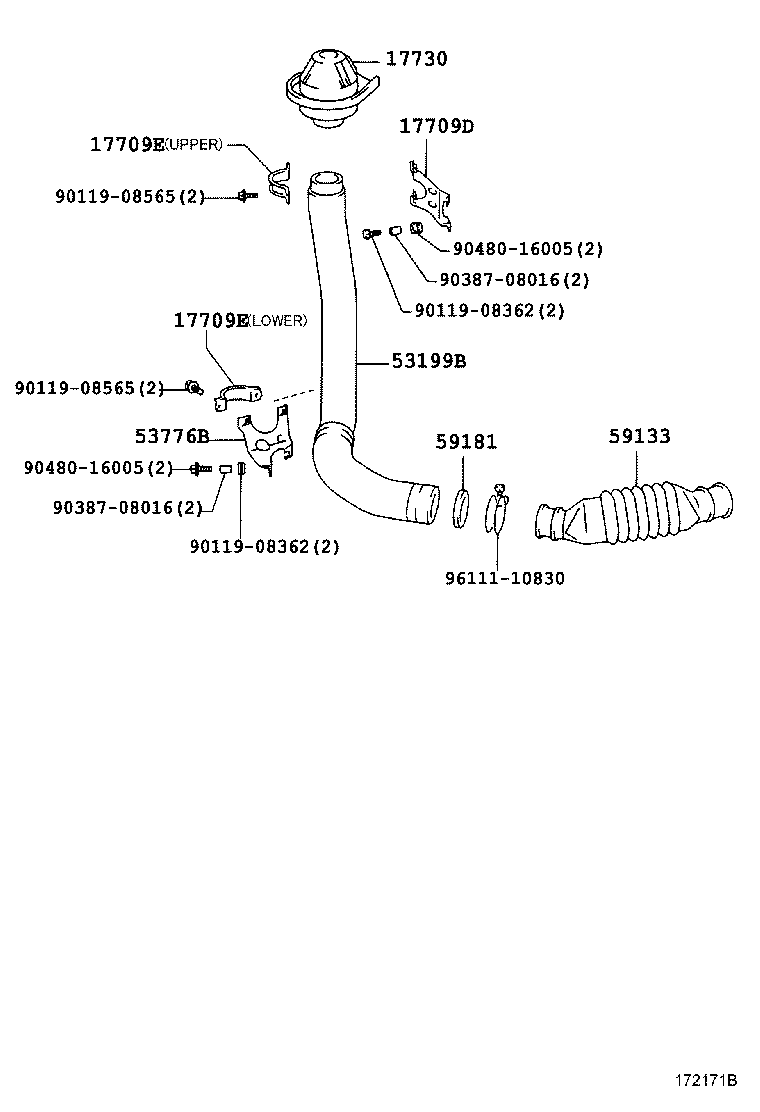

ILLUST NO. 2 OF 2(9907- )15BFT
W(PRE CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36030 |
BB58,59;BB50..EX..TDEFI;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN) |
1 | ||
| 53207-36030 |
BB5#..TDEFI |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 96111-10830 | ||||
