BB42R-BRMSS (2011)
Toyota Coaster
ILLUST NO. 3 OF 4(1108- )BZB40,50,XZB40,5#..RHD..GEN ; (1209-)TRB50..GCC ; (1209- )HZB50..
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-36050 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44510-36050 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44510-36050 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-36020 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44590-36020 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44590-36020 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 44590-36020 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 44590-36020 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 44590-36020 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-10071 | ||||

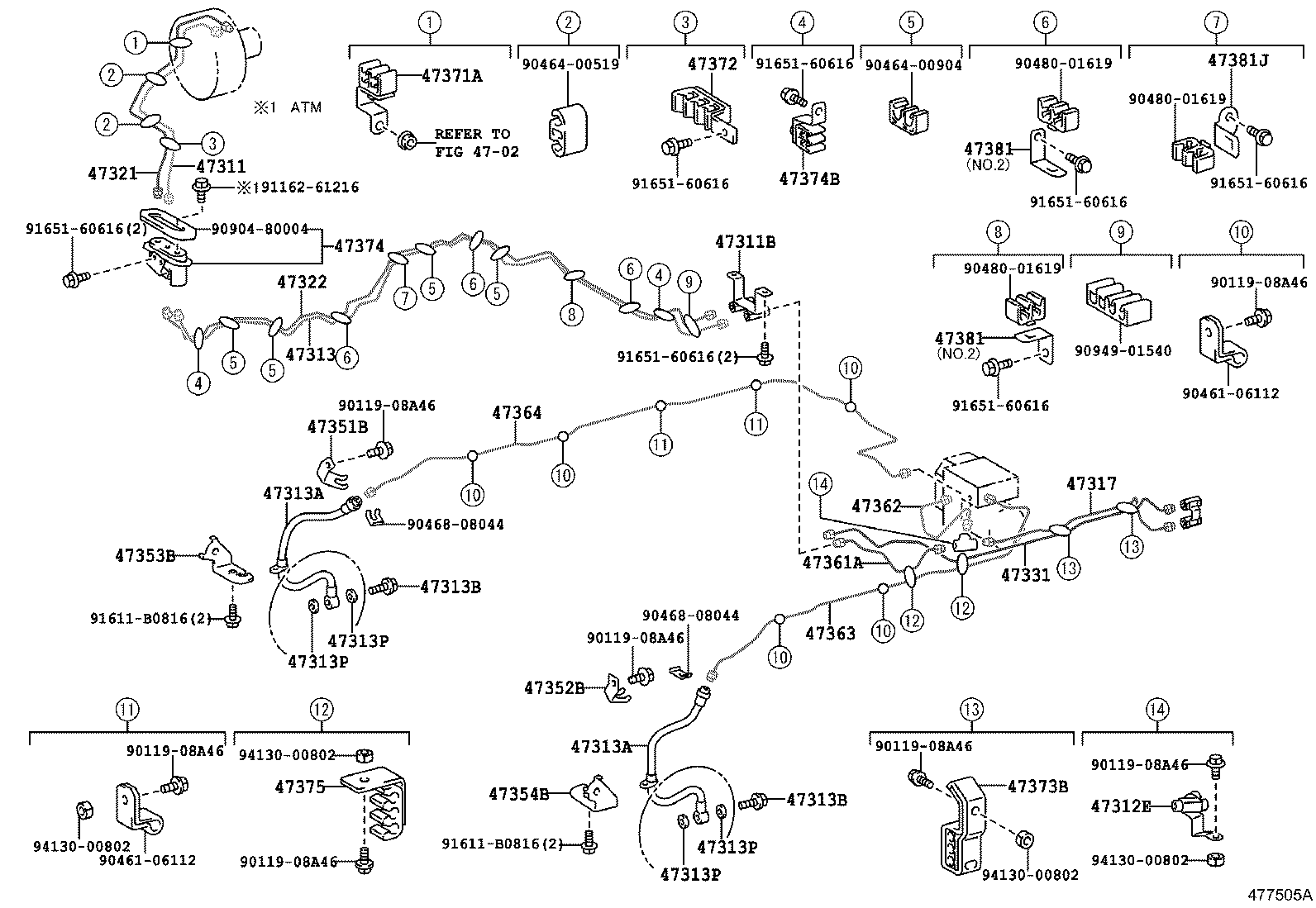

ILLUST NO. 1 OF 4(1108- )ARL..4FC ; (1108- )BZB40,50,XZB40,5#..GEN
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36480 |
BB4#,50,HZB50..RHD |
1 | ||
| 47311-36551 |
BZB40,50,XZB40,5#..RHD |
1 | ||
| 47311-36551 |
BZB40,50,XZB40,5#..GEN..5F |
1 | ||
| 47311-36541 |
BB42,HZB50..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 90412-12045 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10210 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 90904-13517 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 90904-12061 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36250 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 47313-36380 |
BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 47313-36400 |
XZB40,5#..RHD..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02708 |
BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S |
2 | ||
| 90947-02E22 |
BB42,HZB50,TRB40,XZB40,50..26S,30S |
2 | ||
| 90947-02B91 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# W(FRONT DISC BRAKE) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02707 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02708 |
BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S |
2 | ||
| 90947-02E22 |
BB42,HZB50,TRB40,XZB40,50..26S,30S |
2 | ||
| 90947-02B91 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# W(FRONT DISC BRAKE) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90401-10015 |
BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S |
2 | ||
| 90401-10023 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# W(FRONT DISC BRAKE) |
2 | ||
| 90401-10015 |
BB42,HZB50,TRB40,XZB40,50..26S,30S |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
BB4#,5#,HZB50,RZB40,50 W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90401-10015 |
BB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S |
2 | ||
| 90401-10023 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# W(FRONT DISC BRAKE) |
2 | ||
| 90401-10015 |
BB42,HZB50,TRB40,XZB40,50..26S,30S |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90430-10074 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90430-10074 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90430-10074 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90430-10074 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36171 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47317-36171 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36300 |
BB4#,50,HZB50..RHD |
1 | ||
| 47321-36371 |
BZB40,50,XZB40,5#..RHD |
1 | ||
| 47321-36361 |
BB42,HZB50..RHD |
1 | ||
| 47321-36371 |
BZB40,50,XZB40,5#..GEN..5F |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36330 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 47322-36500 |
XZB40,5#..RHD..GEN |
1 | ||
| 47322-36480 |
BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36261 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47331-36261 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47331-36300 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36210 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47351-36250 |
BB42,HZB50,TRB40,XZB40,50..26S,30S NO.2 |
1 | ||
| 47351-36240 |
BB42,HZB50,TRB40,XZB40,50..26S,30S NO.1 |
1 | ||
| 47351-36210 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36200 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47352-36230 |
BB42,HZB50,TRB40,XZB40,50..26S,30S NO.1 |
1 | ||
| 47352-36200 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47352-36240 |
BB42,HZB50,TRB40,XZB40,50..26S,30S NO.2 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36210 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47353-36210 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36090 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47354-36090 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36072 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47361-36072 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36031 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47362-36070 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47362-36031 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36060 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47363-36060 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36080 |
XZB40,5#..GEN |
1 | ||
| 47364-36081 |
XZB40,5#..RHD..GEN |
1 | ||
| 47364-36120 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-36040 |
BB4#,50,HZB50..RHD |
2 | ||
| 47371-36110 |
BZB40,50,XZB40,5#..GEN..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36060 |
BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S |
1 | ||
| 47373-35040 |
BZB40,50,XZB40,5#..GEN..5F |
1 | ||
| 47373-35040 |
BZB40,50,XZB40,5#..RHD |
1 | ||
| 47373-35040 |
BB42,HZB50..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01536 |
BZB40,50,XZB40,5#..GEN |
2 | ||
| 90949-01536 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S NO.2 |
1 | ||
| 90949-01536 |
BZB40,50,XZB40,5#..RHD..GEN |
2 | ||
| 90949-01D59 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S NO.1 |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36010 |
BB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU |
1 | ||
| 47307-36100 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-36060 |
BB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50 NO.2 |
1 | ||
| 47371-28020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47381-36120 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S NO.1 |
1 | ||
| 47381-36160 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.2 |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47381-36120 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S NO.1 |
1 | ||
| 47381-36160 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.2 |
4 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 47381-20320 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-06112 | ||||
| 90464-00519 | ||||
| 90464-00904 | ||||
| 90468-08044 | ||||
| 90480-01619 | ||||
| 90904-80004 | ||||
| 90949-01540 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 4(1108- )BZB40,50,XZB40,5#..GEN
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-33805 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90947-02990 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B94 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12043 |
BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S |
1 | ||
| 90412-10233 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 90412-10232 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 90412-10232 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12043 |
BB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S |
1 | ||
| 90412-10233 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 90412-10232 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 90412-10232 |
BZB40,50,XZB40,5#..RHD..GEN |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10277 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47354-36120 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 90904-13520 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36410 |
BB42,43,RZB40 |
1 | ||
| 47325-36630 |
BB42,TRB40,XZB40..26S |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36410 |
BB42,43,RZB40 |
1 | ||
| 47325-36630 |
BB42,TRB40,XZB40..26S |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36240 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 47327-36281 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47327-36251 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36260 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 47328-36321 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47328-36301 |
BB42,HZB50,TRB40,50,XZB40,50..26S,30S |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47345-36051 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47345-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47345-36050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47345-36051 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36190 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 47353-36230 |
BZB40,50,XZB40,5#..GEN |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08779 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90480-01433 | ||||
| 90480-01628 | ||||
| 90909-29002 | ||||
| 90949-01006 | ||||
| 90949-01249 | ||||
| 90949-01536 | ||||
| 90949-01872 | ||||
| 90949-01B98 | ||||
| 90949-01C85 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
