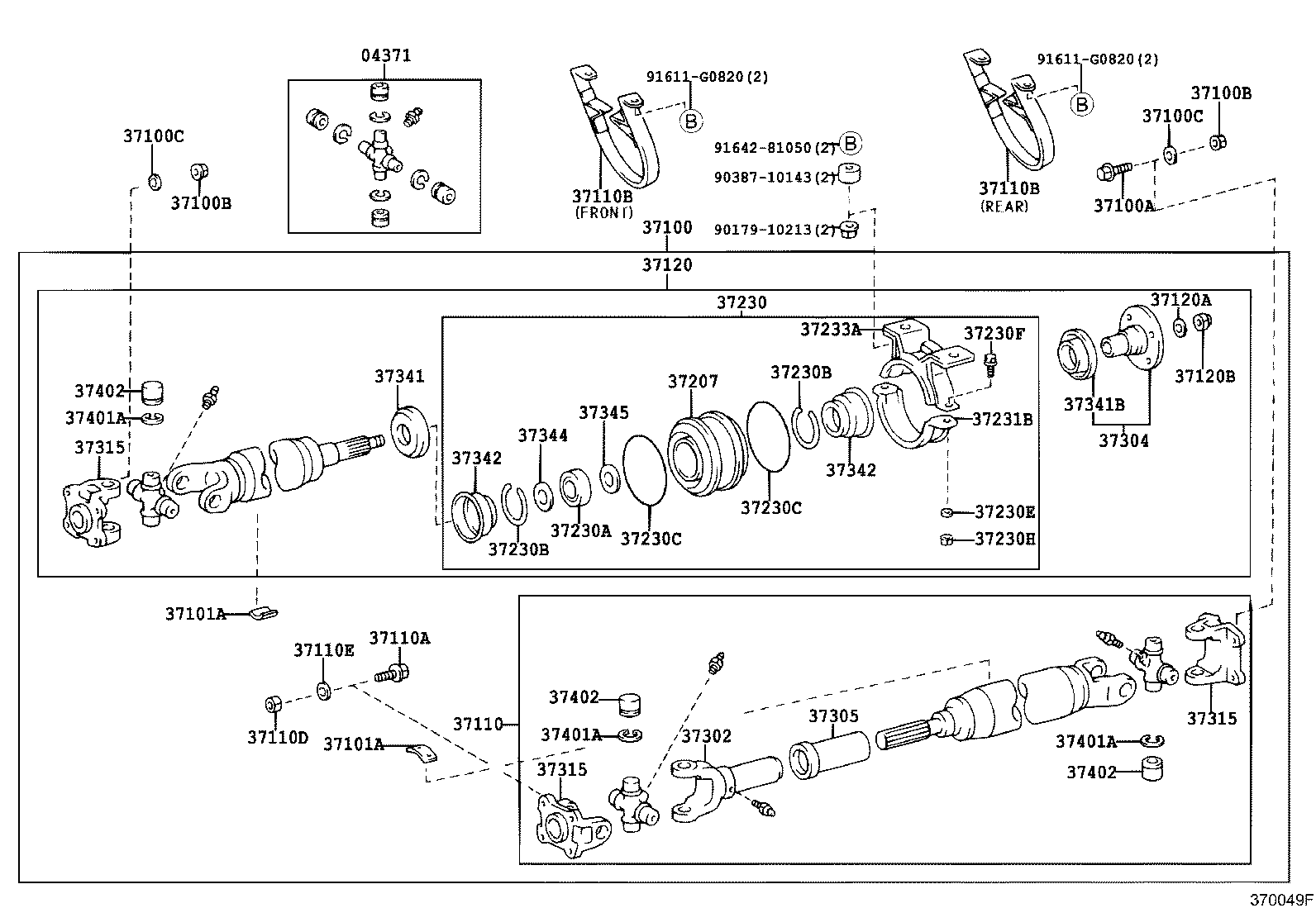

BB42R-BRMRS (1993)
Toyota Coaster
(9505-0408)RZB40 ; (9505- )BB4#,BZB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36050 |
BB4#,RZB40 WHITE PAINTED |
3 | ||
| 04371-36030 |
BB4#,RZB40 |
3 | ||
| 04371-36030 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 04371-36050 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
3 | ||
| 04371-36030 |
BB42,BZB40,TRB40,XZB40 UNPAINTED |
3 | ||
| 04371-36050 |
BB42,BZB40,TRB40,XZB40 WHITE PAINTED |
3 | ||
| 04371-36030 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) UNPAINTED |
4 | ||
| 04371-36050 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) WHITE PAINTED |
4 | ||
| 04371-60210 |
BB42,BZB40,TRB40,XZB40 UNPAINTED |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36710 |
BB40,42 |
1 | ||
| 37100-36710 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 37100-36710 |
BB42 |
1 | ||
| 37100-36710 |
BB42 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90105-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 90105-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 90105-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90179-11005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 90179-11005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90179-11005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 90179-11005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90201-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90201-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90201-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90201-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
BB4#,5#,HZB50,RZB40,50 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB4#,5#,HZB50,RZB40,50 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB4#,5#,HZB50,RZB40,50 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB4#,5#,HZB50,RZB40,50 20G,L=41.4 |
1 | ||
| 90937-01151 |
BB4#,5#,HZB50,RZB40,50 12G,L=24.9 |
1 | ||
| 90937-01149 |
BB4#,5#,HZB50,RZB40,50 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB4#,5#,HZB50,RZB40,50 22G,L=45.6 |
1 | ||
| 90937-01158 |
BB4#,5#,HZB50,RZB40,50 28G,L=58.1 |
1 | ||
| 90937-01153 |
BB4#,5#,HZB50,RZB40,50 16G,L=33.2 |
1 | ||
| 90937-01152 |
BB4#,5#,HZB50,RZB40,50 14G,L=29.0 |
1 | ||
| 90937-01148 |
BB4#,5#,HZB50,RZB40,50 4G,T=2.0 |
1 | ||
| 90937-01156 |
BB4#,5#,HZB50,RZB40,50 24G,L=49.7 |
1 | ||
| 90937-01150 |
BB4#,5#,HZB50,RZB40,50 8G,L=16.6 |
1 | ||
| 90937-01154 |
BB4#,5#,HZB50,RZB40,50 18G,L=37.3 |
1 | ||
| 90937-01157 |
BB4#,5#,HZB50,RZB40,50 26G,L=53.9 |
1 | ||
| 90937-01132 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 20G,L=41.4 |
1 | ||
| 90937-01150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 8G,L=16.6 |
1 | ||
| 90937-01148 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 4G,T=2.0 |
1 | ||
| 90937-01151 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 12G,L=24.9 |
1 | ||
| 90937-01158 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 28G,L=58.1 |
1 | ||
| 90937-01156 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 24G,L=49.7 |
1 | ||
| 90937-01152 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 14G,L=29.0 |
1 | ||
| 90937-01153 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 16G,L=33.2 |
1 | ||
| 90937-01157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 26G,L=53.9 |
1 | ||
| 90937-01154 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 18G,L=37.3 |
1 | ||
| 90937-01149 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 22G,L=45.6 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
BB4#,5#,HZB50,RZB40,50 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB4#,5#,HZB50,RZB40,50 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB4#,5#,HZB50,RZB40,50 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB4#,5#,HZB50,RZB40,50 20G,L=41.4 |
1 | ||
| 90937-01151 |
BB4#,5#,HZB50,RZB40,50 12G,L=24.9 |
1 | ||
| 90937-01149 |
BB4#,5#,HZB50,RZB40,50 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB4#,5#,HZB50,RZB40,50 22G,L=45.6 |
1 | ||
| 90937-01158 |
BB4#,5#,HZB50,RZB40,50 28G,L=58.1 |
1 | ||
| 90937-01153 |
BB4#,5#,HZB50,RZB40,50 16G,L=33.2 |
1 | ||
| 90937-01152 |
BB4#,5#,HZB50,RZB40,50 14G,L=29.0 |
1 | ||
| 90937-01148 |
BB4#,5#,HZB50,RZB40,50 4G,T=2.0 |
1 | ||
| 90937-01156 |
BB4#,5#,HZB50,RZB40,50 24G,L=49.7 |
1 | ||
| 90937-01150 |
BB4#,5#,HZB50,RZB40,50 8G,L=16.6 |
1 | ||
| 90937-01154 |
BB4#,5#,HZB50,RZB40,50 18G,L=37.3 |
1 | ||
| 90937-01157 |
BB4#,5#,HZB50,RZB40,50 26G,L=53.9 |
1 | ||
| 90937-01132 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 20G,L=41.4 |
1 | ||
| 90937-01150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 8G,L=16.6 |
1 | ||
| 90937-01148 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 4G,T=2.0 |
1 | ||
| 90937-01151 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 12G,L=24.9 |
1 | ||
| 90937-01158 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 28G,L=58.1 |
1 | ||
| 90937-01156 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 24G,L=49.7 |
1 | ||
| 90937-01152 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 14G,L=29.0 |
1 | ||
| 90937-01153 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 16G,L=33.2 |
1 | ||
| 90937-01157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 26G,L=53.9 |
1 | ||
| 90937-01154 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 18G,L=37.3 |
1 | ||
| 90937-01149 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 22G,L=45.6 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36730 |
BB4#,RZB40 |
1 | ||
| 37110-36730 |
BB42,BZB40,RZB40 |
1 | ||
| 37110-36730 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;RZB40..(17S,26S)..WC;BB42,BZB40..HRF..(17S,26S)..WC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BB4#,RZB40 *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42,BZB40,RZB40,TRB40,XZB40 *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42,BZB40,TRB40,XZB40 *11-1.00PX28-16 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36180 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW FRONT |
1 | ||
| 51569-36180 |
BB42,BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36180 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW FRONT |
1 | ||
| 51569-36180 |
BB42,BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BB4#,RZB40 |
4 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
4 | ||
| 90179-11005 |
BB42,BZB40,TRB40,XZB40 |
4 | ||
| 90179-11005 |
BB42,BZB40,RZB40,TRB40,XZB40 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BB4#,RZB40 |
4 | ||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
4 | ||
| 90201-11013 |
BB42,BZB40,TRB40,XZB40 |
4 | ||
| 90201-11013 |
BB42,BZB40,RZB40,TRB40,XZB40 |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36570 |
BB40,42 |
1 | ||
| 37120-36570 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BB4#,RZB40 OD=33.5,T=4.0 |
1 | ||
| 90201-20005 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 90179-20006 |
BB4#,RZB40 |
1 | ||
| 90179-20006 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 90179-20006 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37207-35011 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37207-35011 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37207-35011 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36140 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37230-36140 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37230-36140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37230-36141 |
XZB50..4FC;BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230-36141 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90363-30029 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 90363-30029 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 90363-30029 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90521-66077 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 90521-66077 |
BZB50..EX;XZB50..STD..GEN;BB42,5#,BZB40,RZB40,50,TRB40,XZB40..DCR,DSL,EFI,LPG,TDEFI |
2 | ||
| 90521-66077 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90521-66077 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 90521-66077 |
BZB50..EX;XZB50..STD..GEN;BB42,5#,BZB40,RZB40,50,TRB40,XZB40..DCR,DSL,EFI,LPG,TDEFI |
2 | ||
| 90521-66077 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90522-97001 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90522-97001 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90522-97001 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90522-97001 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90522-97001 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90522-97001 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94512-00800 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 94512-00800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 94512-00800 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 94512-00800 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 91112-80816 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 90101-08157 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90101-08157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90101-08157 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90101-08157 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94130-00802 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 94110-50800 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 94130-00802 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 94130-00802 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 94130-00802 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37231-36021 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37231-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37231-36021 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37231-36021 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37233-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37233-36080 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37233-36080 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37302-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36030 |
BB4#,RZB40 |
1 | ||
| 37304-36030 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37305-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BB4#,RZB40 |
1 | ||
| 37341-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BB4#,RZB40 |
1 | ||
| 37341-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37342-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 37342-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 37342-36010 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37342-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 37342-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 37342-36010 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37344-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37344-36010 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37344-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36020 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37345-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37345-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37345-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37345-36020 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| Common parts | ||||
| 90179-10213 | ||||
| 90387-10143 | ||||
| 91611-G0820 | ||||
| 91642-81050 | ||||
(9301-9505)BB4#,RZB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36050 |
BB4#,RZB40 WHITE PAINTED |
3 | ||
| 04371-36030 |
BB4#,RZB40 |
3 | ||
| 04371-36030 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 04371-36050 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
3 | ||
| 04371-36030 |
BB42,BZB40,TRB40,XZB40 UNPAINTED |
3 | ||
| 04371-36050 |
BB42,BZB40,TRB40,XZB40 WHITE PAINTED |
3 | ||
| 04371-36030 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) UNPAINTED |
4 | ||
| 04371-36050 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) WHITE PAINTED |
4 | ||
| 04371-60210 |
BB42,BZB40,TRB40,XZB40 UNPAINTED |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36710 |
BB40,42 |
1 | ||
| 37100-36710 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 37100-36710 |
BB42 |
1 | ||
| 37100-36710 |
BB42 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BB4#,5#,HZB50,RZB40,50 |
4 | ||
| 90105-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 90105-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
4 | ||
| 90105-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90179-11005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 90179-11005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90179-11005 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 90179-11005 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90201-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90201-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
8 | ||
| 90201-11013 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
8 | ||
| 90201-11013 |
BB4#,5#,HZB50,RZB40,50 |
8 | ||
| 90201-11013 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
BB4#,5#,HZB50,RZB40,50 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB4#,5#,HZB50,RZB40,50 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB4#,5#,HZB50,RZB40,50 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB4#,5#,HZB50,RZB40,50 20G,L=41.4 |
1 | ||
| 90937-01151 |
BB4#,5#,HZB50,RZB40,50 12G,L=24.9 |
1 | ||
| 90937-01149 |
BB4#,5#,HZB50,RZB40,50 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB4#,5#,HZB50,RZB40,50 22G,L=45.6 |
1 | ||
| 90937-01158 |
BB4#,5#,HZB50,RZB40,50 28G,L=58.1 |
1 | ||
| 90937-01153 |
BB4#,5#,HZB50,RZB40,50 16G,L=33.2 |
1 | ||
| 90937-01152 |
BB4#,5#,HZB50,RZB40,50 14G,L=29.0 |
1 | ||
| 90937-01148 |
BB4#,5#,HZB50,RZB40,50 4G,T=2.0 |
1 | ||
| 90937-01156 |
BB4#,5#,HZB50,RZB40,50 24G,L=49.7 |
1 | ||
| 90937-01150 |
BB4#,5#,HZB50,RZB40,50 8G,L=16.6 |
1 | ||
| 90937-01154 |
BB4#,5#,HZB50,RZB40,50 18G,L=37.3 |
1 | ||
| 90937-01157 |
BB4#,5#,HZB50,RZB40,50 26G,L=53.9 |
1 | ||
| 90937-01132 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 20G,L=41.4 |
1 | ||
| 90937-01150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 8G,L=16.6 |
1 | ||
| 90937-01148 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 4G,T=2.0 |
1 | ||
| 90937-01151 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 12G,L=24.9 |
1 | ||
| 90937-01158 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 28G,L=58.1 |
1 | ||
| 90937-01156 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 24G,L=49.7 |
1 | ||
| 90937-01152 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 14G,L=29.0 |
1 | ||
| 90937-01153 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 16G,L=33.2 |
1 | ||
| 90937-01157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 26G,L=53.9 |
1 | ||
| 90937-01154 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 18G,L=37.3 |
1 | ||
| 90937-01149 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 22G,L=45.6 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
BB4#,5#,HZB50,RZB40,50 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB4#,5#,HZB50,RZB40,50 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB4#,5#,HZB50,RZB40,50 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB4#,5#,HZB50,RZB40,50 20G,L=41.4 |
1 | ||
| 90937-01151 |
BB4#,5#,HZB50,RZB40,50 12G,L=24.9 |
1 | ||
| 90937-01149 |
BB4#,5#,HZB50,RZB40,50 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB4#,5#,HZB50,RZB40,50 22G,L=45.6 |
1 | ||
| 90937-01158 |
BB4#,5#,HZB50,RZB40,50 28G,L=58.1 |
1 | ||
| 90937-01153 |
BB4#,5#,HZB50,RZB40,50 16G,L=33.2 |
1 | ||
| 90937-01152 |
BB4#,5#,HZB50,RZB40,50 14G,L=29.0 |
1 | ||
| 90937-01148 |
BB4#,5#,HZB50,RZB40,50 4G,T=2.0 |
1 | ||
| 90937-01156 |
BB4#,5#,HZB50,RZB40,50 24G,L=49.7 |
1 | ||
| 90937-01150 |
BB4#,5#,HZB50,RZB40,50 8G,L=16.6 |
1 | ||
| 90937-01154 |
BB4#,5#,HZB50,RZB40,50 18G,L=37.3 |
1 | ||
| 90937-01157 |
BB4#,5#,HZB50,RZB40,50 26G,L=53.9 |
1 | ||
| 90937-01132 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 10G,L=20.7 |
1 | ||
| 90937-01140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 30G,L=62.2 |
1 | ||
| 90937-01147 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 2G,T=2.0 |
1 | ||
| 90937-01136 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 20G,L=41.4 |
1 | ||
| 90937-01150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 8G,L=16.6 |
1 | ||
| 90937-01148 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 4G,T=2.0 |
1 | ||
| 90937-01151 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 12G,L=24.9 |
1 | ||
| 90937-01158 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 28G,L=58.1 |
1 | ||
| 90937-01156 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 24G,L=49.7 |
1 | ||
| 90937-01152 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 14G,L=29.0 |
1 | ||
| 90937-01153 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 16G,L=33.2 |
1 | ||
| 90937-01157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 26G,L=53.9 |
1 | ||
| 90937-01154 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 18G,L=37.3 |
1 | ||
| 90937-01149 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 6G,L=12.4 |
1 | ||
| 90937-01155 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) 22G,L=45.6 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36730 |
BB4#,RZB40 |
1 | ||
| 37110-36730 |
BB42,BZB40,RZB40 |
1 | ||
| 37110-36730 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;RZB40..(17S,26S)..WC;BB42,BZB40..HRF..(17S,26S)..WC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BB4#,RZB40 *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42,BZB40,RZB40,TRB40,XZB40 *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) *11-1.00PX28-16 |
4 | ||
| 90105-11013 |
BB42,BZB40,TRB40,XZB40 *11-1.00PX28-16 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36180 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW FRONT |
1 | ||
| 51569-36180 |
BB42,BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36180 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN,TAIW FRONT |
1 | ||
| 51569-36180 |
BB42,BZB40,TRB40,XZB40 REAR |
1 | ||
| 51569-36190 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# FRONT |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BB4#,RZB40 |
4 | ||
| 90179-11005 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
4 | ||
| 90179-11005 |
BB42,BZB40,TRB40,XZB40 |
4 | ||
| 90179-11005 |
BB42,BZB40,RZB40,TRB40,XZB40 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BB4#,RZB40 |
4 | ||
| 90201-11013 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
4 | ||
| 90201-11013 |
BB42,BZB40,TRB40,XZB40 |
4 | ||
| 90201-11013 |
BB42,BZB40,RZB40,TRB40,XZB40 |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36570 |
BB40,42 |
1 | ||
| 37120-36570 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BB4#,RZB40 OD=33.5,T=4.0 |
1 | ||
| 90201-20005 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 90179-20006 |
BB4#,RZB40 |
1 | ||
| 90179-20006 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 90179-20006 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37207-35011 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37207-35011 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37207-35011 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36140 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37230-36140 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37230-36140 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37230-36141 |
XZB50..4FC;BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230-36141 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 90363-30029 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 90363-30029 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 90363-30029 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90521-66077 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 90521-66077 |
BZB50..EX;XZB50..STD..GEN;BB42,5#,BZB40,RZB40,50,TRB40,XZB40..DCR,DSL,EFI,LPG,TDEFI |
2 | ||
| 90521-66077 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90521-66077 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 90521-66077 |
BZB50..EX;XZB50..STD..GEN;BB42,5#,BZB40,RZB40,50,TRB40,XZB40..DCR,DSL,EFI,LPG,TDEFI |
2 | ||
| 90521-66077 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90522-97001 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90522-97001 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90522-97001 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90522-97001 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90522-97001 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90522-97001 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94512-00800 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 94512-00800 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 94512-00800 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 94512-00800 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 91112-80816 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 90101-08157 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 90101-08157 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 90101-08157 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 90101-08157 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37230H - NUT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 94130-00802 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 94110-50800 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 94130-00802 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 94130-00802 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 94130-00802 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37231-36021 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37231-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37231-36021 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37231-36021 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36080 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37233-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37233-36080 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37233-36080 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37235 - CUSHION, CENTER SUPPORT BEARING | ||||
| 37235-36010 |
BB4#,RZB40 |
4 | ||
| 37235 - CUSHION, CENTER SUPPORT BEARING | ||||
| 37235-36010 |
BB4#,RZB40 |
4 | ||
| 37236 - BOLT, CENTER SUPPORT BEARING HOUSING | ||||
| 37236-36061 |
BB4#,RZB40 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-36020 |
BB4#,RZB40 T=2.3 |
2 | ||
| 37237A - PLATE, CENTER SUPPORT BEARING, NO.2 | ||||
| 37237-36040 |
BB4#,HZB50,RZB40,50 T=4.0 |
2 | ||
| 37237-36030 |
BB4#,HZB50,RZB40,50 T=2.0 |
2 | ||
| 37237-36120 |
BB4#,HZB50,RZB40,50 T=20.0 |
2 | ||
| 37237-36060 |
BB4#,HZB50,RZB40,50 T=8.0 |
2 | ||
| 37237-36050 |
BB4#,RZB40 T=6.0 |
2 | ||
| 37237-36110 |
BB4#,HZB50,RZB40,50 T=18.0 |
2 | ||
| 37237-36080 |
BB4#,HZB50,RZB40,50 T=12.0 |
2 | ||
| 37237-36100 |
BB4#,HZB50,RZB40,50 T=16.0 |
2 | ||
| 37237-36090 |
BB4#,HZB50,RZB40,50 T=14.0 |
2 | ||
| 37237-36070 |
BB4#,HZB50,RZB40,50 T=10.0 |
2 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37302-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36030 |
BB4#,RZB40 |
1 | ||
| 37304-36030 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37305-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BB4#,RZB40 |
3 | ||
| 37315-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
3 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BB4#,RZB40 |
1 | ||
| 37341-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BB4#,RZB40 |
1 | ||
| 37341-36010 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37342-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 37342-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 37342-36010 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 37342-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 37342-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
2 | ||
| 37342-36010 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37344-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37344-36010 |
BB42,BZB40,TRB40,XZB40 |
1 | ||
| 37344-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36020 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37345-36010 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 37345-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 37345-36010 |
BB42..RHD;BB42..LHD..SRF;BZB40,TRB40,XZB40 |
1 | ||
| 37345-36020 |
BB42,BZB40,TRB40,XZB40 |
2 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29026 |
BB4#,RZB40 T=2.06,BLUE |
12 | ||
| 90520-29024 |
BB4#,RZB40 T=2.00,NO MARK |
12 | ||
| 90520-29025 |
BB4#,RZB40 T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB4#,RZB40 T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.00,NO MARK |
12 | ||
| 90520-29026 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.06,BLUE |
12 | ||
| 90520-29025 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.03,BROWN |
12 | ||
| 90520-29027 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) T=2.09,NO MARK |
12 | ||
| 90520-29024 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29025 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29027 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29040 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.01,MARK 2 |
4 | ||
| 90520-29026 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29039 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=1.99,MARK 1 |
4 | ||
| 90520-29045 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.11,MARK 7 |
4 | ||
| 90520-29046 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.13,MARK 8 |
4 | ||
| 90520-29041 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.03,MARK 3 |
4 | ||
| 90520-29042 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.05,MARK 4 |
4 | ||
| 90520-29044 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.09,MARK 6 |
4 | ||
| 90520-29047 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.07,MARK 5 |
4 | ||
| 90520-29025 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,BROWN |
4 | ||
| 90520-29041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.03,MARK 3 |
4 | ||
| 90520-29027 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,NO MARK |
4 | ||
| 90520-29039 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.99,MARK 1 |
4 | ||
| 90520-29048 |
BZB50..EX;XZB50..4FC;BB42,5#,BZB40,RZB40,50,TRB40,XZB40,59..DCR,DSL,EFI,LPG,TDEFI T=2.17,MARK 10 |
4 | ||
| 90520-29045 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.11,MARK 7 |
4 | ||
| 90520-29024 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.00,NO MARK |
4 | ||
| 90520-29046 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.13,MARK 8 |
4 | ||
| 90520-29026 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.06,BLUE |
4 | ||
| 90520-29044 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.09,MARK 6 |
4 | ||
| 90520-29040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.01,MARK 2 |
4 | ||
| 90520-29047 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.15,MARK 9 |
4 | ||
| 90520-29043 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.07,MARK 5 |
4 | ||
| 90520-29042 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.05,MARK 4 |
4 | ||
| 90520-29048 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=2.17,MARK 10 |
4 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36080 |
BB4#,RZB40 WHITE PAINTED |
12 | ||
| 37402-36070 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
12 | ||
| 37402-36070 |
BB4#,RZB40 |
12 | ||
| 37402-36080 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) WHITE PAINTED |
12 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-G0820 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
