BB42L-ZRMRS (1999)
Toyota Coaster
(9301-0408)BB4#,BZB40

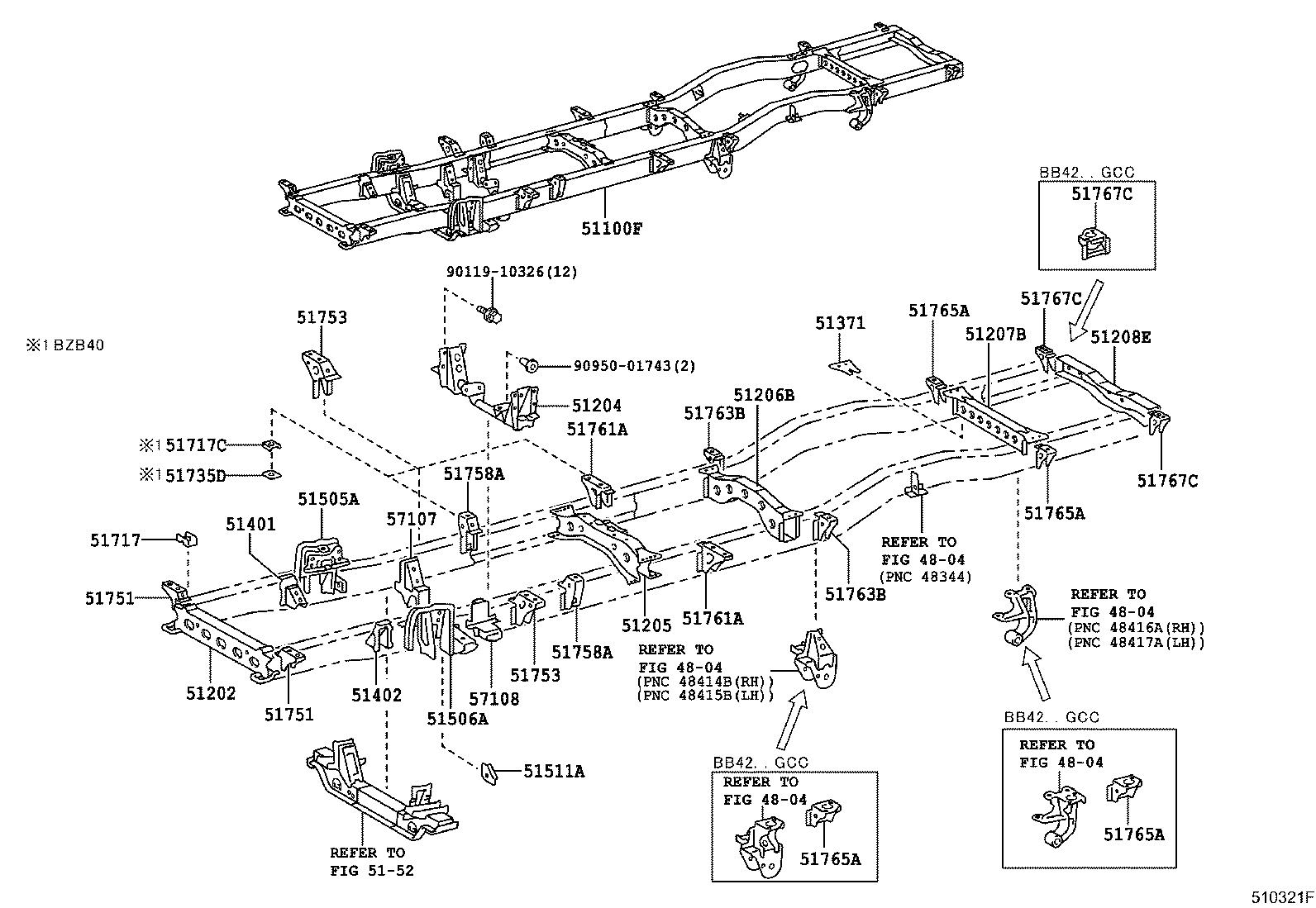

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51003-3B600 |
BB42..LHD..GEN |
1 | ||
| 51003-3B601 |
BB42..LHD..26S..GEN |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-36150 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51201-36150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36320 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51203-36320 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-36190 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51204-36193 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-36090 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51206-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36110 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51207-36111 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51208E - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51281-36030 |
BB50..LHD;BB4#,HZB50,RZB40,50..ARL,EUR,GEN,SCO |
1 | ||
| 51281-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..IV..TDEFI;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) ROUGH ROAD PACKAGE |
1 | ||
| 51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1 | ||||
| 51371-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB59,BZB40,50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 51371-36070 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-36030 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51505-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51506-36120 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51511A - SEAT, FRONT SPRING SUPPORT | ||||
| 51511-36080 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51511-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51717 - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-36010 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51717-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57121-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 57121-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57122-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57122-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-10326 | ||||
| 90950-01743 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5152 | ||||
(9301-0408)BB50..LHD..CHI,GEN ; (9301-0408)BB50..RHD..CBU..5F ; (9301-0408)BB58,59,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51003-3B600 |
BB42..LHD..GEN |
1 | ||
| 51003-3B600 |
BB42..LHD..GEN |
1 | ||
| 51003-3B601 |
BB42..LHD..26S..GEN |
1 | ||
| 51003-3B601 |
BB42..LHD..26S..GEN |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-36150 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51201-36150 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51201-36150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51201-36150 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36320 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51203-36320 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51203-36320 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51203-36320 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-36190 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51204-36190 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51204-36193 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51204-36193 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-36090 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51206-36090 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51206-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51206-36090 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36110 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51207-36110 |
BB4#,HZB50,RZB40,50 |
1 | ||
| 51207-36111 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51207-36111 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51208E - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51281-36030 |
BB50..LHD;BB4#,HZB50,RZB40,50..ARL,EUR,GEN,SCO |
1 | ||
| 51281-36030 |
BB50..LHD;BB4#,HZB50,RZB40,50..ARL,EUR,GEN,SCO |
1 | ||
| 51281-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..IV..TDEFI;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) ROUGH ROAD PACKAGE |
1 | ||
| 51281-36030 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..IV..TDEFI;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) ROUGH ROAD PACKAGE |
1 | ||
| 51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1 | ||||
| 51371-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB59,BZB40,50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 51371-36070 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB59,BZB40,50,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
4 | ||
| 51371-36070 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51371-36070 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB50..EX;BB50..LHD;BB4#,58,HZB50 |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51421-36210 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-36030 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51505-36030 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51505-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51505-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51506-36120 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 51506-36120 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51506-36120 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 51511A - SEAT, FRONT SPRING SUPPORT | ||||
| 51511-36080 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51511-36080 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
2 | ||
| 51511-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51511-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51717 - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-36010 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51717-36010 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51717-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51717-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,RZB50..GCC,GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51751-36060 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36051 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51753-36050 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB42,BZB40..HRF..(17S,26S)..WC;RZB40..(17S,26S)..WC..(GCC,GEN) |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51758-36020 |
BB4#,RZB40 |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36040 |
BB4#,HZB50,RZB40,50 |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51761-36041 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36060 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51763-36061 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36050 |
BB4#,50..5F;BB58,HZB50,RZB40,50..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51765-36051 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;HZB50,RZB40..LHD..(20S,26S)..GEN;BB42,50,HZB50,RZB50..HRF..(26S,30S)..WC..GEN ROUGH ROAD PACKAGE |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB4#,HZB50,RZB40,50..ARL,GEN,SCO |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 51767-36150 |
BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB59,BZB40,50,RZB50..GEN;HZB50..LHD..SRF..WC..GEN;HZB50..HRF..STD..WC..GEN..5F;BB50,RZB40..(17S,26S,30S)..GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57121-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 57121-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 57121-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57121-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57122-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57122-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 57122-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| 57122-36020 |
BB50..EX;BB50..LHD;BB4#,58,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 90119-10326 | ||||
| 90950-01743 | ||||
| 91645-C1040 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
