Toyota Coaster BB42 FUEL TANK & TUBE

BB42L-BRMRS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 14B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

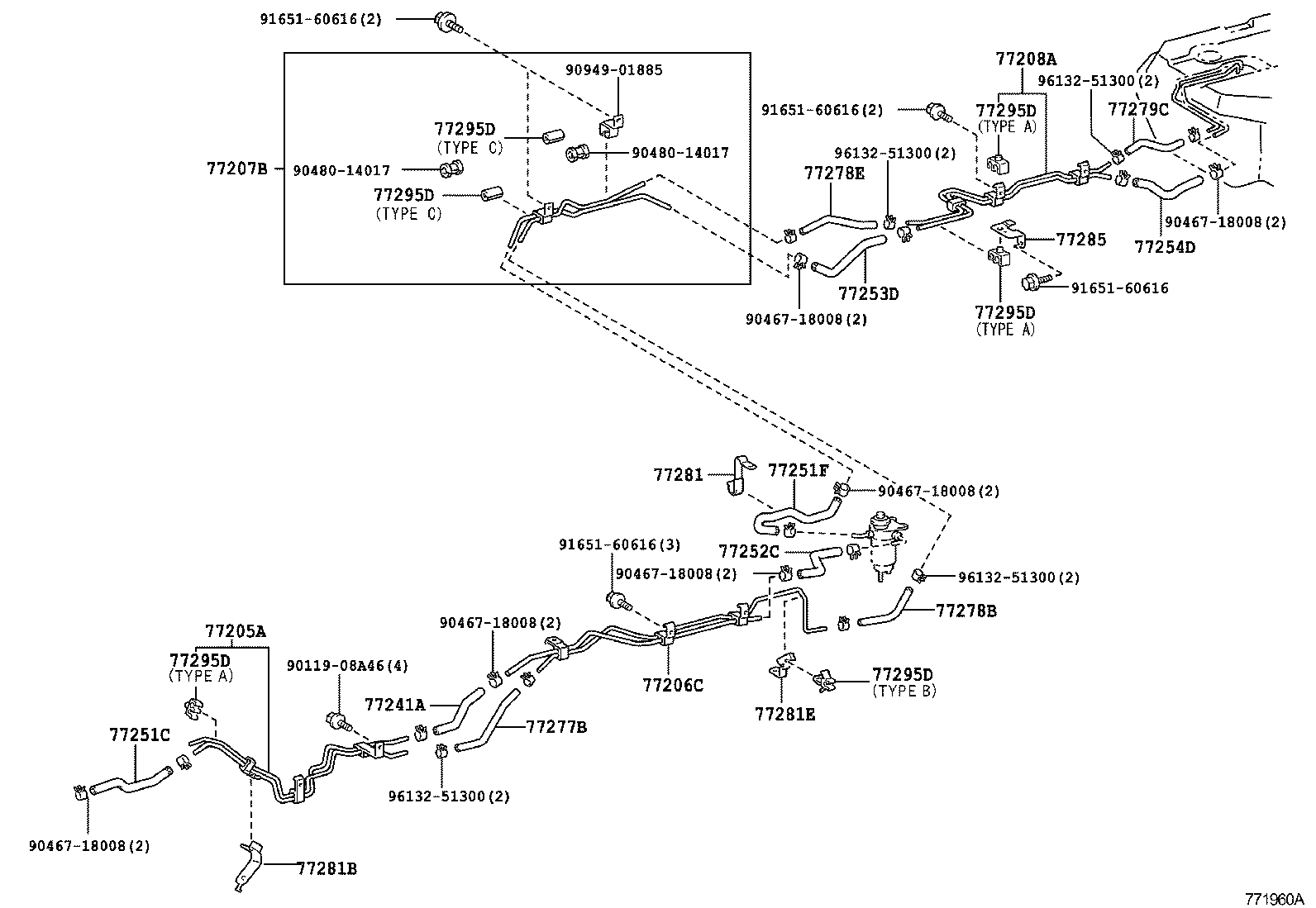

ILLUST NO. 2 OF 4(9301-9907)BB4# ; (9705-9907)BB58 ; (9711-9907)GEN..IV

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36040	BB4#	01/1993 - 07/1999	1
77207-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77207-36120	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77207-36410	BB42	01/2015 - 12/2999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77208-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77208-36260	XZB40,5#	01/2015 - 12/2999	1
77208-36200	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77208-36290	BB42	01/2015 - 12/2999	1
77251F - HOSE, FUEL
77259-36160	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36181	HZB50,XZB40,5#	01/2015 - 12/2999	1
77259-36200	BB42	08/2004 - 08/2010	1
77259-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36201	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
77259-36181	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
77259-36201	BB42	01/2015 - 12/2999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10015	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36210	BB42	08/2004 - 08/2010	1
77259-36211	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77259-36440	XZB40,5#	01/2015 - 12/2999	1
77253D - HOSE, FUEL
95332-10030	BB4#	01/1993 - 10/1995	1
95332-10018	BB4#	10/1995 - 02/1996	1
95332-10019	BB4#	02/1996 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95338-10018	BB42	01/2015 - 12/2999	1
95338-12018	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
77254D - HOSE, FUEL
95332-10018	BB4#,5#	01/1993 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-58010	BB40,42 L=300	01/1993 - 07/1999	1
23273-58010	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC L=300	07/1999 - 08/2004	1
23273-58010	BB42 L=300	08/2004 - 08/2010	1
23273-58011	BB42 L=300	01/2015 - 12/2999	1
23273-58011	BB42..RHD;BB42..LHD..SRF L=300	09/2010 - 01/2015	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020	BB4#,HZB50 *H,L=180	01/1993 - 05/1995	1
95333-06020	BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180	05/1997 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC *H,L=150	07/1999 - 08/2004	1
95333-06020	BB42,HZB50 *H,L=150	08/2004 - 08/2010	1
95337-08015	XZB40,5#..ARL,GEN,TAIW L=160	09/2010 - 01/2015	1
95337-06015	HZB50;BB42..RHD;BB42..LHD..SRF L=150	09/2010 - 01/2015	1
95337-06018	BB42,HZB50 L=180	01/2015 - 12/2999	1
95337-08019	XZB40,5# L=190	01/2015 - 12/2999	1
77278E - HOSE, FUEL
95333-06020	BB4#,5#,HZB50	10/1995 - 07/1999	1
95333-06030	BB4#	01/1993 - 10/1995	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
95337-08034	XZB40,5#..ARL,GEN,TAIW	09/2010 - 01/2015	1
95337-06018	BB42	01/2015 - 12/2999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06022	BB42	01/2015 - 12/2999	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-36010	BB50..GEN..IV;BB40,42,58,HZB50	01/1993 - 07/1999	1
Common parts
90179-06161
90467-15012
90480-01552
90949-01600
90959-02009
91651-60616
96132-30600
96132-41100

ILLUST NO. 2 OF 4(9907- )BB42,50..DSL,TD ; (9907- )HZB50..20S,22S,30S

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36040	BB4#	01/1993 - 07/1999	1
77207-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77207-36120	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77207-36410	BB42	01/2015 - 12/2999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77208-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77208-36260	XZB40,5#	01/2015 - 12/2999	1
77208-36200	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77208-36290	BB42	01/2015 - 12/2999	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-36231	XZB40,5#..ARL,GEN,TAIW	09/2010 - 08/2011	1
77251F - HOSE, FUEL
77259-36160	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36181	HZB50,XZB40,5#	01/2015 - 12/2999	1
77259-36200	BB42	08/2004 - 08/2010	1
77259-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36201	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
77259-36181	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
77259-36201	BB42	01/2015 - 12/2999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10015	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36210	BB42	08/2004 - 08/2010	1
77259-36211	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77259-36440	XZB40,5#	01/2015 - 12/2999	1
77253D - HOSE, FUEL
95332-10030	BB4#	01/1993 - 10/1995	1
95332-10018	BB4#	10/1995 - 02/1996	1
95332-10019	BB4#	02/1996 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95338-10018	BB42	01/2015 - 12/2999	1
95338-12018	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
77254D - HOSE, FUEL
95332-10018	BB4#,5#	01/1993 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-58010	BB40,42 L=300	01/1993 - 07/1999	1
23273-58010	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC L=300	07/1999 - 08/2004	1
23273-58010	BB42 L=300	08/2004 - 08/2010	1
23273-58011	BB42 L=300	01/2015 - 12/2999	1
23273-58011	BB42..RHD;BB42..LHD..SRF L=300	09/2010 - 01/2015	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020	BB4#,HZB50 *H,L=180	01/1993 - 05/1995	1
95333-06020	BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180	05/1997 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC *H,L=150	07/1999 - 08/2004	1
95333-06020	BB42,HZB50 *H,L=150	08/2004 - 08/2010	1
95337-08015	XZB40,5#..ARL,GEN,TAIW L=160	09/2010 - 01/2015	1
95337-06015	HZB50;BB42..RHD;BB42..LHD..SRF L=150	09/2010 - 01/2015	1
95337-06018	BB42,HZB50 L=180	01/2015 - 12/2999	1
95337-08019	XZB40,5# L=190	01/2015 - 12/2999	1
77278E - HOSE, FUEL
95333-06020	BB4#,5#,HZB50	10/1995 - 07/1999	1
95333-06030	BB4#	01/1993 - 10/1995	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
95337-08034	XZB40,5#..ARL,GEN,TAIW	09/2010 - 01/2015	1
95337-06018	BB42	01/2015 - 12/2999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06022	BB42	01/2015 - 12/2999	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77281-36050	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77281-36030	HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36050	BB42	01/2015 - 12/2999	1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-36040	BB5#..TDEFI;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
77281-36130	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36040	BB42..RHD;HZB50,XZB40,59;BB42..LHD..SRF;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
77285 - BRACKET, FUEL TUBE
77281-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77281-36140	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77281-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
Common parts
90467-15012
90467-18008
90949-01600
91651-60616
96132-51100

ILLUST NO. 1 OF 4(9301-0602)BB4#,5#,HZB50,RZB40,50

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77011-12130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77011-12130	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2006	1
77011-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77011-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2006 - 01/2015	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36420	BB4#,5#	01/1993 - 07/1999	1
77017-36420	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77017-36420	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77017-36420	BB42	01/2015 - 12/2999	1
77017-36470	XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010	BB4#,5#	01/1993 - 07/1999	1
77023-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77023-36010	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77023-60010	HZB50,XZB40,5#	01/2015 - 12/2999	1
77023-36010	BB42	01/2015 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-36020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77026-36020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77026-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77026-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-36040	BB42,RZB40..LHD	01/1993 - 07/1999	1
77035-36040	BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77035-36040	TRB40;BB42..LHD..SRF	08/2004 - 03/2014	1
77035-36041	BB42,TRB40..LHD	04/2014 - 01/2015	1
77035-36041	BB42,TRB40,XZB40..LHD	01/2015 - 12/2999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77037-36010	BB42,50,HZB50,RZB40,50..19S,21S,26S,30S	10/2003 - 08/2004	1
77037-12050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77037-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BZB40,50,RZB50..GCC,GEN;RZB40..26S..WC..(GCC,GEN);BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 10/2003	1
77037-36010	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77037-36010	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
77037-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER)	01/2015 - 12/2999	1
77037-12050	BB42..WOC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) W(FUEL LID OPENER)	08/2004 - 01/2015	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77037-36010	BB42,50,HZB50,RZB40,50..19S,21S,26S,30S	10/2003 - 08/2004	1
77037-12050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77037-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BZB40,50,RZB50..GCC,GEN;RZB40..26S..WC..(GCC,GEN);BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 10/2003	1
77037-36010	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77037-36010	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
77037-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER)	01/2015 - 12/2999	1
77037-12050	BB42..WOC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) W(FUEL LID OPENER)	08/2004 - 01/2015	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060E1	BB4#,RZB40,50;HZB50..LHD..DSL GREIGE,TRIM4#	01/1993 - 05/1995	1
77051-30060E1	BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4#	12/1997 - 07/1999	1
77051-30060E1	BB4#,50,HZB50,RZB40,50..CBU GREIGE,TRIM4#	05/1995 - 12/1997	1
77051-30060E1	BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4#	07/1999 - 08/2001	1
77051-30060B3	BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
77051-30060B3	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
77051-30060B3	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
77100 - TANK ASSY, FUEL
77001-3B260	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77001-3B260	BB42,5#,HZB50	08/2004 - 11/2005	1
77001-3B260	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77001-3B261	XZB50..IV;XZB50..20S,21S;BB42,50,HZB50,XZB40,59..DCR,DSL,TD	12/2005 - 07/2008	1
77001-3B262	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77001-3B262	BB42..RHD;BB42..LHD..SRF;XZB50..WC..CBU;BB50,HZB50,XZB40,59	08/2008 - 01/2015	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90105-12116	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-12116	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90105-12116	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90430-12245	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
90430-12245	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-12245	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77135 - BRACKET, CHECK VALVE
77135-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77135-36040	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77135-36040	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77135-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169-14020	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77169-14020	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77169-14020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169-14020	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77169-14020	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77169-14020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2006	1
77178-20030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77178-20030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77178-34010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2006 - 01/2015	1
77178-34010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77179-26011	BB42,HZB50,TRB40,50,XZB40,5#	11/2015 - 12/2999	2
77179-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77179-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 11/2015	2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77179-26011	BB42,HZB50,TRB40,50,XZB40,5#	11/2015 - 12/2999	2
77179-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77179-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 11/2015	2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-36180	HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR COLD AREA SPEC	01/1993 - 07/1999	1
77201-36180	HZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR COLD AREA SPEC	07/1999 - 07/2002	1
77201-36170	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77201-36170	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB5#,RZB50..EFI,TDEFI;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 07/2002	1
77201-36180	HZB50..GCC,GEN;BB42,5#,RZB40,50..ARL,EUR,GCC,GEN	07/2002 - 08/2004	1
77201-36180	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77201-36180	BB42,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-36090	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77213-36090	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77213-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77213-36090	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77213-36090	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77219-32030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77219-32030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-36070	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77259-36070	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77259-36070	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77259-36070	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77259-36070	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77259C - HOSE, FUEL
77259-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77259-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77259-36090	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77259-36090	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12060	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77291-12060	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77291-12060	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77291-12060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77291-12060	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12030	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77293-12030	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77293-12030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77293-12030	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77293-12030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77310A - CAP ASSY, FUEL TANK
77310-12150	BB4#,5#,HZB50	03/1998 - 07/1999	1
77310-12150	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77310-35110	BB4#,5#,HZB50	01/1993 - 03/1998	1
77300-20020	BB42,HZB50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77310-12150	BB42,50,HZB50,XZB5#..(ARL,GCC,GEN,TAIW)..(DCR,DSL,TD)	08/2004 - 08/2007	1
77300-52030	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59	08/2007 - 01/2015	1
77316 - GASKET, FUEL TANK CAP
77316-16010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77316-16010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77316-16010	RZB40..GEN;RZB40..SRF..GCC;BB42,50,HZB50,RZB50,XZB5#..(ARL,GCC,GEN,TAIW)..(DCR,DSL,EFI,TD)	08/2004 - 08/2007	1
77316-52040	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW	08/2009 - 01/2015	1
77316-52040	BB42,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-36020	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 12/1997	1
77350-36010	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77350-36010	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F W(FUEL LID OPENER)	01/1993 - 12/1997	1
77350-36020	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	12/1997 - 07/1999	1
77350-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77350-36010	BB42,5#,BZB40,50,HZB50,RZB40,50..ARL,GCC,GEN W(FUEL LID OPENER)	08/2004 - 01/2006	1
77350-36020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..(21S,30S)..(ARL,GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77350-36020	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77350-36011	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER),NO.1	01/2015 - 12/2999	1
77350-36011	BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD W(FUEL LID OPENER)	01/2006 - 01/2015	1
77350-36020	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S NO.1	01/2015 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77360-36010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77360-36010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77360-36010	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77377-20030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77377-20030	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.1	01/2015 - 12/2999	1
77377-20030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77380-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77380-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77380-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77391 - RING, FUEL INLET BOX
77391-14020	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77391-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77391-14020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77391-14020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77391-14020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77420-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77420-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77420-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77601-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77601-36120	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77601-36120	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77601-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77601-36120	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77601-36120	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77611A - PIN (FOR FUEL TANK BAND)
90240-08047	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90240-08047	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90240-08047	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
90240-08047	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-36030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77613-36030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77613-36030	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77613-36030	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77652-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77652-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77652-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77652-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77652-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77652-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77655 - CUSHION, FUEL TANK, NO.3
77653-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77655 - CUSHION, FUEL TANK, NO.3
77653-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77681-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77681-36050	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77681-36050	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77681-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77681-36050	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77681-36050	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
90917-10020	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
90917-10020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90917-10020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90917-10020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
Common parts
82711-22270
82711-33170
90159-50217
90159-50219
90159-50258
90159-50278
90159-60008
90179-05011
90179-05042
90179-06308
90179-10074
90183-05094
90189-06013
90189-06099
90460-22002
90460-46005
90467-09007
90467-09123
90468-14004
90480-14003
91651-60616
91651-61025
91651-A0816
91655-B1040
93319-A4010
93568-55014
96132-41100
Linked diagrams
8401

ILLUST NO. 1 OF 4(0602- )BB42,5#,HZB50,RZB40,50,TRB40,50,XZB40,5#

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77011-12130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77011-12130	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2006	1
77011-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77011-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2006 - 01/2015	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36420	BB4#,5#	01/1993 - 07/1999	1
77017-36420	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77017-36420	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77017-36420	BB42	01/2015 - 12/2999	1
77017-36470	XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36420	BB4#,5#	01/1993 - 07/1999	1
77017-36420	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77017-36420	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77017-36420	BB42	01/2015 - 12/2999	1
77017-36470	XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010	BB4#,5#	01/1993 - 07/1999	1
77023-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77023-36010	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77023-60010	HZB50,XZB40,5#	01/2015 - 12/2999	1
77023-36010	BB42	01/2015 - 12/2999	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010	BB4#,5#	01/1993 - 07/1999	1
77023-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77023-36010	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77023-60010	HZB50,XZB40,5#	01/2015 - 12/2999	1
77023-36010	BB42	01/2015 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-36020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77026-36020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77026-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77026-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-36040	BB42,RZB40..LHD	01/1993 - 07/1999	1
77035-36040	BB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77035-36040	TRB40;BB42..LHD..SRF	08/2004 - 03/2014	1
77035-36041	BB42,TRB40..LHD	04/2014 - 01/2015	1
77035-36041	BB42,TRB40,XZB40..LHD	01/2015 - 12/2999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77037-36010	BB42,50,HZB50,RZB40,50..19S,21S,26S,30S	10/2003 - 08/2004	1
77037-12050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77037-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BZB40,50,RZB50..GCC,GEN;RZB40..26S..WC..(GCC,GEN);BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 10/2003	1
77037-36010	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77037-36010	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
77037-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER)	01/2015 - 12/2999	1
77037-12050	BB42..WOC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) W(FUEL LID OPENER)	08/2004 - 01/2015	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-36010	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 11/1997	1
77037-12050	BB4#,50,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	01/1993 - 12/1997	1
77037-36010	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	11/1997 - 07/1999	1
77037-12050	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77037-36010	BB42,50,HZB50,RZB40,50..19S,21S,26S,30S	10/2003 - 08/2004	1
77037-12050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77037-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BZB40,50,RZB50..GCC,GEN;RZB40..26S..WC..(GCC,GEN);BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 10/2003	1
77037-36010	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77037-36010	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
77037-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER)	01/2015 - 12/2999	1
77037-12050	BB42..WOC;BB42..LHD..SRF..WC;BB42,XZB59..RHD..HRF;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50..STD..(DSL,EFI,LPG,TD) W(FUEL LID OPENER)	08/2004 - 01/2015	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060E1	BB4#,RZB40,50;HZB50..LHD..DSL GREIGE,TRIM4#	01/1993 - 05/1995	1
77051-30060E1	BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4#	12/1997 - 07/1999	1
77051-30060E1	BB4#,50,HZB50,RZB40,50..CBU GREIGE,TRIM4#	05/1995 - 12/1997	1
77051-30060E1	BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4#	07/1999 - 08/2001	1
77051-30060B3	BB42,50,58,BZB40,50,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
77051-30060B3	BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
77051-30060B3	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
77100 - TANK ASSY, FUEL
77001-3B260	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77001-3B260	BB42,5#,HZB50	08/2004 - 11/2005	1
77001-3B260	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77001-3B261	XZB50..IV;XZB50..20S,21S;BB42,50,HZB50,XZB40,59..DCR,DSL,TD	12/2005 - 07/2008	1
77001-3B262	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77001-3B262	BB42..RHD;BB42..LHD..SRF;XZB50..WC..CBU;BB50,HZB50,XZB40,59	08/2008 - 01/2015	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90105-12116	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-12116	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90105-12116	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
90430-12245	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
90430-12245	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90430-12245	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77135 - BRACKET, CHECK VALVE
77135-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77135-36040	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77135-36040	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77135-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169-14020	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77169-14020	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77169-14020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169-14020	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77169-14020	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77169-14020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77169-14020	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77169-14020	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77169-14020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2006	1
77178-20030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77178-20030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77178-34010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2006 - 01/2015	1
77178-34010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77179-26011	BB42,HZB50,TRB40,50,XZB40,5#	11/2015 - 12/2999	2
77179-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77179-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 11/2015	2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77179-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77179-26011	BB42,HZB50,TRB40,50,XZB40,5#	11/2015 - 12/2999	2
77179-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77179-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 11/2015	2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-36180	HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR COLD AREA SPEC	01/1993 - 07/1999	1
77201-36180	HZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN *EX-USSR COLD AREA SPEC	07/1999 - 07/2002	1
77201-36170	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77201-36170	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB5#,RZB50..EFI,TDEFI;HZB50..HRF..(DX,STD)..WC..5F;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 07/2002	1
77201-36180	HZB50..GCC,GEN;BB42,5#,RZB40,50..ARL,EUR,GCC,GEN	07/2002 - 08/2004	1
77201-36180	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77201-36180	BB42,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-36090	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77213-36090	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77213-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77213-36090	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77213-36090	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-36070	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
77259-36070	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
77259-36070	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77259-36070	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77259-36070	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77259C - HOSE, FUEL
77259-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77259-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77259-36090	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77259-36090	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77259E - HOSE, FUEL
77259-36410	XZB40,5#..ARL,GEN,TAIW	08/2009 - 01/2015	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12060	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77291-12060	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77291-12060	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77291-12060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77291-12060	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12030	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77293-12030	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77293-12030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77293-12030	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77293-12030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77310A - CAP ASSY, FUEL TANK
77310-12150	BB4#,5#,HZB50	03/1998 - 07/1999	1
77310-12150	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77310-35110	BB4#,5#,HZB50	01/1993 - 03/1998	1
77300-20020	BB42,HZB50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77310-12150	BB42,50,HZB50,XZB5#..(ARL,GCC,GEN,TAIW)..(DCR,DSL,TD)	08/2004 - 08/2007	1
77300-52030	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59	08/2007 - 01/2015	1
77316 - GASKET, FUEL TANK CAP
77316-16010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77316-16010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77316-16010	RZB40..GEN;RZB40..SRF..GCC;BB42,50,HZB50,RZB50,XZB5#..(ARL,GCC,GEN,TAIW)..(DCR,DSL,EFI,TD)	08/2004 - 08/2007	1
77316-52040	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW	08/2009 - 01/2015	1
77316-52040	BB42,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN	01/2015 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-36020	HZB50..30S..4FC;BB4#,5#,HZB50,RZB40,50..(DX,STD)..CBU..5F	01/1993 - 12/1997	1
77350-36010	BB4#,5#,HZB50,RZB40,50..CBU W(FUEL LID OPENER)	12/1997 - 07/1999	1
77350-36010	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F W(FUEL LID OPENER)	01/1993 - 12/1997	1
77350-36020	BB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F	12/1997 - 07/1999	1
77350-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) W(FUEL LID OPENER)	07/1999 - 08/2004	1
77350-36010	BB42,5#,BZB40,50,HZB50,RZB40,50..ARL,GCC,GEN W(FUEL LID OPENER)	08/2004 - 01/2006	1
77350-36020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..(21S,30S)..(ARL,GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
77350-36020	BB42..RHD;BB42..LHD..SRF;XZB50..WC..ARL;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
77350-36011	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN W(FUEL LID OPENER),NO.1	01/2015 - 12/2999	1
77350-36011	BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD W(FUEL LID OPENER)	01/2006 - 01/2015	1
77350-36020	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S NO.1	01/2015 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77360-36010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77360-36010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77360-36010	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 07/1999	1
77377-20030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77377-20030	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.1	01/2015 - 12/2999	1
77377-20030	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) NO.1	08/2004 - 01/2015	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77380-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77380-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77380-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77391 - RING, FUEL INLET BOX
77391-14020	BB50..EUR;BB4#,5#,HZB50,RZB40,50..CBU	11/1997 - 07/1999	1
77391-14020	BB4#,5#,HZB50,RZB40,50	01/1993 - 11/1997	1
77391-14020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77391-14020	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
77391-14020	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77420-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
77420-26010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77420-26010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77601-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77601-36120	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77601-36120	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77611 - BAND, FUEL TANK
77601-36120	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77601-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77601-36120	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77601-36120	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77611A - PIN (FOR FUEL TANK BAND)
90240-08047	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
90240-08047	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
90240-08047	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
90240-08047	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-36030	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77613-36030	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77613-36030	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77613-36030	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	3
77651-36130	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	3
77651-36130	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	3
77651-36130	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	3
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77652-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77652-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77652-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77652A - CUSHION, FUEL TANK, NO.2
77652-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77652-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77652-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77652-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010	BB42,5#,HZB50,RZB40,50	08/2004 - 02/2005	4
77653-36010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	4
77653-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	4
77653-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77653-36010	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77655 - CUSHION, FUEL TANK, NO.3
77653-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77655 - CUSHION, FUEL TANK, NO.3
77653-36020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77653-36020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	02/2005 - 01/2015	2
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77681-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77681-36050	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77681-36050	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77681A - SEAT, FUEL TANK BAND
77681-36050	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	2
77681-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	2
77681-36050	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	2
77681-36050	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	11/1997 - 07/1999	1
90917-10020	BB4#,5#,HZB50,RZB40,50..CBU	01/1993 - 11/1997	1
90917-10020	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90917-10020	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
90917-10020	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
Common parts
82711-22270
82711-33170
90159-50217
90159-50219
90159-50278
90159-60008
90179-05011
90179-05042
90179-06308
90179-10074
90183-05094
90189-06099
90460-22002
90460-46005
90467-09007
90467-09123
90467-18008
90468-14004
90480-14003
91651-60616
91651-61025
91651-A0816
91655-B1040
93319-A4010
93568-55014
96133-41101
Linked diagrams
8401

ILLUST NO. 2 OF 4(0608-1501)XZB40,5#..ARL,GEN,TAIW

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-36580	XZB40,5#	01/2015 - 12/2999	1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36040	BB4#	01/1993 - 07/1999	1
77207-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77207-36120	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77207-36410	BB42	01/2015 - 12/2999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77208-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77208-36260	XZB40,5#	01/2015 - 12/2999	1
77208-36200	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77208-36290	BB42	01/2015 - 12/2999	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95338-12020	XZB40,5#..ARL,GEN,TAIW L=200	09/2010 - 01/2015	2
77259-36450	XZB40,5#	01/2015 - 12/2999	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-36231	XZB40,5#..ARL,GEN,TAIW	09/2010 - 08/2011	1
77251F - HOSE, FUEL
77259-36160	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36181	HZB50,XZB40,5#	01/2015 - 12/2999	1
77259-36200	BB42	08/2004 - 08/2010	1
77259-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36201	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
77259-36181	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
77259-36201	BB42	01/2015 - 12/2999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10015	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36210	BB42	08/2004 - 08/2010	1
77259-36211	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77259-36440	XZB40,5#	01/2015 - 12/2999	1
77253D - HOSE, FUEL
95332-10030	BB4#	01/1993 - 10/1995	1
95332-10018	BB4#	10/1995 - 02/1996	1
95332-10019	BB4#	02/1996 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95338-10018	BB42	01/2015 - 12/2999	1
95338-12018	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
77254D - HOSE, FUEL
95332-10018	BB4#,5#	01/1993 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95337-08034	XZB40,5# L=260	01/2015 - 12/2999	1
95337-08034	XZB40,5#..ARL,GEN,TAIW L=260	09/2010 - 01/2015	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020	BB4#,HZB50 *H,L=180	01/1993 - 05/1995	1
95333-06020	BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180	05/1997 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC *H,L=150	07/1999 - 08/2004	1
95333-06020	BB42,HZB50 *H,L=150	08/2004 - 08/2010	1
95337-08015	XZB40,5#..ARL,GEN,TAIW L=160	09/2010 - 01/2015	1
95337-06015	HZB50;BB42..RHD;BB42..LHD..SRF L=150	09/2010 - 01/2015	1
95337-06018	BB42,HZB50 L=180	01/2015 - 12/2999	1
95337-08019	XZB40,5# L=190	01/2015 - 12/2999	1
77278E - HOSE, FUEL
95333-06020	BB4#,5#,HZB50	10/1995 - 07/1999	1
95333-06030	BB4#	01/1993 - 10/1995	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
95337-08034	XZB40,5#..ARL,GEN,TAIW	09/2010 - 01/2015	1
95337-06018	BB42	01/2015 - 12/2999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06022	BB42	01/2015 - 12/2999	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77281-36050	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77281-36030	HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36050	BB42	01/2015 - 12/2999	1
77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN)
77281-36100	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77281-36100	XZB40,5#	01/2015 - 12/2999	1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-36040	BB5#..TDEFI;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
77281-36130	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36040	BB42..RHD;HZB50,XZB40,59;BB42..LHD..SRF;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
77285 - BRACKET, FUEL TUBE
77281-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77281-36140	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77281-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2
Common parts
90119-08A46
90467-18008
90480-14017
90949-01885
91651-60616
96132-51300

ILLUST NO. 4 OF 4(9907- )BB50..TD ; (9907- )BB50..6F..TDEFI; (9907- )BB4#,58,59,RZB40,50 ;

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty
77295D - GROMMET, FUEL TUBE
90480-01552	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,50..HRF..(26S,30S)..WC..GEN TYPE G:REFER TO ILLUSTRATION	07/1999 - 08/2004	2
90480-01552	BB42..RHD;BB42..LHD..SRF TYPE G:REFER TO ILLUSTRATION	08/2004 - 01/2015	2
77285-42110	XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST.	08/2009 - 01/2015	2
77295-53020	XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST.	08/2009 - 01/2015	1
77285-26100	XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST.	08/2009 - 01/2015	2

ILLUST NO. 2 OF 4(1501- )BB42

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-36A70	XZB40,5#	01/2015 - 12/2999	1
77205-36A50	XZB40,5#..ARL,GEN,TAIW	08/2011 - 01/2015	1
77205-36B20	BB42..LHD	01/2015 - 12/2999	1
77205-36810	BB42..LHD;BB50..LHD..EUR	01/1993 - 10/1997	1
77205-36810	BB42..LHD	10/1997 - 07/1999	1
77205-3B090	BB42..WC..GCC;BB42..LHD..26S..GEN	07/1999 - 08/2004	1
77205-3B090	BB42..LHD..SRF	08/2004 - 01/2015	1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36040	BB4#	01/1993 - 07/1999	1
77207-36120	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77207-36120	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77207-36410	BB42	01/2015 - 12/2999	1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36150	BB4#,5#	01/1993 - 07/1999	1
77208-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
77208-36260	XZB40,5#	01/2015 - 12/2999	1
77208-36200	BB50..TD;BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77208-36290	BB42	01/2015 - 12/2999	1
77251F - HOSE, FUEL
77259-36160	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36181	HZB50,XZB40,5#	01/2015 - 12/2999	1
77259-36200	BB42	08/2004 - 08/2010	1
77259-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36201	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
77259-36181	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
77259-36201	BB42	01/2015 - 12/2999	1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10015	BB40,42,58;BB50..GEN..IV	01/1993 - 07/1999	1
77259-36210	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77259-36210	BB42	08/2004 - 08/2010	1
77259-36211	BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77259-36440	XZB40,5#	01/2015 - 12/2999	1
77253D - HOSE, FUEL
95332-10030	BB4#	01/1993 - 10/1995	1
95332-10018	BB4#	10/1995 - 02/1996	1
95332-10019	BB4#	02/1996 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95338-10018	BB42	01/2015 - 12/2999	1
95338-12018	HZB50,XZB40,5#..ARL,GCC,GEN,TAIW	09/2010 - 01/2015	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
77254D - HOSE, FUEL
95332-10018	BB4#,5#	01/1993 - 07/1999	1
95332-10018	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD	07/1999 - 08/2004	1
95332-10018	BB42,50..DSL,TD	08/2004 - 08/2010	1
95338-10018	BB50;BB42..RHD;BB42..LHD..SRF	09/2010 - 01/2015	1
95338-10018	BB42	01/2015 - 12/2999	1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-06020	BB4#,HZB50 *H,L=180	01/1993 - 05/1995	1
95333-06020	BB50..GEN..IV;BB40,42,58,HZB50 *H,L=180	05/1997 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC *H,L=150	07/1999 - 08/2004	1
95333-06020	BB42,HZB50 *H,L=150	08/2004 - 08/2010	1
95337-08015	XZB40,5#..ARL,GEN,TAIW L=160	09/2010 - 01/2015	1
95337-06015	HZB50;BB42..RHD;BB42..LHD..SRF L=150	09/2010 - 01/2015	1
95337-06018	BB42,HZB50 L=180	01/2015 - 12/2999	1
95337-08019	XZB40,5# L=190	01/2015 - 12/2999	1
77278E - HOSE, FUEL
95333-06020	BB4#,5#,HZB50	10/1995 - 07/1999	1
95333-06030	BB4#	01/1993 - 10/1995	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
95337-08034	XZB40,5#..ARL,GEN,TAIW	09/2010 - 01/2015	1
95337-06018	BB42	01/2015 - 12/2999	1
77279C - HOSE, FUEL
95333-06020	BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO	10/1996 - 07/1999	1
95333-06020	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
95333-06020	BB4#,50,HZB50,RZB40,50	01/1993 - 10/1996	1
95333-06020	BB42,50,HZB50..DSL,TD	08/2004 - 08/2010	1
95337-06022	BB42	01/2015 - 12/2999	1
95337-06017	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	09/2010 - 01/2015	1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-36050	BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC	07/1999 - 08/2004	1
77281-36050	BB42..RHD;BB42..LHD..SRF	08/2004 - 01/2015	1
77281-36030	HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36050	BB42	01/2015 - 12/2999	1
77281E - BRACKET, FUEL MAIN TUBE, NO.1
77281-36040	BB5#..TDEFI;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC	07/1999 - 08/2004	1
77281-36130	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
77281-36040	BB42..RHD;HZB50,XZB40,59;BB42..LHD..SRF;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
77285 - BRACKET, FUEL TUBE
77281-36010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
77281-36140	BB42,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
77281-36010	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD	08/2004 - 01/2015	1
Common parts
77285-36290
77285-36330
90467-15012
91651-60616
96132-51100

BB42L-BRMRS (1993)

ILLUST NO. 2 OF 4(9301-9907)BB4# ; (9705-9907)BB58 ; (9711-9907)GEN..IV

ILLUST NO. 2 OF 4(9907- )BB42,50..DSL,TD ; (9907- )HZB50..20S,22S,30S

ILLUST NO. 1 OF 4(9301-0602)BB4#,5#,HZB50,RZB40,50

ILLUST NO. 1 OF 4(0602- )BB42,5#,HZB50,RZB40,50,TRB40,50,XZB40,5#

ILLUST NO. 2 OF 4(0608-1501)XZB40,5#..ARL,GEN,TAIW

ILLUST NO. 4 OF 4(9907- )BB50..TD ; (9907- )BB50..6F..TDEFI; (9907- )BB4#,58,59,RZB40,50 ;

ILLUST NO. 2 OF 4(1501- )BB42

Part Price Details
