BB42L-BRMRS (1993)
Toyota Coaster
(9301-9907)14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58390 |
14B,3B..BB40,42 |
1 | ||
| 17700-58690 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17700-58690 |
14B..BB42 |
1 | ||
| 17700-58691 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17700-58691 |
14B..BB42 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90175-08008 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..LHD..CBU..5F |
1 | ||
| 90175-08008 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 90175-08008 |
14B,15B#..BB42,5#..ARL,EUR,GCC,GEN |
1 | ||
| 90175-08008 |
14B..BB42 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
14B,3B..BB40,42 |
1 | ||
| 17701-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17701-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17701-58360 |
14B..BB42 |
1 | ||
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-36020 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 53772-36021 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 53772-36040 |
14B..BB42..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-66010 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-58020 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-66010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17730-66010 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 17730-66010 |
14B..BB42..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B,3B..BB40,42 |
1 | ||
| 17801-58010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17801-58010 |
14B..BB42 |
1 | ||
| 17801-58010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
14B,3B..BB40,42 |
1 | ||
| 17807-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17807-56020 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
1 | ||
| 17807-56020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B,3B..BB40,42 |
1 | ||
| 17845-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17845-56020 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17845-56020 |
14B..BB42 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881-58210 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17881-58210 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58130 |
14B,3B..BB40,42 |
1 | ||
| 17882-58130 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17882-58130 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17882-58130 |
14B..BB42 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36010 |
14B,3B..BB40,42 |
1 | ||
| 59132-36010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;14B,1BZFPE..BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 59132-36010 |
14B,1BZFPE..BB42,BZB40,50..STD |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17885-17010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17885-17010 |
14B,3B..BB40,42 |
1 | ||
| 17885-17010 |
14B..BB42 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36030 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 53776-36031 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 53776-36031 |
BB42..GEN |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB40,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
BB42,BZB40,50 |
1 | ||
| 55871-36020 |
BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD) |
1 | ||
| 55871-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36070 |
BB42..LHD..SRF;BB42,BZB40,50..RHD |
1 | ||
| 58257-36020 |
BB43,5# |
1 | ||
| 58257-36030 |
BB40,42 |
1 | ||
| 58257-36030 |
BB42,BZB40,50..STD |
1 | ||
| 58257-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 58257-36070 |
BB42,BZB40,50 |
1 | ||
| 58257-36050 |
XZB40,5# |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36040 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 59133-36020 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59133-36040 |
BB42..GEN |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 90480-99006 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB50..TD;BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59181-36010 |
BB42..GEN |
1 | ||
| 59181-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90167-40045 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 90999-92002 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 91661-60816 | ||||
| 93560-54012 | ||||
| 96111-10750 | ||||
| 96111-10850 | ||||
| Linked diagrams | ||||
| 1709 | ||||

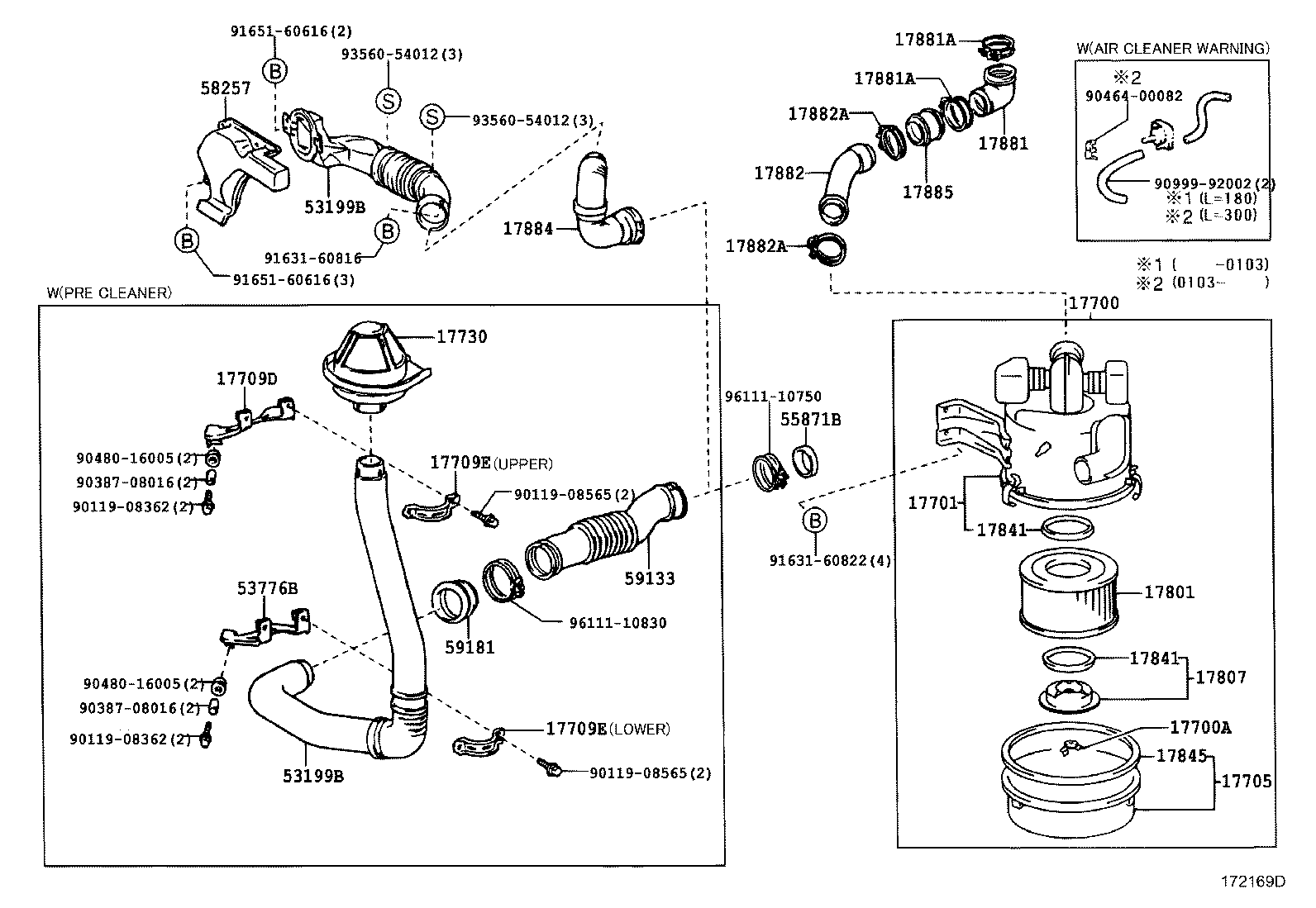

(9907-0908)14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58390 |
14B,3B..BB40,42 |
1 | ||
| 17700-58690 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17700-58690 |
14B..BB42 |
1 | ||
| 17700-58691 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17700-58691 |
14B..BB42 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90175-08008 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..LHD..CBU..5F |
1 | ||
| 90175-08008 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 90175-08008 |
14B,15B#..BB42,5#..ARL,EUR,GCC,GEN |
1 | ||
| 90175-08008 |
14B..BB42 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
14B,3B..BB40,42 |
1 | ||
| 17701-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17701-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17701-58360 |
14B..BB42 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58350 |
14B..BB42 |
1 | ||
| 17705-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17705-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17705-58360 |
14B..BB42 |
1 | ||
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-36020 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 53772-36021 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 53772-36040 |
14B..BB42..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-66010 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-58020 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-66010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17730-66010 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 17730-66010 |
14B..BB42..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B,3B..BB40,42 |
1 | ||
| 17801-58010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17801-58010 |
14B..BB42 |
1 | ||
| 17801-58010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
14B,3B..BB40,42 |
1 | ||
| 17807-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17807-56020 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
1 | ||
| 17807-56020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B,3B..BB40,42 |
1 | ||
| 17845-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17845-56020 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17845-56020 |
14B..BB42 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881-58210 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17881-58210 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58130 |
14B,3B..BB40,42 |
1 | ||
| 17882-58130 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17882-58130 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17882-58130 |
14B..BB42 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36010 |
14B,3B..BB40,42 |
1 | ||
| 59132-36010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;14B,1BZFPE..BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 59132-36010 |
14B,1BZFPE..BB42,BZB40,50..STD |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17885-17010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17885-17010 |
14B,3B..BB40,42 |
1 | ||
| 17885-17010 |
14B..BB42 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36030 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 53776-36031 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 53776-36031 |
BB42..GEN |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB40,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
BB42,BZB40,50 |
1 | ||
| 55871-36020 |
BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD) |
1 | ||
| 55871-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36070 |
BB42..LHD..SRF;BB42,BZB40,50..RHD |
1 | ||
| 58257-36020 |
BB43,5# |
1 | ||
| 58257-36030 |
BB40,42 |
1 | ||
| 58257-36030 |
BB42,BZB40,50..STD |
1 | ||
| 58257-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 58257-36070 |
BB42,BZB40,50 |
1 | ||
| 58257-36050 |
XZB40,5# |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36040 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 59133-36020 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59133-36040 |
BB42..GEN |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 90480-99006 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB50..TD;BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59181-36010 |
BB42..GEN |
1 | ||
| 59181-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90387-08016 | ||||
| 90464-00082 | ||||
| 90480-16005 | ||||
| 90999-92002 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 93560-54012 | ||||
| 96111-10750 | ||||
| 96111-10830 | ||||
(0908-1108)14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58390 |
14B,3B..BB40,42 |
1 | ||
| 17700-58690 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17700-58690 |
14B..BB42 |
1 | ||
| 17700-58691 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17700-58691 |
14B..BB42 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90175-08008 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..LHD..CBU..5F |
1 | ||
| 90175-08008 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 90175-08008 |
14B,15B#..BB42,5#..ARL,EUR,GCC,GEN |
1 | ||
| 90175-08008 |
14B..BB42 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
14B,3B..BB40,42 |
1 | ||
| 17701-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17701-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17701-58360 |
14B..BB42 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58350 |
14B..BB42 |
1 | ||
| 17705-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17705-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17705-58360 |
14B..BB42 |
1 | ||
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-36020 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 53772-36021 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 53772-36040 |
14B..BB42..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-66010 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-58020 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-66010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17730-66010 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 17730-66010 |
14B..BB42..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B,3B..BB40,42 |
1 | ||
| 17801-58010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17801-58010 |
14B..BB42 |
1 | ||
| 17801-58010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
14B,3B..BB40,42 |
1 | ||
| 17807-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17807-56020 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
1 | ||
| 17807-56020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B,3B..BB40,42 |
1 | ||
| 17845-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17845-56020 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17845-56020 |
14B..BB42 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881-58210 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17881-58210 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58130 |
14B,3B..BB40,42 |
1 | ||
| 17882-58130 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17882-58130 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17882-58130 |
14B..BB42 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59132-36010 |
14B,3B..BB40,42 |
1 | ||
| 59132-36010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;14B,1BZFPE..BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 59132-36010 |
14B,1BZFPE..BB42,BZB40,50..STD |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17885-17010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17885-17010 |
14B,3B..BB40,42 |
1 | ||
| 17885-17010 |
14B..BB42 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36030 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 53776-36031 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 53776-36031 |
BB42..GEN |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB40,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
BB42,BZB40,50 |
1 | ||
| 55871-36020 |
BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD) |
1 | ||
| 55871-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36070 |
BB42..LHD..SRF;BB42,BZB40,50..RHD |
1 | ||
| 58257-36020 |
BB43,5# |
1 | ||
| 58257-36030 |
BB40,42 |
1 | ||
| 58257-36030 |
BB42,BZB40,50..STD |
1 | ||
| 58257-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 58257-36070 |
BB42,BZB40,50 |
1 | ||
| 58257-36050 |
XZB40,5# |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36040 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 59133-36020 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59133-36040 |
BB42..GEN |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 90480-99006 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB50..TD;BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59181-36010 |
BB42..GEN |
1 | ||
| 59181-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90387-08016 | ||||
| 90464-00082 | ||||
| 90480-16005 | ||||
| 90999-92002 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 93560-54012 | ||||
| 96111-10750 | ||||
| 96111-10830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1108- )14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

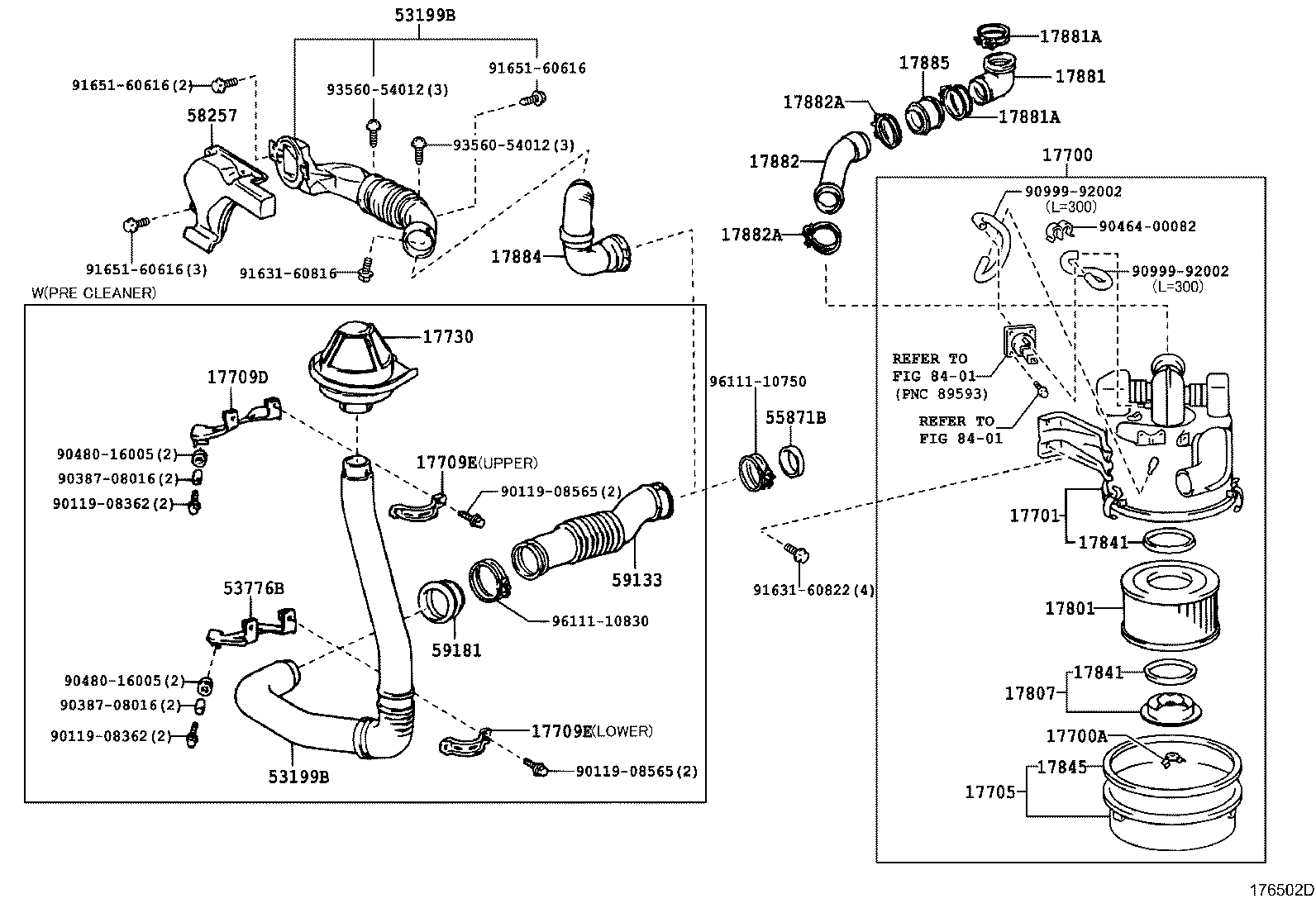

| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58390 |
14B,3B..BB40,42 |
1 | ||
| 17700-58690 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17700-58690 |
14B..BB42 |
1 | ||
| 17700-58691 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17700-58691 |
14B..BB42 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B,15BFT,3B..BB4#,5# |
1 | ||
| 90175-08008 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..LHD..CBU..5F |
1 | ||
| 90175-08008 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 90175-08008 |
14B,15B#..BB42,5#..ARL,EUR,GCC,GEN |
1 | ||
| 90175-08008 |
14B..BB42 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44263 |
14B,3B..BB40,42 |
1 | ||
| 17701-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17701-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17701-58360 |
14B..BB42 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58350 |
14B..BB42 |
1 | ||
| 17705-58360 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17705-58360 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17705-58360 |
14B..BB42 |
1 | ||
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-36020 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 53772-36021 |
14B..BB42..GCC,GEN |
1 | ||
| 53772-36040 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 53772-36040 |
14B..BB42..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-60020 |
14B..BB42..GCC,GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN UPPER & LOWER |
4 | ||
| 53773-90B00 |
14B..BB42..GCC,GEN LOWER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F UPPER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F LOWER SIDE |
2 | ||
| 53773-60020 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN UPPER SIDE |
2 | ||
| 53773-60020 |
14B..BB42..GEN UPPER SIDE |
2 | ||
| 53773-90B00 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN LOWER SIDE |
2 | ||
| 53773-90B00 |
14B..BB42..GEN LOWER SIDE |
2 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-66010 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-58020 |
14B..BB42..GCC,GEN |
1 | ||
| 17730-66010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17730-66010 |
15BFT..BB50;14B..BB42..RHD;14B..BB42..LHD..SRF..GEN |
1 | ||
| 17730-66010 |
14B..BB42..GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B,3B..BB40,42 |
1 | ||
| 17801-58010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17801-58010 |
14B..BB42 |
1 | ||
| 17801-58010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
14B,3B..BB40,42 |
1 | ||
| 17807-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17807-56020 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
1 | ||
| 17807-56020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B,3B..BB40,42 |
2 | ||
| 17841-44030 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
2 | ||
| 17841-44030 |
14B..BB42..LHD..SRF;14B,1BZFPE..BB42,BZB40,50..RHD..STD |
2 | ||
| 17841-44030 |
14B,1BZFPE..BB42,BZB40,50 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B,3B..BB40,42 |
1 | ||
| 17845-56020 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17845-56020 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17845-56020 |
14B..BB42 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881-58210 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17881-58210 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17881-58210 |
14B..BB42 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
14B,3B..BB4# AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42..RHD;14B..BB42..LHD..SRF ENGINE SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10900 |
14B..BB42 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58130 |
14B,3B..BB40,42 |
1 | ||
| 17882-58130 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17882-58130 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17882-58130 |
14B..BB42 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
14B,3B..BB40,42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B,3B..BB40,42 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B,3B..BB4# |
2 | ||
| 96111-10750 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC PIPE SIDE |
1 | ||
| 96111-10780 |
14B..BB42..RHD;14B..BB42..LHD..SRF PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42..RHD;14B..BB42..LHD..SRF AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
14B..BB42 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BB42 AIR CLEANER SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC |
1 | ||
| 17885-17010 |
14B..BB42..RHD;14B..BB42..LHD..SRF |
1 | ||
| 17885-17010 |
14B,3B..BB40,42 |
1 | ||
| 17885-17010 |
14B..BB42 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-36020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 52810-36020 |
14B,1BZFPE..BB42,BZB40,50 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-36050 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB40,42 |
1 | ||
| 53207-36030 |
BB43,5# |
1 | ||
| 53207-36080 |
BB42..GCC,GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 53207-36080 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36080 |
BB42..GEN |
1 | ||
| 53207-36080 |
BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC..GEN COOL AIR INTAKE(SCHNORKEL & W/PRE CLEANER) |
1 | ||
| 53207-36020 |
BB42,BZB40,50..STD |
1 | ||
| 53776B - BRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2 | ||||
| 53776-36030 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..GCC,GEN |
1 | ||
| 53776-36031 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 53776-36031 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 53776-36031 |
BB42..GEN |
1 | ||
| 55871B - SEAL, AIR DUCT | ||||
| 55871-36020 |
XZB40,5# |
1 | ||
| 55871-36020 |
BB4#,5# |
1 | ||
| 55871-36020 |
BB42,BZB40,50 |
1 | ||
| 55871-36020 |
BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50..STD..(LPG,TD) |
1 | ||
| 55871-36020 |
BB42..WC..GCC;BB42..SRF..GEN;BB58,59,BZB40,50;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI) |
1 | ||
| 58257 - PLATE, AIR CLEANER HOUSE | ||||
| 58257-36070 |
BB42..LHD..SRF;BB42,BZB40,50..RHD |
1 | ||
| 58257-36020 |
BB43,5# |
1 | ||
| 58257-36030 |
BB40,42 |
1 | ||
| 58257-36030 |
BB42,BZB40,50..STD |
1 | ||
| 58257-36030 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;BB42,BZB40,50..HRF..(17S,21S,26S)..WC |
1 | ||
| 58257-36070 |
BB42,BZB40,50 |
1 | ||
| 58257-36050 |
XZB40,5# |
1 | ||
| 59133 - HOSE, COOL AIR INTAKE, NO.3 | ||||
| 59133-36040 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC |
1 | ||
| 59133-36020 |
BB42..GCC,GEN |
1 | ||
| 59133-36040 |
BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59133-36040 |
BB42..GEN |
1 | ||
| 59181 - SEAL, AIR CLEANER INLET DUCT, NO.1 | ||||
| 90480-99006 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB42..GCC,GEN |
1 | ||
| 59181-36010 |
BB50..TD;BB42..RHD;BB42..LHD..SRF..GEN |
1 | ||
| 59181-36010 |
BB42..GEN |
1 | ||
| 59181-36010 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F..TD |
1 | ||
| Common parts | ||||
| 90119-08362 | ||||
| 90119-08565 | ||||
| 90387-08016 | ||||
| 90464-00082 | ||||
| 90480-16005 | ||||
| 90999-92002 | ||||
| 91631-60816 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 96111-10750 | ||||
| 96111-10830 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
