BB40R-ZEMSSQ (1993)
Toyota Coaster

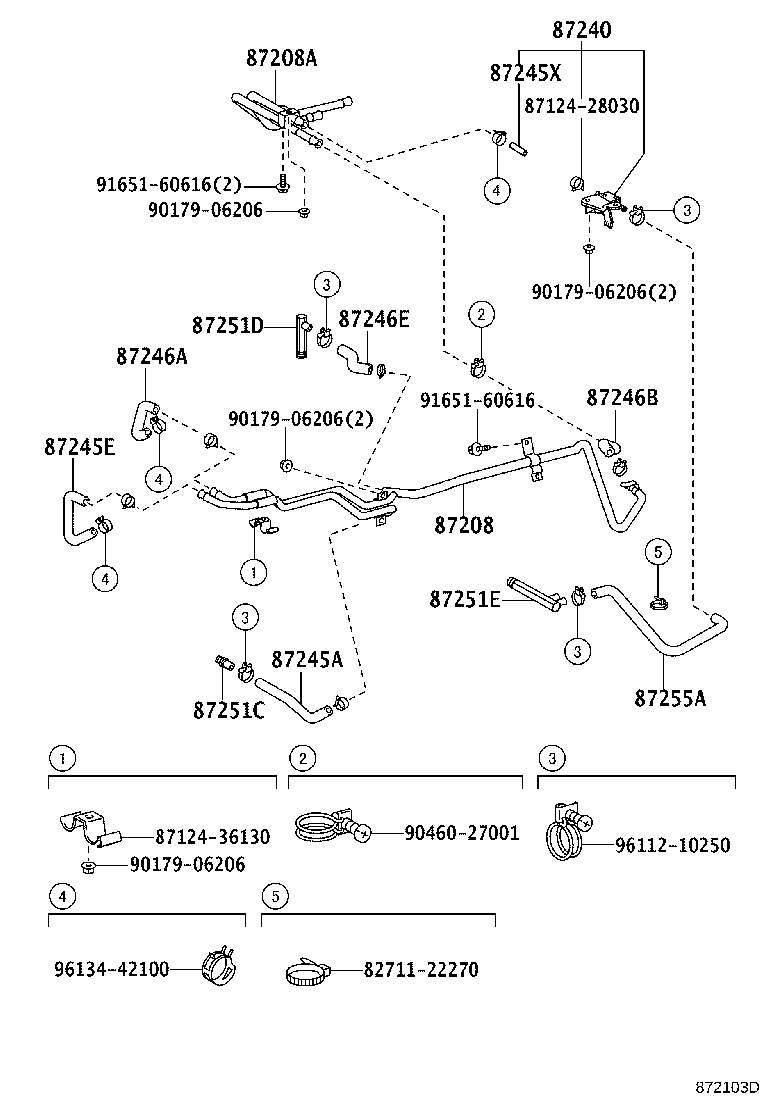

ILLUST NO. 1 OF 3(9301-9907)BB4#..RHD..ARL,GEN
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36390 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87208-36391 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36190 |
BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC |
1 | ||
| 87208-36730 |
BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN) |
1 | ||
| 87208-36190 |
BB42..RHD..GEN;BB42,RZB40,50..LHD..SRF;BB40,50,RZB40,50..HRF..(ARL,EUR,GCC) |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36130 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3B430 |
BB4#..ARL,GCC,GEN W(REAR HEATER) |
1 | ||
| 87209-36850 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-3B431 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3B391 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87245-3B390 |
BB4#,HZB50..RHD |
1 | ||
| 87245-3B390 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2 |
1 | ||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3 |
2 | ||
| 87245-3C560 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3 |
2 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1 |
1 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1 |
1 | ||
| 87245-3C550 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2 |
1 | ||
| 87245-3C710 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR |
2 | ||
| 87245-3C730 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245-3B400 |
BB4#,HZB50..RHD |
1 | ||
| 87245-3B401 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245-3C440 |
BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-3B441 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87245-3B440 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87251C - JOINT, WATER HOSE THROUGH | ||||
| 87251-30200 |
BB4#..RHD;BB42..GCC |
1 | ||
| 87251-30200 |
BB42..SRF..WC;BB42..WOC..GCC;BB4#,50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87251-30200 |
BB42..GCC;BB4#..RHD..(ARL,GEN) |
1 | ||
| 87251-30200 |
BB42..LHD..SRF;BB40,42,50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87251-60010 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87251-60010 |
BB4# |
1 | ||
| 87251-95403 |
BB40,42..ARL,GCC,GEN |
1 | ||
| 87251E - JOINT, WATER, NO.2 | ||||
| 87251-90B00 |
BB4# |
1 | ||
| 87251-95400 |
BB4# |
1 | ||
| 87251-95400 |
BB50..EUR;BB40,42,50..(ARL,GCC,GEN)..CBU |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-36180 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-36181 |
BB40,42..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 87124-28030 | ||||
| 87124-36130 | ||||
| 90179-06206 | ||||
| 90460-27001 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-36240 | ||||
| 87124-36250 | ||||
| 87124-36260 | ||||
| 87124-36270 | ||||
| 90179-08017 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96112-10360 | ||||

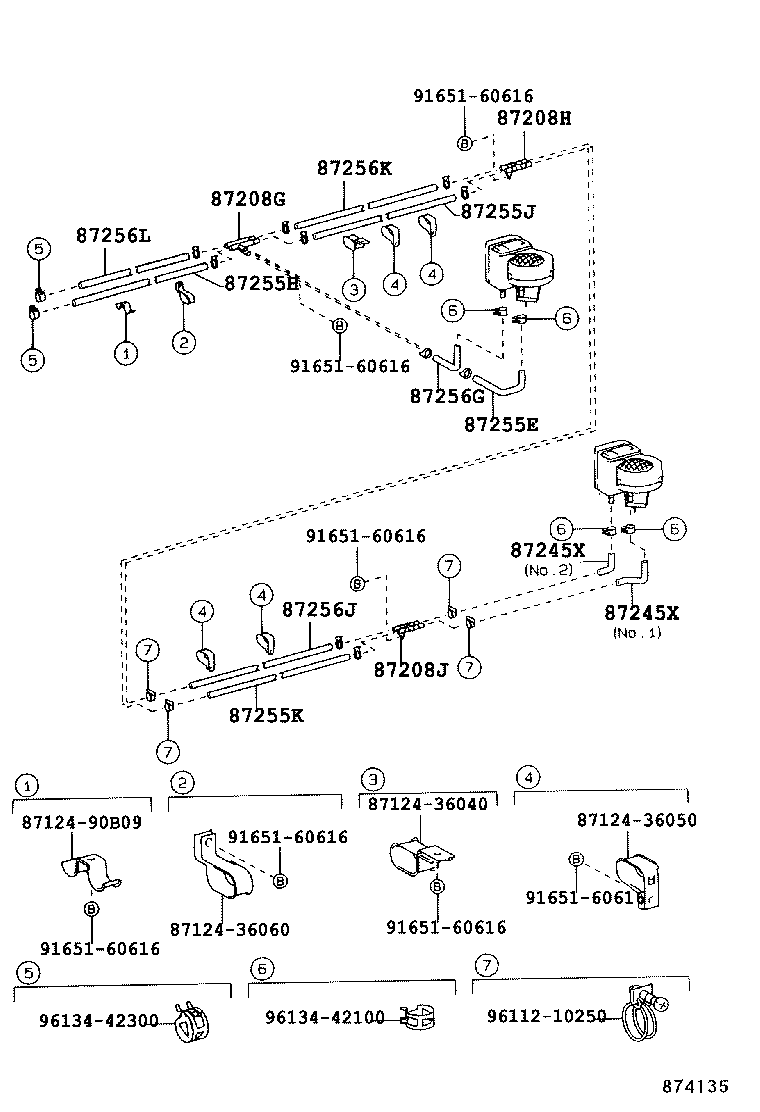

ILLUST NO. 2 OF 3(9301-9907)BB4#..RHD..ARL,GEN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208G - PIPE SUB-ASSY, HEATER WATER, G | ||||
| 87208-36540 |
BB4#,HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87208-36540 |
BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 87208H - PIPE SUB-ASSY, HEATER WATER, H | ||||
| 87208-36590 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87208-36591 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87208J - PIPE SUB-ASSY, HEATER WATER, J | ||||
| 87208-36530 |
HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 87208-36690 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87208-36530 |
BB4#,HZB50..ARL,EUR,GCC,GEN |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2 |
1 | ||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3 |
2 | ||
| 87245-3C560 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3 |
2 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1 |
1 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1 |
1 | ||
| 87245-3C550 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2 |
1 | ||
| 87245-3C710 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR |
2 | ||
| 87245-3C730 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2 |
1 | ||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3 |
2 | ||
| 87245-3C560 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3 |
2 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1 |
1 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1 |
1 | ||
| 87245-3C550 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2 |
1 | ||
| 87245-3C710 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR |
2 | ||
| 87245-3C730 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-3B680 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) |
1 | ||
| 87245-3B681 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F |
1 | ||
| 87245-3B680 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL |
1 | ||
| 87255H - HOSE, HEATER WATER INLET, H | ||||
| 87245-3B661 |
BB40,42,HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 87245-3B660 |
BB4#,HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87245-3B660 |
BB4#,HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 87255J - HOSE, HEATER WATER INLET, J | ||||
| 87245-3B820 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87245-3B821 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87255K - HOSE, REAR HEATER WATER INLET, K | ||||
| 99556-31000 |
HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720 |
1 | ||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720 |
1 | ||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720 |
1 | ||
| 87245-3C690 |
BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 87256G - HOSE, REAR HEATER WATER OUTLET, G | ||||
| 87245-3B670 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) |
1 | ||
| 87245-3B670 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL |
1 | ||
| 87245-3B671 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F |
1 | ||
| 87256J - HOSE, REAR HEATER WATER OUTLRT, J | ||||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720 |
1 | ||
| 87245-3C690 |
BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 99556-31000 |
BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720 |
1 | ||
| 99556-31000 |
HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720 |
1 | ||
| 87256K - HOSE, REAR HEATER WATER OUTLET, K | ||||
| 87245-3B831 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87245-3B830 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87256L - HOSE, REAR HEATER WATER OUTLET, L | ||||
| 87245-3B650 |
BB4#,HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| 87245-3B650 |
BB4#,HZB50..RHD..(ARL,EUR,GEN) |
1 | ||
| 87245-3B651 |
BB40,42,HZB50..RHD..(ARL,GEN)..5F |
1 | ||
| Common parts | ||||
| 87124-36040 | ||||
| 87124-36050 | ||||
| 87124-36060 | ||||
| 87124-90B09 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
| 96134-42300 | ||||
ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-36390 |
BB4#..RHD..(ARL,GEN) |
1 | ||
| 87208-36391 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-36190 |
BB42..WC..GCC;BB42..LHD..WOC;BB42..RHD..GEN;BB40,RZB40,50..ARL,GCC |
1 | ||
| 87208-36730 |
BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN) |
1 | ||
| 87208-36190 |
BB42..RHD..GEN;BB42,RZB40,50..LHD..SRF;BB40,50,RZB40,50..HRF..(ARL,EUR,GCC) |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-36030 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER) |
1 | ||
| 87240-36130 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-3B430 |
BB4#..ARL,GCC,GEN W(REAR HEATER) |
1 | ||
| 87209-36850 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-3B431 |
BB40,42..RHD..(ARL,GEN) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-3B391 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87245-3B390 |
BB4#,HZB50..RHD |
1 | ||
| 87245-3B390 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2 |
1 | ||
| 87245-3B220 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2 |
1 | ||
| 99556-30100 |
HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3 |
2 | ||
| 87245-3C560 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1 |
1 | ||
| 99556-30100 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3 |
2 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1 |
1 | ||
| 87245-3B230 |
BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1 |
1 | ||
| 87245-3C550 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2 |
1 | ||
| 87245-3C710 |
BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR |
2 | ||
| 87245-3C730 |
BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-3B400 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245-3B400 |
BB4#,HZB50..RHD |
1 | ||
| 87245-3B401 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-3B410 |
BB42..RHD..GEN;BB40,HZB50..RHD |
1 | ||
| 87245-3C440 |
BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-36180 |
BB4#..ARL,GCC,GEN |
1 | ||
| 87245-36181 |
BB40,42..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-36130 | ||||
| 90179-06206 | ||||
| 90339-16001 | ||||
| 90460-27001 | ||||
| 91651-60616 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
