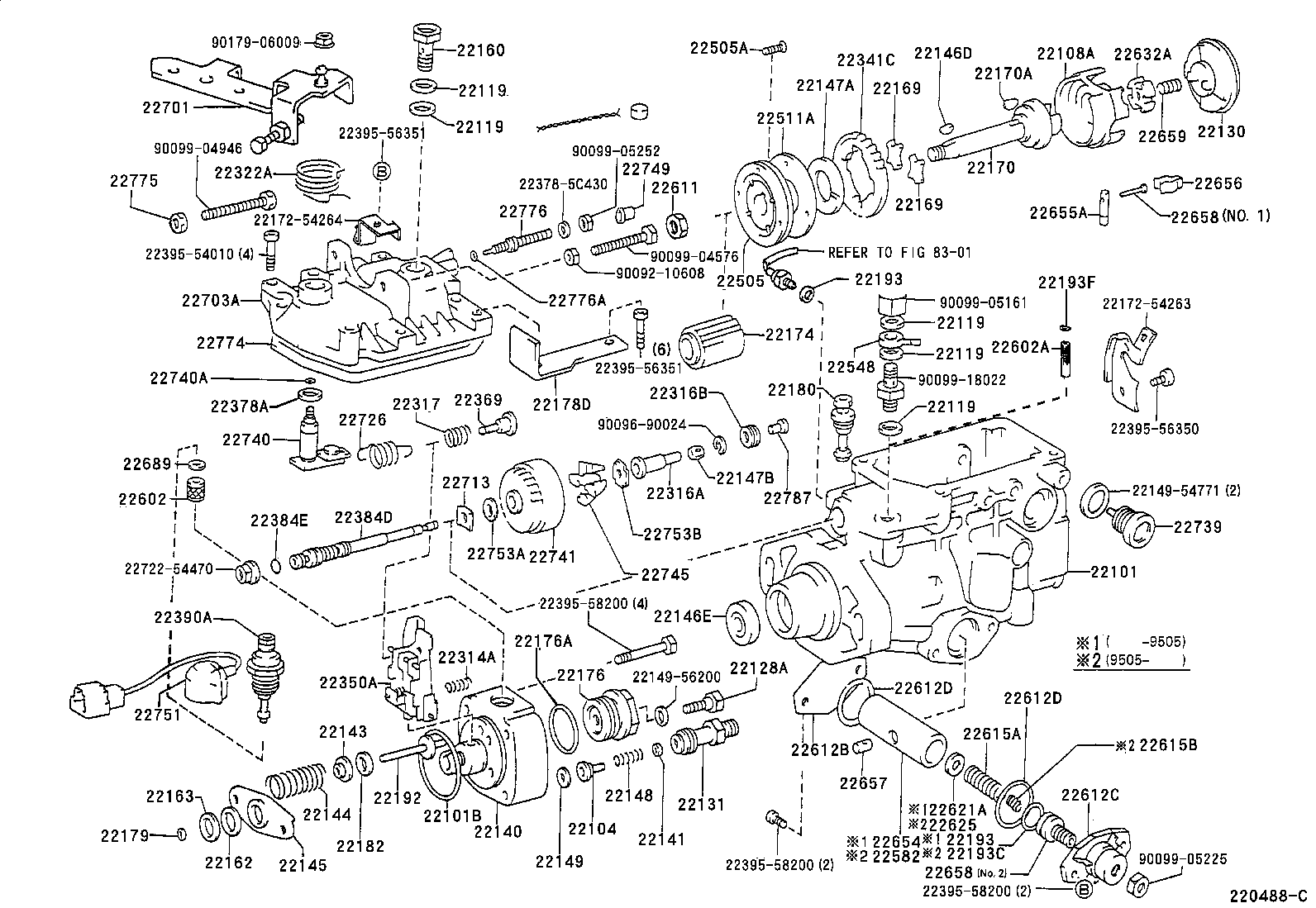

BB40R-ZEMSSQ (1993)
Toyota Coaster
(9301-9907)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64250 |
3B..BB40 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17010 |
3B..BB40 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
3B..BB40 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
14B,3B..BB40,42 T=1.6 |
5 | ||
| 90201-12109 |
14B,3B..BB4#..ARL,SCO |
5 | ||
| 90201-12109 |
3B..BB40 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
14B,3B..BB40,42 T=1.6 |
5 | ||
| 90201-12109 |
14B,3B..BB4#..ARL,SCO |
5 | ||
| 90201-12109 |
3B..BB40 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
14B,3B..BB40,42 T=1.6 |
5 | ||
| 90201-12109 |
14B,3B..BB4#..ARL,SCO |
5 | ||
| 90201-12109 |
3B..BB40 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
14B,3B..BB40,42 T=1.6 |
5 | ||
| 90201-12109 |
14B,3B..BB4#..ARL,SCO |
5 | ||
| 90201-12109 |
3B..BB40 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
14B,3B..BB40,42 T=1.6 |
5 | ||
| 90201-12109 |
14B,3B..BB4#..ARL,SCO |
5 | ||
| 90201-12109 |
3B..BB40 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3B..BB40 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
3B..BB40 |
1 | ||
| 22130-5C150 |
3B..BB40 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54730 |
3B..BB40 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-58690 |
3B..BB40 |
1 | ||
| 22140-5C150 |
3B..BB40 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
3B..BB40 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3B..BB40 |
2 | ||
| 22144-54180 |
3B..BB40 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BB40 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
3B..BB40 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3B..BB40 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
3B..BB40 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58201 |
3B..BB40 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
14B,3B..BB4# |
1 | ||
| 22193-54772 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22178D - BRACKET, IDLE UP | ||||
| 22178-58890 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54015 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.4 |
1 | ||
| 22179-54011 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.0 |
1 | ||
| 22179-54012 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.1 |
1 | ||
| 22179-54017 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.6 |
1 | ||
| 22179-54014 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.3 |
1 | ||
| 22179-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.9 |
1 | ||
| 22179-54016 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.5 |
1 | ||
| 22179-54018 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.7 |
1 | ||
| 22179-54013 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.2 |
1 | ||
| 22179-54020 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.9 |
1 | ||
| 22179-54019 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
3B..BB40 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22187-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.8 |
2 | ||
| 22183-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.8 |
2 | ||
| 22185-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.2 |
2 | ||
| 22188-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.0 |
2 | ||
| 22182-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.5 |
2 | ||
| 22186-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.5 |
2 | ||
| 22184-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3B..BB40 |
2 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-64750 |
3B..BB40 |
2 | ||
| 22193-64750 |
3B..BB40 |
1 | ||
| 22193-64750 |
14B,3B..BB40,42..ARL,GCC |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-64750 |
3B..BB40 |
2 | ||
| 22193-64750 |
3B..BB40 |
1 | ||
| 22193-64750 |
14B,3B..BB40,42..ARL,GCC |
1 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
3B..BB40;15BFT..BB50..WOC..GEN..IV |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64640 |
3B..BB40 MARK 23 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
3B..BB40 K=0.2,L=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
14B,3B..BB40,42 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-58200 |
3B..BB40 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
14B,3B..BB4# |
1 | ||
| 22378-64010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 NO.1 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
14B,3B..BB40,42 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-56290 |
3B..BB40;14B..BB42..WC |
1 | ||
| 22390-6A510 |
3B..BB40;14B..BB42..WOC |
1 | ||
| 22390-56291 |
14B..BB42..WC;15BFT,3B..BB40,58;15BFT..BB50..GEN..IV |
1 | ||
| 22390-6A510 |
3B..BB40 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
3B..BB40 |
1 | ||
| 22511-58650 |
14B,3B..BB4# |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17010 |
14B,3B..BB40,42 |
1 | ||
| 22582 - PISTON ASSY, TIMER | ||||
| 22582-5C150 |
3B..BB40 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
14B,3B..BB40,42 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
3B..BB40 |
1 | ||
| 22612-17020 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54291 |
3B..BB40 K=2.50,L=35.6 |
1 | ||
| 22615-58200 |
3B..BB40 K=2.10 |
1 | ||
| 22615-54290 |
3B..BB40 K=2.30,L=37.9 |
1 | ||
| 22615-17030 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV K=1.7,L=27.9 |
1 | ||
| 22615B - SPRING, TIMER INNER | ||||
| 22615-5B374 |
3B..BB40 K=0.14,L=34.3 |
1 | ||
| 22615-17022 |
3B..BB40 K=0.20,L=31.8 |
1 | ||
| 22615-17020 |
3B..BB40 K=0.16,L=32.3 |
1 | ||
| 22615-17021 |
3B..BB40 K=0.18,L=32.0 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BB40 T=0.5 |
1 | ||
| 22625 - WASHER, TIMER SENSOR ADJUSTING | ||||
| 22625-17020 |
3B..BB40 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
3B..BB40 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-58200 |
3B..BB40 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
14B,3B..BB40,42 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
3B..BB40 NO.1 |
1 | ||
| 22658-54450 |
3B..BB40 NO.2 |
1 | ||
| 22658-17020 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV NO.2 |
1 | ||
| 22658-17840 |
15BFT..BB58;15BFT..BB50..GEN..IV;14B,3B..BB40,42..ARL,GCC NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
3B..BB40 NO.1 |
1 | ||
| 22658-54450 |
3B..BB40 NO.2 |
1 | ||
| 22658-17020 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV NO.2 |
1 | ||
| 22658-17840 |
15BFT..BB58;15BFT..BB50..GEN..IV;14B,3B..BB40,42..ARL,GCC NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
3B..BB40 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58891 |
14B,3B..BB40,42 MARK 479 |
1 | ||
| 22701-58890 |
14B,3B..BB40,42 MARK 478 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
3B..BB40 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22717-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.85 |
1 | ||
| 22713-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.05 |
1 | ||
| 22714-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.25 |
1 | ||
| 22715-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.45 |
1 | ||
| 22716-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.65 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58200 |
3B..BB40 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-21910 |
3B..BB40 |
1 | ||
| 22740-58480 |
3B..BB40 SHAFT TO PIN 17.5 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
3B..BB40 |
4 | ||
| 22745-5B640 |
3B..BB40 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-56350 |
3B..BB40 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-58880 |
15BFT,3B..BB40,58;15BFT..BB50..GEN..IV |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3B..BB40 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 22193-54771 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| 90099-14047 |
14B,3B..BB4# |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
14B,3B..BB4# L=3.4 |
1 | ||
| 22787-54026 |
14B,3B..BB4# L=3.3 |
1 | ||
| 22787-54027 |
14B,3B..BB4#..ARL,GCC,GEN L=3.4 |
1 | ||
| 22787-54026 |
14B,3B..BB4#..ARL,GCC,GEN L=3.3 |
1 | ||
| 22787-54027 |
3B..BB40;14B..BB42..LHD..HRF..26S L=3.4 |
1 | ||
| 22787-54026 |
3B..BB40;14B..BB42..LHD..HRF..26S L=3.3 |
1 | ||
| 22787-64665 |
3B..BB40 L=2.7 |
1 | ||
| 22787-64664 |
3B..BB40 L=2.6 |
1 | ||
| 22787-64661 |
3B..BB40 L=2.3 |
1 | ||
| 22787-64662 |
3B..BB40 L=2.4 |
1 | ||
| 22787-64660 |
3B..BB40 L=2.2 |
1 | ||
| 22787-64663 |
3B..BB40 L=2.5 |
1 | ||
| 22787-54026 |
3B..BB40 L=3.3 |
1 | ||
| 22787-54027 |
14B,3B..BB40,42..ARL,GCC L=3.4 |
1 | ||
| 22787-64643 |
14B,3B..BB40,42..ARL,GCC L=3.2 |
1 | ||
| 22787-64642 |
3B..BB40 L=3.1 |
1 | ||
| 22787-64641 |
14B,3B..BB40,42 L=3.0 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-54264 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-10608 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(9605- )15BFT..BB50..CHI,EUR ; (9605- )15BFT..BB43,50..RHD..GEN ; (9605- )
NB PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64250 |
3B..BB40 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17010 |
3B..BB40 |
4 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54730 |
3B..BB40 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
3B..BB40 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3B..BB40 |
2 | ||
| 22144-54180 |
3B..BB40 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BB40 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
3B..BB40 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3B..BB40 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22187-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.8 |
2 | ||
| 22183-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.8 |
2 | ||
| 22185-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.2 |
2 | ||
| 22188-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=2.0 |
2 | ||
| 22182-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=0.5 |
2 | ||
| 22186-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.5 |
2 | ||
| 22184-54010 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 T=1.0 |
2 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BB50..GEN..IV;14B,15BFT,3B..BB40,42,58 |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 83180-36060 | ||||
| 90032-01106 | ||||
| 90091-20608 | ||||
| 90092-10101 | ||||
| 90099-01502 | ||||
| 90099-01585 | ||||
| 90099-18010 | ||||
| 94110-50800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 2206 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
