BB40R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0602)14B,3B ; (0602-1501)14B..GEN

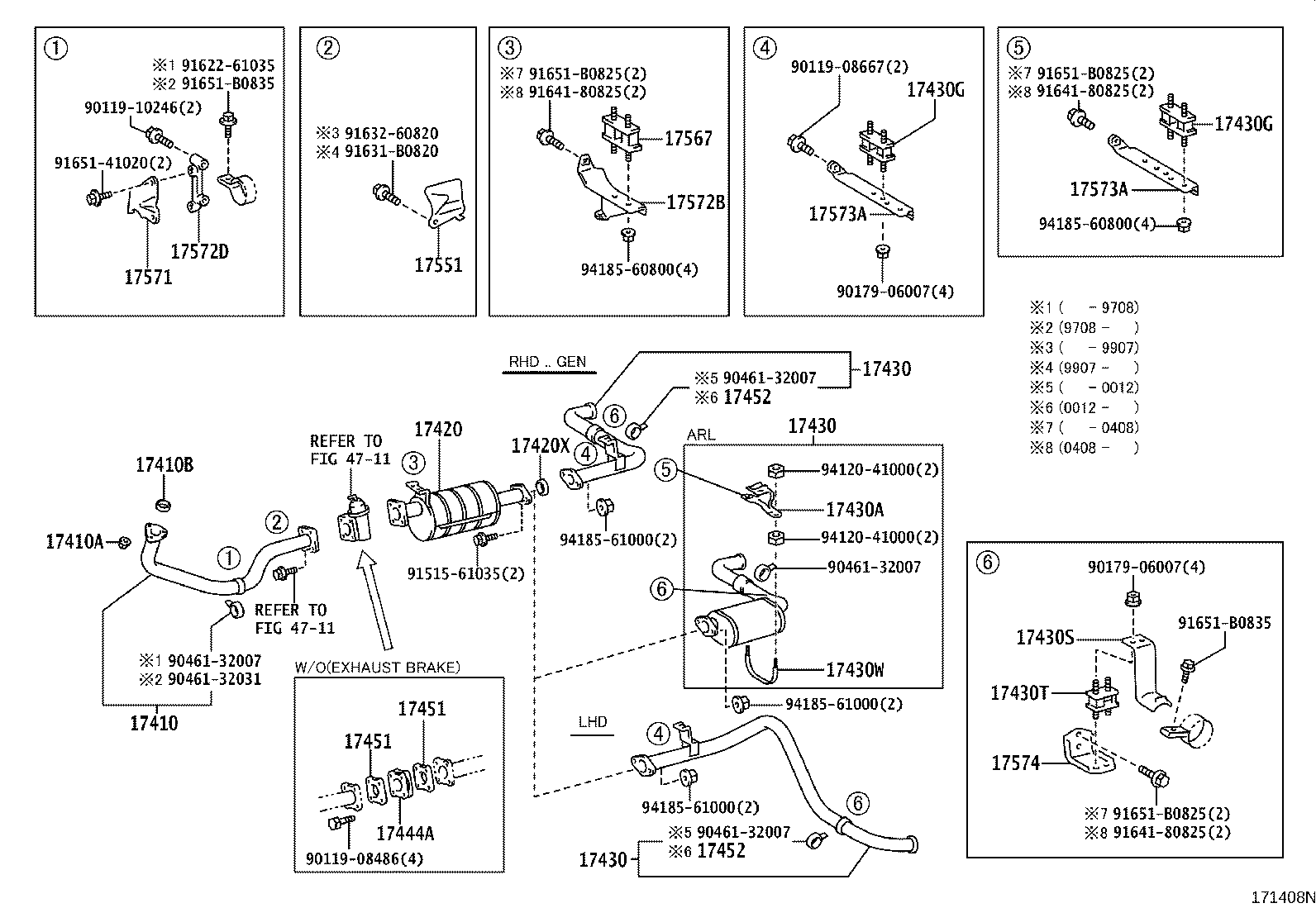

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17430 17430 17430A 17430G 17430G 17430S 17430T 17430W 17444A 17451 17451 17452 17452 17551 17567 17571 17572B 17572D 17573A 17573A 17574 4711 4711 9011908486 9011908667 9011910246 9017906007 9017906007 9046132007 9046132007 9046132007 9046132007 9046132031 9151561035 9162261035 91631B0820 9163260820 9164180825 9164180825 9164180825 9165141020 91651B0825 91651B0825 91651B0825 91651B0835 91651B0835 9412041000 9412041000 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58271

14B,3B..BB40,42

 1
17401-58270

14B,3B..BB4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

14B,15BFT,3B,1HZ..BB4#,5#,HZB50

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-58401

14B,3B..BB40,42

 1
17403-58400

14B,3B..BB4#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

14B,15BFT,3B,3RZF..BB4#,RZB40

NO.1

 1
90917-06042

14B,3B..BB4#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58490

3B..BB40

 1
17405-58491

3B..BB40

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58490

3B..BB40

 1
17405-58491

3B..BB40

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58490

3B..BB40

 1
17405-58491

3B..BB40

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17576-56040

15BFT,3B,3RZF..BB40,43,RZB40

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-58010

15BFT,3B,1HZ#,3RZF..BB40,43,5#,HZB50,RZB40

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-58010

15BFT,3B,1HZ#,3RZF..BB40,43,5#,HZB50,RZB40

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-58020

14B,3B,3RZF..BB40,42,RZB40,50

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17010

14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
17504-56020

15BFT,3B,3RZF..BB40,43,RZB40

 1
17444A - SPACER, EXHAUST FRONT PIPE
17444-58010

14B,3B..BB40,42..ARL,GCC,GEN

 1
17451 - GASKET, EXHAUST PIPE
46759-36030

14B,3B..BB40,42..ARL,GCC,GEN

 2
17451 - GASKET, EXHAUST PIPE
46759-36030

14B,3B..BB40,42..ARL,GCC,GEN

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-17010

14B,3B,1HZ#..BB4#,HZB50

 1
17551-17011

14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-58010

14B,15BFT,3B,3RZF..BB4#,RZB40,50

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-58300

14B,15BFT,3B..BB4#,5#

 1
17571-58301

14B,15BFT,3B..BB4#,5#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-17030

14B,15BFT,3B,3RZF..BB4#,RZB40,50

 1
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17579-73010

14B,15BFT,3B,1HZ..BB4#,5#,HZB50..5F

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17572-58090

14B..BB42..LHD;15BFT,3B,3RZF..BB40,43,RZB40

 1
17572-58090

14B,3B..BB4#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17572-58090

14B..BB42..LHD;15BFT,3B,3RZF..BB40,43,RZB40

 1
17572-58090

14B,3B..BB4#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-17010

14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50

 1
Common parts
90119-08486
90119-08667
90119-10246
90179-06007
90461-32007
90461-32031
91515-61035
91622-61035
91631-B0820
91632-60820
91641-80825
91651-41020
91651-B0825
91651-B0835
94120-41000
94185-60800
94185-61000
Linked diagrams
4711
