BB40R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Jul 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

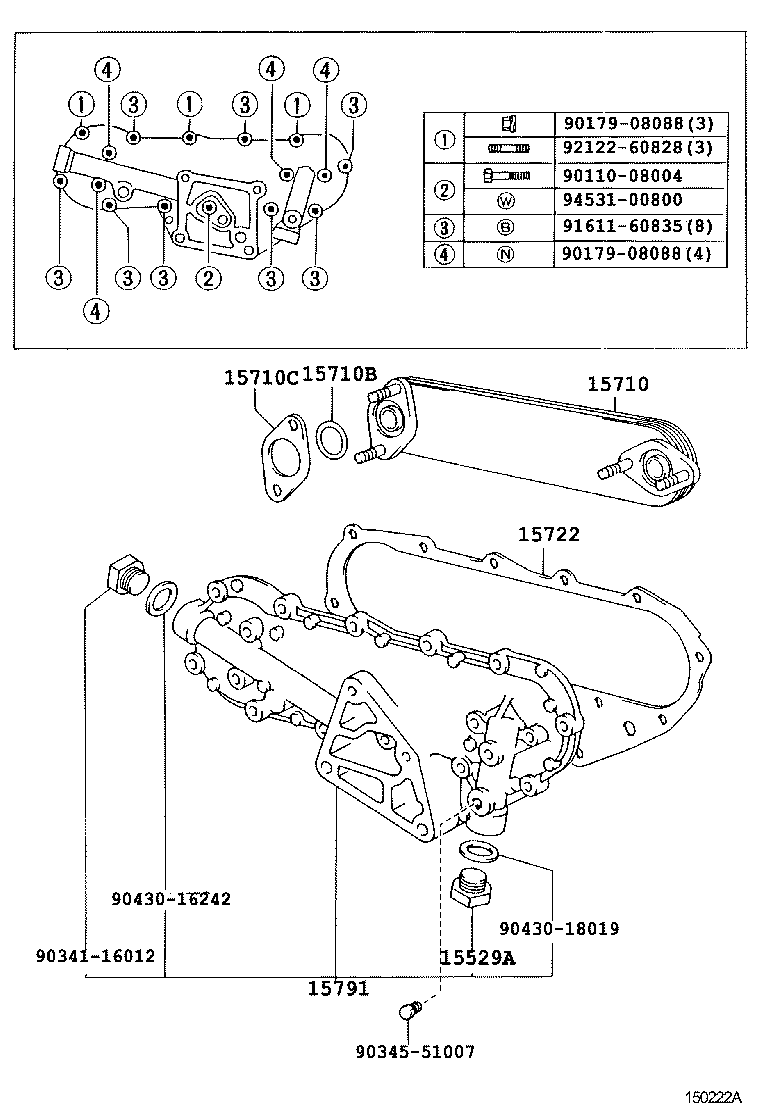

(9301-9505)14B,3B

Click highlighted areas on diagram

diagram 15529A 15710 15710B 15710C 15722 15791 9011008004 9017908088 9017908088 9034116012 9034551007 9043016242 9043018019 9161160835 9212260828 9453100800
Part # Description Qty Price
15529A - PLUG
90341-18006

14B,15BFT,3B..BB4#,5#

 1
15710 - COOLER ASSY, OIL
15710-58030

14B,15BFT,3B..BB4#,5#

 1
15710-56110

14B,3B..BB4#

 1
15710B - RING, O(FOR OIL COOLER)
90301-20001

14B,3B..BB4#

 2
15710C - GASKET(FOR OIL COOLER)
15785-58010

14B,15BFT,3B..BB4#,5#

 2
90923-05018

14B,3B..BB4#

 2
15722 - GASKET, OIL COOLER
15725-56020

14B,15BFT,3B..BB4#,5#

 1
15791 - CASE, OIL COOLER
15701-58050

14B,15BFT,3B..BB4#,5#

 1
15701-56031

14B,3B..BB4#

 1
Common parts
90110-08004
90179-08088
90341-16012
90345-51007
90430-16242
90430-18019
91611-60835
92122-60828
94531-00800

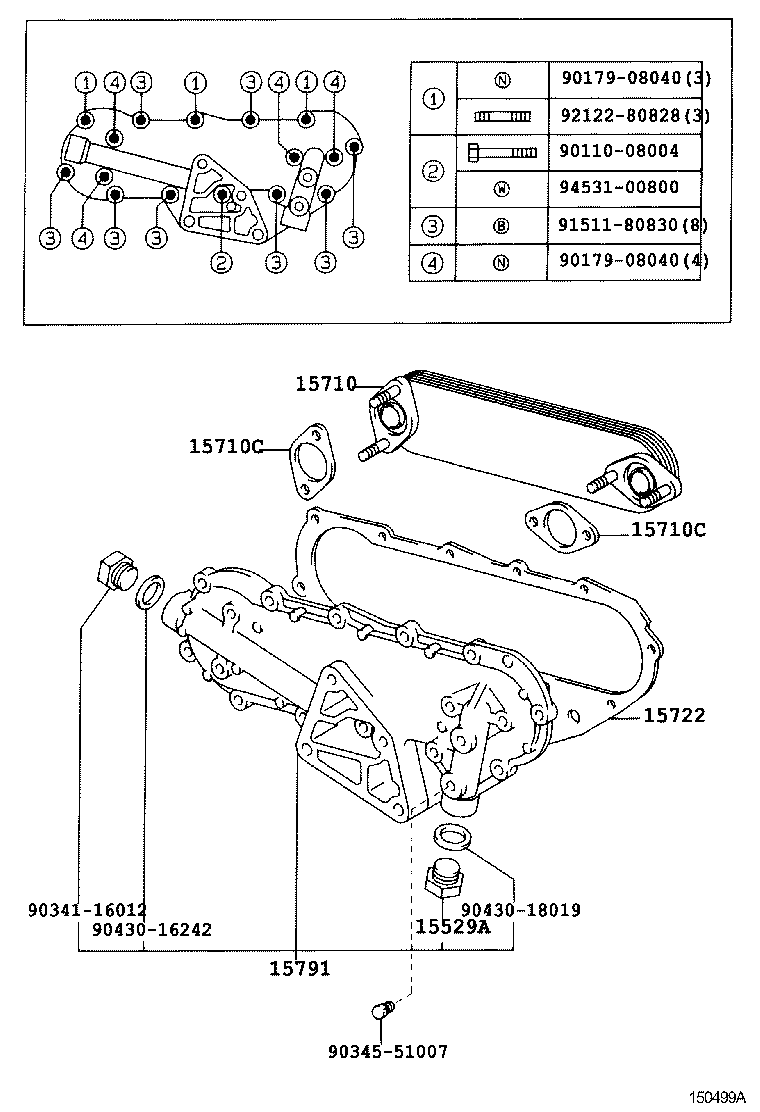

(9505- )14B,15B#,1BZFPE,3B

Click highlighted areas on diagram

diagram 15529A 15710 15710C 15710C 15722 15791 9011008004 9017908040 9017908040 9034116012 9034551007 9043016242 9043018019 9151180830 9212280828 9453100800
Part # Description Qty Price
15529A - PLUG
90341-18006

14B,15BFT,3B..BB4#,5#

 1
15710 - COOLER ASSY, OIL
15710-58030

14B,15BFT,3B..BB4#,5#

 1
15710-56110

14B,3B..BB4#

 1
15710C - GASKET(FOR OIL COOLER)
15785-58010

14B,15BFT,3B..BB4#,5#

 2
90923-05018

14B,3B..BB4#

 2
15710C - GASKET(FOR OIL COOLER)
15785-58010

14B,15BFT,3B..BB4#,5#

 2
90923-05018

14B,3B..BB4#

 2
15722 - GASKET, OIL COOLER
15725-56020

14B,15BFT,3B..BB4#,5#

 1
15791 - CASE, OIL COOLER
15701-58050

14B,15BFT,3B..BB4#,5#

 1
15701-56031

14B,3B..BB4#

 1
Common parts
90110-08004
90179-08040
90341-16012
90345-51007
90430-16242
90430-18019
91511-80830
92122-80828
94531-00800
