BB32L-MR1 (1988)

Toyota Coaster

Production Aug 1988 - Jan 1993
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

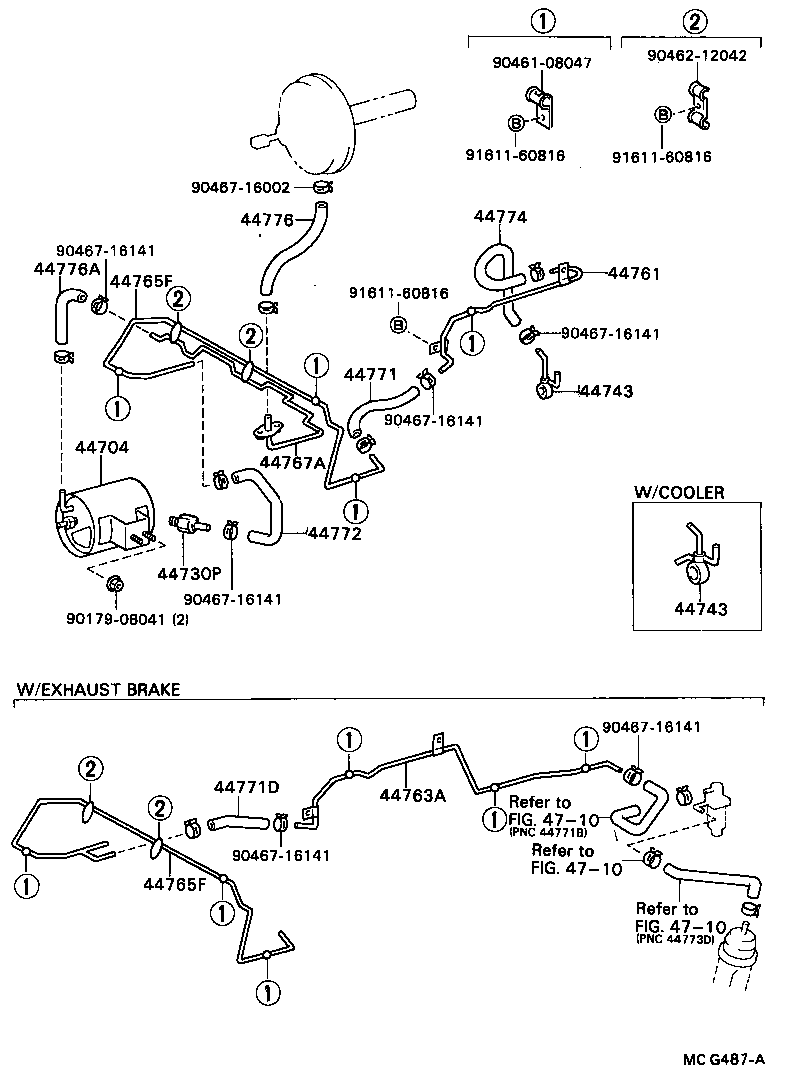

ILLUST NO. 2 OF 2(8808- )BB21,32..LHD

Click highlighted areas on diagram

diagram 44704 44730P 44743 44743 44761 44763A 44765F 44765F 44767A 44771 44771D 44772 44774 44776 44776A 4710 4710 4710 9017908041 9046108047 9046212042 9046716002 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161160816 9161160816 9161160816
Part # Description Qty Price
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60040

BB2#,3#,HB3#,HDB30,HZB30

 2
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-36120

BB2#,32,HZB30

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-36030

BB2#,32

W/EXHAUST BRAKE

 1
44765F - TUBE, CONNECTOR TO CHECK VALVE
44765-36170

BB2#,32

W/EXHAUST BRAKE

 1
44765F - TUBE, CONNECTOR TO CHECK VALVE
44765-36170

BB2#,32

W/EXHAUST BRAKE

 1
44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767-36060

BB21,32..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36100

BB2#,32

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-36190

BB2#,32

W/EXHAUST BRAKE

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-36080

BB2#,32

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36200

BB2#,32

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-36110

BB21,32..LHD

 1
Common parts
90179-08041
90461-08047
90462-12042
90467-16002
90467-16141
91611-60816
Linked diagrams
4710
