BB22R-MRZER (1985)

Toyota Coaster

Production Oct 1985 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

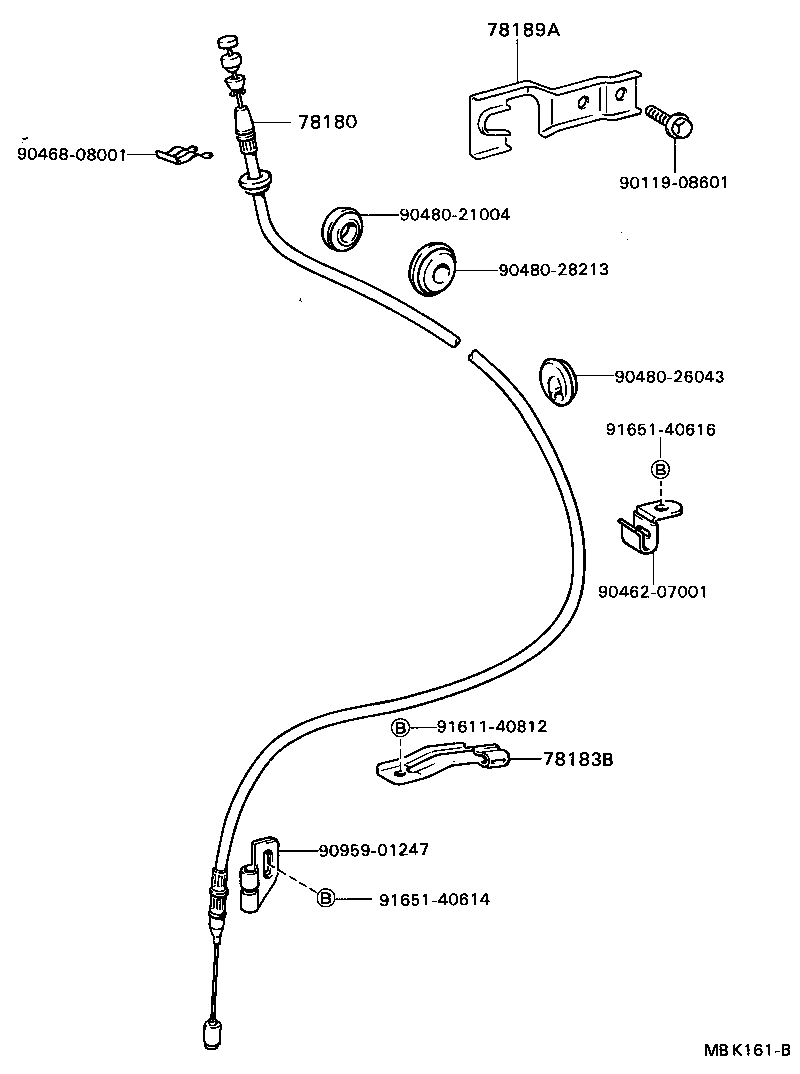

ILLUST NO. 2 OF 2(8510-8808)BB22

Click highlighted areas on diagram

diagram 78180 78183B 78189A 9011908601 9046207001 9046808001 9048021004 9048026043 9048028213 9095901247 9161140812 9165140614 9165140616
Part # Description Qty Price
78180 - WIRE ASSY, ACCELERATOR
78180-90B06

BB22

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95405

BB22

 1
Common parts
90119-08601
90462-07001
90468-08001
90480-21004
90480-26043
90480-28213
90959-01247
91611-40812
91651-40614
91651-40616
