BB21L-MR (1986)
Toyota Coaster

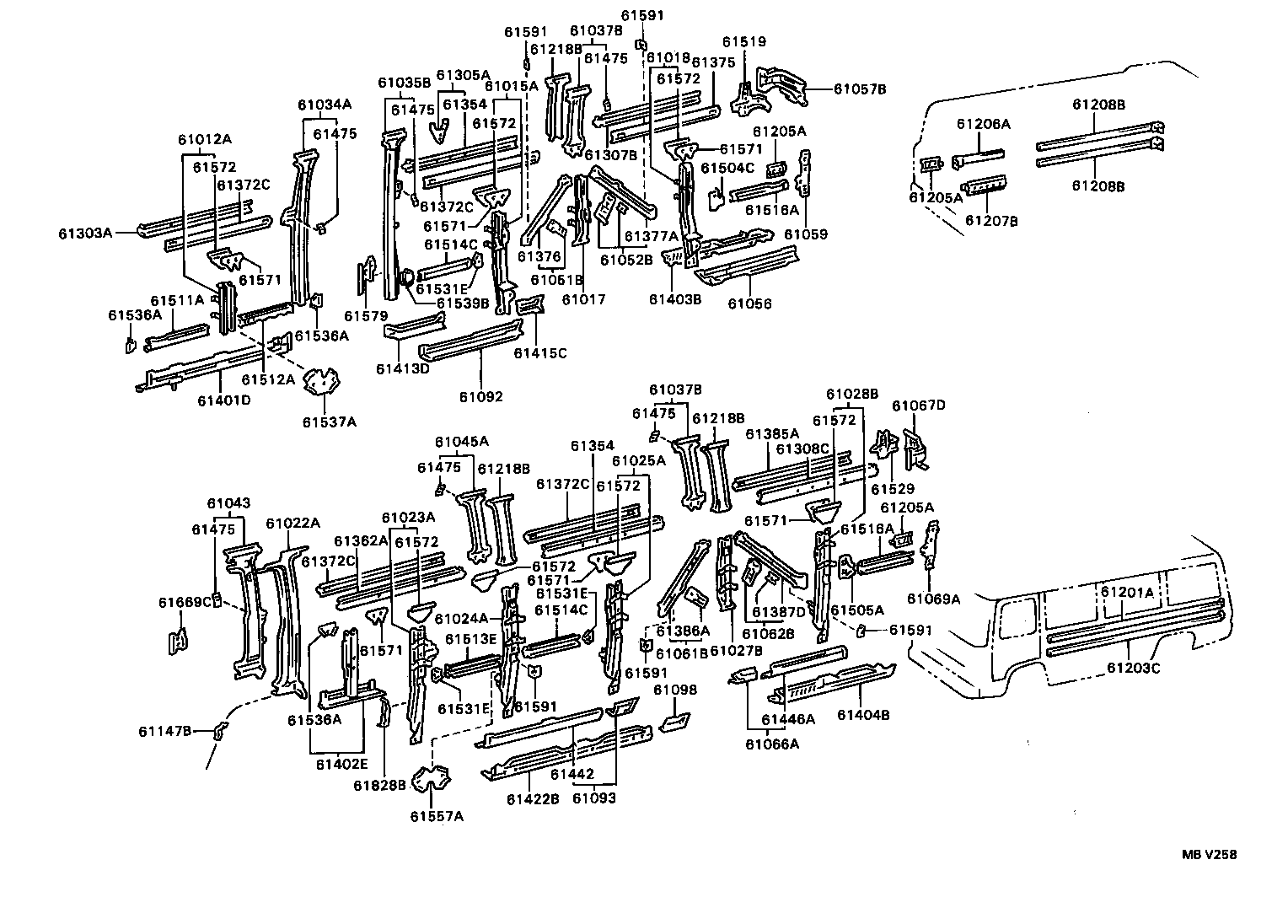

ILLUST NO. 2 OF 3(9001- )BB21,RB20..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-90B02 |
BB21,FB30,HZB30,RB20..LHD RH |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-90B00 |
BB2#,RB20 |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-90B00 |
BB2#,RB20 |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-90B00 |
BB21,FB30,HZB30,RB20..LHD..(DLX,STD)..GEN |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90B03 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90B03 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-90B04 |
BB21,FB30,RB20..LHD |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-90B00 |
BB2#,RB20 |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-90B00 |
BB2#,RB20 |
1 | ||
| 61034A - PILLAR SUB-ASSY, NO.3 INNER, RH | ||||
| 61034-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61034-90B01 |
BB21,FB30,HZB30,RB20..LHD..WOC W/*GLD |
1 | ||
| 61035B - PILLAR SUB-ASSY, NO.4 INNER, RH | ||||
| 61035-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61035-90B02 |
BB21,FB30,HZB30,RB20..LHD..WOC W/*GLD |
1 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB21,RB20..LHD RH;LH |
1 | ||
| 61037B - PILLAR SUB-ASSY, NO.6 INNER NO.1 | ||||
| 61037-90B00 |
BB21,RB20..LHD RH;LH |
1 | ||
| 61043 - PILLAR SUB-ASSY, NO.2 INNER, LH | ||||
| 61043-90B01 |
BB21,FB30,HZB30..LHD..GEN W/2 POINT FLXED TYPE DRIVERS SEAT BELT OR W/ONLY ANCHER DRIVERS SEAT BELT |
1 | ||
| 61043-90B00 |
BB21,FB30,HZB30,RB20..LHD..GEN |
1 | ||
| 61045A - PILLAR SUB-ASSY, NO.4 INNER, LH | ||||
| 61045-90B01 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61051B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT RH | ||||
| 61051-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61052B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR RH | ||||
| 61052-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61056 - RAIL SUB-ASSY, NO.6 LOWER INNER, RH | ||||
| 61056-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057B - RAIL SUB-ASSY, REAR SIDE, RH | ||||
| 61057-90B01 |
BB21,HZB30,RB20..GEN W/*SSBD |
1 | ||
| 61057-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61057-90B02 |
BB21,FB30,HZB30,RB20..GEN,ME W/*DSBD |
1 | ||
| 61059 - PILLAR SUB-ASSY, NO.9 INNER, LOWER RH | ||||
| 61059-90B02 |
BB21,HZB30..LHD..STD..GEN W/*SSBD |
2 | ||
| 61059-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61061B - BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT LH | ||||
| 61061-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61062B - BRACE SUB-ASSY, REAR WHEEL, UPPER REAR LH | ||||
| 61062-90B01 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61066A - RAIL SUB-ASSY, NO.6 LOWER, INNER LH | ||||
| 61066-90B02 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067D - RAIL SUB-ASSY, REAR SIDE, LH | ||||
| 61067-90B02 |
BB21,RB20..GEN,ME W/GLIDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR;W/FOLDING AUTO DOOR & *DSBD |
1 | ||
| 61067-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61067-90B02 |
BB21..LHD..STD..GEN W/FOLDING AUTO DOOR & *SSBD |
1 | ||
| 61067-90B02 |
BB21,FB30,HZB30,RB20..GEN W/*SSBD OR W/*DSBD |
1 | ||
| 61069A - PILLAR SUB-ASSY, NO.9 INNER, LOWER LH | ||||
| 61069-90B00 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61069-90B02 |
BB21,HZB30..LHD..STD..GEN W/*SSBD |
1 | ||
| 61092 - RAIL SUB-ASSY, NO.3 LOWER INNER, RH | ||||
| 61092-90B02 |
BB21,RB20..LHD |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61093-90B00 |
BB21,RB20..LHD |
1 | ||
| 61098 - RAIL SUB-ASSY, NO.5 LOWER OUTER, LH | ||||
| 61425-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61147B - GUSSET, ROCKER OUTER REINFORCEMENT, LH | ||||
| 61147-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-90B00 |
BB21,RB20..LHD |
1 | ||
| 61203C - STIFFENER SUB-ASSY, SIDE PANEL, NO.3 | ||||
| 61203-90B00 |
BB21,RB20..LHD |
1 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB21,RB20..LHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB21,RB20..LHD |
3 | ||
| 61205A - STIFFENER SUB-ASSY, SIDE PANEL, NO.5 | ||||
| 61205-90B00 |
BB21,RB20..LHD |
3 | ||
| 61206A - STIFFENER SUB-ASSY, SIDE PANEL, NO.6 | ||||
| 61206-90B00 |
BB21,RB20..LHD |
1 | ||
| 61207B - STIFFENER SUB-ASSY, SIDE PANEL, NO.7 | ||||
| 61207-90B02 |
BB21,RB20..LHD |
1 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B00 |
BB21,RB20..LHD |
2 | ||
| 61208B - STIFFENER SUB-ASSY, SIDE PANEL, NO.8 | ||||
| 61208-90B00 |
BB21,RB20..LHD |
2 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB21,RB20..LHD |
3 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB21,RB20..LHD |
3 | ||
| 61218B - PILLAR, NO.4 OUTER, UPPER | ||||
| 61218-90B00 |
BB21,RB20..LHD |
3 | ||
| 61303A - RAIL SUB-ASSY, NO.2 CENTER, OUTER RH | ||||
| 61303-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61305A - RAIL SUB-ASSY, NO.3 CENTER, OUTER RH | ||||
| 61305-90B01 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61305-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61305-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61307B - RAIL SUB-ASSY, NO.5 CENTER, OUTER RH | ||||
| 61307-90B00 |
BB2#,RB20 |
1 | ||
| 61308C - RAIL SUB-ASSY, NO.5 CENTER OUTER, LH | ||||
| 61308-90B01 |
BB21,RB20..LHD W/*DSBD OR W/FOLDING AUTO DOOR & *DSBD;W/GLIDING AUTO DOOR & *DSBD OR W/*GLD & *DSBD |
1 | ||
| 61308-90B00 |
BB2#,RB20..GEN,ME |
1 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB2#,RB20..GEN,ME LH |
1 | ||
| 61354 - RAIL, NO.4 CENTER OUTER, RH | ||||
| 61354-90B00 |
BB2#,FB30,RB20 RH |
1 | ||
| 61354-90B00 |
BB2#,RB20..GEN,ME LH |
1 | ||
| 61362A - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61362-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61372C - RAIL, NO.2 CENTER, INNER | ||||
| 61372-90B00 |
BB21,RB20..GEN,ME |
4 | ||
| 61375 - RAIL, NO.5 CENTER INNER, RH | ||||
| 61375-90B00 |
BB2#,RB20 |
1 | ||
| 61376 - BRACE, REAR WHEEL, UPPER FRONT RH | ||||
| 61376-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61385A - RAIL, NO.5 CENTER INNER, LH | ||||
| 61385-90B00 |
BB2#,RB20 |
1 | ||
| 61386A - BRACE, REAR WHEEL, UPPER FRONT LH | ||||
| 61386-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61401D - RAIL SUB-ASSY, NO.1 LOWER OUTER, RH | ||||
| 61401-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61402E - BRACE SUB-ASSY, NO.1 LOWER OUTER, LH | ||||
| 61402-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61413D - RAIL, NO.3 LOWER OUTER, RH | ||||
| 61413-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-90B00 |
BB2#,RB20 |
1 | ||
| 61422B - RAIL, NO.2 LOWER OUTER, LH | ||||
| 61422-90B04 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61442 - RAIL, NO.2 LOWER INNER, LH | ||||
| 61442-90B04 |
BB21,RB20..LHD |
1 | ||
| 61446A - RAIL, NO.6 LOWER INNER, LH | ||||
| 61446-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61475 - BRACKET, CENTER RAIL INSIDE CUSHION, NO.1 | ||||
| 61475-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61504C - GUSSET SUB-ASSY, SEAT ANCHOR, NO.4 | ||||
| 61504-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61505A - GUSSET SUB-ASSY, SEAT ANCHOR, NO.5 | ||||
| 61505-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61511A - RAIL, SEAT ANCHOR, NO.1 | ||||
| 61511-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61512A - RAIL, SEAT ANCHOR, NO.2 RH | ||||
| 61512-90B02 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61513E - RAIL, SEAT ANCHOR, NO.3 | ||||
| 61513-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61514C - RAIL, SEAT ANCHOR, NO.4 | ||||
| 61514-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61516A - RAIL, SEAT ANCHOR, NO.6 | ||||
| 61516-90B00 |
BB2#,FB30,HZB30,RB20 |
2 | ||
| 61519 - GUSSET, REAR SIDE RAIL, RH | ||||
| 61519-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61529 - GUSSET, REAR SIDE RAIL, LH | ||||
| 61529-90B00 |
BB2#,FB30,HZB30,RB20 |
1 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB21,RB20..LHD |
2 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB21,RB20..LHD |
2 | ||
| 61531E - GUSSET, SEAT ANCHOR, NO.1 | ||||
| 61531-90B00 |
BB21,RB20..LHD |
2 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61536A - GUSSET, SEAT ANCHOR, NO.6 | ||||
| 61536-90B00 |
BB21,FB30,HZB30,RB20..LHD |
3 | ||
| 61537A - GUSSET, SEAT ANCHOR, NO.7 RH | ||||
| 61537-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61539B - GUSSET, SEAT ANCHOR, NO.9 | ||||
| 61539-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61557A - GUSSET, SEAT ANCHOR, NO.15 | ||||
| 61557-90B00 |
BB21,RB20..LHD |
1 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61571 - GUSSET, SEAT RAIL, INNER | ||||
| 61571-90B00 |
BB2#,FB30,HZB30,RB20 |
6 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61572 - GUSSET, CENTER RAIL, OUTER | ||||
| 61572-90B00 |
BB21..LHD..GEN LH |
1 | ||
| 61572-90B00 |
BB2#,RB20 RH |
1 | ||
| 61579 - GUSSET, NO.4 PILLAR, CENTER RH | ||||
| 61579-90B01 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61579-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
| 61579-90B01 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591-90B03 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61591-90B02 |
BB21,RB20..LHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591-90B03 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61591-90B02 |
BB21,RB20..LHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591-90B03 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61591-90B02 |
BB21,RB20..LHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591-90B03 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61591-90B02 |
BB21,RB20..LHD |
5 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 61591-90B03 |
BB21,FB30,HZB30,RB20..LHD W/*GLD |
1 | ||
| 61591-90B03 |
BB21,RB20..LHD W/GLIDING AUTO DOOR |
1 | ||
| 61591-90B02 |
BB21,RB20..LHD |
5 | ||
| 61669C - REINFORCE, NO.2 PILLAR, OUTER LH | ||||
| 61669-90B00 |
BB21,32,FB30,HZB30,RB20..LHD |
1 | ||
| 61828B - PLATE, DUCT PROOF, NO.6 LH | ||||
| 61828-90B00 |
BB21,FB30,HZB30,RB20..LHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
