BB21L-MDZR (1986)
Toyota Coaster
(8205-8808)13B,3B

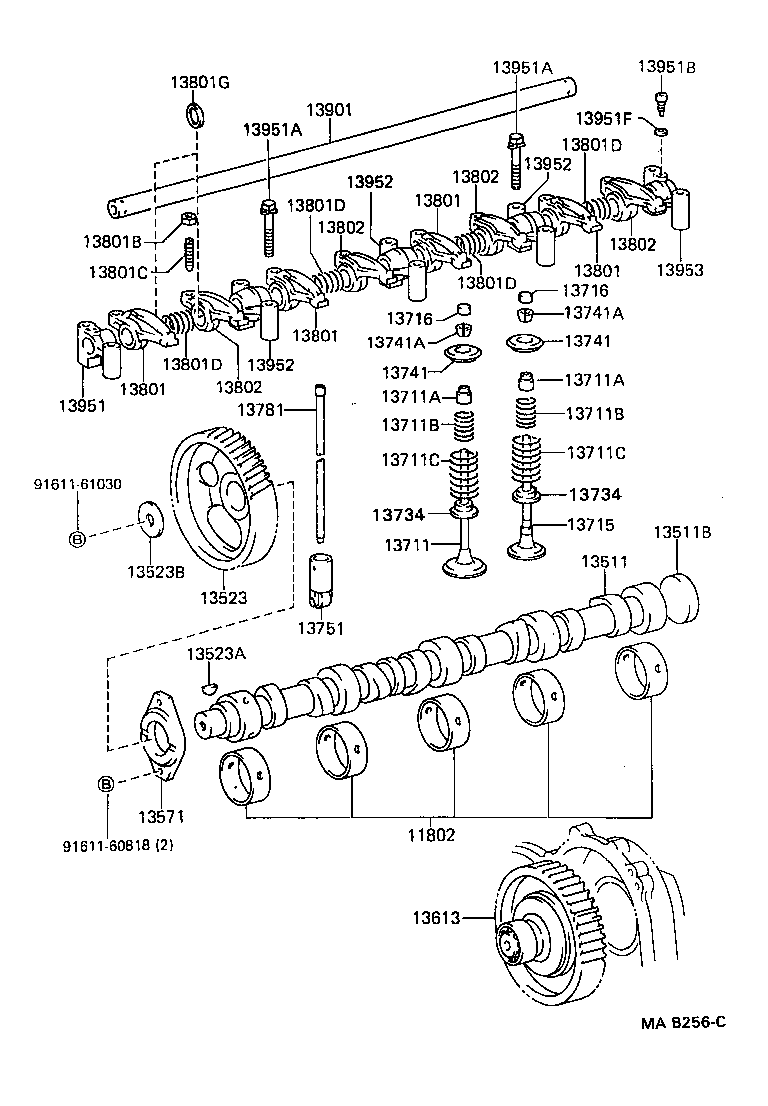

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56030 |
14B,3B..BB2#,32 STD |
1 | ||
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56030 |
14B,3B..BB2#,32 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-56060 |
3B..BB21 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-58001 |
14B,3B..BB2#,32 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-10519 |
13B,14B,3B..BB2#,3# |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10227 |
13B,14B,3B..BB2#,3# OD=40,ID=10.5 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-56030 |
14B,3B..BB2#,32 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-58010 |
13B,3B..BB2#,30 |
4 | ||
| 13711-58020 |
14B,3B..BB2#,32 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
13B,3B..BB2#,30 |
8 | ||
| 90913-02076 |
14B,3B..BB2#,32 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
13B,3B..BB2#,30 |
8 | ||
| 90913-02076 |
14B,3B..BB2#,32 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
14B,3B..BB2#,32 |
8 | ||
| 90501-23018 |
3B..BB20,21,30 WD=2.3,CW=7.2,INNER |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
14B,3B..BB2#,32 |
8 | ||
| 90501-23018 |
3B..BB20,21,30 WD=2.3,CW=7.2,INNER |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
3B..BB20,21,30 WD=4.7,CW=6.0,OUTER |
8 | ||
| 90501-45032 |
14B,3B..BB2#,32 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
3B..BB20,21,30 WD=4.7,CW=6.0,OUTER |
8 | ||
| 90501-45032 |
14B,3B..BB2#,32 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-58050 |
3B..BB21 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
14B,3B..BB2#,32 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
14B,3B..BB2#,32 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
13B,3B..BB2#,30 |
16 | ||
| 90913-03024 |
14B,3B..BB2#,32 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
13B,3B..BB2#,30 |
16 | ||
| 90913-03024 |
14B,3B..BB2#,32 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-58010 |
14B,3B..BB2#,32 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-56020 |
14B,3B..BB2#,32 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08129 |
14B,3B..BB2#,32 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05022 |
14B,3B..BB2#,32 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-56030 |
13B,14B,3B..BB2#,3# |
1 | ||
| 13901-56020 |
13B,3B..BB2#,30 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-56010 |
3B..BB20,21,30 |
1 | ||
| 13951-56030 |
3B..BB21 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60855 |
13B,3B..BB2#,30 *8-1.25PX55-30 |
5 | ||
| 91611-60865 |
13B,3B..BB2#,30 *8-1.25PX65-30 |
5 | ||
| 90105-08177 |
14B,3B..BB2#,32 *8-1.25PX63-30 |
5 | ||
| 90105-08165 |
14B,3B..BB2#,32 *8-1.25PX53-30 |
5 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60855 |
13B,3B..BB2#,30 *8-1.25PX55-30 |
5 | ||
| 91611-60865 |
13B,3B..BB2#,30 *8-1.25PX65-30 |
5 | ||
| 90105-08177 |
14B,3B..BB2#,32 *8-1.25PX63-30 |
5 | ||
| 90105-08165 |
14B,3B..BB2#,32 *8-1.25PX53-30 |
5 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 90116-08123 |
13B,3B..BB2#,30 L=84,S=9&29 |
4 | ||
| 13951D - WASHER, SEAL(FOR HEAD COVER SET) | ||||
| 90201-06177 |
13B,3B..BB2#,30 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-56010 |
3B..BB20,21,30 |
1 | ||
| 13953-56030 |
3B..BB21 |
1 | ||
| Common parts | ||||
| 90201-14015 | ||||
| 91611-60818 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
(8808- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56030 |
14B,3B..BB2#,32 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-56060 |
3B..BB21 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-58001 |
14B,3B..BB2#,32 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 95161-10519 |
13B,14B,3B..BB2#,3# |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10227 |
13B,14B,3B..BB2#,3# OD=40,ID=10.5 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-56030 |
14B,3B..BB2#,32 |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 22407-56030 |
14B,3B..BB2#,32 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-58010 |
13B,3B..BB2#,30 |
4 | ||
| 13711-58020 |
14B,3B..BB2#,32 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
13B,3B..BB2#,30 |
8 | ||
| 90913-02076 |
14B,3B..BB2#,32 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
13B,3B..BB2#,30 |
8 | ||
| 90913-02076 |
14B,3B..BB2#,32 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
14B,3B..BB2#,32 |
8 | ||
| 90501-23018 |
3B..BB20,21,30 WD=2.3,CW=7.2,INNER |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33012 |
14B,3B..BB2#,32 |
8 | ||
| 90501-23018 |
3B..BB20,21,30 WD=2.3,CW=7.2,INNER |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
3B..BB20,21,30 WD=4.7,CW=6.0,OUTER |
8 | ||
| 90501-45032 |
14B,3B..BB2#,32 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
3B..BB20,21,30 WD=4.7,CW=6.0,OUTER |
8 | ||
| 90501-45032 |
14B,3B..BB2#,32 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-58050 |
3B..BB21 |
4 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-56010 |
14B,3B..BB2#,32 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-56010 |
14B,3B..BB2#,32 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-56010 |
14B,3B..BB2#,32 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-56010 |
14B,3B..BB2#,32 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
14B,3B..BB2#,32 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56040 |
14B,3B..BB2#,32 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
13B,3B..BB2#,30 |
16 | ||
| 90913-03024 |
14B,3B..BB2#,32 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
13B,3B..BB2#,30 |
16 | ||
| 90913-03024 |
14B,3B..BB2#,32 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-58010 |
14B,3B..BB2#,32 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-56020 |
14B,3B..BB2#,32 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56050 |
3B..BB21 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90179-08129 |
14B,3B..BB2#,32 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05022 |
14B,3B..BB2#,32 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
13B,3B..BB2#,30 WD=1.6,CW=7.5 |
4 | ||
| 90501-16114 |
14B,3B..BB2#,32 |
4 | ||
| 13801G - WASHER, PLATE(FOR VALVE ROCKER ARM) | ||||
| 90201-19009 |
14B,3B..BB2# |
8 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56040 |
3B..BB21 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-56030 |
13B,14B,3B..BB2#,3# |
1 | ||
| 13901-56020 |
13B,3B..BB2#,30 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-56010 |
3B..BB20,21,30 |
1 | ||
| 13951-56030 |
3B..BB21 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60855 |
13B,3B..BB2#,30 *8-1.25PX55-30 |
5 | ||
| 91611-60865 |
13B,3B..BB2#,30 *8-1.25PX65-30 |
5 | ||
| 90105-08177 |
14B,3B..BB2#,32 *8-1.25PX63-30 |
5 | ||
| 90105-08165 |
14B,3B..BB2#,32 *8-1.25PX53-30 |
5 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60855 |
13B,3B..BB2#,30 *8-1.25PX55-30 |
5 | ||
| 91611-60865 |
13B,3B..BB2#,30 *8-1.25PX65-30 |
5 | ||
| 90105-08177 |
14B,3B..BB2#,32 *8-1.25PX63-30 |
5 | ||
| 90105-08165 |
14B,3B..BB2#,32 *8-1.25PX53-30 |
5 | ||
| 13951F - WASHER, PLATE(FOR VALVE ROCKER SUPPORT) | ||||
| 90201-06350 |
14B,3B..BB2# |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
3B..BB20,21,30 |
3 | ||
| 13952-56030 |
3B..BB21 |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-56010 |
3B..BB20,21,30 |
1 | ||
| 13953-56030 |
3B..BB21 |
1 | ||
| Common parts | ||||
| 91611-60818 | ||||
| 91611-61030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
