BB21L-MDZER (1986)
Toyota Coaster
Production
Oct 1986
-
Jan 1993
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9301)EUR ; (8808-9301)BB2#,FB30,HB30..WC

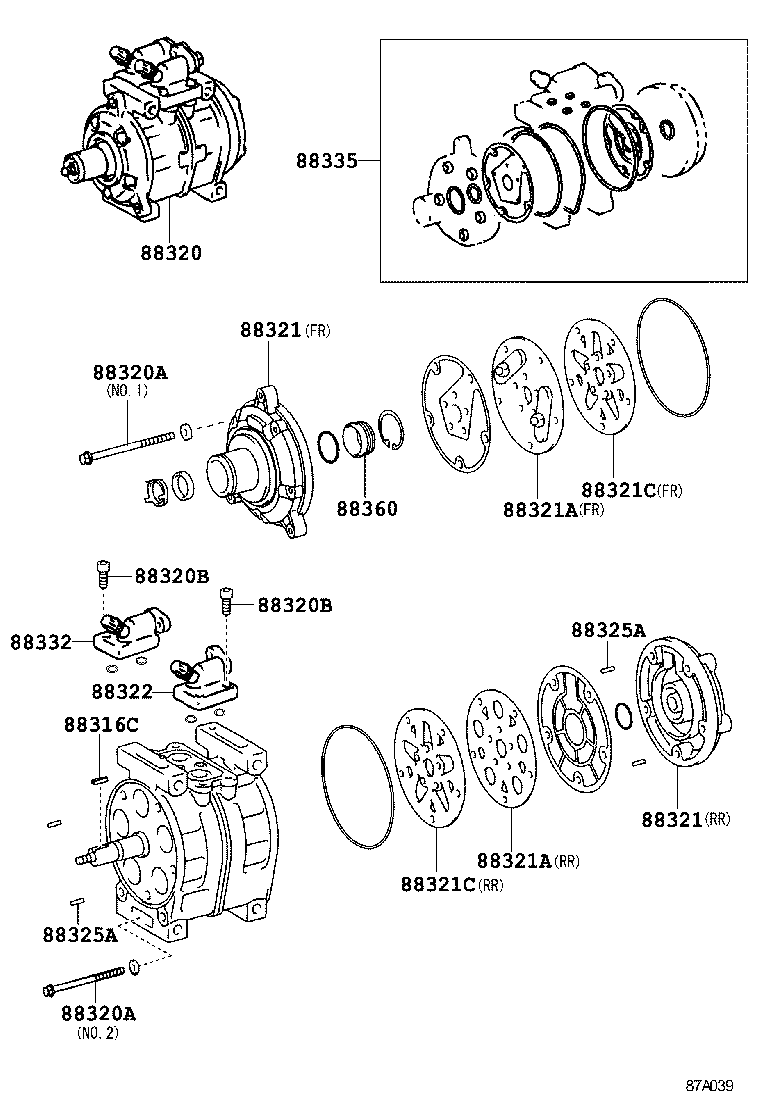

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36181 |
BB2#,FB30,HB30..WC |
1 | ||
| 88320-36250 |
BB2#,FB30,HB30..WC |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-36030 |
BB2#,FB30,RB20..WC NO.1 |
5 | ||
| 88329-36040 |
BB2#,FB30,RB20..WC NO.2 |
2 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-36030 |
BB2#,FB30,RB20..WC NO.1 |
5 | ||
| 88329-36040 |
BB2#,FB30,RB20..WC NO.2 |
2 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88323-36070 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88321-36090 |
BB21,RB20..WC FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88323-36070 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88321-36090 |
BB21,RB20..WC FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-36030 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88306-36020 |
BB2#,FB30,RB20..WC FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-36030 |
BB2#,FB30,RB20..WC RR |
1 | ||
| 88306-36020 |
BB2#,FB30,RB20..WC FR |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-36040 |
BB2#,FB30,RB20..WC |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-36040 |
BB2#,FB30,RB20..WC |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-36140 |
BB2#,FB30,RB20..WC |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BB2#,FB30,RB20..WC |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BB2#,FB30,RB20..WC |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-36130 |
BB2#,FB30,RB20..WC |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-36030 |
BB2#,FB30,RB20..WC |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-36050 |
BB2#,FB30,RB20..WC |
1 | ||
