BB21L-MDZER (1986)

Toyota Coaster

Production Oct 1986 - Jan 1993
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)BB2#,3#

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31232 31236 31240 31240 31240A 31250 33311W 9010908081 9010908081 9011908134 9017008197 9017008197 9020108567 9020108567 9451100800 9451100800
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-60130

BB21

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36110

BB21

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-45002

BB2#,3#

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-36040

BB21

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-36040

BB21

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-35031

BB2#,32,RB20..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-35031

BB2#,32,RB20..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36380

BB2#,30

NON ASBESTOS

 1
31250-36302

BB2#,30

 1
31250-36301

BB2#,30

 1
31250-36381

BB2#,30

NON ASBESTOS

 1
31250-36430

BB21

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BB2#,3#,RB20..5F

 1
Common parts
90109-08081
90119-08134
90170-08197
90201-08567
94511-00800

(9001- )BB2#,32..5F

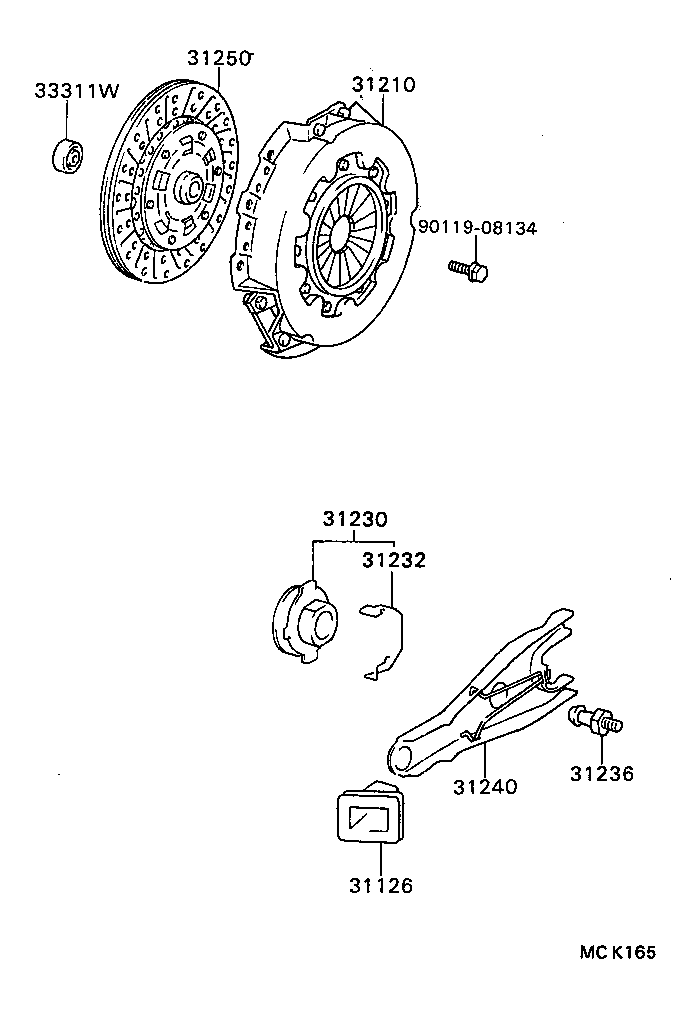

Click highlighted areas on diagram

diagram 31126 31210 31230 31232 31236 31240 31250 33311W 9011908134
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-60130

BB21

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36180

BB21

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-36040

BB21

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-35031

BB2#,32,RB20..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36380

BB2#,30

NON ASBESTOS

 1
31250-36302

BB2#,30

 1
31250-36301

BB2#,30

 1
31250-36381

BB2#,30

NON ASBESTOS

 1
31250-36430

BB21

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BB2#,3#,RB20..5F

 1
Common parts
90119-08134
