BB20R-MDR (1982)
Toyota Coaster

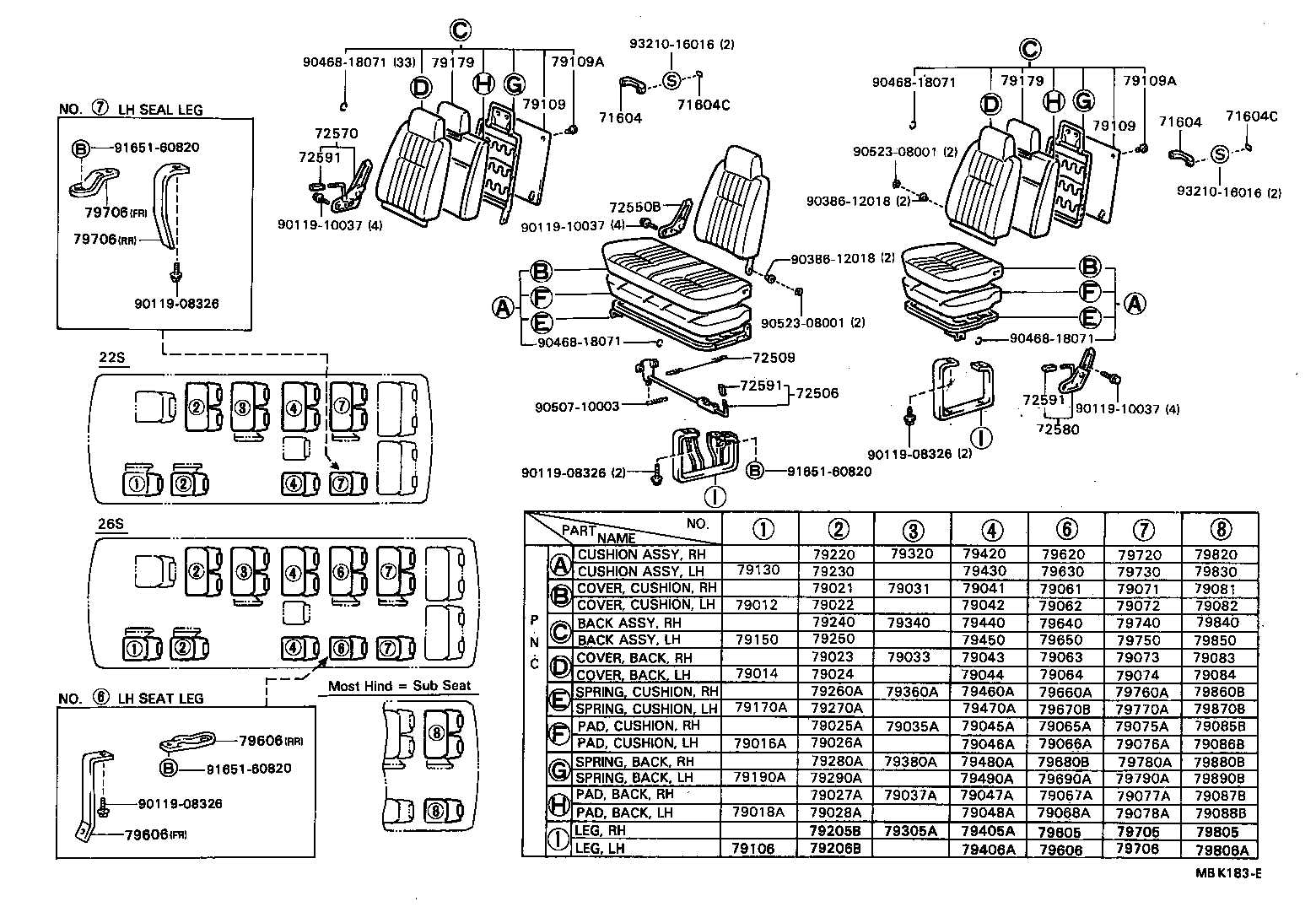

ILLUST NO. 3 OF 3(8205-8504)BB20,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78905 - LOCK SUB-ASSY, FOLD RH SEAT BACK, RH | ||||
| 78905-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
4 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
4 | ||
| 78906 - LOCK SUB-ASSY, FOLD RH SEAT BACK, LH | ||||
| 78906-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78907 - LOCK SUB-ASSY, FOLD LH SEAT BACK, RH | ||||
| 78907-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78908 - LOCK SUB-ASSY, FOLD LH SEAT BACK, LH | ||||
| 78908-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(25S,26S,29S,30S) |
2 | ||
| 78958 - SEAL, REAR FLOOR FOLD STRIKER BASE | ||||
| 78958-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78959 - PLATE, REAR FLOOR FOLD STRIKER BASE | ||||
| 78959-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B07 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79081-90B06 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081-90B17 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79081-90B15 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081-90B22 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081B - COVER SUB-ASSY, FOLD SEAT CUSHION, RH | ||||
| 79081-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79081-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79082B - COVER SUB-ASSY, FOLD SEAT CUSHION, LH | ||||
| 79081-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79081-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B06 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083-90B07 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79083-90B22 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083-90B17 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79083-90B15 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083B - COVER SUB-ASSY, FOLD SEAT BACK, RH | ||||
| 79083-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79083-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79084B - COVER SUB-ASSY, FOLD SEAT BACK, LH | ||||
| 79083-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79083-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B12 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B26 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820-90B28 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B34 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820B - CUSHION ASSY, FOLD SEAT, RH | ||||
| 79820-90B16 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B37 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79820-90B29 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B29 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B27 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79820-90B13 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830B - CUSHION ASSY, FOLD SEAT, LH | ||||
| 79830-90B14 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830-90B06 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830-90B08 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B18 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B11 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79840-90B09 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840-90B24 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840-90B19 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79840-90B17 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840B - BACK ASSY, FOLD SEAT, RH | ||||
| 79840-90B12 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79840-90B10 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840-90B18 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840-90B26 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850B - BACK ASSY, FOLD SEAT, LH | ||||
| 79850-90B04 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850-90B05 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79850-90B11 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850-90B14 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 2 OF 3(8205-8504)BB20,RB20..RHD..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B22 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B14 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79023-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B00 |
BB20,RB20..DLX..26S |
5 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 90467-0606112 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B24 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B13 |
BB20,21,RB20..RHD..DLX..GEN FB |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B11 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79250-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79240-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B18 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF,W/GLIDE DOOR |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-90B00 |
BB20,RB20..DLX..26S W/O FOLDING SEAT |
5 | ||
| 79309A - CLIP (FOR NO.3 SEAT BACK BOARD) | ||||
| 90467-0606112 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 90467-0602002 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79430-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79430-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79340-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79140-90B03 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B02 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90468-18071 | ||||
| 91651-60830 | ||||
| 93210-16016 | ||||
ILLUST NO. 1 OF 3(8205-8504)BB20,RB20..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71071-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71071-90B04 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90B11 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B15 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71073-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B04 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71073-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71410-90B09 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 71410-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430-90B04 |
BB20,RB20..RHD..DLX FB |
1 | ||
| 71430-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430-90B09 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB20,21,FB30,HB30,RB20..DLX,EX |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-90B00 |
BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-90B00 |
BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-90B00 |
BB2#,RB20..RHD |
1 | ||
| 72551 - COVER, RECLINING HINGE, NO.1 | ||||
| 72551-90B00 |
BB2#,RB20..RHD |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78071-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78071-90B07 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78071-90B12 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78072-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78072-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78072-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78720-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78720-90B07 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78720-90B12 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78730-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78730-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78730-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||
ILLUST NO. 3 OF 4(8504- )BB2#,32,FB30,HB30,HZB30,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78905 - LOCK SUB-ASSY, FOLD RH SEAT BACK, RH | ||||
| 78905-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
4 | ||
| 78905A - KNOB, FOLDING SEAT BACK LOCK | ||||
| 72591-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
4 | ||
| 78906 - LOCK SUB-ASSY, FOLD RH SEAT BACK, LH | ||||
| 78906-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78907 - LOCK SUB-ASSY, FOLD LH SEAT BACK, RH | ||||
| 78907-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78908 - LOCK SUB-ASSY, FOLD LH SEAT BACK, LH | ||||
| 78908-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(25S,26S,29S,30S) |
2 | ||
| 78958 - SEAL, REAR FLOOR FOLD STRIKER BASE | ||||
| 78958-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78959 - PLATE, REAR FLOOR FOLD STRIKER BASE | ||||
| 78959-90B00 |
BB20,21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-90B07 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79081-90B06 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081-90B17 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79081-90B15 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081-90B22 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79081B - COVER SUB-ASSY, FOLD SEAT CUSHION, RH | ||||
| 79081-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79081-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79082B - COVER SUB-ASSY, FOLD SEAT CUSHION, LH | ||||
| 79081-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79081-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79081-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083A - COVER SUB-ASSY, NO.8 SEAT BACK | ||||
| 79083-90B06 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083-90B07 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79083-90B22 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083-90B17 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79083-90B15 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79083B - COVER SUB-ASSY, FOLD SEAT BACK, RH | ||||
| 79083-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79083-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79084B - COVER SUB-ASSY, FOLD SEAT BACK, LH | ||||
| 79083-90B13 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79083-90B16 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B12 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79083-90B24 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-90B02 |
BB20,21,FB30,HB30,RB20..(DLX,EX,EXS)..(GEN,ME) W/FOLDING SEAT |
1 | ||
| 79097-90B03 |
BB20,21,FB30,HB30,RB20..DLX,STD RH,W/O FOLDING SEAT |
1 | ||
| 79098-90B00 |
BB20,21,FB30,HB30,RB20..DLX,STD LH,W/O FOLDING SEAT |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79809-90B00 |
BB20,21,FB30,HB30,RB20..(DLX,EX)..(GEN,ME) W/O FOLDING SEAT |
2 | ||
| 79309-90B00 |
BB20,RB20..DLX..GEN W/FOLDING SEAT |
2 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79809A - CLIP (FOR NO.8 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 90467-0606112 |
BB20,RB20..(DLX,EXS)..GEN DARK WINE,DARK WINE |
12 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-90B12 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B26 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820-90B28 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B34 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79820B - CUSHION ASSY, FOLD SEAT, RH | ||||
| 79820-90B16 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B37 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79820-90B29 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B29 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79820-90B27 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79820-90B13 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830B - CUSHION ASSY, FOLD SEAT, LH | ||||
| 79830-90B14 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830-90B06 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79830-90B08 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B15 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79830-90B18 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840A - BACK ASSY, NO.8 SEAT | ||||
| 79840-90B11 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79840-90B09 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840-90B24 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840-90B19 |
BB20,RB20..DLX..26S FB |
1 | ||
| 79840-90B17 |
BB20,RB20..DLX..(GEN,IRQ) PF |
1 | ||
| 79840B - BACK ASSY, FOLD SEAT, RH | ||||
| 79840-90B12 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79840-90B10 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840-90B18 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79840-90B26 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850B - BACK ASSY, FOLD SEAT, LH | ||||
| 79850-90B04 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850-90B05 |
BB20,RB20..DLX..GEN FB |
1 | ||
| 79850-90B11 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79850-90B14 |
BB20,RB20..DLX..26S PF |
1 | ||
| 79860A - SPRING ASSY, FOLD SEAT CUSHION, RH | ||||
| 79860-90B03 |
BB20,RB20..DLX..GEN |
1 | ||
| 79870A - SPRING ASSY, FOLD SEAT CUSHION, LH | ||||
| 79860-90B03 |
BB20,RB20..DLX..GEN |
1 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| 79981 - SILENCER, LUGGAGE COMPARTMENT WALL | ||||
| 79981-90B00 |
BB20,21,32,FB30,HB30,HZB30,RB20..DLX,STD W/O FOLDING SEAT |
2 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08259 | ||||
| 90119-08300 | ||||
| 90119-10017 | ||||
| 90119-10101 | ||||
| 90179-08026 | ||||
| 90183-06043 | ||||
| 90202-07100 | ||||
| 90249-08067 | ||||
| 90386-11006 | ||||
| 90468-18071 | ||||
| 91611-60816 | ||||
| 91661-60820 | ||||
| 93386-15010 | ||||
| 93630-14014 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7554 | ||||
ILLUST NO. 1 OF 4(8504- )BB2#,HB30,HDB30,HZB30,RB20..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71071-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71071-90B04 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90B11 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B15 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71073-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71073-90B04 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71073-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71410-90B09 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 71410-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430-90B04 |
BB20,RB20..RHD..DLX FB |
1 | ||
| 71430-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 71430-90B09 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB2#,32,FB30,HB30,HZB30,RB20 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90B00 |
BB20,21,FB30,HB30,RB20..DLX,EX |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-90B00 |
BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-90B00 |
BB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL W/LOCK |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90B00 |
BB2#,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
BB2#,FB30,HB30,RB20 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-90B00 |
BB2#,RB20..RHD |
1 | ||
| 72551 - COVER, RECLINING HINGE, NO.1 | ||||
| 72551-90B00 |
BB2#,RB20..RHD |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78071-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78071-90B07 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78071-90B12 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78072-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78072-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78072-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78073-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78073-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-90B00 |
BB20,21,RB20..25S,26S |
6 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78720-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78720-90B07 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78720-90B12 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78730-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78730-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78730-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..26S FB |
4 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..26S PF |
4 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B06 |
BB20,RB20..RHD..DLX..GEN FB |
2 | ||
| 78740-90B09 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| 78740-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
2 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-08079 | ||||
| 90119-08258 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90154-80045 | ||||
| 90179-08143 | ||||
| 90240-08044 | ||||
| 90255-08002 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12005 | ||||
| 90389-08007 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91656-60830 | ||||
| 93510-16020 | ||||
| 93540-55010 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94611-20800 | ||||
ILLUST NO. 2 OF 4(8504- )BB2#,RB20..RHD..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B22 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B14 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79023-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B24 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B13 |
BB20,21,RB20..RHD..DLX..GEN FB |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B11 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79250-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79240-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B18 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF,W/GLIDE DOOR |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-90B00 |
BB20,RB20..DLX..26S W/O FOLDING SEAT |
5 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-90B00 |
BB20,RB20..DLX..26S W/O FOLDING SEAT |
5 | ||
| 79309A - CLIP (FOR NO.3 SEAT BACK BOARD) | ||||
| 90467-0606112 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 90467-0602002 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 79309A - CLIP (FOR NO.3 SEAT BACK BOARD) | ||||
| 90467-0606112 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 90467-0602002 |
BB20,RB20..DLX..(GEN,IRQ) DARK WINE,DARK WINE |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79430-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79430-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79340-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79140-90B03 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B02 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90468-18071 | ||||
| 91651-60820 | ||||
| 93210-16016 | ||||
ILLUST NO. 2 OF 4(8504-8510)RHD..DLX..22S ; (8510- )BB20,21,RB20..RHD..DLX..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74610-90B01 |
BB2#,RB20..DLX,STD |
12 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-90B00 |
BB2#,RB20..DLX,STD |
24 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B22 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79021-90B14 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B05 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79023-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79023-90B14 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79031-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79022-90B04 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79033-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B17 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79033-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B10 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79013-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79013-90B19 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B00 |
BB20,RB20..DLX..26S |
5 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-90B00 |
BB20,RB20..DLX..26S |
5 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 90467-0606112 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 90467-0602002 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 90467-0606112 |
BB20,RB20..DLX,EXS DARK WINE,DARK WINE |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79179 - PAD, NO.1 SEAT BACK HEADREST | ||||
| 79179-90B00 |
BB20,RB20..DLX |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-90B24 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79220-90B13 |
BB20,21,RB20..RHD..DLX..GEN FB |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B20 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79230-90B07 |
BB20,21,HB30,RB20..RHD..(DLX,EX)..GEN FB |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B11 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B02 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79250-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79250-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79240-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79240-90B18 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF,W/GLIDE DOOR |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B13 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79320-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79430-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79430-90B07 |
BB20,21,HB30,RB20..RHD..DLX..GEN FB |
1 | ||
| 79430-90B12 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79340-90B07 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79340-90B06 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79140-90B03 |
BB20,RB20..RHD..DLX..26S FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B02 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79620-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B23 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79620-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79630-90B08 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B19 |
BB20,RB20..RHD..DLX..26S PF |
1 | ||
| 79630-90B10 |
BB20,21,HB30,RB20..RHD..DLX..(26S,30S) FB |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79340-90B06 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79340-90B07 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79350-90B01 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79350-90B04 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79140-90B02 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B07 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| 79140-90B03 |
BB20,RB20..RHD..DLX..GEN FB |
1 | ||
| 79140-90B15 |
BB20,RB20..RHD..DLX..GEN PF |
1 | ||
| Common parts | ||||
| 90119-08326 | ||||
| 90119-10037 | ||||
| 90386-12018 | ||||
| 90468-18071 | ||||
| 90507-10003 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 93210-16016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
