BB20L-MDZR (1982)

Toyota Coaster

Production May 1982 - Oct 1986
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

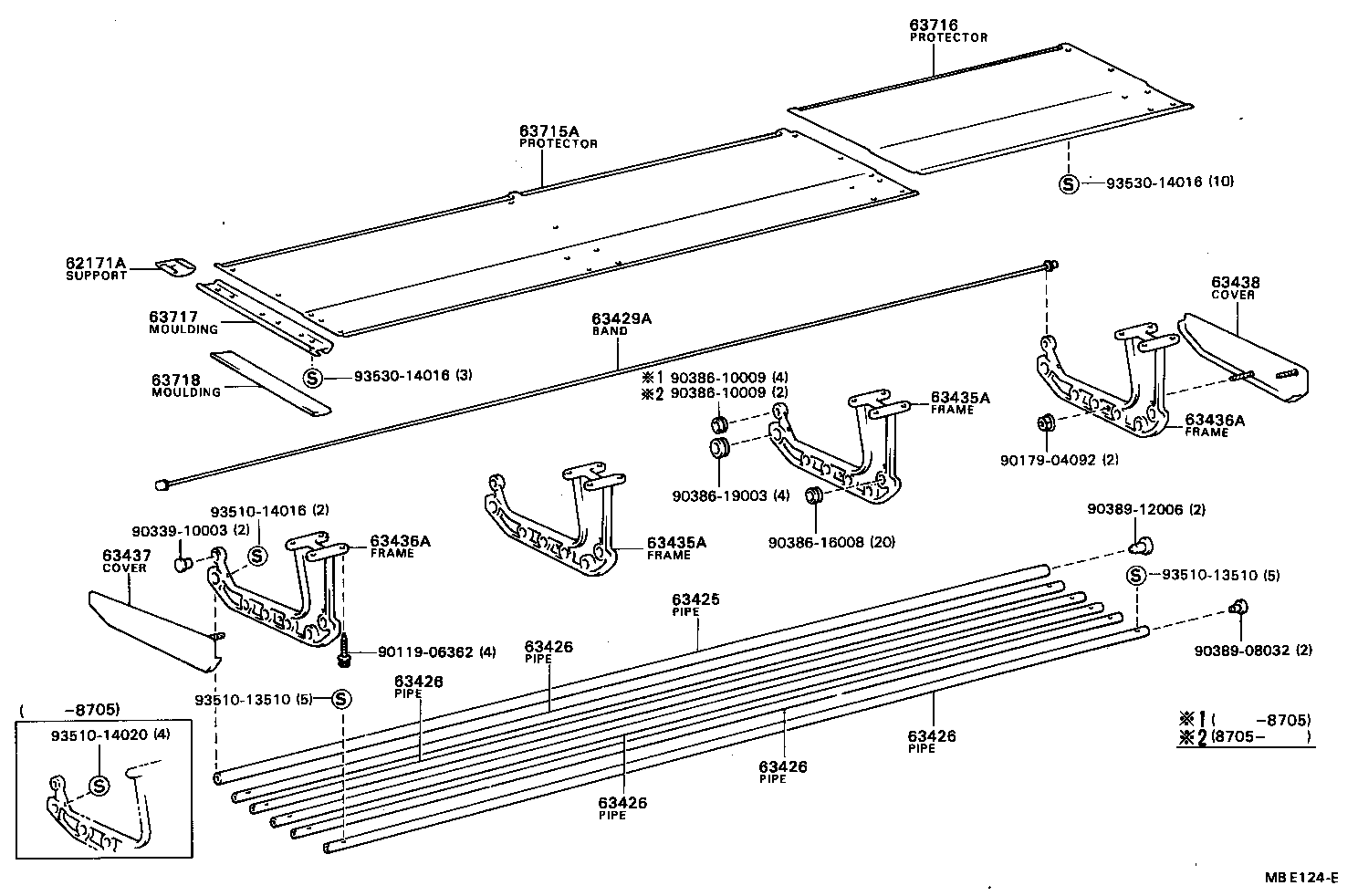

ILLUST NO. 1 OF 2(8205- )BB20,21,RB20..LHD..HRF..WC

Click highlighted areas on diagram

diagram 62171A 63425 63426 63426 63426 63426 63426 63429A 63435A 63435A 63436A 63436A 63437 63438 63715A 63716 63717 63718 9011906362 9017904092 9033910003 9038610009 9038610009 9038616008 9038619003 9038908032 9038912006 9351013510 9351013510 9351014016 9351014020 9353014016 9353014016
Part # Description Qty Price
62171A - SUPPORT, ROOF LINING PROTECTOR MOULDING
62171-90010

BB20,RB20..HRF..WC..GEN

 3
63425 - PIPE, ROOM RACK, NO.1
63425-90B02

BB20,RB20..HRF..WC..GEN

 1
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB20,RB20..HRF..WC..GEN

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB20,RB20..HRF..WC..GEN

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB20,RB20..HRF..WC..GEN

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB20,RB20..HRF..WC..GEN

 5
63426 - PIPE, ROOM RACK, NO.2
63426-90B02

BB20,RB20..HRF..WC..GEN

 5
63429A - BAND, ROOM RACK GUARD
63709-90B00

BB20,RB20..HRF..WC..GEN

 1
63435A - FRAME, ROOM RACK, NO.1
63435-90B01

BB20..15S;BB2#,RB20..HRF..WC..(GEN,ME)

 2
63435A - FRAME, ROOM RACK, NO.1
63435-90B01

BB20..15S;BB2#,RB20..HRF..WC..(GEN,ME)

 2
63436A - FRAME, ROOM RACK, NO.2
63436-90B01

BB20..15S;BB2#,RB20..HRF..WC..(GEN,ME)

 2
63436A - FRAME, ROOM RACK, NO.2
63436-90B01

BB20..15S;BB2#,RB20..HRF..WC..(GEN,ME)

 2
63437 - COVER, ROOM RACK FRAME, FRONT
63437-90B01

BB20,RB20..HRF..WC..GEN

 1
63438 - COVER, ROOM RACK FRAME, REAR
63438-90B01

BB20,RB20..HRF..WC..GEN

 1
63715A - PROTECTOR, ROOF LINING, FRONT
63715-90B03

BB20,RB20..LHD..DLX..HRF..WC

 1
63717 - MOULDING, ROOF LINING PROTECTOR, NO.1
63717-90B00

BB20,RB20..HRF..WC..GEN

 3
63718 - MOULDING, ROOF LINING PROTECTOR, NO.2
63718-90B00

BB20,RB20..HRF..WC..GEN

 3
Common parts
90119-06362
90179-04092
90339-10003
90386-10009
90386-16008
90386-19003
90389-08032
90389-12006
93510-13510
93510-14016
93510-14020
93530-14016
