Toyota Coaster BB10 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
GR
COASTER
BB10R-QDZER (1977)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

BB10R-QDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979

Engine 2B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

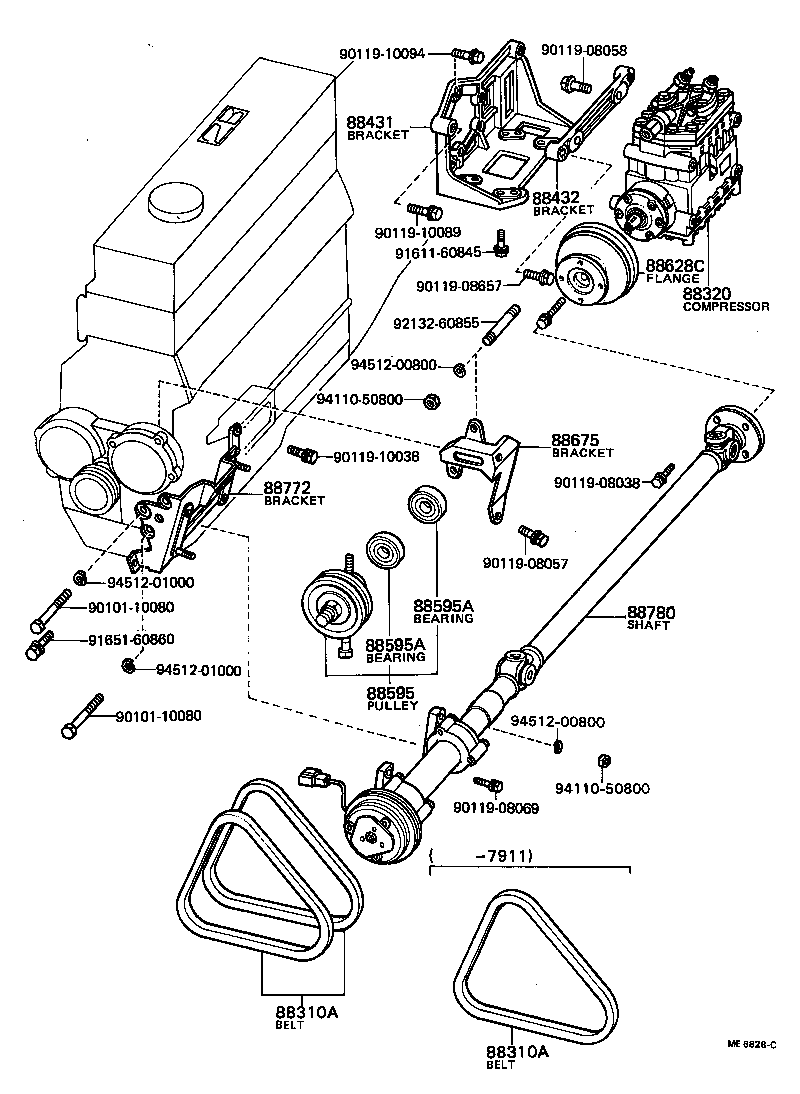

(7708- )BB10..BC

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36031	BB10,RB11..BC	08/1977 - 09/1977	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36070	BB10,RB11,13..BC	08/1977 - 04/1982	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88434-36070	BB10..BC	08/1977 - 04/1982	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20050	BB10,RB11..BC	08/1977 - 11/1979	1
88595A - BEARING (FOR COOLER IDLE PULLEY)
90099-10089	BB10,RB11..BC	08/1978 - 11/1979	2
88595A - BEARING (FOR COOLER IDLE PULLEY)
90099-10089	BB10,RB11..BC	08/1978 - 11/1979	2
88628C - FLANGE, COUPLING
88628-36020	BB10,RB11..BC	08/1977 - 09/1977	1
88675 - BRACKET, IDLER PULLEY (FOR COOLER)
88444-36060	BB10..BC	08/1977 - 11/1979	1
88772 - BRACKET, SHAFT MOUNTING
88772-36030	BB10..BC	08/1977 - 08/1980	1
88780 - SHAFT ASSY
88780-36031	BB10..BC	08/1978 - 09/1978	1
88780-36032	BB10..BC	09/1978 - 11/1979	1
88780-36030	BB10..BC	08/1977 - 08/1978	1
Common parts
90101-10080
90119-08038
90119-08057
90119-08058
90119-08069
90119-08657
90119-10038
90119-10089
90119-10094
91611-60845
91651-60860
92132-60855
94110-50800
94512-00800
94512-01000

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88308 - PUMP ASSY, COOLER COMPRESSOR
88308-20030	BB10,RB11,13..BC	08/1977 - 04/1982	1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-36050	BB10,RB11,13..BC	08/1977 - 10/1981	1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-36040	BB10,RB11,13..BC	08/1977 - 04/1982	1
88316C - KEY, COMPRESSOR CRANKSHAFT
90097-00565	BB10,RB11,13..BC	08/1977 - 04/1982	1
88320 - COMPRESSOR ASSY, COOLER
88320-36031	BB10,RB11..BC	08/1977 - 09/1977	1
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-36010	BB10,RB11..BC	08/1977 - 02/1980	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-36030	BB10,RB11,13..BC	08/1977 - 04/1982	1
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-36050	BB10,RB11,13..BC	08/1977 - 02/1981	1
88323 - FILTER, COOLER COMPRESSOR REFRIGERANT
88377-36030	BB10,RB11,13..BC	08/1977 - 04/1982	1
88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE
88305-36040	BB10,RB11,13..BC	08/1977 - 04/1982	1
88325 - CRANKCASE, COOLER COMPRESSOR
88325-36040	BB10,RB11..BC	08/1977 - 02/1980	1
88325B - PLUG, CYLINDER BLOCK OIL
88339-60010	BB10,RB11,13..BC	08/1977 - 04/1982	1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88331-36030	BB10,RB11,13..BC LWR	08/1977 - 04/1982	1
88326-36040	BB10,RB11,13..BC RR	08/1977 - 04/1982	1
88326 - PLATE, COOLER COMPRESSOR BOTTOM
88331-36030	BB10,RB11,13..BC LWR	08/1977 - 04/1982	1
88326-36040	BB10,RB11,13..BC RR	08/1977 - 04/1982	1
88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE
88307-36040	BB10,RB11,13..BC	08/1977 - 04/1982	3
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-36030	BB10,RB11,13..BC	08/1977 - 04/1982	3
88329A - RING, COMPRESSOR PISTON SNAP
90099-07059	BB10,RB11,13..BC	08/1977 - 04/1982	6
88329A - RING, COMPRESSOR PISTON SNAP
90099-07059	BB10,RB11,13..BC	08/1977 - 04/1982	6
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-36040	BB10,RB11,13..BC	08/1977 - 04/1982	1
88337 - FILTER, OIL
88337-30250	BB10,RB11,13..BC	08/1977 - 02/1981	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-36040	BB10,RB11..BC	08/1977 - 02/1980	1
88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING
88302-36040	BB10,RB11,13..BC	08/1977 - 04/1982	3
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88367-36050	BB10,RB11,13..BC	08/1977 - 04/1982	1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	BB10,RB11,13..BC	08/1977 - 04/1982	2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	BB10,RB11,13..BC	08/1977 - 04/1982	2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020	BB10,RB11,13..BC	08/1977 - 02/1981	2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-12020	BB10,RB11,13..BC	08/1977 - 02/1981	2
88378 - TUBE, DISCHARGE
88378-30258	BB10,RB11,13..BC	08/1977 - 04/1982	1
88379A - VALVE, BY-PASS
88379-20030	BB10,RB11,13..BC	08/1977 - 04/1982	1
88379B - VALVE, PRESSURE RELIEF
88379-36030	BB10,RB11,13..BC	08/1977 - 04/1982	1
Common parts
90091-00401
90091-00858
90091-00859
90099-02305
91111-70828
91112-70616
93220-16016
94511-00600
94511-00800

(7808- )BC

Click highlighted areas on diagram

Part #	Description	Period	Qty
88330 - CLUTCH ASSY, MAGNET
88410-36080	BB10..BC	08/1977 - 09/1978	1
88410-36081	BB10..BC	09/1978 - 11/1979	1
88618 - SHAFT ASSY, COOLER DRIVE
88781-36030	BB10..BC	08/1977 - 08/1978	1
88702 - UNIT SUB-ASSY, BEARING
88702-36030	BB10,RB11..BC	08/1978 - 09/1978	1
88780 - SHAFT ASSY
88780-36031	BB10..BC	08/1978 - 09/1978	1
88780-36032	BB10..BC	09/1978 - 11/1979	1
88780-36030	BB10..BC	08/1977 - 08/1978	1
88781 - SHAFT
88585-36030	BB10,RB11..BC	08/1977 - 08/1978	1
88585-36031	BB10,RB11..BC	08/1978 - 09/1978	1
88781A - SEAL, OIL(FOR COOLER SHAFT)
88578-36050	BB10,RB11..BC RR	08/1978 - 09/1978	1
88578-36040	BB10,RB11..BC FR	08/1978 - 09/1978	1
88781A - SEAL, OIL(FOR COOLER SHAFT)
88578-36050	BB10,RB11..BC RR	08/1978 - 09/1978	1
88578-36040	BB10,RB11..BC FR	08/1978 - 09/1978	1
88781A - SEAL, OIL(FOR COOLER SHAFT)
88578-36050	BB10,RB11..BC RR	08/1978 - 09/1978	1
88578-36040	BB10,RB11..BC FR	08/1978 - 09/1978	1
88781A - SEAL, OIL(FOR COOLER SHAFT)
88578-36050	BB10,RB11..BC RR	08/1978 - 09/1978	1
88578-36040	BB10,RB11..BC FR	08/1978 - 09/1978	1
88781D - RING, SNAP(FOR COOLER SHAFT)
90096-90018	BB10,RB11..BC RR	08/1978 - 09/1978	1
90096-90019	BB10,RB11..BC FR	08/1978 - 09/1978	1
88781D - RING, SNAP(FOR COOLER SHAFT)
90096-90018	BB10,RB11..BC RR	08/1978 - 09/1978	1
90096-90019	BB10,RB11..BC FR	08/1978 - 09/1978	1
88783 - CASE, BEARING
88783-36030	BB10,RB11..BC	08/1977 - 09/1978	1
88784 - FLANGE, BEARING CASE
88784-36040	BB10,RB11..BC RR	08/1978 - 09/1978	1
88784-36030	BB10,RB11..BC FR	08/1978 - 09/1978	1
88784 - FLANGE, BEARING CASE
88784-36040	BB10,RB11..BC RR	08/1978 - 09/1978	1
88784-36030	BB10,RB11..BC FR	08/1978 - 09/1978	1
88790K - JOINT KIT, COOLER DRIVE SHAFT
88790-36030	BB10,RB11,13..BC	08/1977 - 04/1982	2

BB10R-QDZER (1977)

(7708- )BB10..BC

(7708- )

(7808- )BC
