BB10R-QDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BB10..BC

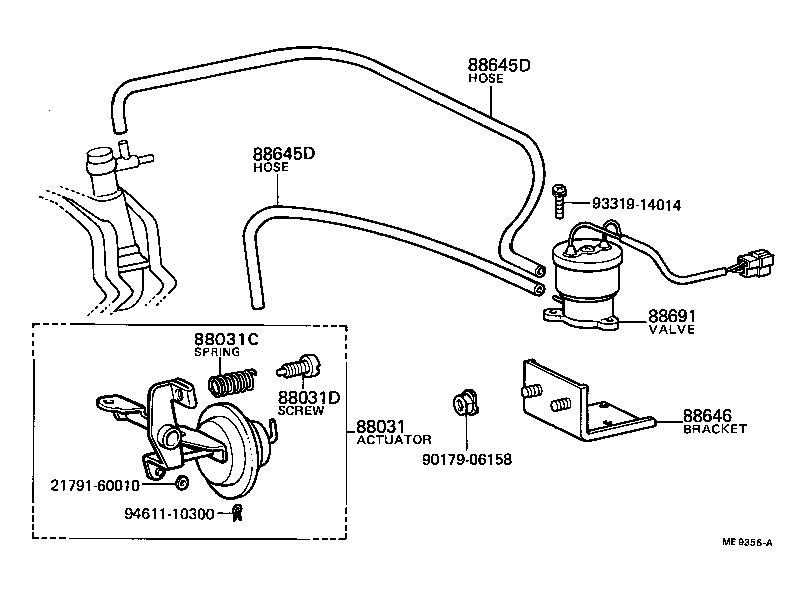

Click highlighted areas on diagram

diagram 2179160010 88031 88031C 88031D 88645D 88645D 88646 88691 9017906158 9331914014 9461110300
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
21609-57010

BB10..BC

 1
88031C - SPRING(FOR IDLE-UP ACTUATOR)
21723-10010

BB10,RB11..BC

 1
88031D - SCREW, THROTTLE ADJUSTING(FOR IDLE-UP ACTUATOR)
21844-26030

BB10,RB11..BC

 1
88645D - HOSE (FOR IDLE UP DEVICE)
90445-08145

BB10..BC

*H,L=1050

 1
95411-19930

BB10..BC

*H,L=240,MARK=#*

 3
88645D - HOSE (FOR IDLE UP DEVICE)
90445-08145

BB10..BC

*H,L=1050

 1
95411-19930

BB10..BC

*H,L=240,MARK=#*

 3
88646 - BRACKET, IDLE UP DEVICE, NO.1
88688-36050

BB10..BC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-36030

BB10..BC

 1
Common parts
21791-60010
90179-06158
93319-14014
94611-10300
