BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-7910)BC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-36080 |
BB10..BC |
1 | ||
| 88344A - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
BB10,RB11,13..BC |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-36030 |
BB10,RB11,13..BC |
1 | ||
| 88469 - SWITCH, PRESSURE CONTROL | ||||
| 88469-36030 |
BB10,RB11..BC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-36060 |
BB10,RB11..BC |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-36080 |
BB10..BC |
1 | ||
| 88510-36081 |
BB10..BC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88421-36030 |
BB10,RB11..BC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
BB10,RB11,13..BC |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-36070 |
BB10..BC |
1 | ||
| Common parts | ||||
| 88688-36080 | ||||
| 88718-36120 | ||||
| 88718-36130 | ||||
| 90179-08096 | ||||
| 91611-40614 | ||||
| 91651-40616 | ||||

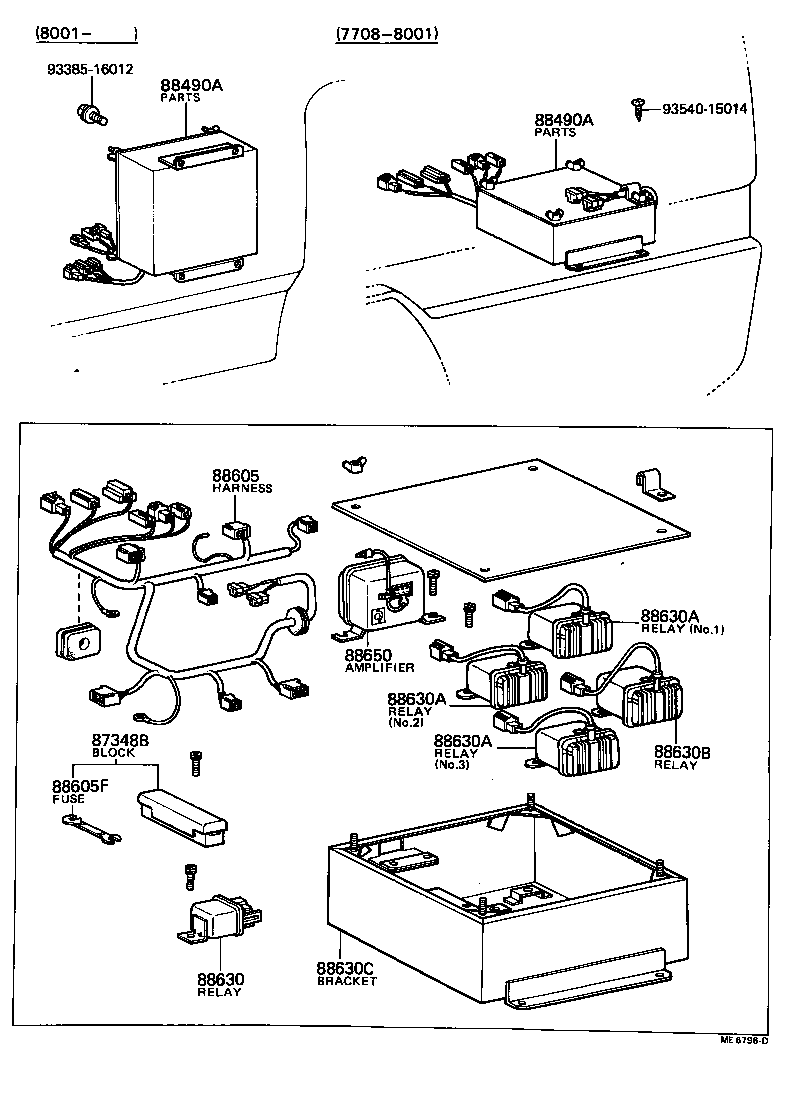

(7708- )BB10..BC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87348B - BLOCK, FUSE | ||||
| 87348-36020 |
BB10,RB11,13..BC |
2 | ||
| 88490A - PARTS ASSY, ELECTRICAL | ||||
| 88490-36010 |
BB10..BC |
1 | ||
| 88490A - PARTS ASSY, ELECTRICAL | ||||
| 88490-36010 |
BB10..BC |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-36090 |
BB10..BC |
1 | ||
| 88605F - FUSE(FOR COOLER WIRING HARNESS) | ||||
| 90099-53006 |
BB10,RB11,13..BC |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-36100 |
BB10..BC |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-36070 |
BB10..BC NO.1,NO.2,NO.3 |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-36070 |
BB10..BC NO.1,NO.2,NO.3 |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-36070 |
BB10..BC NO.1,NO.2,NO.3 |
3 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-36090 |
BB10..BC |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-36030 |
BB10,RB11..BC |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-36070 |
BB10..BC |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
| 93540-15014 | ||||
(7910- )BC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-36080 |
BB10..BC |
1 | ||
| 88344A - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
BB10,RB11,13..BC |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-36030 |
BB10,RB11,13..BC |
1 | ||
| 88469 - SWITCH, PRESSURE CONTROL | ||||
| 88469-36030 |
BB10,RB11..BC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-36060 |
BB10,RB11..BC |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-36080 |
BB10..BC |
1 | ||
| 88510-36081 |
BB10..BC |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88421-36030 |
BB10,RB11..BC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
BB10,RB11,13..BC |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-36070 |
BB10..BC |
1 | ||
| Common parts | ||||
| 90179-08096 | ||||
