BB10R-QDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BB10

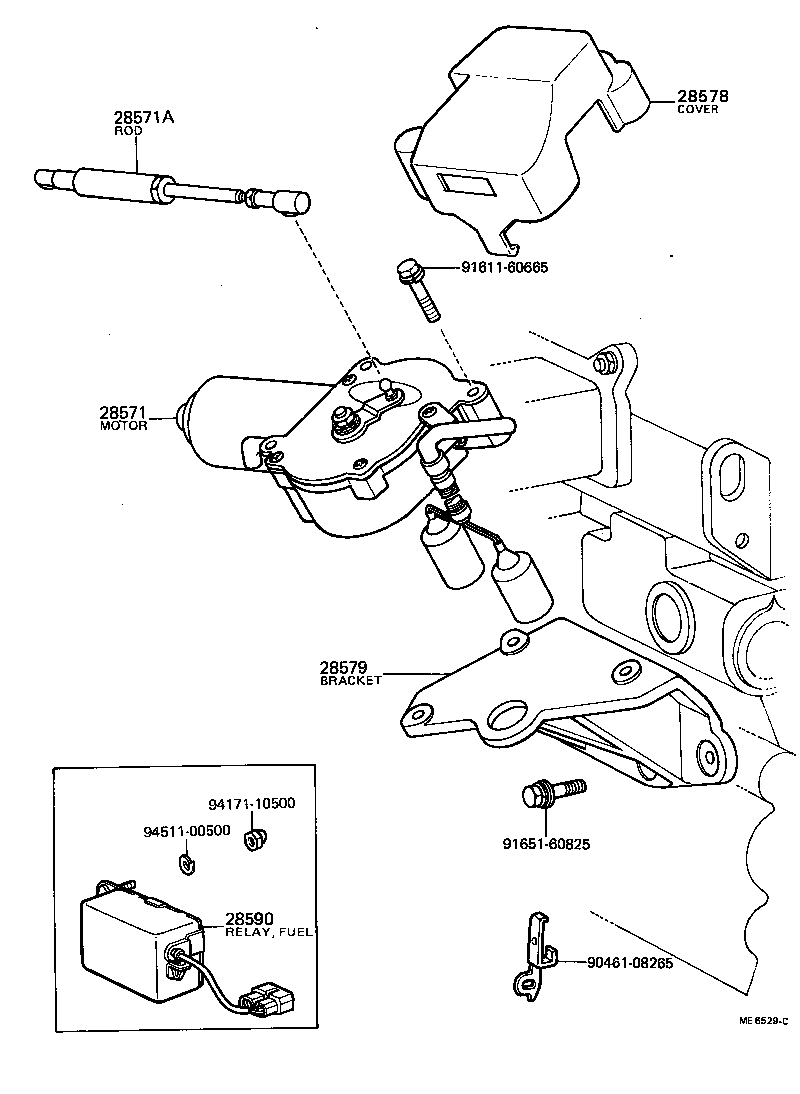

Click highlighted areas on diagram

diagram 28571 28571A 28578 28579 28590 9046108265 9161160665 9165160825 9417110500 9451100500
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56050

2B..BB10..21S,22S,25S,26S

24V

 1
28571-56050

2B..BB10..GEN

24V

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36021

2B..BB10

 1
84580-36021

2B..BB10..21S,22S,25S,26S

 1
28578 - COVER, FUEL CONTROL MOTOR
28578-56010

2B..BB10

 1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56030

2B..BB10

 1
28579-56030

2B..BB10..21S,22S,25S,26S

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56070

2B..BB10..21S,22S,25S,26S

24V

 1
28590-56070

2B..BB10..GEN

24V

 1
Common parts
90461-08265
91611-60665
91651-60825
94171-10500
94511-00500
