BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )BB10..RHD

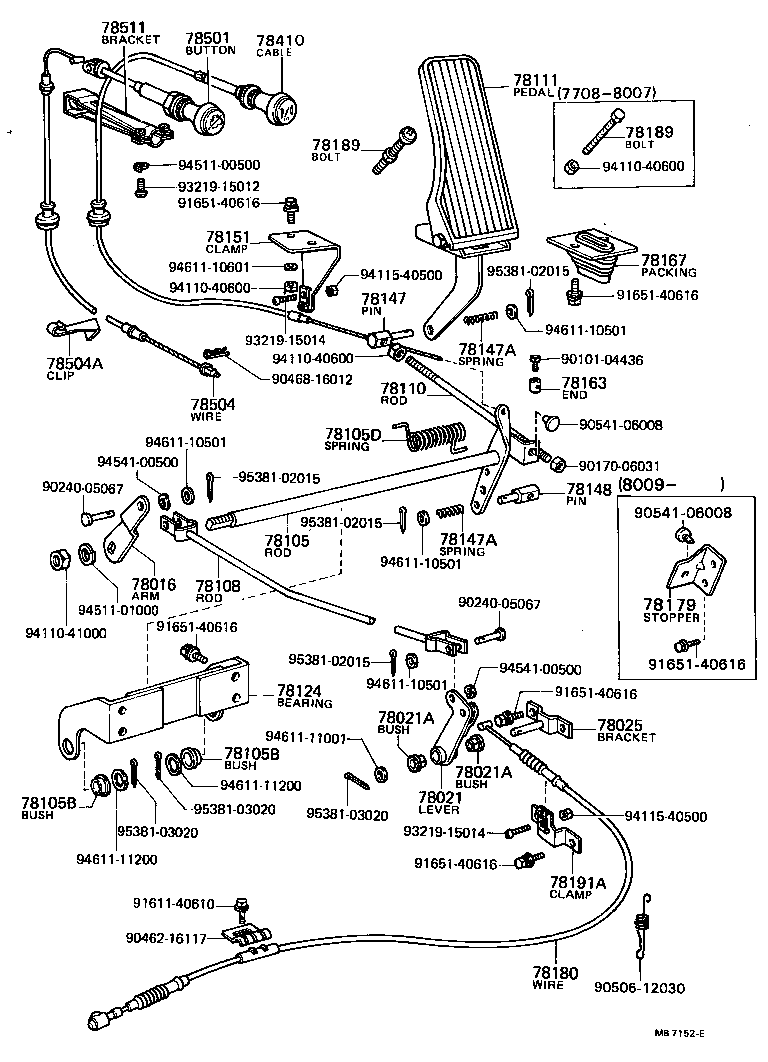

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78016 - ARM SUB-ASSY, ACCELERATOR LINK ROD | ||||
| 78145-90502 |
BB10,RB1# |
1 | ||
| 78021 - LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1 | ||||
| 78106-90502 |
BB10,RB10 |
1 | ||
| 78021A - BUSH, ACCELERATOR CONTROL LEVER | ||||
| 90386-10150 |
BB10,RB1# |
2 | ||
| 78021A - BUSH, ACCELERATOR CONTROL LEVER | ||||
| 90386-10150 |
BB10,RB1# |
2 | ||
| 78025 - BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM | ||||
| 78105-90500 |
BB10,RB1# |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78103-90506 |
BB10,RB1#..RHD |
1 | ||
| 78105B - BUSH (FOR ACCELERATOR TORQUE ROD) | ||||
| 90386-12151 |
BB10,RB1# |
2 | ||
| 78105B - BUSH (FOR ACCELERATOR TORQUE ROD) | ||||
| 90386-12151 |
BB10,RB1# |
2 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-23311 |
BB10,RB1#..RHD |
1 | ||
| 78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78107-90502 |
BB10,RB1# |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78121-90504 |
BB10,RB1# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-90501 |
BB10,RB1# |
1 | ||
| 78124 - BEARING, ACCELERATOR LINK, NO.1 | ||||
| 78108-90500 |
BB10,RB1#..RHD |
1 | ||
| 78147 - PIN, CONNECTING ROD, RH | ||||
| 78147-90011 |
BB10,RB1# |
1 | ||
| 78147A - SPRING, ACCELERATOR ROD PIN | ||||
| 90501-10005 |
BB10,RB1# |
2 | ||
| 78147A - SPRING, ACCELERATOR ROD PIN | ||||
| 90501-10005 |
BB10,RB1# |
2 | ||
| 78148 - PIN, CONNECTING ROD, LH | ||||
| 78145-90011 |
BB10,RB1# |
1 | ||
| 78151 - CLAMP, THROTTLE WIRE | ||||
| 78151-90740 |
BB10,RB1# |
1 | ||
| 78163 - END, FLEXIBLE WIRE | ||||
| 78163-55020 |
BB10,RB1# |
2 | ||
| 78167 - PACKING, ACCELERATOR PEDAL HINGE | ||||
| 78167-90503 |
BB10,RB1# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78120-90740 |
BB10 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-40650 |
BB10,RB1# |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-40650 |
BB10,RB1# |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78149-90740 |
BB10,RB10 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90504 |
BB10,RB1#..RHD |
1 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-36030 |
BB10..GEN |
1 | ||
| 78504 - WIRE SUB-ASSY, STOP FLEXIBLE | ||||
| 78504-90740 |
BB10..RHD L=2562 |
1 | ||
| 78504A - CLIP (FOR STOP FLEXIBLE WIRE) | ||||
| 90461-08125 |
BB10..RHD..GEN |
1 | ||
| 78511 - BRACKET, STOP WIRE SET | ||||
| 78511-90061 |
BB10..GEN,IRQ |
1 | ||
| Common parts | ||||
| 90101-04436 | ||||
| 90170-06031 | ||||
| 90240-05067 | ||||
| 90462-16117 | ||||
| 90468-16012 | ||||
| 90506-12030 | ||||
| 90541-06008 | ||||
| 91611-40610 | ||||
| 91651-40616 | ||||
| 93219-15012 | ||||
| 93219-15014 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94511-01000 | ||||
| 94541-00500 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 94611-11001 | ||||
| 94611-11200 | ||||
| 95381-02015 | ||||
| 95381-03020 | ||||
