BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )

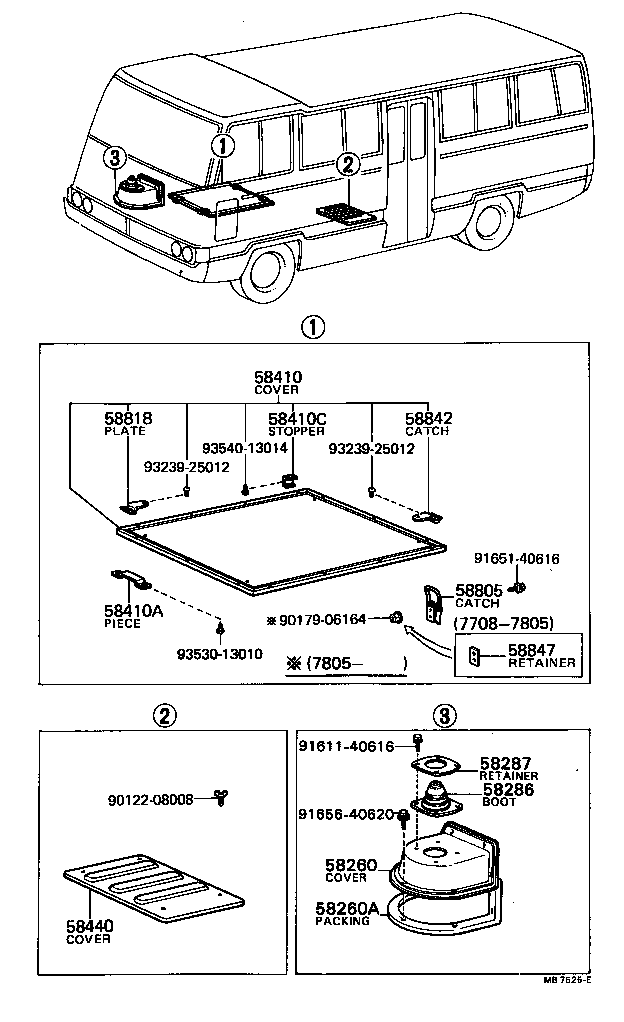

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58840-90740 |
BB10 |
1 | ||
| 58410A - PIECE, ENGINE SERVICE HOLE COVER CATCH SET | ||||
| 58618-90011 |
BB10,RB1# |
2 | ||
| 58410C - STOPPER, ENGINE SERVICE HOLE COVER SET | ||||
| 58895-90500 |
BB10,RB1# |
3 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58830-90746 |
BB10,RB1#..21S,22S,23S |
1 | ||
| 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58804-90740 |
BB10,RB1# |
2 | ||
| 58818 - PLATE, ENGINE SERVICE HOLE COVER SET | ||||
| 58817-90011 |
BB10,RB1# |
2 | ||
| 58842 - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 58841-90011 |
BB10,RB1# |
2 | ||
| 58847 - RETAINER, ENGINE SERVICE HOLE COVER CATCH | ||||
| 58846-90011 |
BB10,RB1# |
2 | ||
| Common parts | ||||
| 90122-08008 | ||||
| 90179-06164 | ||||
| 91611-40616 | ||||
| 91651-40616 | ||||
| 91656-40620 | ||||
| 93239-25012 | ||||
| 93530-13010 | ||||
| 93540-13014 | ||||
(7708- )RHD

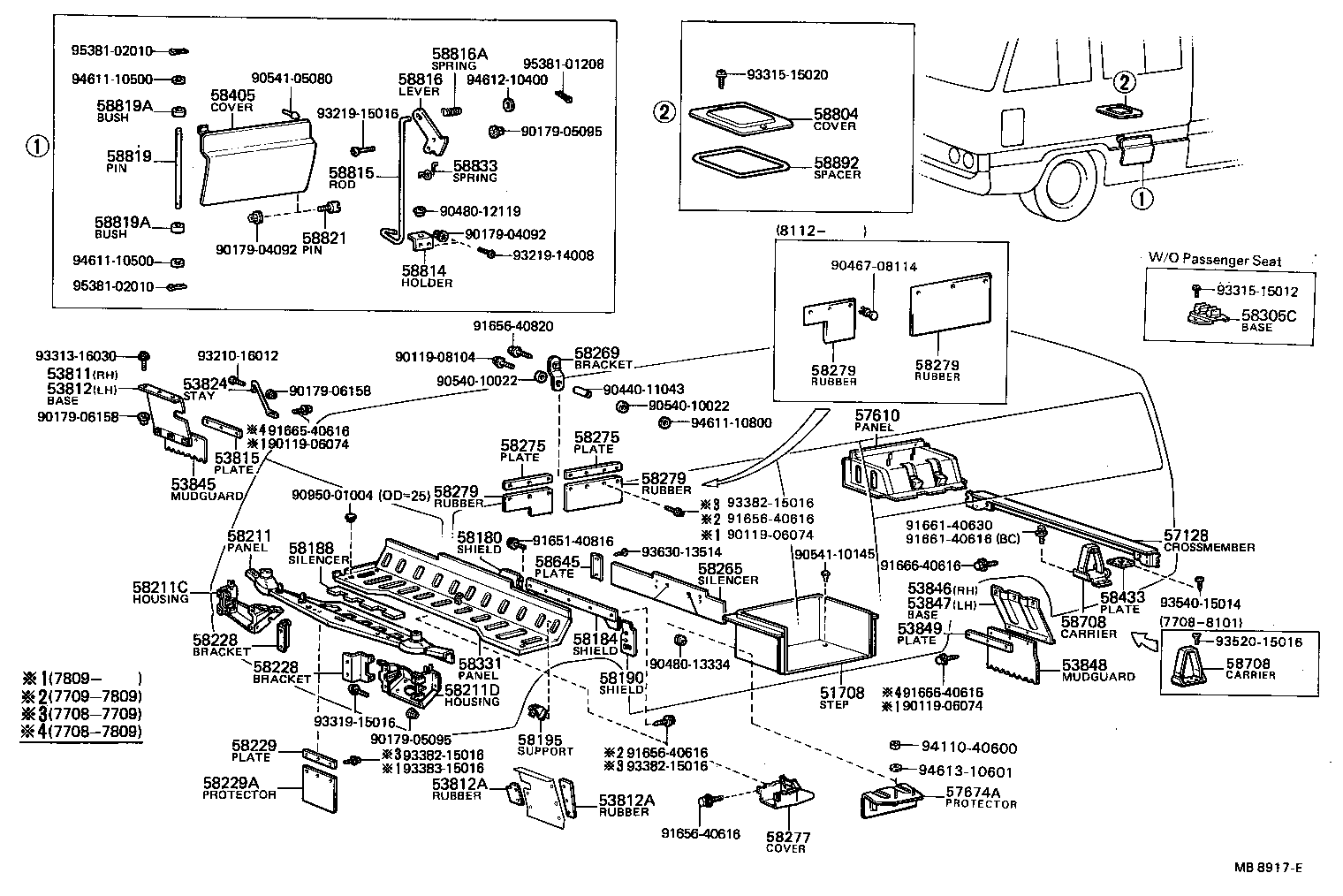

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51708 - STEP SUB-ASSY, LH | ||||
| 57401-90740 |
BB10,RB1#..RHD..GEN |
1 | ||
| 53811 - BASE, MUDGUARD RUBBER, FRONT RH | ||||
| 53807-90740 |
BB10,RB1# |
1 | ||
| 53812 - BASE, MUDGUARD RUBBER, FRONT LH | ||||
| 53807-90740 |
BB10,RB1# |
1 | ||
| 53806-90501 |
BB10,RB1# |
1 | ||
| 53815 - PLATE, MUDGUARD RUBBER SET, FRONT | ||||
| 53818-90500 |
BB10,RB1# |
2 | ||
| 53824 - STAY, MUDGUARD RUBBER, FRONT | ||||
| 53827-90500 |
BB10,RB1# LH |
1 | ||
| 53826-90500 |
BB10,RB1# RH |
1 | ||
| 53845 - MUDGUARD, FENDER, FRONT | ||||
| 53817-90500 |
BB10,RB1# RH |
1 | ||
| 53836-90500 |
BB10,RB1# LH |
1 | ||
| 53846 - BASE, MUDGUARD RUBBER, REAR RH | ||||
| 53816-90500 |
BB10,RB1# |
1 | ||
| 53847 - BASE, MUDGUARD RUBBER, REAR LH | ||||
| 53816-90500 |
BB10,RB1# |
1 | ||
| 53848 - MUDGUARD, FENDER, REAR | ||||
| 53817-90502 |
BB10,RB1# RH |
1 | ||
| 53817-90500 |
BB10,RB1# RH |
1 | ||
| 53836-90501 |
BB10,RB1# LH |
1 | ||
| 53836-90500 |
BB10,RB1# LH |
1 | ||
| 53849 - PLATE, MUDGUARD RUBBER SET, REAR | ||||
| 53818-90500 |
BB10,RB1# |
2 | ||
| 57128 - CROSSMEMBER, FLOOR, REAR | ||||
| 57208-90740 |
BB10,RB1# |
1 | ||
| 57610 - PANEL SUB-ASSY,CONDENSER COVER | ||||
| 57601-90742 |
BB10,RB11,13..BC..(GEN,IRQ) |
1 | ||
| 58180 - SHIELD ASSY, ENGINE ROOM, RH | ||||
| 58108-90740 |
BB10,RB1# |
1 | ||
| 58184 - SHIELD, ENGINE ROOM, CENTER | ||||
| 58101-90740 |
BB10,RB1# |
1 | ||
| 58188 - SILENCER, DASH PANEL CENTER | ||||
| 58528-90740 |
BB10,RB1# |
1 | ||
| 58190 - SHIELD ASSY, ENGINE ROOM, LH | ||||
| 58109-90740 |
BB10,RB10 |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58202-90740 |
BB10,RB1#..RHD |
1 | ||
| 58211C - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 58302-90740 |
BB10,RB1# |
1 | ||
| 58211D - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 58303-90740 |
BB10,RB1# |
1 | ||
| 58228 - BRACKET, HEADLAMP DOOR, CENTER | ||||
| 58406-90500 |
BB10,RB1# LH |
1 | ||
| 58409-90500 |
BB10,RB1# RH |
1 | ||
| 58228 - BRACKET, HEADLAMP DOOR, CENTER | ||||
| 58406-90500 |
BB10,RB1# LH |
1 | ||
| 58409-90500 |
BB10,RB1# RH |
1 | ||
| 58229 - PLATE, ACCELERATOR | ||||
| 58229-90502 |
BB10,RB1#..RHD |
1 | ||
| 58229A - PROTECTOR, ACCELERATOR LINK | ||||
| 58216-90502 |
BB10,RB1#..RHD |
1 | ||
| 58265 - SILENCER, ENGINE END PANEL | ||||
| 58523-90740 |
BB10,RB1#..RHD |
1 | ||
| 58701-90500 |
BB10,RB1#..RHD |
1 | ||
| 58701-90500 |
BB10..RHD |
1 | ||
| 58269 - BRACKET, ENGINE ROOM SIDE PANEL | ||||
| 58383-90501 |
BB10,RB1# |
2 | ||
| 58275 - DUST SEAL SET PLATE, ENGINE ROOM SIDE PANEL | ||||
| 58276-90740 |
BB10,RB1# RR |
2 | ||
| 58341-90740 |
BB10,RB1# FR |
2 | ||
| 58275 - DUST SEAL SET PLATE, ENGINE ROOM SIDE PANEL | ||||
| 58276-90740 |
BB10,RB1# RR |
2 | ||
| 58341-90740 |
BB10,RB1# FR |
2 | ||
| 58279 - DUST SEAL RUBBER, ENGINE ROOM SIDE PANEL | ||||
| 58342-90740 |
BB10,RB1# FR |
2 | ||
| 58277-90740 |
BB10,RB1# RR |
2 | ||
| 58279 - DUST SEAL RUBBER, ENGINE ROOM SIDE PANEL | ||||
| 58342-90740 |
BB10,RB1# FR |
2 | ||
| 58277-90740 |
BB10,RB1# RR |
2 | ||
| 58279 - DUST SEAL RUBBER, ENGINE ROOM SIDE PANEL | ||||
| 58342-90740 |
BB10,RB1# FR |
2 | ||
| 58277-90740 |
BB10,RB1# RR |
2 | ||
| 58279 - DUST SEAL RUBBER, ENGINE ROOM SIDE PANEL | ||||
| 58342-90740 |
BB10,RB1# FR |
2 | ||
| 58277-90740 |
BB10,RB1# RR |
2 | ||
| 58331 - PANEL, FRONT FLOOR, CENTER FRONT | ||||
| 58304-90740 |
BB10,RB1#..RHD |
1 | ||
| 58304-90740 |
BB10..RHD |
1 | ||
| 58405 - COVER SUB-ASSY, AIR CLEANER SERVICE HOLE | ||||
| 58801-90500 |
BB10,RB1# |
1 | ||
| 58433 - PLATE, REAR FLOOR HARNESS | ||||
| 58433-90740 |
BB10,RB11,13..BC |
1 | ||
| 58645 - PLATE, ENGINE END PANEL SILENCER SET | ||||
| 58645-90740 |
BB10,RB1# |
2 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 75202-90740 |
BB10,RB1# |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 75202-90740 |
BB10,RB1# |
1 | ||
| 58804 - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58891-90500 |
BB10,RB1# |
1 | ||
| 58814 - HOLDER, AIR CLEANER SERVICE HOLE COVER LOCK | ||||
| 58817-90500 |
BB10,RB1# |
1 | ||
| 58815 - ROD, AIR CLEANER SERVICE HOLE COVER LOCK | ||||
| 58815-90500 |
BB10,RB1# |
1 | ||
| 58816 - LEVER, AIR CLEANER SERVICE HOLE COVER LOCK | ||||
| 58816-90500 |
BB10,RB1# |
1 | ||
| 58816A - SPRING(FOR AIR CLEANER SERVICE HOLE COVER LOCK LEVER) | ||||
| 90501-06023 |
BB10,RB1# |
1 | ||
| 58819 - PIN, AIR CLEANER SERVICE HOLE COVER HINGE | ||||
| 58819-90500 |
BB10,RB1# |
1 | ||
| 58819A - BUSH, AIR CLEANER SERVICE HOLE COVER LOCK PIN | ||||
| 58829-90500 |
BB10,RB1# |
2 | ||
| 58819A - BUSH, AIR CLEANER SERVICE HOLE COVER LOCK PIN | ||||
| 58829-90500 |
BB10,RB1# |
2 | ||
| 58821 - PIN, AIR CLEANER SERVICE HOLE COVER LOCK | ||||
| 58821-90500 |
BB10,RB1# |
1 | ||
| 58833 - SPRING, TORSION(FOR AIR CLEANER SERVICE HOLE COVER) | ||||
| 58818-90500 |
BB10,RB1# |
1 | ||
| 58892 - SPACER, FUEL TANK INSPECTION HOLE | ||||
| 58894-90501 |
BB10,RB1# |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| 90119-08104 | ||||
| 90179-04092 | ||||
| 90179-05095 | ||||
| 90179-06158 | ||||
| 90440-11043 | ||||
| 90467-08114 | ||||
| 90480-12119 | ||||
| 90480-13334 | ||||
| 90540-10022 | ||||
| 90541-05080 | ||||
| 90541-10145 | ||||
| 90950-01004 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91656-40820 | ||||
| 91661-40616 | ||||
| 91661-40630 | ||||
| 91665-40616 | ||||
| 91666-40616 | ||||
| 93210-16012 | ||||
| 93219-14008 | ||||
| 93219-15016 | ||||
| 93313-16030 | ||||
| 93315-15012 | ||||
| 93315-15020 | ||||
| 93319-15016 | ||||
| 93382-15016 | ||||
| 93383-15016 | ||||
| 93520-15016 | ||||
| 93540-15014 | ||||
| 93630-13514 | ||||
| 94110-40600 | ||||
| 94611-10500 | ||||
| 94611-10800 | ||||
| 94612-10400 | ||||
| 94613-10601 | ||||
| 95381-01208 | ||||
| 95381-02010 | ||||
