BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )2B..BC

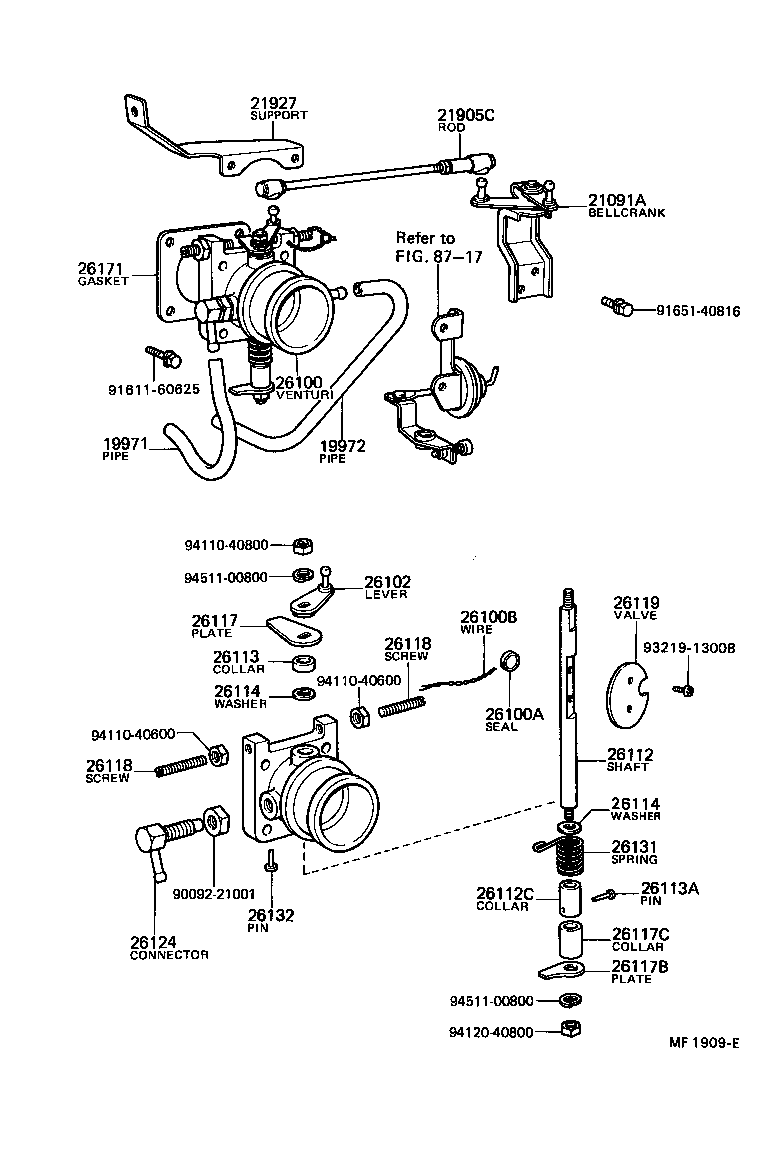

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19971 - PIPE, VACUUM(FOR VENTURI) | ||||
| 90447-12002 |
2B..BB10 |
1 | ||
| 19972 - PIPE, AIR CLEANER VENT | ||||
| 90447-12001 |
2B..BB10 |
1 | ||
| 21091A - BELLCRANK, CHOKE ROD(FOR VENTURI) | ||||
| 21091-57010 |
2B..BB10 |
1 | ||
| 21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI) | ||||
| 21905-57010 |
2B..BB10 |
1 | ||
| 21927 - SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK) | ||||
| 21927-57010 |
2B..BB10 W/O EDIC |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-57020 |
2B..BB10..BC |
1 | ||
| 26100A - SEAL, LEAD | ||||
| 22354-77050 |
2B..BB10 |
1 | ||
| 26100B - WIRE, SEAL | ||||
| 22355-36010 |
2B..BB10 |
1 | ||
| 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING | ||||
| 26102-56030 |
2B..BB10 |
1 | ||
| 26112 - SHAFT, VENTURI THROTTLE VALVE | ||||
| 26112-57020 |
2B..BB10..BC |
1 | ||
| 26112C - COLLAR, ADJUSTING | ||||
| 26113-56010 |
2B..BB10 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-47020 |
2B..BB10 |
1 | ||
| 26113A - PIN, THROTTLE VALVE SHAFT | ||||
| 26132-56011 |
2B..BB10 |
1 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26115-76010 |
2B..BB10 T=0.2,T=0.2 |
2 | ||
| 26114-76010 |
2B..BB10 T=0.1,T=0.1 |
2 | ||
| 26116-76010 |
2B..BB10 T=0.5,T=0.5 |
2 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26115-76010 |
2B..BB10 T=0.2,T=0.2 |
2 | ||
| 26114-76010 |
2B..BB10 T=0.1,T=0.1 |
2 | ||
| 26116-76010 |
2B..BB10 T=0.5,T=0.5 |
2 | ||
| 26117 - PLATE, THROTTLE VALVE SHAFT STOP | ||||
| 26117-56010 |
2B..BB10 |
1 | ||
| 26117B - PLATE, THROTTLE VALVE SHAFT STOP(FOR IDLE UP) | ||||
| 26117-57021 |
2B..BB10..BC |
1 | ||
| 26117C - COLLAR(FOR IDLE UP) | ||||
| 90099-19079 |
2B..BB10 |
1 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2B..BB10 |
2 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2B..BB10 |
2 | ||
| 26119 - VALVE, VENTURI THROTTLE | ||||
| 26119-56030 |
2B..BB10 |
1 | ||
| 26124 - CONNECTOR, VENTURI PIPE | ||||
| 26124-56030 |
2B..BB10 |
1 | ||
| 26131 - SPRING, RETURN | ||||
| 26131-56010 |
2B..BB10 |
1 | ||
| 26132 - PIN | ||||
| 26132-56010 |
2B..BB10 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-56010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 91611-60625 | ||||
| 91651-40816 | ||||
| 93219-13008 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8717 | ||||
