BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )2B

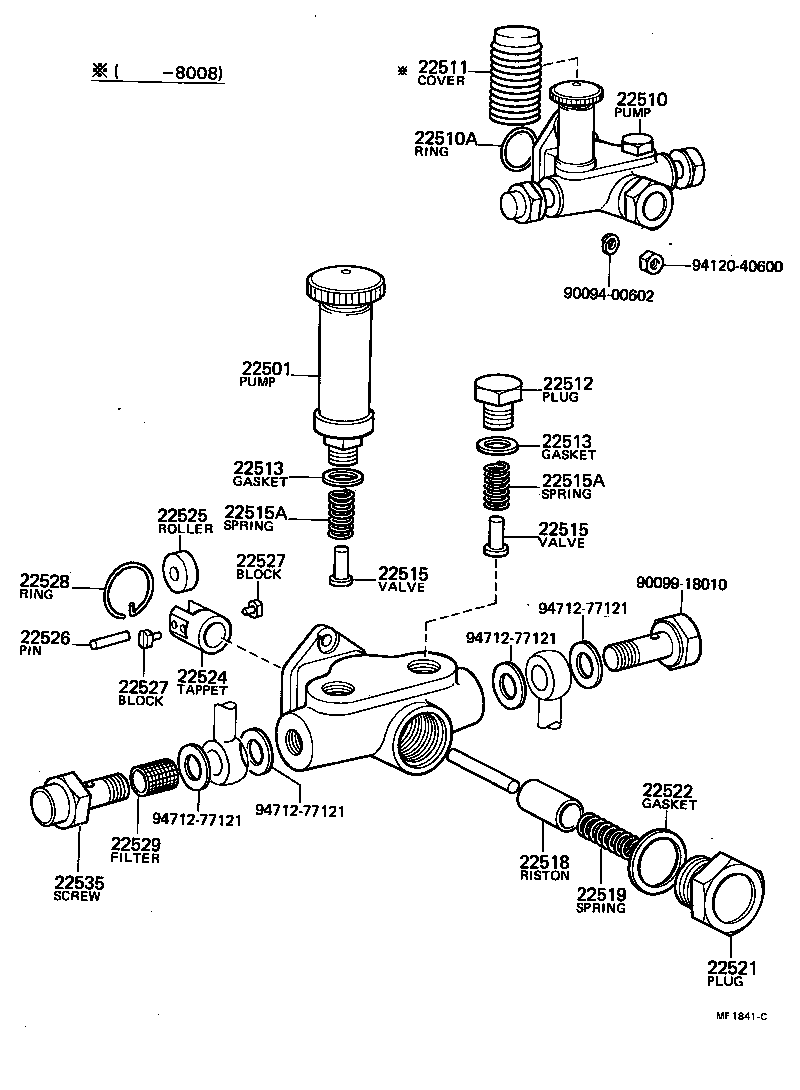

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22501 - PUMP SUB-ASSY, PRIMING | ||||
| 22501-77020 |
2B..BB10 |
1 | ||
| 22510 - PUMP ASSY, FUEL FEED | ||||
| 22510-56040 |
2B..BB10 |
1 | ||
| 22510A - RING, O(FOR FUEL FEED PUMP) | ||||
| 90099-14015 |
2B..BB10 |
1 | ||
| 22511 - COVER, PRIMING PUMP | ||||
| 22511-77020 |
2B..BB10 |
1 | ||
| 22512 - PLUG, FEED PUMP CHECK VALVE CHAMBER | ||||
| 22512-77020 |
2B..BB10 |
1 | ||
| 22513 - GASKET, CHECK VALVE CHAMBER PLUG | ||||
| 22513-77020 |
2B..BB10 |
2 | ||
| 22513 - GASKET, CHECK VALVE CHAMBER PLUG | ||||
| 22513-77020 |
2B..BB10 |
2 | ||
| 22515 - VALVE, FEED PUMP CHECK | ||||
| 22515-77021 |
2B..BB10 |
2 | ||
| 22515 - VALVE, FEED PUMP CHECK | ||||
| 22515-77021 |
2B..BB10 |
2 | ||
| 22515A - SPRING, FEED PUMP CHECK VALVE | ||||
| 90501-05141 |
2B..BB10 |
2 | ||
| 22515A - SPRING, FEED PUMP CHECK VALVE | ||||
| 90501-05141 |
2B..BB10 |
2 | ||
| 22518 - PISTON, FEED PUMP | ||||
| 22518-56013 |
2B..BB10 WHITE,WHITE |
1 | ||
| 22518-56012 |
2B..BB10 GREEN,GREEN |
1 | ||
| 22518-56010 |
2B..BB10 RED,RED |
1 | ||
| 22518-77020 |
2B..BB10 BLUE,BLUE |
1 | ||
| 22518-56011 |
2B..BB10 YELLOW,YELLOW |
1 | ||
| 22519 - SPRING, FEED PUMP PISTON | ||||
| 22519-48010 |
2B..BB10 |
1 | ||
| 22521 - PLUG, FEED PUMP PISTON CHAMBER | ||||
| 22521-77021 |
2B..BB10 |
1 | ||
| 22522 - GASKET, FEED PUMP PISTON PLUG | ||||
| 22522-77020 |
2B..BB10 |
1 | ||
| 22524 - TAPPET, FEED PUMP | ||||
| 22524-77021 |
2B..BB10 |
1 | ||
| 22525 - ROLLER, FEED PUMP TAPPET | ||||
| 22525-77020 |
2B..BB10 |
1 | ||
| 22526 - PIN, FEED PUMP TAPPET ROLLER | ||||
| 22526-77020 |
2B..BB10 |
1 | ||
| 22527 - BLOCK, FEED PUMP TAPPET SLIDING | ||||
| 22527-56010 |
2B..BB10 |
2 | ||
| 22527 - BLOCK, FEED PUMP TAPPET SLIDING | ||||
| 22527-56010 |
2B..BB10 |
2 | ||
| 22528 - RING, FEED PUMP TAPPET SNAP | ||||
| 22528-77020 |
2B..BB10 |
1 | ||
| 22529 - FILTER, FUEL PUMP | ||||
| 22529-67010 |
2B..BB10 |
1 | ||
| 22535 - SCREW, FUEL PIPE FOLLOW | ||||
| 22535-46010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90094-00602 | ||||
| 90099-18010 | ||||
| 94120-40600 | ||||
| 94712-77121 | ||||
