BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )2B

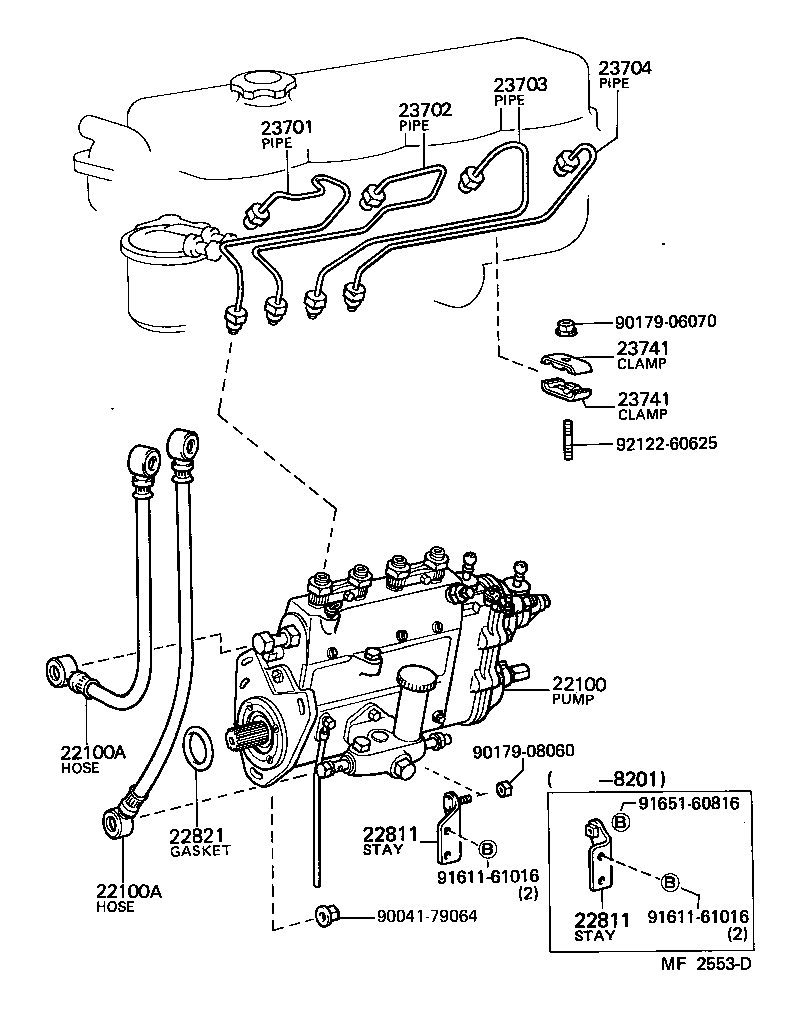

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-57041 |
2B..BB10 W/HAC |
1 | ||
| 22100-57011 |
2B..BB10..GEN W/EDIC |
1 | ||
| 22100-57031 |
2B..BB10 |
1 | ||
| 22100-57042 |
2B..BB10 W/HAC |
1 | ||
| 22100-57032 |
2B..BB10..GEN |
1 | ||
| 22100-57021 |
2B..BB10 W/EDIC & HAC |
1 | ||
| 22100-57042 |
2B..BB10..GEN W/HAC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23801-56030 |
2B..BB10 L=370 |
1 | ||
| 23802-56030 |
2B..BB10 L=275 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23801-56030 |
2B..BB10 L=370 |
1 | ||
| 23802-56030 |
2B..BB10 L=275 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-56010 |
2B..BB10 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-56010 |
2B..BB10 |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-78177 |
2B..BB10 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-56010 |
2B..BB10 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-56010 |
2B..BB10 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-56030 |
2B..BB10 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-56030 |
2B..BB10 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2B..BB10 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2B..BB10 |
4 | ||
| Common parts | ||||
| 90041-79064 | ||||
| 90179-06070 | ||||
| 90179-08060 | ||||
| 91611-61016 | ||||
| 91651-60816 | ||||
| 92122-60625 | ||||
