BB10R-QDZER (1977)
Toyota Coaster
Production
Aug 1977
-
Nov 1979
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )2B

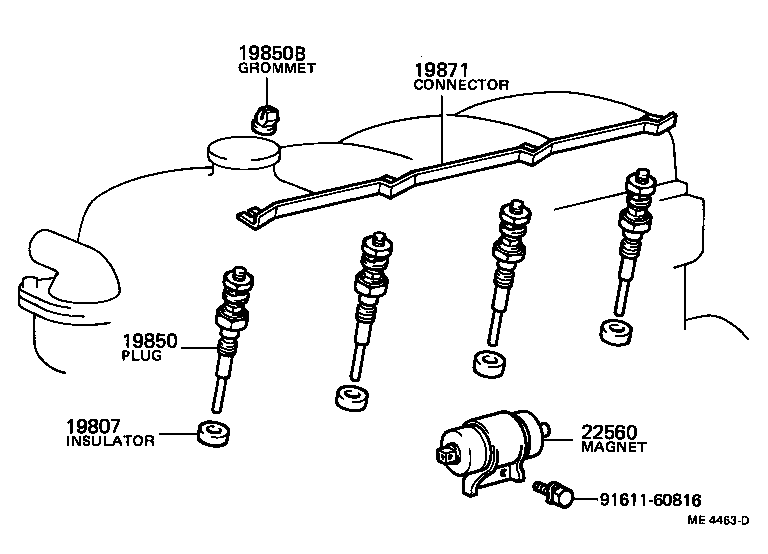

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19807 - INSULATOR SUB-ASSY, GLOW PLUG, NO.1 | ||||
| 19877-56010 |
2B..BB10 |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-56012 |
2B..BB10..BC 24V |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-06004 |
2B..BB10 |
3 | ||
| 19871 - CONNECTOR, GLOW PLUG NO.1 | ||||
| 19871-56010 |
2B..BB10 |
1 | ||
| 22560 - MAGNET ASSY, OVER INJECTION | ||||
| 22560-56030 |
2B..BB10..BC 24V |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
