BB10R-QDZER (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7911)2B

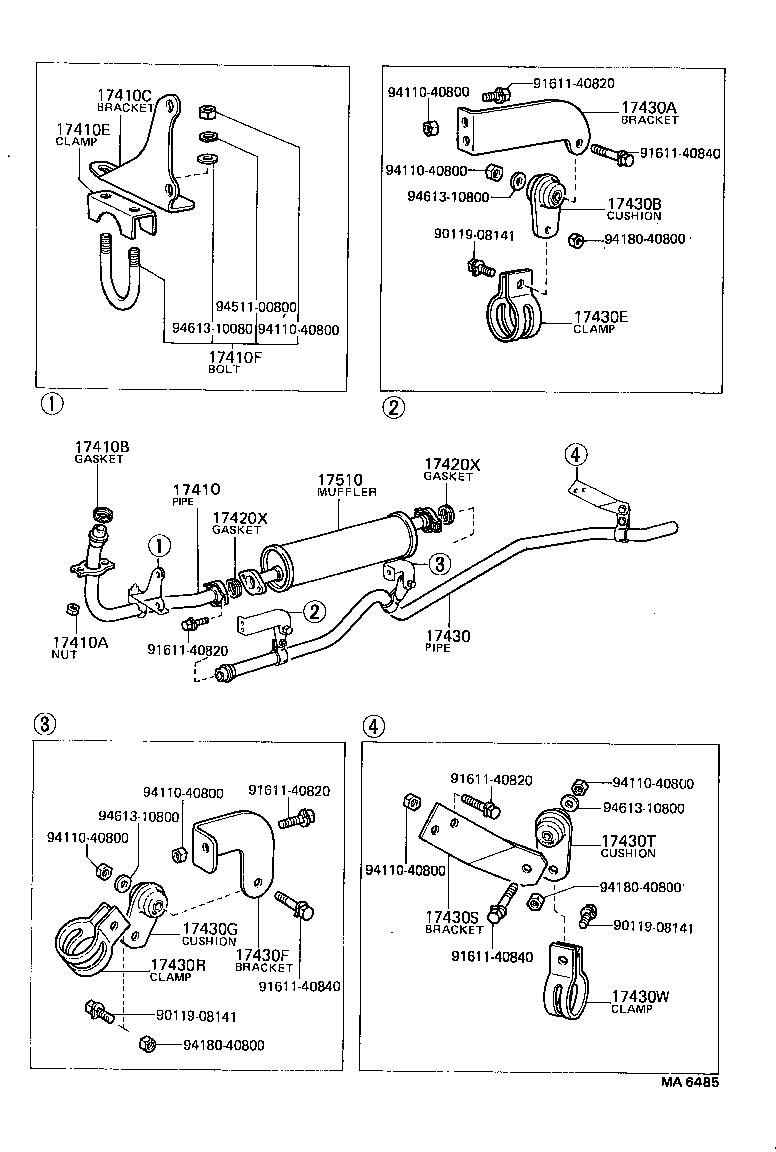

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17420X 17420X 17430 17430A 17430B 17430E 17430F 17430G 17430R 17430S 17430T 17430W 17510 9011908141 9011908141 9011908141 9161140820 9161140820 9161140820 9161140820 9161140840 9161140840 9161140840 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9418040800 9418040800 9418040800 9451100800 9461310080 9461310800 9461310800 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-56021

2B..BB10

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

2B..BB10

 2
17410B - GASKET, EXHAUST PIPE
90917-06008

2B..BB10

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

2B..BB10

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04008

20R,2B..BB10,RB11

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08045

20R,2B..BB10,RB11

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

20R,2B..BB10,RB11

RR

 1
90917-06008

20R,2B..BB10,RB11

FR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

20R,2B..BB10,RB11

RR

 1
90917-06008

20R,2B..BB10,RB11

FR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-56070

2B..BB10

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-56021

2B..BB10

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

20R,2B,5R..BB10,RB1#

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23087

20R,2B..BB10,RB11

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17573-56050

2B..BB10

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
90917-08004

20R,2B,5R..BB10,RB1#

 1
17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER)
90461-23087

20R,2B..BB10,RB11

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-56030

2B..BB10

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004

20R,2B,5R..BB10,RB1#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23087

20R,2B..BB10,RB11

 1
17510 - MUFFLER ASSY
17501-36011

20R,2B..BB10,RB11

 1
Common parts
90119-08141
91611-40820
91611-40840
94110-40800
94180-40800
94511-00800
94613-10080
94613-10800
