BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

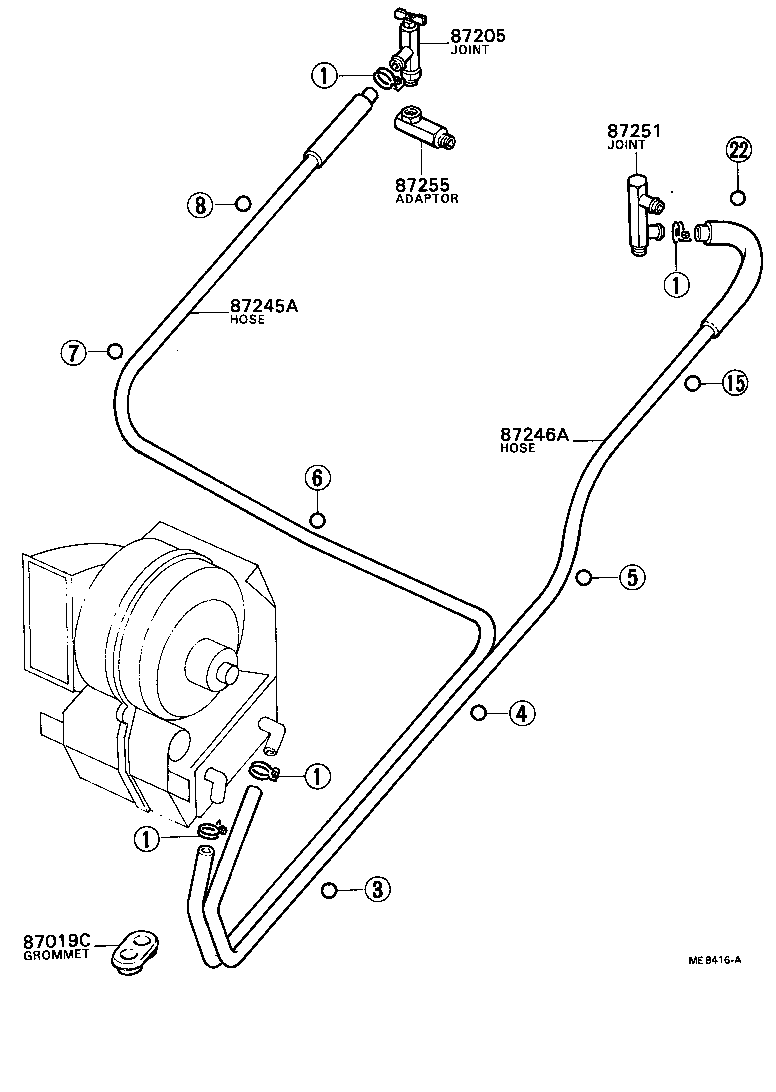

(7911- )BB10..RHD

Click highlighted areas on diagram

diagram 87019C 87205 87245A 87246A 87251 87255
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87206-60100

BB10

FR

 1
87240-36040

BB10,RB10

RR

 1
87245A - HOSE, HEATER WATER, INLET A
87209-36160

BB10..RHD

 1
87209-36161

BB10..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-36130

BB10..RHD

 1
87209-36131

BB10..RHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87252-36080

BB10,RB10

 1
87255 - ADAPTER, WATER HOSE JOINT
87251-36070

BB10

 1
87251-36072

BB10

 1

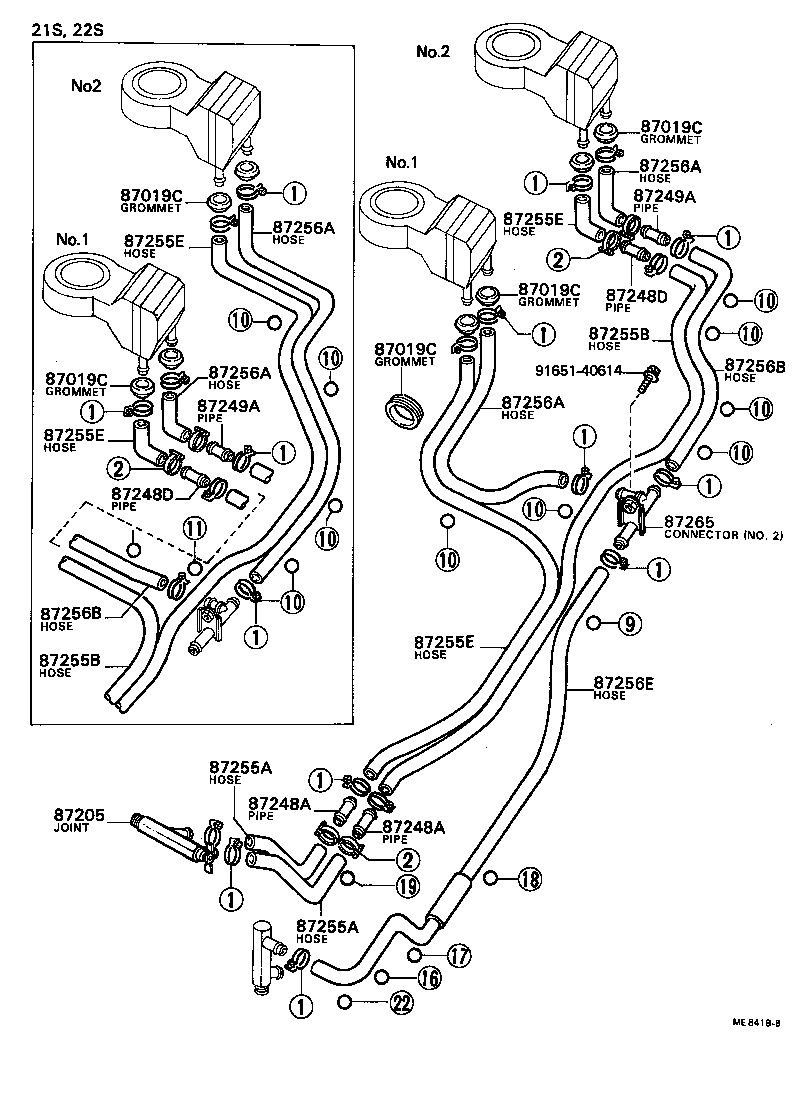

(7911- )BB10..RHD..GEN

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87019C 87205 87248A 87248A 87248D 87248D 87249A 87249A 87255A 87255A 87255B 87255B 87255E 87255E 87255E 87255E 87256A 87256A 87256A 87256A 87256B 87256B 87256E 87265 9165140614
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87019C - GROMMET, HEATER HOSE
90480-20005

RB13;BB10..BC..ARL;BB10..21S,23S,25S

OD=24,RR HEATER

 4
90480-01059

BB10,RB1#

FR HEATER

 1
90480-69217

BB10,RB1#

OD=60,RR,NO.1 HEATER

 1
90480-20005

BB10,RB1#

OD=24,RR HEATER

 4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87206-60100

BB10

FR

 1
87240-36040

BB10,RB10

RR

 1
87248A - PIPE, HEATER WATER INLET, A
87249-14030

BB10

 2
87248A - PIPE, HEATER WATER INLET, A
87249-14030

BB10

 2
87248D - PIPE, HEATER WATER INLET, D
87249-14030

BB10..(21S,22S)..GEN

 1
87249-14030

BB10..21S,22S,23S

 1
87248D - PIPE, HEATER WATER INLET, D
87249-14030

BB10..(21S,22S)..GEN

 1
87249-14030

BB10..21S,22S,23S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-14030

BB10..21S,22S,23S

 1
87249-14030

BB10..(21S,22S)..GEN

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-14030

BB10..21S,22S,23S

 1
87249-14030

BB10..(21S,22S)..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36060

BB10

 2
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36060

BB10

 2
87255B - HOSE, REAR HEATER WATER INLET, B
99552-31260

BB10..RHD..(21S,22S)..GEN

L=1260,RR,NO.1 HEATER

 1
99552-32000

BB10..RHD..(21S,22S)..GEN

*H,L=1260,RR NO.1 HEATER

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-31260

BB10..RHD..(21S,22S)..GEN

L=1260,RR,NO.1 HEATER

 1
99552-32000

BB10..RHD..(21S,22S)..GEN

*H,L=1260,RR NO.1 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-33000

BB10..RHD..(21S,22S)..GEN

L=3000,RR,NO.2 HEATER

 1
87245-36110

BB10..RHD..21S..5H;BB10..RHD..(21S,22S,23S)..5F;BB10..RHD..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-33000

BB10..RHD..(21S,22S)..GEN

L=3000,RR,NO.2 HEATER

 1
87245-36110

BB10..RHD..21S..5H;BB10..RHD..(21S,22S,23S)..5F;BB10..RHD..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-33000

BB10..RHD..(21S,22S)..GEN

L=3000,RR,NO.2 HEATER

 1
87245-36110

BB10..RHD..21S..5H;BB10..RHD..(21S,22S,23S)..5F;BB10..RHD..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-33000

BB10,RB1#..GEN

L=3000,RR,NO.2 HEATER

 1
99552-33000

BB10..RHD..(21S,22S)..GEN

L=3000,RR,NO.2 HEATER

 1
87245-36110

BB10..RHD..21S..5H;BB10..RHD..(21S,22S,23S)..5F;BB10..RHD..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-32200

BB10..RHD..(21S,22S)..GEN

L=2200,RR,NO.2 HEATER

 1
87245-36110

BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-32200

BB10..RHD..(21S,22S)..GEN

L=2200,RR,NO.2 HEATER

 1
87245-36110

BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-32200

BB10..RHD..(21S,22S)..GEN

L=2200,RR,NO.2 HEATER

 1
87245-36110

BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200

BB10,RB1#..GEN

L=2200,RR,NO.2 HEATER

 1
99552-32200

BB10..RHD..(21S,22S)..GEN

L=2200,RR,NO.2 HEATER

 1
87245-36110

BB10..21S..5H;BB10..(21S,22S,23S)..5F;BB10..(22S,23S)..5H..(DLX,STD)

RR,NO.1 HEATER

 1
99552-33400

BB10..RHD..(21S,22S)..GEN

*H,L=2500,RR NO.2 HEATER

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-30600

BB10..RHD..(21S,22S)

L=600

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-30600

BB10..RHD..(21S,22S)

L=600

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99552-31700

BB10..GEN

L=1700

 1
87209-36200

BB10..GEN,IRQ

 1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36110

BB10,RB1#..RHD..GEN

3 WAY,NO.2

 1
Common parts
91651-40614

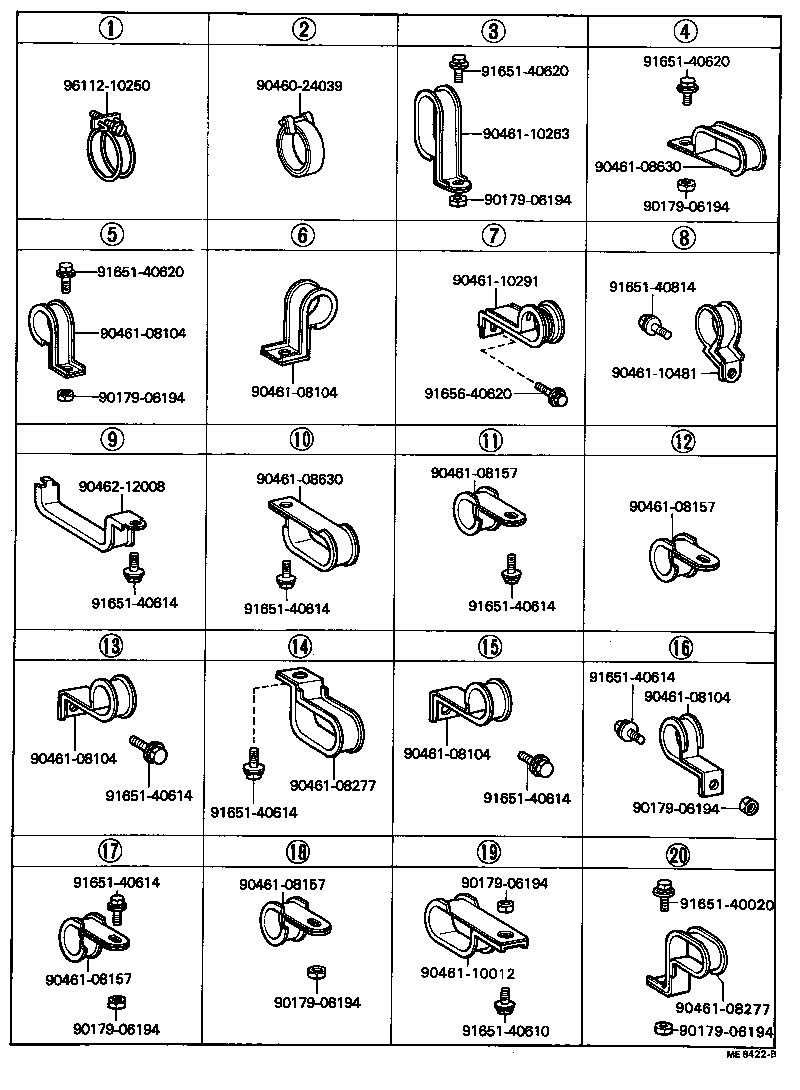

(7911- )

Click highlighted areas on diagram

diagram 9017906194 9017906194 9017906194 9017906194 9017906194 9017906194 9017906194 9017906194 9046024039 9046108104 9046108104 9046108104 9046108104 9046108104 9046108157 9046108157 9046108157 9046108157 9046108277 9046108277 9046108630 9046108630 9046110012 9046110263 9046110291 9046110481 9046212008 9165140020 9165140610 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140620 9165140620 9165140620 9165140814 9165640620 9611210250
Part # Description Qty Price
Common parts
90179-06194
90460-24039
90461-08104
90461-08157
90461-08277
90461-08630
90461-10012
90461-10263
90461-10291
90461-10481
90462-12008
91651-40020
91651-40610
91651-40614
91651-40620
91651-40814
91656-40620
96112-10250

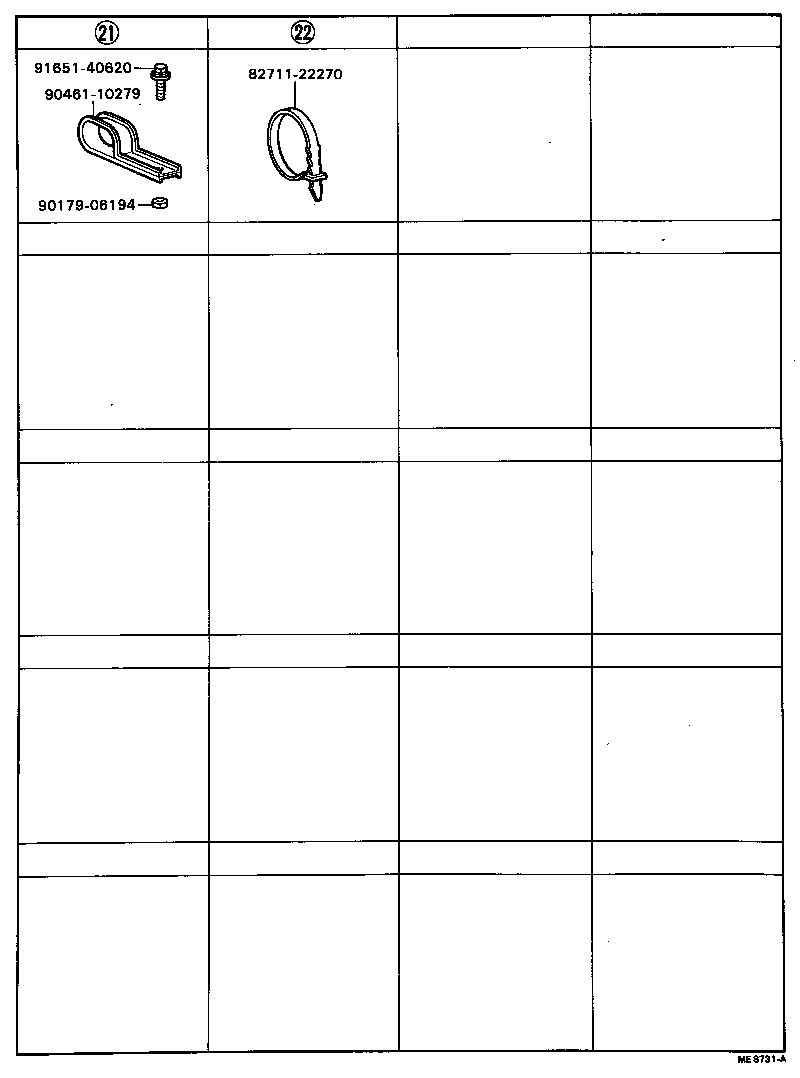

(7911- )

Click highlighted areas on diagram

diagram 8271122270 9017906194 9046110279 9165140620
Part # Description Qty Price
Common parts
82711-22270
90179-06194
90461-10279
91651-40620
