BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8007- )

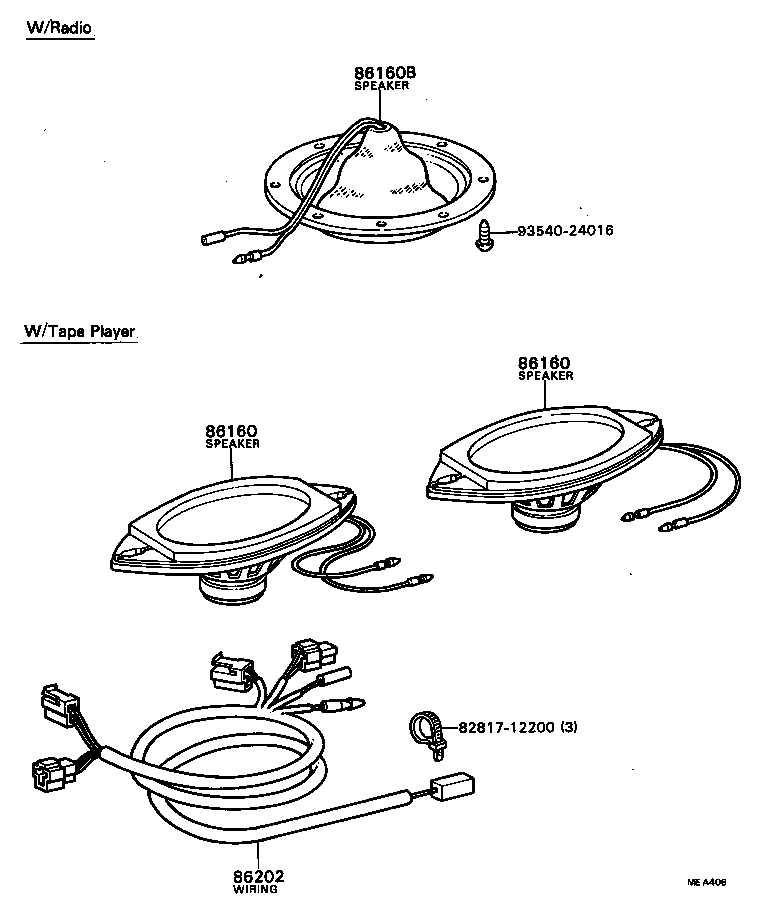

Click highlighted areas on diagram

diagram 8281712200 86160 86160 86160B 86202 9354024016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-36010

BB10,RB1#..(BC,DLX)..(GEN,IRQ)

TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-36010

BB10,RB1#..(BC,DLX)..(GEN,IRQ)

TAPE PLAYER

 2
86160B - SPEAKER ASSY, REAR
86150-36020

BB10,RB1#

RADIO

 2
86202 - WIRE, SPEAKER, NO.1
86202-90500

BB10,RB11..RHD..(BC,DLX)..GEN

 1
86202-90500

BB10,RB13..RHD..GEN

 1
Common parts
82817-12200
93540-24016
