BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8007- )

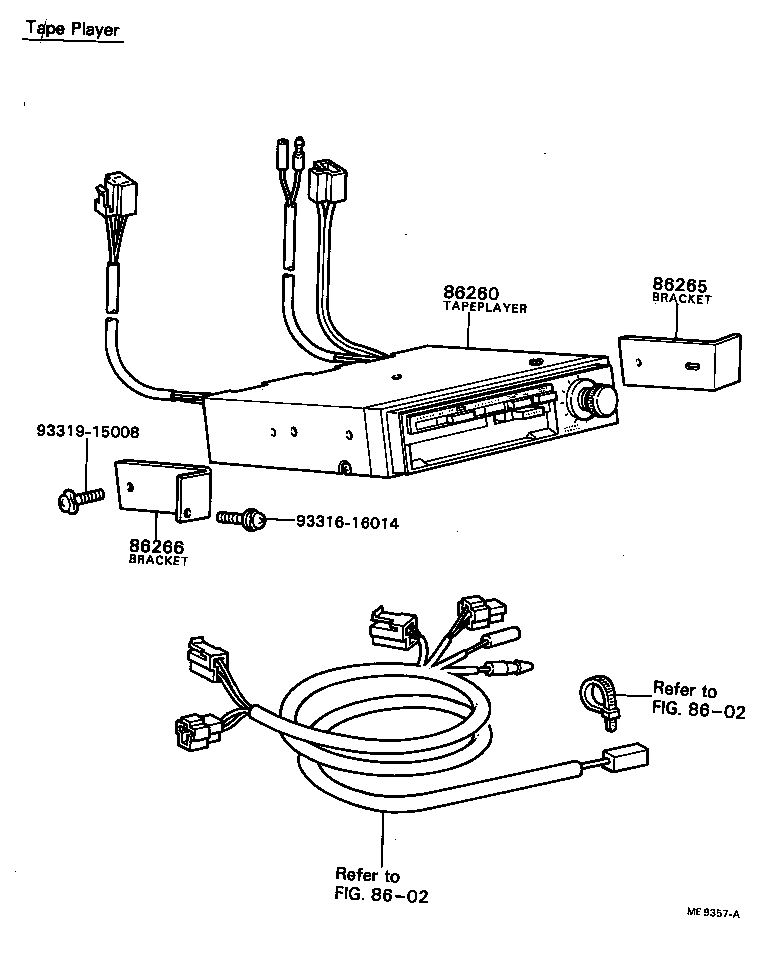

Click highlighted areas on diagram

diagram 8602 8602 86260 86265 86266 9331616014 9331915008
Part # Description Qty Price
86260 - TAPE PLAYER ASSY
86260-36010

BB10,RB1#..(BC,DLX)..(GEN,IRQ)

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-36010

BB10,RB1#..(BC,DLX)..(GEN,IRQ)

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-36020

BB10,RB1#..(BC,DLX)..(GEN,IRQ)

 1
Common parts
93316-16014
93319-15008
Linked diagrams
8602
