BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)BB10

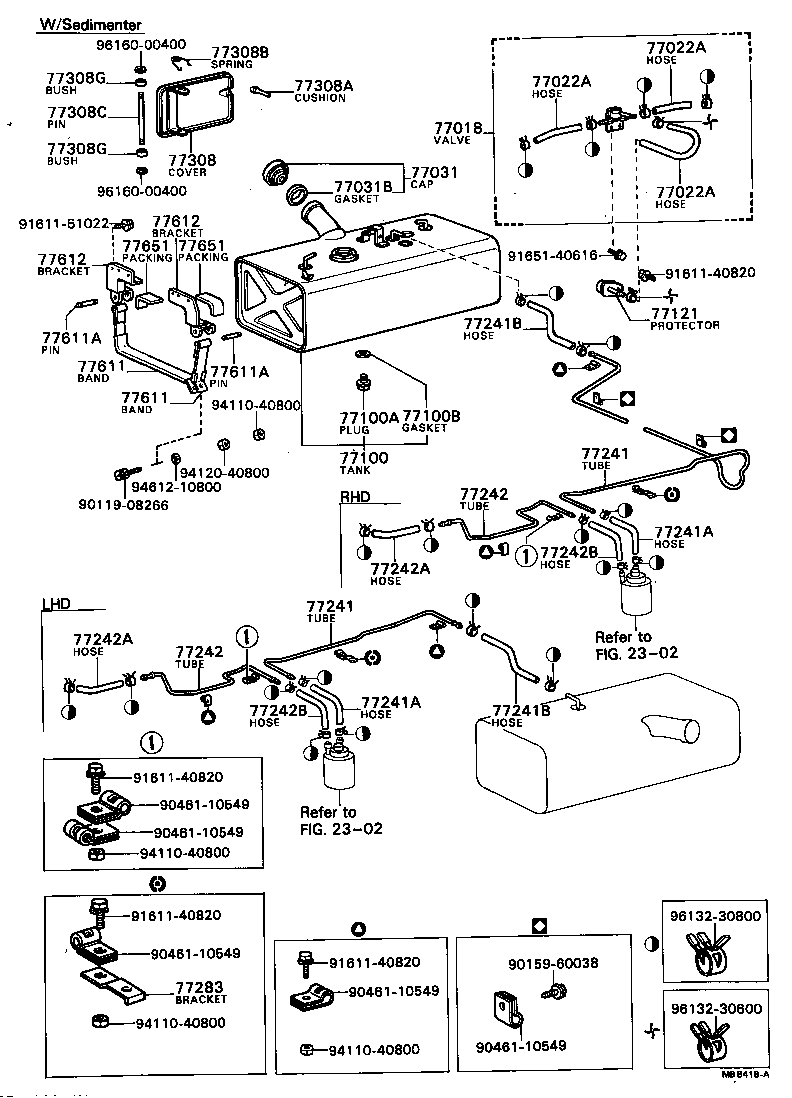

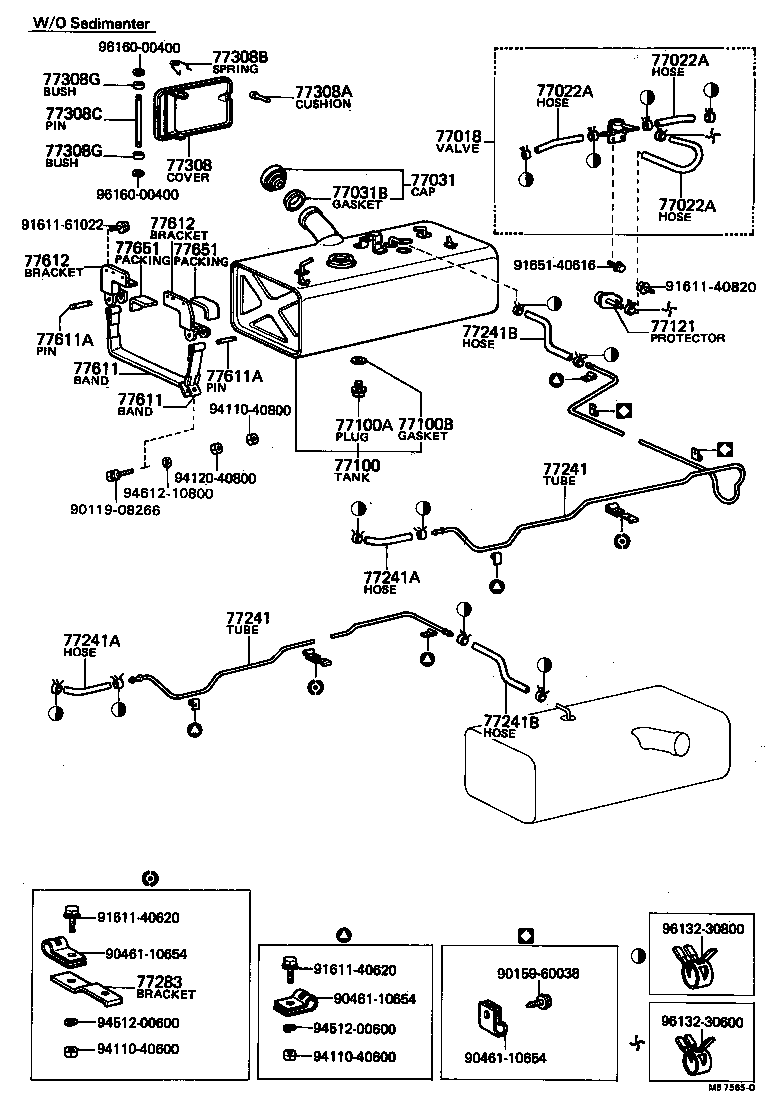

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77241 77241 77241A 77241A 77241B 77241B 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 9011908266 9015960038 9046110654 9046110654 9046110654 9161140620 9161140620 9161140820 9161161022 9165140616 9411040600 9411040600 9411040800 9412040800 9451200600 9451200600 9461210800 9613230600 9613230800 9616000400 9616000400
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36071

BB10;RB1#..GEN

 1
77018-36071

BB10,RB1#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

BB10

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

BB10

 1
77100 - TANK ASSY, FUEL
77001-36251

BB10,RB10

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB10,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB10,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB10,RB10;RB11,13..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77283 - BRACKET, FUEL TUBE
77283-36041

BB10,RB13

 2
77283-36040

BB10,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90502

BB10,RB1#..RHD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB10,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90500

BB10,RB1#

 1
58827-90500

BB10,RB13..RHD

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB10,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
Common parts
90119-08266
90159-60038
90461-10654
91611-40620
91611-40820
91611-61022
91651-40616
94110-40600
94110-40800
94120-40800
94512-00600
94612-10800
96132-30600
96132-30800
96160-00400

(7911-8008)BB10

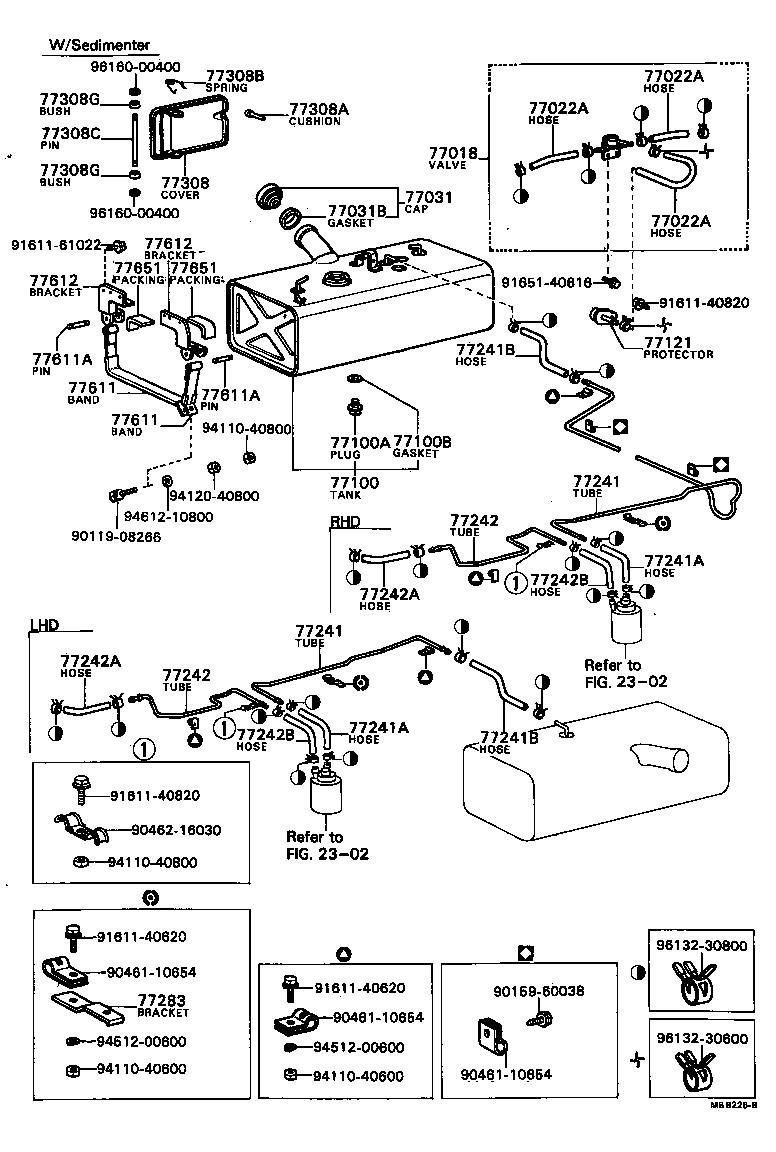

Click highlighted areas on diagram

diagram 2302 2302 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77241 77241 77241A 77241A 77241B 77241B 77242 77242 77242A 77242A 77242B 77242B 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 9011908266 9015960038 9046110654 9046110654 9046110654 9046216030 9161140620 9161140620 9161140820 9161140820 9161161022 9165140616 9411040600 9411040600 9411040800 9411040800 9412040800 9451200600 9451200600 9461210800 9613230600 9613230800 9616000400 9616000400
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36071

BB10;RB1#..GEN

 1
77018-36071

BB10,RB1#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

BB10

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

BB10

 1
77100 - TANK ASSY, FUEL
77001-36251

BB10,RB10

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB10,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB10,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB10,RB10;RB11,13..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-36130

BB10

W/SEDIMENTER

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-36130

BB10

W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77283 - BRACKET, FUEL TUBE
77283-36041

BB10,RB13

 2
77283-36040

BB10,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90502

BB10,RB1#..RHD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB10,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90500

BB10,RB1#

 1
58827-90500

BB10,RB13..RHD

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB10,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
Common parts
90119-08266
90159-60038
90461-10654
90462-16030
91611-40620
91611-40820
91611-61022
91651-40616
94110-40600
94110-40800
94120-40800
94512-00600
94612-10800
96132-30600
96132-30800
96160-00400
Linked diagrams
2302

(8008- )BB10

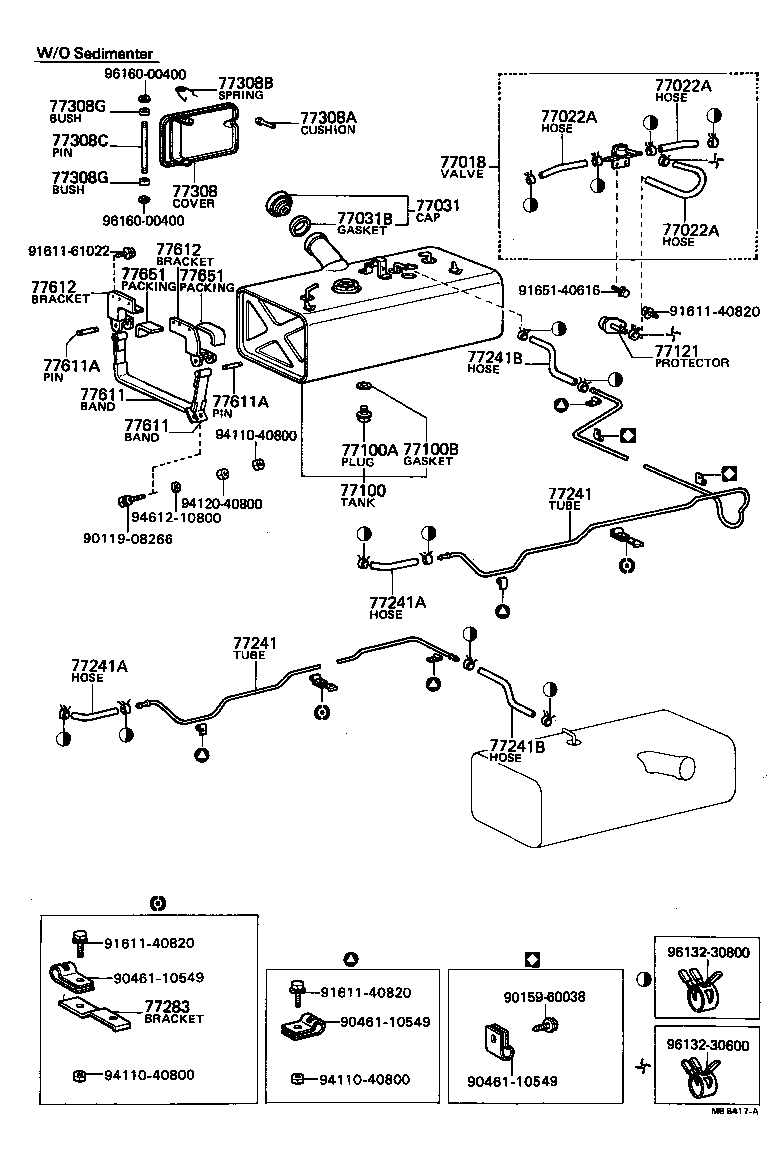

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77241 77241 77241A 77241A 77241B 77241B 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 9011908266 9015960038 9046110549 9046110549 9046110549 9161140820 9161140820 9161140820 9161161022 9165140616 9411040800 9411040800 9411040800 9412040800 9461210800 9613230600 9613230800 9616000400 9616000400
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36071

BB10;RB1#..GEN

 1
77018-36071

BB10,RB1#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

BB10

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

BB10

 1
77100 - TANK ASSY, FUEL
77001-36251

BB10,RB10

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB10,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB10,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB10,RB10;RB11,13..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77283 - BRACKET, FUEL TUBE
77283-36041

BB10,RB13

 2
77283-36040

BB10,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90502

BB10,RB1#..RHD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB10,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90500

BB10,RB1#

 1
58827-90500

BB10,RB13..RHD

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB10,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
Common parts
90119-08266
90159-60038
90461-10549
91611-40820
91611-61022
91651-40616
94110-40800
94120-40800
94612-10800
96132-30600
96132-30800
96160-00400

(8008- )BB10

Click highlighted areas on diagram

diagram 2302 2302 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77241 77241 77241A 77241A 77241B 77241B 77242 77242 77242A 77242A 77242B 77242B 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 9011908266 9015960038 9046110549 9046110549 9046110549 9046110549 9046110549 9161140820 9161140820 9161140820 9161140820 9161161022 9165140616 9411040800 9411040800 9411040800 9411040800 9412040800 9461210800 9613230600 9613230800 9616000400 9616000400
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36071

BB10;RB1#..GEN

 1
77018-36071

BB10,RB1#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
95332-06040

BB10;RB1#..GEN

*H,L=340

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

BB10

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

BB10

 1
77100 - TANK ASSY, FUEL
77001-36251

BB10,RB10

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB10,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB10,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB10,RB10;RB11,13..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36550

BB10..RHD

W/SEDIMENTER

 1
77251-36321

BB10..RHD

 1
77251-36322

BB10..RHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BB10

*H,L=200,ID=7.6

 1
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

BB10,RB1#

*H,L=300,ID=7.6

 1
95332-08030

BB10,RB10

*H,L=300,ID=7.6

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-36130

BB10

W/SEDIMENTER

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-36130

BB10

W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020

BB10

*H,L=200,ID=7.6,W/SEDIMENTER

 1
77283 - BRACKET, FUEL TUBE
77283-36041

BB10,RB13

 2
77283-36040

BB10,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90502

BB10,RB1#..RHD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB10,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90500

BB10,RB1#

 1
58827-90500

BB10,RB13..RHD

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB10,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611 - BAND, FUEL TANK
77602-36020

BB10,RB1#

LH

 2
77602-36021

BB10,RB1#

LH

 2
77601-36071

BB10,RB1#

RH

 2
77601-36070

BB10,RB1#

RH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-36011

BB10,RB1#

RH

 2
77502-36011

BB10,RB1#

LH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36061

BB10,RB1#

 4
77651-36060

BB10,RB1#

 4
Common parts
90119-08266
90159-60038
90461-10549
91611-40820
91611-61022
91651-40616
94110-40800
94120-40800
94612-10800
96132-30600
96132-30800
96160-00400
Linked diagrams
2302
