BB10R-MDZER (1979)
Toyota Coaster
(7911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

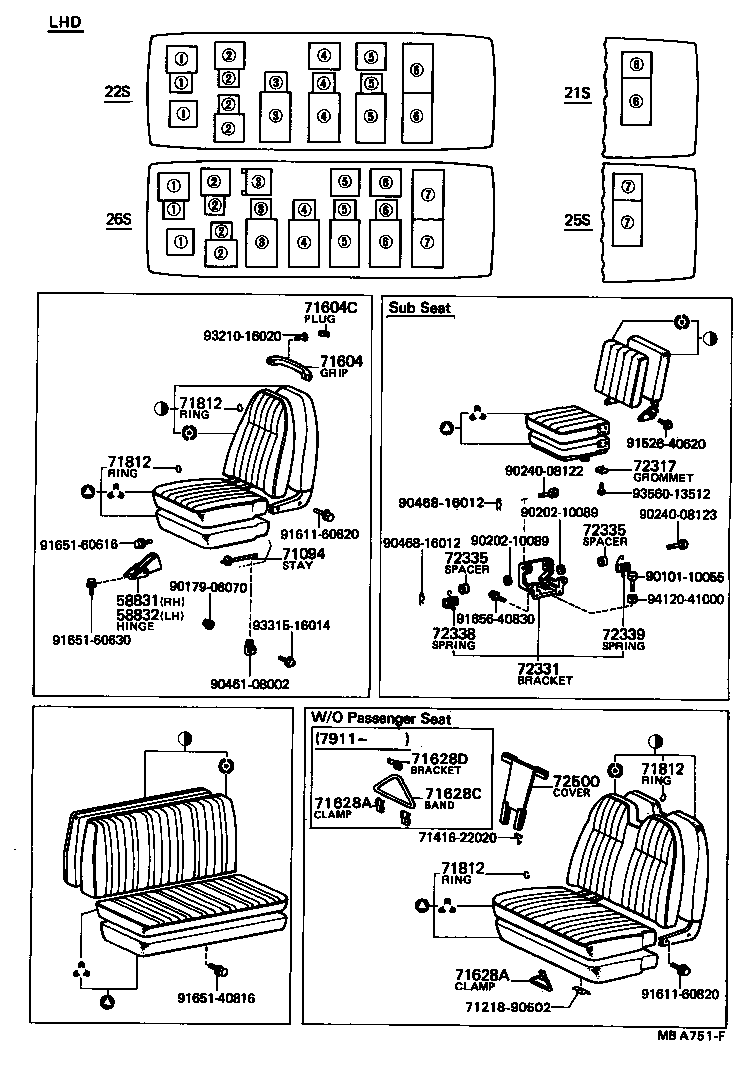

| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74603-2001005 |
BB10,RB1# BEIGE,BEIGE |
13 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74603-2001005 |
BB10,RB1# BEIGE,BEIGE |
13 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1202005 |
BB10,RB1# BEIGE,BEIGE |
26 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1202005 |
BB10,RB1# BEIGE,BEIGE |
26 | ||
| 71628A - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
BB10,RB1# |
1 | ||
| 75214-90301 |
BB10,RB1#..GEN,IRQ W/O PASSENGER SEAT |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||

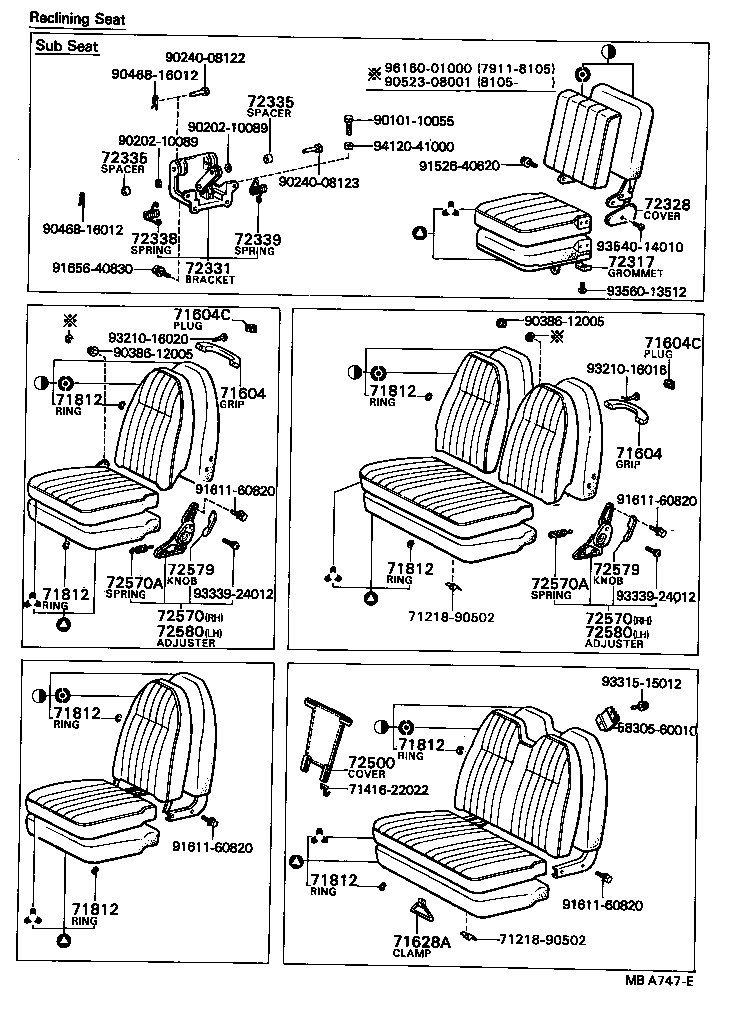

| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
BB10,RB1# |
14 | ||
| 72328 - COVER, SUB SEAT HINGE | ||||
| 72328-90501 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,W/RECLINING |
4 | ||
| 72428-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,W/RECLINING |
2 | ||
| 72331 - BRACKET, SUB SEAT CUSHION | ||||
| 72301-90741 |
BB10,RB1# |
5 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
BB10,RB1# |
14 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
BB10,RB1# |
14 | ||
| 72338 - SPRING, SUB SEAT LINK, RH | ||||
| 72337-90500 |
BB10,RB1# |
7 | ||
| 72339 - SPRING, SUB SEAT LINK, LH | ||||
| 72339-90500 |
BB10,RB1# |
7 | ||
| 72500 - COVER ASSY, LUGGAGE SPACE | ||||
| 72503-90741 |
BB10,RB1# |
1 | ||
| 72503-90743 |
BB10,RB1# |
1 | ||

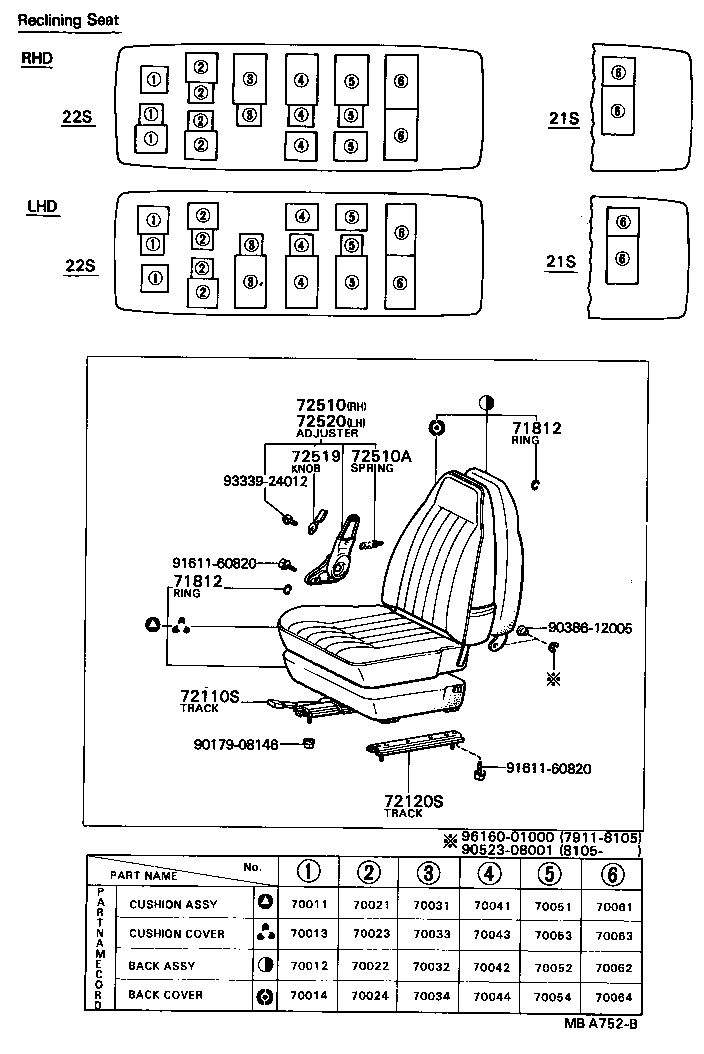

| 72570 - ADJUSTER ASSY, REAR RECLINING SEAT, RH | ||||
| 72550-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) W/RECLINING |
7 | ||
| 72570 - ADJUSTER ASSY, REAR RECLINING SEAT, RH | ||||
| 72550-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) W/RECLINING |
7 | ||
| 72570A - SPRING, TENSION (FOR REAR RECLINING SEAT ADJUSTER) | ||||
| 90506-12287 |
BB10,RB1#..(21S,22S)..(BC,DLX) W/RECLINING |
11 | ||
| 72570A - SPRING, TENSION (FOR REAR RECLINING SEAT ADJUSTER) | ||||
| 90506-12287 |
BB10,RB1#..(21S,22S)..(BC,DLX) W/RECLINING |
11 | ||
| 72579 - KNOB, REAR RECLINING SEAT ADJUSTING ARM | ||||
| 72553-12010 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,W/RECLINING |
4 | ||
| 72519-12030 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,W/RECLINING |
7 | ||
| 72579 - KNOB, REAR RECLINING SEAT ADJUSTING ARM | ||||
| 72553-12010 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,W/RECLINING |
4 | ||
| 72519-12030 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,W/RECLINING |
7 | ||
| 72580 - ADJUSTER ASSY, REAR RECLINING SEAT, LH | ||||
| 72560-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) W/RECLINING |
4 | ||
| 72580 - ADJUSTER ASSY, REAR RECLINING SEAT, LH | ||||
| 72560-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) W/RECLINING |
4 | ||
| Common parts | ||||
| 58305-60010 | ||||
| 71218-90502 | ||||
| 71416-22022 | ||||
| 90101-10055 | ||||
| 90202-10089 | ||||
| 90240-08122 | ||||
| 90240-08123 | ||||
| 90386-12005 | ||||
| 90468-16012 | ||||
| 90523-08001 | ||||
| 91526-40620 | ||||
| 91611-60820 | ||||
| 91656-40830 | ||||
| 93210-16016 | ||||
| 93210-16020 | ||||
| 93315-15012 | ||||
| 93339-24012 | ||||
| 93540-14010 | ||||
| 93560-13512 | ||||
| 94120-41000 | ||||
| 96160-01000 | ||||
(7911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

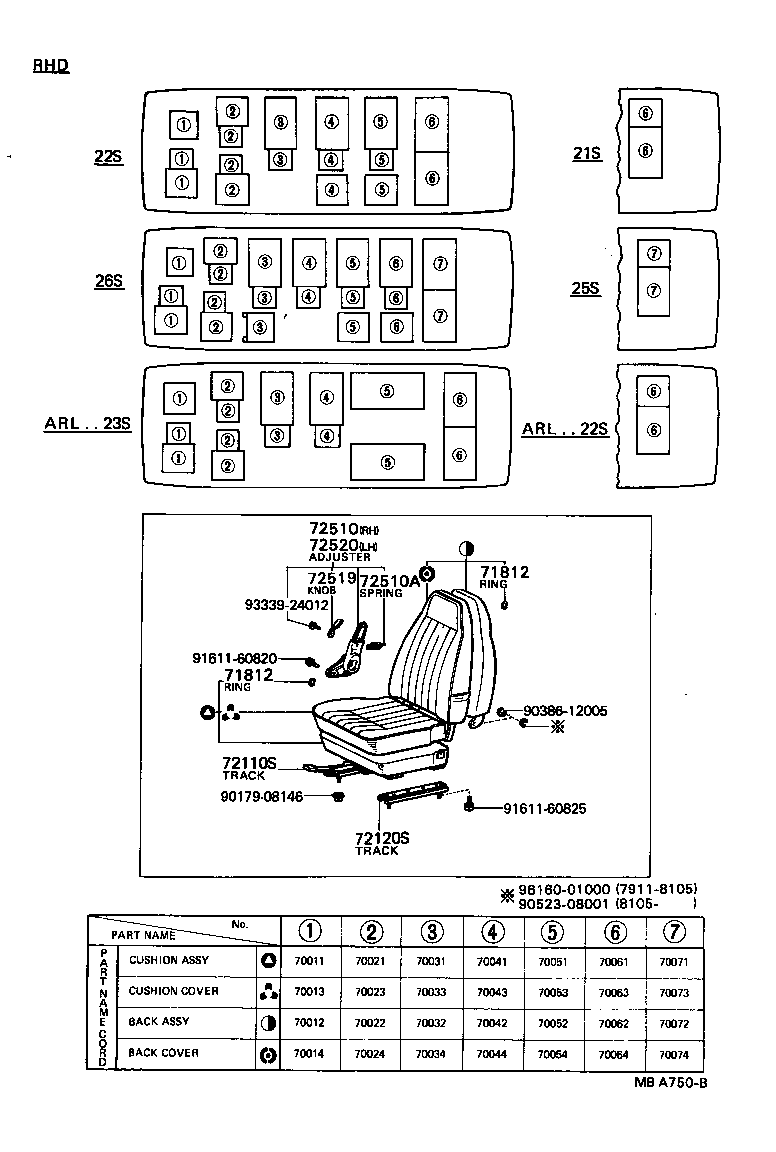

| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71120-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72420-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71120-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(BC,DLX) LH |
1 | ||
| 71120-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72420-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72420-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 71120-90756 |
BB10,RB13..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71120-90762 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71130-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71830-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71130-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71130-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71230-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71105-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72405-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71105-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT,PF |
1 | ||
| 71105-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72405-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 72405-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71106-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71106-90752 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71106-90758 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71220-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72320-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72420-90741 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71220-90753 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,RECLINING |
2 | ||
| 71120-90750 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72420-90748 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72320-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72420-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 72330-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH,SUB SEAT |
2 | ||
| 71380-90510 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71830-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 71230-90747 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 72330-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,SUB SEAT,RECLINING |
2 | ||
| 71390-90502 |
BB10,RB13..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72330-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH,SUB SEAT |
2 | ||
| 71380-90512 |
BB10,RB13..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 72405-90741 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71206-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72305-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 72405-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,SUB SEAT |
1 | ||
| 71206-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,RECLINING |
2 | ||
| 72405-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) LH,SUB SEAT |
1 | ||
| 72305-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72307-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH,SUB SEAT |
2 | ||
| 71307-90512 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 71309-90516 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH,SUB SEAT |
2 | ||
| 72307-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,SUB SEAT,RECLINING |
2 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) ,AISLE SIDE,RECLINING |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70041 - CUSHION ASSY, NO.4 SEAT | ||||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,PF |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70042 - BACK ASSY, NO.4 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71930-90741 |
BB10,RB1#..RHD..(21S,22S)..GEN LH |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71930-90746 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 70043 - COVER ASSY, NO.4 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70044 - COVER ASSY, NO.4 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70051 - CUSHION ASSY, NO.5 SEAT | ||||
| 71220-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70052 - BACK ASSY, NO.5 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN RH |
1 | ||
| 71230-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN RH |
1 | ||
| 72130-90501 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70053 - COVER ASSY, NO.5 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 70054 - COVER ASSY, NO.5 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70061 - CUSHION ASSY, NO.6 SEAT | ||||
| 71320-90741 |
BB10,RB11..21S LH |
1 | ||
| 71220-90741 |
BB10,RB11..21S RH |
1 | ||
| 71220-90750 |
BB10,RB1#..21S RH |
1 | ||
| 71320-90748 |
BB10,RB1#..21S LH |
1 | ||
| 71640-90500 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71640-90501 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 70062 - BACK ASSY, NO.6 SEAT | ||||
| 71930-90741 |
BB10,RB11..21S RH |
1 | ||
| 72230-90741 |
BB10,RB11..21S LH |
1 | ||
| 71630-90753 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 71930-90746 |
BB10,RB1#..21S RH |
1 | ||
| 72230-90754 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 72230-90750 |
BB10,RB1#..21S LH |
1 | ||
| 70063 - COVER ASSY, NO.6 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB11..21S RH |
1 | ||
| 71306-90741 |
BB10,RB11..21S LH |
1 | ||
| 71206-90748 |
BB10,RB1#..21S RH |
1 | ||
| 71306-90746 |
BB10,RB1#..21S LH |
1 | ||
| 71606-90501 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71606-90502 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 70064 - COVER ASSY, NO.6 SEAT BACK | ||||
| 71208-90741 |
BB10,RB11..21S RH |
1 | ||
| 71308-90741 |
BB10,RB11..21S LH |
1 | ||
| 71208-90747 |
BB10,RB1#..21S RH |
1 | ||
| 71308-90748 |
BB10,RB1#..21S LH |
1 | ||
| 71608-90749 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71608-90750 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-20042 |
BB10,RB1# |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90740 |
BB10,RB1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72530-90500 |
BB10,RB1#..RHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-12287 |
BB10,RB1# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-12030 |
BB10,RB1#..RHD |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90386-12005 | ||||
| 90523-08001 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 93339-24012 | ||||
| 96160-01000 | ||||
(7911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74603-2001005 |
BB10,RB1# BEIGE,BEIGE |
13 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-1202005 |
BB10,RB1# BEIGE,BEIGE |
26 | ||
| 71628A - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
BB10,RB1# |
1 | ||
| 75214-90301 |
BB10,RB1#..GEN,IRQ W/O PASSENGER SEAT |
2 | ||
| 71628A - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
BB10,RB1# |
1 | ||
| 75214-90301 |
BB10,RB1#..GEN,IRQ W/O PASSENGER SEAT |
2 | ||
| 71628C - BAND, TOOL BAG | ||||
| 75217-90300 |
BB10,RB1#..GEN,IRQ W/O PASSENGER SEAT |
1 | ||
| 71628D - BRACKET, TOOL BAG BAND | ||||
| 75216-90301 |
BB10,RB1#..GEN,IRQ W/O PASSENGER SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 72317 - GROMMET, SUB SEAT CUSHION | ||||
| 72317-90500 |
BB10,RB1# |
14 | ||
| 72331 - BRACKET, SUB SEAT CUSHION | ||||
| 72301-90741 |
BB10,RB1# |
5 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
BB10,RB1# |
14 | ||
| 72335 - SPACER, SUB SEAT LINK | ||||
| 72335-90500 |
BB10,RB1# |
14 | ||
| 72338 - SPRING, SUB SEAT LINK, RH | ||||
| 72337-90500 |
BB10,RB1# |
7 | ||
| 72339 - SPRING, SUB SEAT LINK, LH | ||||
| 72339-90500 |
BB10,RB1# |
7 | ||
| 72500 - COVER ASSY, LUGGAGE SPACE | ||||
| 72503-90741 |
BB10,RB1# |
1 | ||
| 72503-90743 |
BB10,RB1# |
1 | ||
| Common parts | ||||
| 71218-90502 | ||||
| 71416-22020 | ||||
| 90101-10055 | ||||
| 90179-06070 | ||||
| 90202-10089 | ||||
| 90240-08122 | ||||
| 90240-08123 | ||||
| 90461-08002 | ||||
| 90468-16012 | ||||
| 91526-40620 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-60616 | ||||
| 91651-60630 | ||||
| 91656-40830 | ||||
| 93210-16020 | ||||
| 93315-16014 | ||||
| 93560-13512 | ||||
| 94120-41000 | ||||
(7911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71120-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72420-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71120-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(BC,DLX) LH |
1 | ||
| 71120-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72420-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72420-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 71120-90756 |
BB10,RB13..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71120-90762 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71130-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71830-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71130-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71130-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71230-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71105-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72405-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71105-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT,PF |
1 | ||
| 71105-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72405-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 72405-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71106-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71106-90752 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71106-90758 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71220-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72320-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72420-90741 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71220-90753 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,RECLINING |
2 | ||
| 71120-90750 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72420-90748 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 72320-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72420-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 72330-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH,SUB SEAT |
2 | ||
| 71380-90510 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71830-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 71230-90747 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 72330-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,SUB SEAT,RECLINING |
2 | ||
| 71390-90502 |
BB10,RB13..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72330-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH,SUB SEAT |
2 | ||
| 71380-90512 |
BB10,RB13..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 72405-90741 |
BB10,RB1#..(BC,DLX)..GEN LH,SUB SEAT |
1 | ||
| 71206-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72305-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 72405-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,SUB SEAT |
1 | ||
| 71206-90751 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,RECLINING |
2 | ||
| 72405-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) LH,SUB SEAT |
1 | ||
| 72305-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH |
2 | ||
| 72307-90741 |
BB10,RB1#..(BC,DLX)..GEN RH,LH,SUB SEAT |
2 | ||
| 71307-90512 |
BB10,RB1#..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH |
2 | ||
| 71309-90516 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..(BC,DLX)..(GEN,IRQ) RH,LH,SUB SEAT |
2 | ||
| 72307-90749 |
BB10,RB1#..(21S,22S)..(BC,DLX) RH,LH,SUB SEAT,RECLINING |
2 | ||
| 70031 - CUSHION ASSY, NO.3 SEAT | ||||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70032 - BACK ASSY, NO.3 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 70033 - COVER ASSY, NO.3 SEAT CUSHION | ||||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70034 - COVER ASSY, NO.3 SEAT BACK | ||||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) ,AISLE SIDE,RECLINING |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70041 - CUSHION ASSY, NO.4 SEAT | ||||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71220-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,PF |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70042 - BACK ASSY, NO.4 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71930-90741 |
BB10,RB1#..RHD..(21S,22S)..GEN LH |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71930-90746 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 70043 - COVER ASSY, NO.4 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70044 - COVER ASSY, NO.4 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70051 - CUSHION ASSY, NO.5 SEAT | ||||
| 71220-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72320-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71220-90750 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71220-90753 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 72320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71320-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 72320-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70052 - BACK ASSY, NO.5 SEAT | ||||
| 71330-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN RH |
1 | ||
| 71230-90741 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71380-90510 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 71390-90500 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN RH |
1 | ||
| 72130-90501 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX)..GEN LH |
1 | ||
| 72330-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71390-90502 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71380-90512 |
BB10,RB13..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72330-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 70053 - COVER ASSY, NO.5 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71306-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71206-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71206-90751 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) LH,RECLINING |
1 | ||
| 71306-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72305-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72305-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71306-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,RECLINING |
1 | ||
| 70054 - COVER ASSY, NO.5 SEAT BACK | ||||
| 71208-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71308-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 72307-90741 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 71208-90747 |
BB10,RB1#..RHD..(BC,DLX)..GEN LH |
1 | ||
| 71308-90748 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH |
1 | ||
| 71309-90516 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,AISLE SIDE,RECLINING |
1 | ||
| 71307-90512 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,WINDOW SIDE,RECLINING;LH,RECLINING |
1 | ||
| 72307-90749 |
BB10,RB1#..RHD..(21S,22S)..(BC,DLX) RH,SUB SEAT,RECLINING |
1 | ||
| 72307-90746 |
BB10,RB1#..RHD..(BC,DLX)..GEN RH,SUB SEAT |
1 | ||
| 70061 - CUSHION ASSY, NO.6 SEAT | ||||
| 71320-90741 |
BB10,RB11..21S LH |
1 | ||
| 71220-90741 |
BB10,RB11..21S RH |
1 | ||
| 71220-90750 |
BB10,RB1#..21S RH |
1 | ||
| 71320-90748 |
BB10,RB1#..21S LH |
1 | ||
| 71640-90500 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71640-90501 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 70062 - BACK ASSY, NO.6 SEAT | ||||
| 71930-90741 |
BB10,RB11..21S RH |
1 | ||
| 72230-90741 |
BB10,RB11..21S LH |
1 | ||
| 71630-90753 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 71930-90746 |
BB10,RB1#..21S RH |
1 | ||
| 72230-90754 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 72230-90750 |
BB10,RB1#..21S LH |
1 | ||
| 70063 - COVER ASSY, NO.6 SEAT CUSHION | ||||
| 71206-90741 |
BB10,RB11..21S RH |
1 | ||
| 71306-90741 |
BB10,RB11..21S LH |
1 | ||
| 71206-90748 |
BB10,RB1#..21S RH |
1 | ||
| 71306-90746 |
BB10,RB1#..21S LH |
1 | ||
| 71606-90501 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71606-90502 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 70064 - COVER ASSY, NO.6 SEAT BACK | ||||
| 71208-90741 |
BB10,RB11..21S RH |
1 | ||
| 71308-90741 |
BB10,RB11..21S LH |
1 | ||
| 71208-90747 |
BB10,RB1#..21S RH |
1 | ||
| 71308-90748 |
BB10,RB1#..21S LH |
1 | ||
| 71608-90749 |
BB10,RB1#..21S LH,RECLINING |
1 | ||
| 71608-90750 |
BB10,RB1#..21S RH,RECLINING |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
BB10,RB1# |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-20042 |
BB10,RB1# |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90740 |
BB10,RB1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72530-90500 |
BB10,RB1#..RHD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-12287 |
BB10,RB1# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-12030 |
BB10,RB1#..RHD |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90386-12005 | ||||
| 90523-08001 | ||||
| 91611-60820 | ||||
| 93339-24012 | ||||
| 96160-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
