BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )

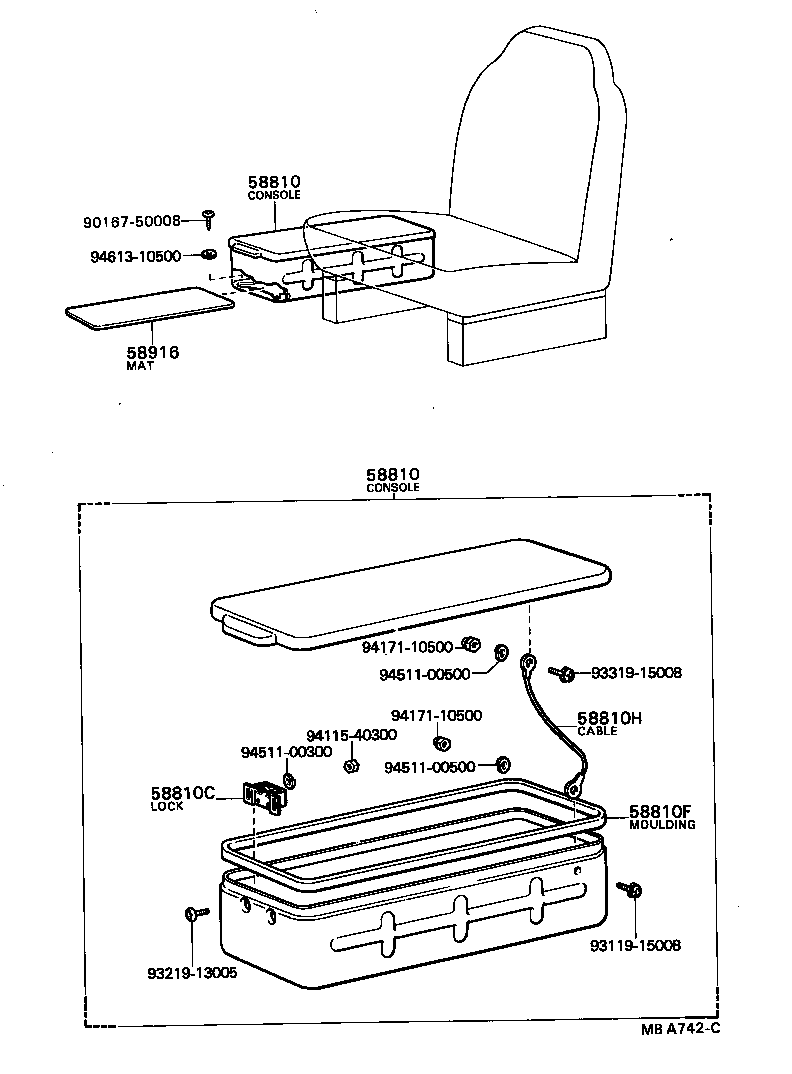

Click highlighted areas on diagram

diagram 58810 58810 58810C 58810F 58810H 58916 9016750008 9311915008 9321913005 9331915008 9411540300 9417110500 9417110500 9451100300 9451100500 9451100500 9461310500
Part # Description Qty Price
58810 - CONSOLE ASSY
58910-90500

BB10,RB1#..GEN,IRQ

 1
58810 - CONSOLE ASSY
58910-90500

BB10,RB1#..GEN,IRQ

 1
58810C - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58093-90500

BB10,RB1#..GEN,IRQ

 1
58810F - MOULDING, CONSOLE BOX
58931-90500

BB10,RB1#..GEN,IRQ

 1
58810H - CABLE SUB-ASSY, CONSOLE BOX
55508-30020

BB10,RB1#..GEN,IRQ

 1
58916 - MAT, BOX BOTTOM
58916-90500

BB10,RB1#..GEN,IRQ

 1
Common parts
90167-50008
93119-15008
93219-13005
93319-15008
94115-40300
94171-10500
94511-00300
94511-00500
94613-10500
