BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )

Click highlighted areas on diagram

diagram 33501F 33501G 33501G 33501G 33501G 33503F 33504F 33525 33529 33534 33536D 33536D 33536F 33562F 33562G 33562H 33605 33605B 33644G 33644G 33644P 33644P 33731F 33740F 33740F 33740F 33741F 33741H 33741H 33741J 33741J 33741P 33741P 33750F 33750F 33752F 33770F 33772F 33772F 33773E 33773F 33773F 33773H 33789F 33789F 33789F 33789F 9010106010 9017010067 9017010067 9046816142 9046816142 9050814002 9161141020 9161141020 9161640825 9165140820 9165140820 9411040600 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9411041000 9412041000 9412041000 9412041000 9451101000 9451101000 9451200800 9451200800 9451200800 9451201000 9451201000 9451201000 9451201000 9461311001 9461311001 9461311001 9461311001 9461311001
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33523-36020

BB10,RB1#

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-18166

BB10,RB1#

 4
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-18166

BB10,RB1#

 4
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-18166

BB10,RB1#

 4
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-18166

BB10,RB1#

 4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36030

BB10,RB11..RHD

 1
33503-36031

BB10,RB1#..RHD

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-20052

BB10,RB1#..5F

 1
33525 - SUPPORT, SHIFT LEVER
33525-36050

BB10,RB1#

 1
33529 - BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
33529-36010

BB10,RB1#

 1
33534 - BELLCRANK, SELECTING
33534-36020

BB10,RB1#

 1
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-13007

BB10,RB1#

 2
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-13007

BB10,RB1#

 2
33536F - SHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33536-36040

BB10,RB1#

 1
33562F - STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT
33562-36020

BB10,RB1#

 1
33562G - RING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
96160-00500

BB10,RB1#

 1
33562H - SPRING, COMPRESSION (FOR CONTROL SHAFT UPPER BRACKET)
90501-12038

BB10,RB11

 1
90501-14052

BB10,RB13

 1
33605 - HOUSING, CONTROL LEVER
33651-36010

BB10,RB1#

 1
33605B - BOLT, LOCK (FOR FLOOR SHIFT CONTROL SHAFT)
33218-36010

BB10,RB1#

 1
33644G - BUSH (FOR GEAR SELECTING SHAFT)
90386-15110

BB10,RB1#

 2
33644G - BUSH (FOR GEAR SELECTING SHAFT)
90386-15110

BB10,RB1#

 2
33644P - PIN (FOR GEAR SELECTING SHAFT)
90256-08002

BB10,RB1#

 2
33644P - PIN (FOR GEAR SELECTING SHAFT)
90256-08002

BB10,RB1#

 2
33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33720-36180

BB10,RB1#

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BB10,RB1#

SELECTING NO.3 ROD

 1
33761-36030

BB10,RB11

SELECTING & SHIFTING NO.1 ROD

 2
33740-36010

BB10,RB1#

SHIFTING NO.1 ROD

 1
33761-36030

BB10,RB1#

SELECTING NO.1 ROD

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BB10,RB1#

SELECTING NO.3 ROD

 1
33761-36030

BB10,RB11

SELECTING & SHIFTING NO.1 ROD

 2
33740-36010

BB10,RB1#

SHIFTING NO.1 ROD

 1
33761-36030

BB10,RB1#

SELECTING NO.1 ROD

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BB10,RB1#

SELECTING NO.3 ROD

 1
33761-36030

BB10,RB11

SELECTING & SHIFTING NO.1 ROD

 2
33740-36010

BB10,RB1#

SHIFTING NO.1 ROD

 1
33761-36030

BB10,RB1#

SELECTING NO.1 ROD

 1
33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33710-36161

BB10,RB1#

 1
33710-36160

BB10,RB11

 1
33741H - PIN (FOR SHIFTING OR SELECTING ROD)
90249-10015

BB10,RB11

 2
90249-10015

BB10,RB1#

 1
33741H - PIN (FOR SHIFTING OR SELECTING ROD)
90249-10015

BB10,RB11

 2
90249-10015

BB10,RB1#

 1
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90387-10033

BB10,RB1#

 1
90387-10033

BB10,RB11

 2
33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD)
90387-10033

BB10,RB1#

 1
90387-10033

BB10,RB11

 2
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-19002

BB10,RB11

 2
90480-19002

BB10,RB1#

 1
33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-19002

BB10,RB11

 2
90480-19002

BB10,RB1#

 1
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-36010

BB10,RB1#

 2
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-36010

BB10,RB1#

 2
33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT)
33752-36070

BB10,RB1#

 1
33770F - CROSS SHAFT ASSY, NO.1 (FOR FLOOR SHIFT)
33770-36370

BB10,RB1#

 1
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-20010

BB10,RB1#

 4
33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT)
33772-20010

BB10,RB1#

 4
33773E - SUPPORT, CROSS SHAFT, NO.1
33773-36040

BB10,RB1#

 1
33773F - KNOB, CROSS SHAFT SUPPORT
33773-36050

BB10,RB1#

NO.1 SHAFT,RH

 1
33773-36030

BB10,RB1#

NO.1 SHAFT,LH

 1
33773F - KNOB, CROSS SHAFT SUPPORT
33773-36050

BB10,RB1#

NO.1 SHAFT,RH

 1
33773-36030

BB10,RB1#

NO.1 SHAFT,LH

 1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

BB10,RB1#

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

OUTSIDE

 2
33789-36030

BB10,RB1#

INSIDE

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

OUTSIDE

 2
33789-36030

BB10,RB1#

INSIDE

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

OUTSIDE

 2
33789-36030

BB10,RB1#

INSIDE

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

OUTSIDE

 2
33789-36030

BB10,RB1#

INSIDE

 2
Common parts
90101-06010
90170-10067
90468-16142
90508-14002
91611-41020
91616-40825
91651-40820
94110-40600
94110-40800
94110-41000
94120-41000
94511-01000
94512-00800
94512-01000
94613-11001

(7911- )

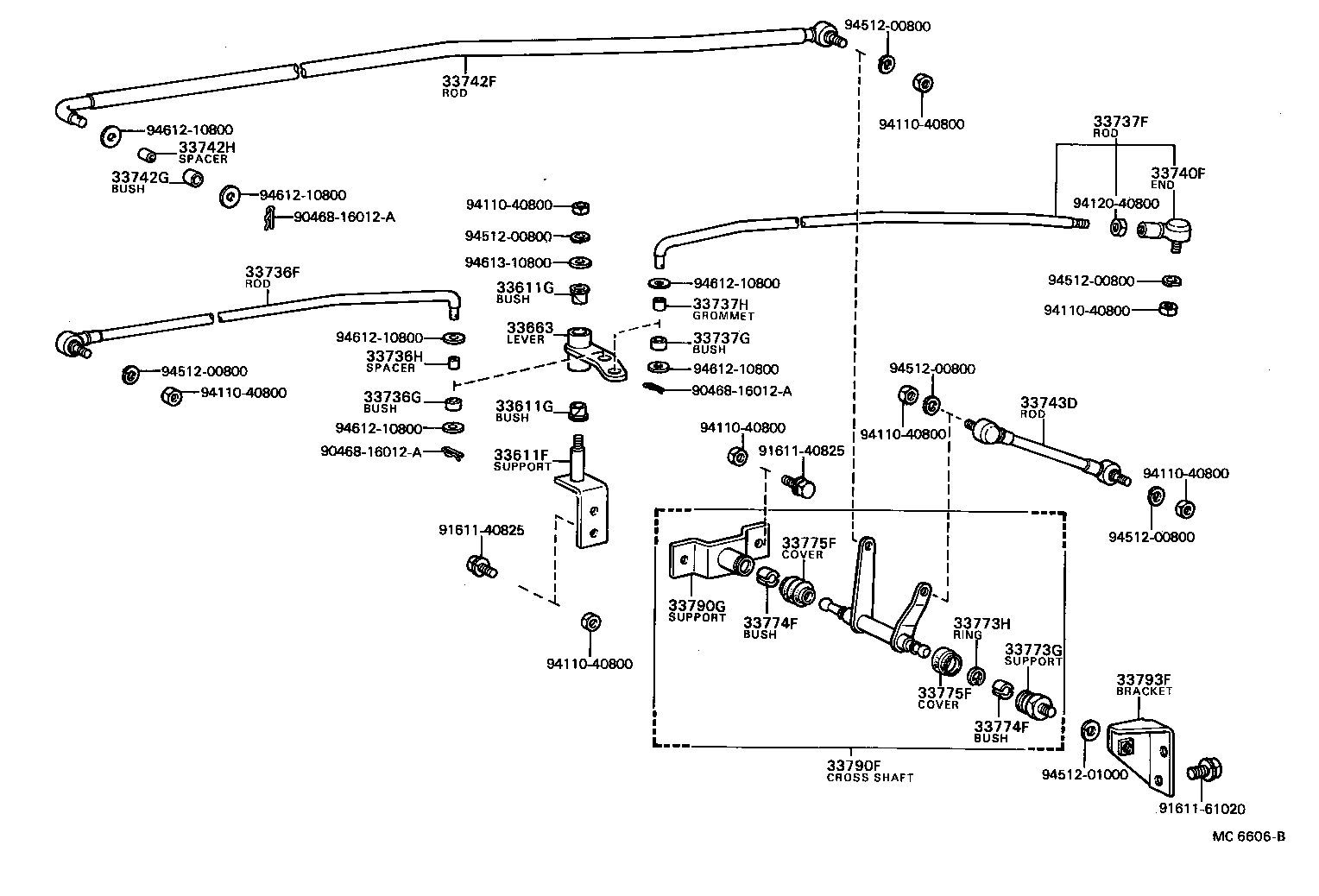

Click highlighted areas on diagram

diagram 33611F 33611G 33611G 33663 33736F 33736G 33736H 33737F 33737G 33737H 33740F 33742F 33742G 33742H 33743D 33773G 33773H 33774F 33774F 33775F 33775F 33790F 33790G 33793F 9046816012 9046816012 9046816012 9161140825 9161140825 9161161020 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9412040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9461210800 9461210800 9461210800 9461210800 9461210800 9461210800 9461310800
Part # Description Qty Price
33611F - SUPPORT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33611-36080

BB10,RB1#

 1
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BB10,RB1#

 2
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BB10,RB1#

 2
33663 - LEVER, CONTROL
33663-36040

BB10,RB1#

 1
33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)
33790-36380

BB10,RB1#

 1
33736G - BUSH(FOR SELECTING NO.2 ROD)
90385-10063

BB10,RB1#

 1
33736H - SPACER(FOR SELECTING NO.2 ROD)
90560-08366

BB10,RB1#

 1
33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)
33850-36080

BB10

 1
33737G - BUSH (FOR GEAR SELECTING ROD NO.3)
90385-10063

BB10,RB1#

 1
33737H - GROMMET (FOR GEAR SELECTING ROD NO.3)
90560-08366

BB10,RB1#

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BB10,RB1#

SELECTING NO.3 ROD

 1
33761-36030

BB10,RB11

SELECTING & SHIFTING NO.1 ROD

 2
33740-36010

BB10,RB1#

SHIFTING NO.1 ROD

 1
33761-36030

BB10,RB1#

SELECTING NO.1 ROD

 1
33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)
33730-36180

BB10,RB1#

 1
33742G - BUSH(FOR SHIFTING, NO.2 ROD)
90387-10035

BB10,RB1#

 1
33742H - SPACER(FOR SHIFTING, NO.2 ROD)
90560-08020

BB10,RB1#

 1
33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)
33840-36210

BB10

 1
33773G - SUPPORT, CROSS SHAFT
33773-20020

BB10,RB1#

 1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

BB10,RB1#

 2
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BB10,RB1#

 4
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BB10,RB1#

 4
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

LH

 1
33775-20040

BB10,RB1#

RH

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BB10,RB1#

LH

 1
33775-20040

BB10,RB1#

RH

 1
33790F - CROSS SHAFT ASSY, NO.2(FOR FLOOR SHIFT)
33790-36370

BB10,RB1#

 1
33790G - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33705-36220

BB10,RB1#

 1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-36040

BB10

 1
Common parts
90468-16012
91611-40825
91611-61020
94110-40800
94120-40800
94512-00800
94512-01000
94612-10800
94613-10800
