BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )

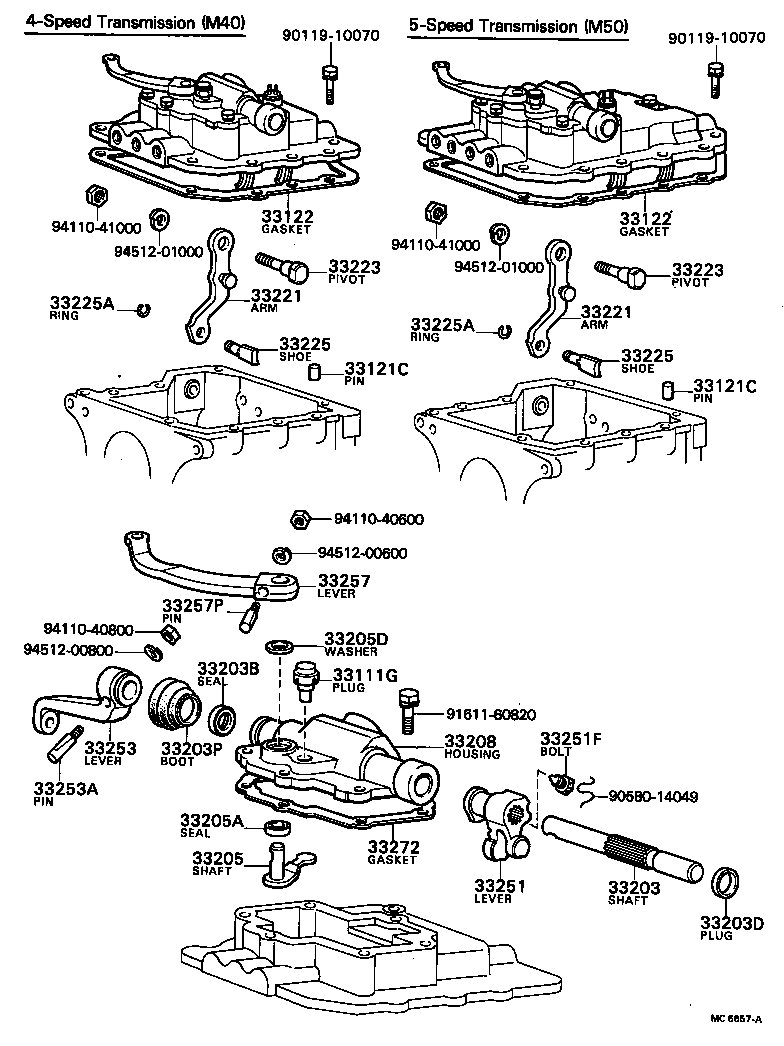

Click highlighted areas on diagram

diagram 33111G 33121C 33121C 33122 33122 33203 33203B 33203D 33203P 33205 33205A 33205D 33208 33221 33221 33223 33223 33225 33225 33225A 33225A 33251 33251F 33253 33253A 33257 33257P 33272 9011910070 9011910070 9058014049 9161160820 9411040600 9411040800 9411041000 9411041000 9451200600 9451200800 9451201000 9451201000
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03075

BB10,RB13

 1
90930-03065

BB10,RB1#

 1
33121C - PIN(FOR TRANSMISSION CASE COVER)
90250-10214

BB10,RB1#

L=14,OD=10

 2
33121C - PIN(FOR TRANSMISSION CASE COVER)
90250-10214

BB10,RB1#

L=14,OD=10

 2
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-36020

BB10,RB11,13..5F,5H

 1
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-36020

BB10,RB11,13..5F,5H

 1
33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33261-36040

BB10,RB1#

 1
33261-36050

BB10,RB1#

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90312-17001

BB10,RB1#

 1
33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT)
96411-12500

BB10,RB1#

 1
90331-20001

BB10,RB1#

 1
33203P - BOOT, DUST(FOR SHIFT LEVER SHAFT)
33531-36020

BB10,RB1#

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33205-36050

BB10,RB1#

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

BB10,RB1#

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
90201-13151

BB10,RB1#

 1
94612-11300

BB10,RB1#

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33271-36080

BB10,RB1#

 1
33271-36070

BB10,RB1#

 1
33221 - ARM, REVERSE SHIFT
33201-36040

BB10,RB1#

 1
33221 - ARM, REVERSE SHIFT
33201-36040

BB10,RB1#

 1
33223 - PIVOT, SHIFT ARM
33223-36010

BB10,RB1#

 1
33223 - PIVOT, SHIFT ARM
33223-36010

BB10,RB1#

 1
33225 - SHOE, SHIFT ARM
33225-36030

BB10,RB1#

 1
33225 - SHOE, SHIFT ARM
33225-36030

BB10,RB1#

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
90520-08098

BB10,RB1#

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
90520-08098

BB10,RB1#

 1
33251 - LEVER, SHIFT & SELECT
33251-36050

BB10,RB1#

 1
33251-36050

BB10,RB1#..RHD

 1
33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER)
33218-35010

BB10,RB1#

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-36060

BB10,RB1#

 1
33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33282-57010

BB10,RB1#

 1
33257 - LEVER, SELECT OUTER
33257-36020

BB10,RB1#

 1
33257-36060

BB10,RB1#

 1
33257P - PIN, SELECT OUTER LEVER LOCK
33282-36010

BB10,RB1#

 1
33272 - GASKET, SHIFT LEVER SHAFT HOUSING
33272-36020

BB10,RB1#

 1
Common parts
90119-10070
90580-14049
91611-60820
94110-40600
94110-40800
94110-41000
94512-00600
94512-00800
94512-01000
