Toyota Coaster BB10 VACUUM PUMP - JDM Part Detective

BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982

Engine 2B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

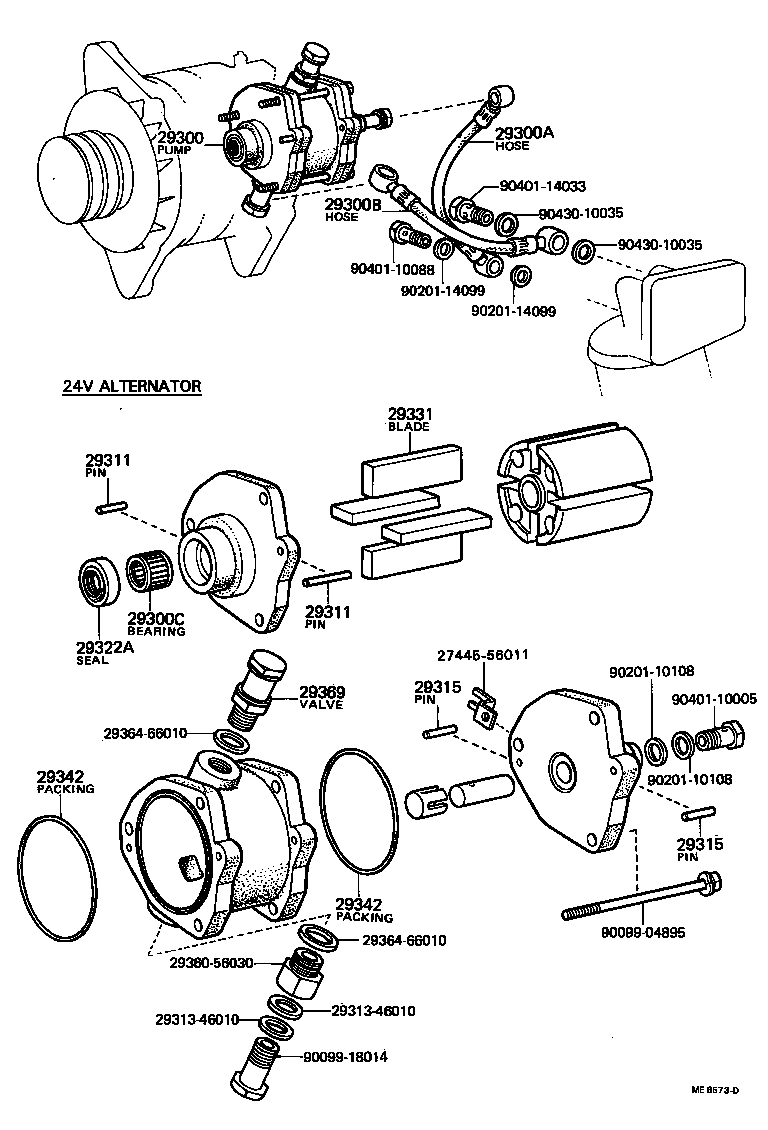

(7708-8008)2B..BC

Click highlighted areas on diagram

Part #	Description	Period	Qty
29300 - PUMP ASSY, VACUUM
29300-56030	2B..BB10..BC	08/1977 - 08/1980	1
29300-57011	2B..BB10	08/1980 - 09/1981	1
29300-56070	2B..BB10..BC	09/1981 - 04/1982	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02066	2B..BB10..BC..(ARL,GEN)	08/1980 - 09/1981	1
90923-02078	2B..BB10..BC..(ARL,GEN)	09/1981 - 04/1982	1
90923-02026	2B..BB10..BC	08/1977 - 08/1980	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02050	2B..BB10..BC	08/1977 - 08/1980	1
90923-02065	2B..BB10	08/1980 - 09/1981	1
90923-02068	2B..BB10	09/1981 - 04/1982	1
29300C - BEARING, VACUUM PUMP ROTOR, FRONT
90099-10106	2B..BB10..BC	08/1977 - 08/1980	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	2B..BB10	08/1977 - 11/1979	2
90099-08082	2B..BB10 12V	02/1980 - 08/1980	2
90099-08082	2B..BB10..BC	11/1979 - 02/1980	2
90099-08082	2B..BB10	08/1980 - 04/1982	4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	2B..BB10	08/1977 - 11/1979	2
90099-08082	2B..BB10 12V	02/1980 - 08/1980	2
90099-08082	2B..BB10..BC	11/1979 - 02/1980	2
90099-08082	2B..BB10	08/1980 - 04/1982	4
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082	2B..BB10	08/1977 - 08/1980	2
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082	2B..BB10	08/1977 - 08/1980	2
29322A - SEAL, VACUUM PUMP OIL
90099-15017	2B..BB10	08/1977 - 04/1982	1
29331 - BLADE, VACUUM PUMP, A
29331-77020	2B..BB10..BC	08/1977 - 08/1980	4
29331-56010	2B..BB10	08/1980 - 09/1981	4
29331-56070	2B..BB10..BC	09/1981 - 04/1982	4
29342 - PACKING, VACUUM PUMP
90099-14031	2B..BB10..BC	08/1977 - 08/1980	2
96740-02063	2B..BB10	08/1980 - 04/1982	2
29342 - PACKING, VACUUM PUMP
90099-14031	2B..BB10..BC	08/1977 - 08/1980	2
96740-02063	2B..BB10	08/1980 - 04/1982	2
29369 - VALVE SUB-ASSY, CHECK
29369-54010	2B..BB10	08/1980 - 09/1981	1
29369-56030	2B..BB10..BC	08/1977 - 08/1980	1
29369-56070	2B..BB10..BC	09/1981 - 04/1982	1
Common parts
27445-56011
29313-46010
29360-56030
29364-66010
90099-04895
90099-18014
90201-10108
90201-14099
90401-10005
90401-10088
90401-14033
90430-10035

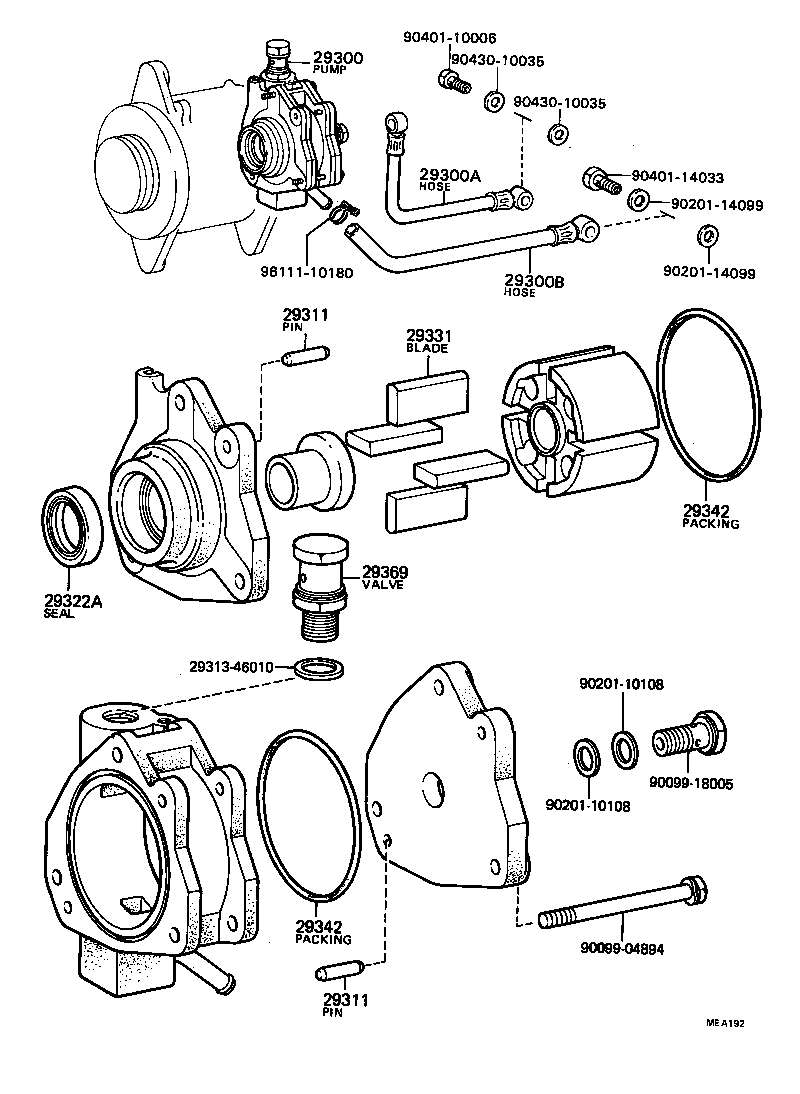

(8008-8109)2B ; (8109- )2B..DLX,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
29300 - PUMP ASSY, VACUUM
29300-56030	2B..BB10..BC	08/1977 - 08/1980	1
29300-57011	2B..BB10	08/1980 - 09/1981	1
29300-56070	2B..BB10..BC	09/1981 - 04/1982	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02066	2B..BB10..BC..(ARL,GEN)	08/1980 - 09/1981	1
90923-02078	2B..BB10..BC..(ARL,GEN)	09/1981 - 04/1982	1
90923-02026	2B..BB10..BC	08/1977 - 08/1980	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02050	2B..BB10..BC	08/1977 - 08/1980	1
90923-02065	2B..BB10	08/1980 - 09/1981	1
90923-02068	2B..BB10	09/1981 - 04/1982	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	2B..BB10	08/1977 - 11/1979	2
90099-08082	2B..BB10 12V	02/1980 - 08/1980	2
90099-08082	2B..BB10..BC	11/1979 - 02/1980	2
90099-08082	2B..BB10	08/1980 - 04/1982	4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	2B..BB10	08/1977 - 11/1979	2
90099-08082	2B..BB10 12V	02/1980 - 08/1980	2
90099-08082	2B..BB10..BC	11/1979 - 02/1980	2
90099-08082	2B..BB10	08/1980 - 04/1982	4
29322A - SEAL, VACUUM PUMP OIL
90099-15017	2B..BB10	08/1977 - 04/1982	1
29331 - BLADE, VACUUM PUMP, A
29331-77020	2B..BB10..BC	08/1977 - 08/1980	4
29331-56010	2B..BB10	08/1980 - 09/1981	4
29331-56070	2B..BB10..BC	09/1981 - 04/1982	4
29342 - PACKING, VACUUM PUMP
90099-14031	2B..BB10..BC	08/1977 - 08/1980	2
96740-02063	2B..BB10	08/1980 - 04/1982	2
29342 - PACKING, VACUUM PUMP
90099-14031	2B..BB10..BC	08/1977 - 08/1980	2
96740-02063	2B..BB10	08/1980 - 04/1982	2
29369 - VALVE SUB-ASSY, CHECK
29369-54010	2B..BB10	08/1980 - 09/1981	1
29369-56030	2B..BB10..BC	08/1977 - 08/1980	1
29369-56070	2B..BB10..BC	09/1981 - 04/1982	1
Common parts
29313-46010
90099-04894
90099-18005
90201-10108
90201-14099
90401-10006
90401-14033
90430-10035
96111-10180

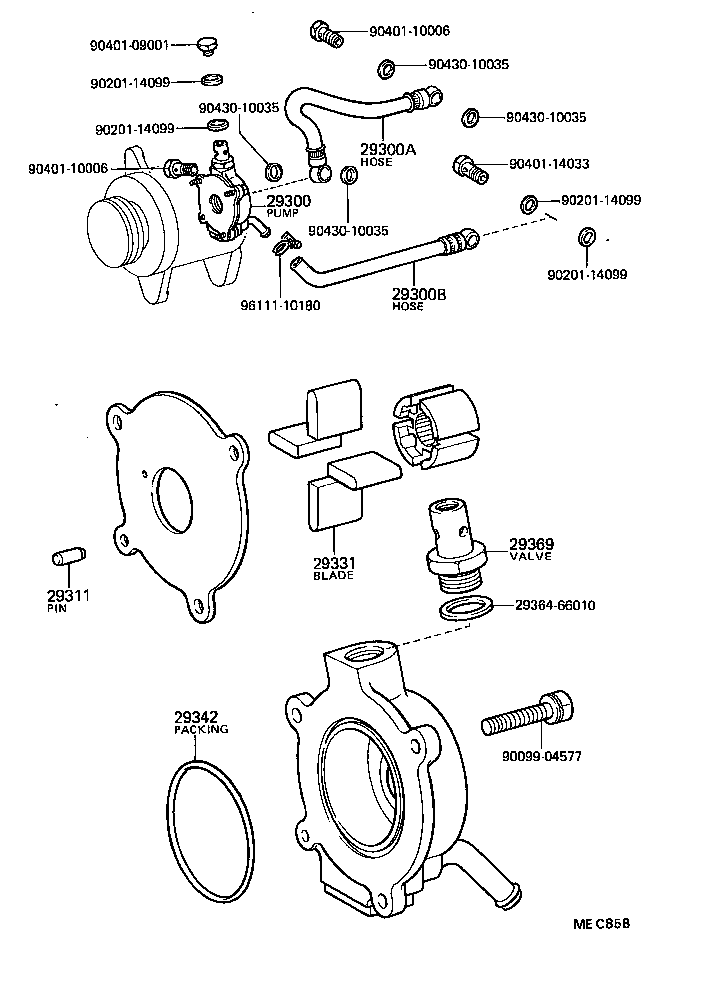

(8109- )2B..BC

Click highlighted areas on diagram

Part #	Description	Period	Qty
29300 - PUMP ASSY, VACUUM
29300-56030	2B..BB10..BC	08/1977 - 08/1980	1
29300-57011	2B..BB10	08/1980 - 09/1981	1
29300-56070	2B..BB10..BC	09/1981 - 04/1982	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02066	2B..BB10..BC..(ARL,GEN)	08/1980 - 09/1981	1
90923-02078	2B..BB10..BC..(ARL,GEN)	09/1981 - 04/1982	1
90923-02026	2B..BB10..BC	08/1977 - 08/1980	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02050	2B..BB10..BC	08/1977 - 08/1980	1
90923-02065	2B..BB10	08/1980 - 09/1981	1
90923-02068	2B..BB10	09/1981 - 04/1982	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	2B..BB10	08/1977 - 11/1979	2
90099-08082	2B..BB10 12V	02/1980 - 08/1980	2
90099-08082	2B..BB10..BC	11/1979 - 02/1980	2
90099-08082	2B..BB10	08/1980 - 04/1982	4
29331 - BLADE, VACUUM PUMP, A
29331-77020	2B..BB10..BC	08/1977 - 08/1980	4
29331-56010	2B..BB10	08/1980 - 09/1981	4
29331-56070	2B..BB10..BC	09/1981 - 04/1982	4
29342 - PACKING, VACUUM PUMP
90099-14031	2B..BB10..BC	08/1977 - 08/1980	2
96740-02063	2B..BB10	08/1980 - 04/1982	2
29369 - VALVE SUB-ASSY, CHECK
29369-54010	2B..BB10	08/1980 - 09/1981	1
29369-56030	2B..BB10..BC	08/1977 - 08/1980	1
29369-56070	2B..BB10..BC	09/1981 - 04/1982	1
Common parts
29364-66010
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90430-10035
96111-10180

BB10R-MDZER (1979)

(7708-8008)2B..BC

(8008-8109)2B ; (8109- )2B..DLX,STD

(8109- )2B..BC
