BB10R-MDZER (1979)
Toyota Coaster

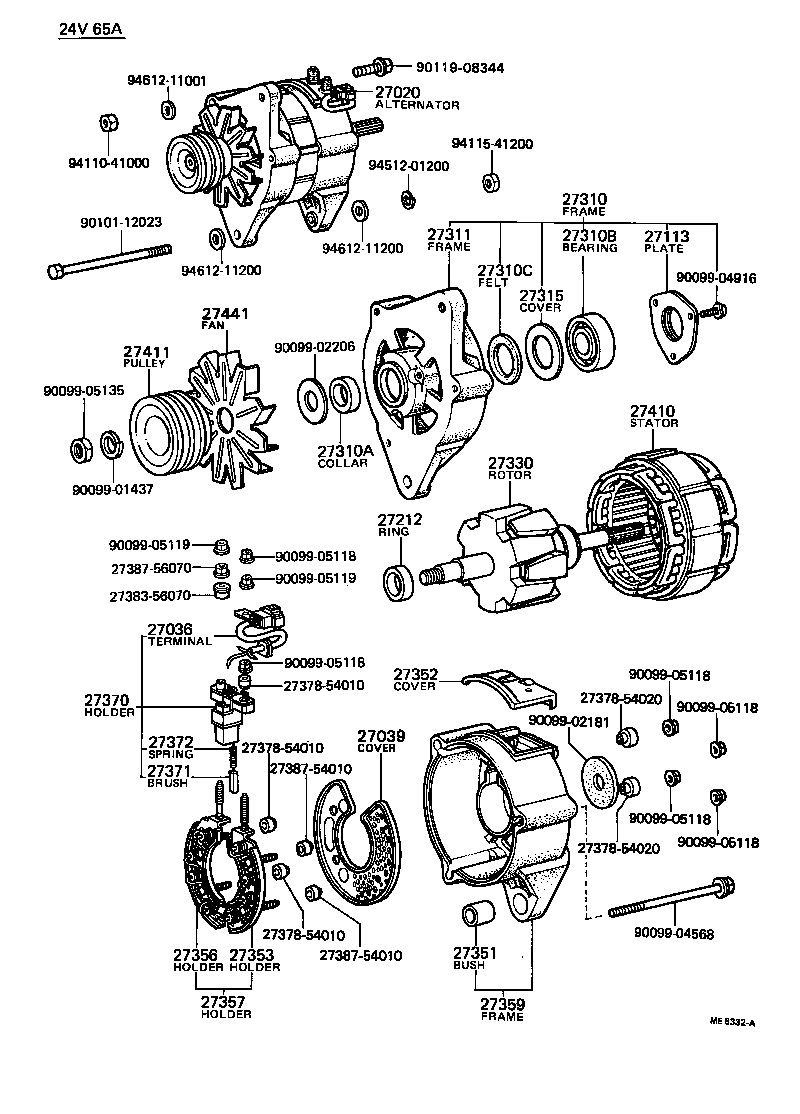

(7911-8008)2B..BC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-57041 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27020-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57122 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27312-56070 |
2B..BB10..BC 24V 20A,55A,65A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 27412-54040 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-19251 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..BC 24V 55A |
1 | ||
| 90099-02207 |
2B..BB10..BC 24V 65A |
2 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..BC 24V 55A |
1 | ||
| 27315-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27315-56070 |
2B..BB10..GEN 24V 20A & 65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27330-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27330-56130 |
2B..BB10..BC 24V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..BC 24V 55A,65A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27357-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370-54010 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27410-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27411-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
2B..BB10..BC 24V 55A |
1 | ||
| 27441-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| Common parts | ||||
| 27378-54010 | ||||
| 27378-54020 | ||||
| 27383-56070 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02206 | ||||
| 90099-04568 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-12023 | ||||
| 90119-08344 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94612-11001 | ||||
| 94612-11200 | ||||
(8008-8109)2B..BC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-57041 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27020-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57122 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27312-56070 |
2B..BB10..BC 24V 20A,55A,65A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 27412-54040 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-19251 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..BC 24V 55A |
1 | ||
| 90099-02207 |
2B..BB10..BC 24V 65A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..BC 24V 55A |
1 | ||
| 27315-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27315-56070 |
2B..BB10..GEN 24V 20A & 65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27330-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27330-56130 |
2B..BB10..BC 24V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-57111 |
2B..BB10..BC 24V 55A |
1 | ||
| 27350-56120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..BC 24V 55A,65A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27357-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370-54010 |
2B..BB10..BC 24V 65A |
1 | ||
| 27370-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27388-57130 |
2B..BB10..BC 24V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27410-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27411-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
2B..BB10..BC 24V 55A |
1 | ||
| 27441-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-57100 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-18201 | ||||
| 90099-34013 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90201-10108 | ||||
| 90201-10283 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8109- )2B..BC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-57041 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27020-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27020-57122 |
2B..BB10..BC 24V 55A |
1 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
2B..BB10..BC 24V 55A |
1 | ||
| 27020A - CAP, ALTERNATOR TERMINAL | ||||
| 90099-34013 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27036-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27036-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27312-56070 |
2B..BB10..BC 24V 20A,55A,65A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 27412-54040 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27310-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-19251 |
2B..BB10..BC 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
2B..BB10..BC 24V 65A |
1 | ||
| 90099-10120 |
2B..BB10..GEN 24V 20A |
1 | ||
| 90099-10120 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
2B..BB10..BC 24V 55A |
1 | ||
| 90099-02207 |
2B..BB10..BC 24V 65A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
2B..BB10..BC 24V 55A |
1 | ||
| 27315-56070 |
2B..BB10..BC 24V 20A,65A |
1 | ||
| 27315-56070 |
2B..BB10..GEN 24V 20A & 65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27330-57121 |
2B..BB10..BC 24V 55A |
1 | ||
| 27330-56130 |
2B..BB10..BC 24V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
2B..BB10 12V 40A,24V 20A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-57111 |
2B..BB10..BC 24V 55A |
1 | ||
| 27350-56120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56070 |
2B..BB10..BC 24V 55A,65A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27357-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27371-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
2B..BB10..GEN 24V 20A,65A |
2 | ||
| 27372-56070 |
2B..BB10 12V 40A,24V 20A,55A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27388-57130 |
2B..BB10..BC 24V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27410-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57040 |
2B..BB10..BC 24V 65A |
1 | ||
| 27411-57120 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-57110 |
2B..BB10..BC 24V 55A |
1 | ||
| 27411-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
2B..BB10..BC 24V 55A |
1 | ||
| 27441-56070 |
2B..BB10..BC 24V 65A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2B..BB10..BC 24V 55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-56130 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
