BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)2B

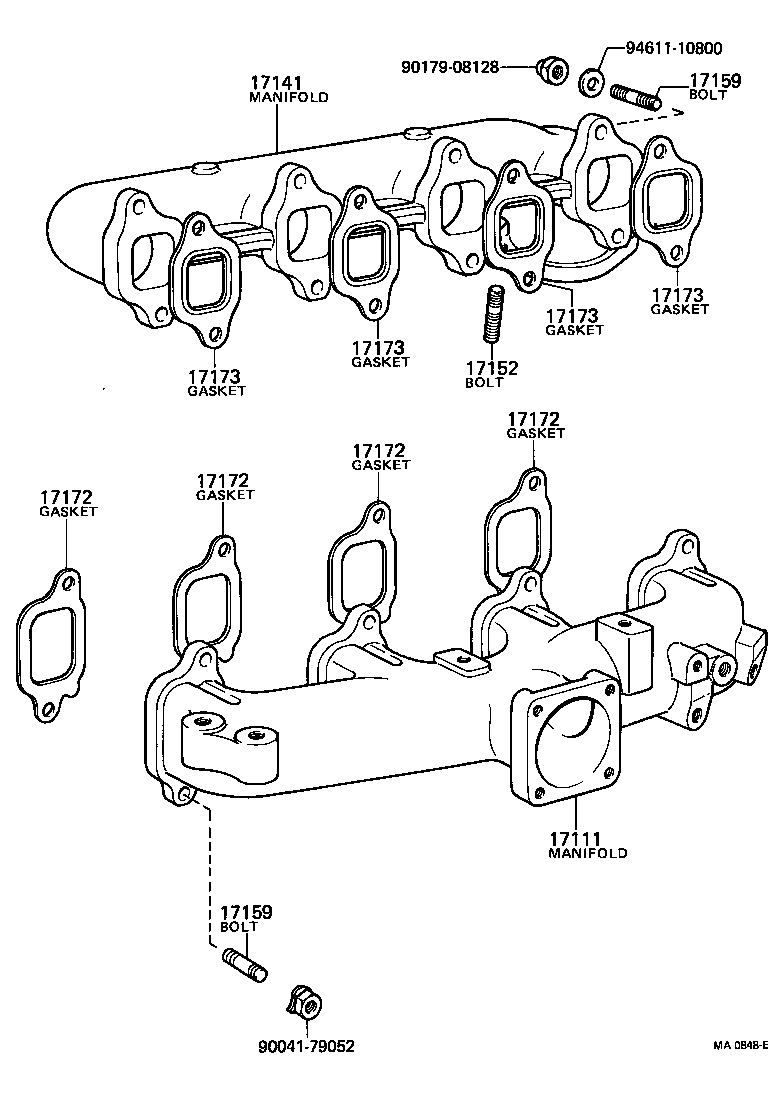

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17172 17172 17172 17172 17173 17173 17173 17173 9004179052 9017908128 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56030

2B..BB10

 1
17111-56070

2B..BB10

 1
17111-56110

2B..BB10

 1
17141 - MANIFOLD, EXHAUST
17141-56010

2B..BB10

 1
17141-56030

2B..BB10

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10055

2B..BB10

L=40,S=17&17

 3
90116-10029

2B..BB10

L=42,S=16&23

 2
90116-10048

2B..BB10

L=40,S=19&12

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

2B..BB10

EXHAUST MANIFOLD

 2
90116-08065

2B..BB10

L=33 S=9&9

 8
92132-60822

2B..BB10

INTAKE MANIFOLD

 8
90116-10048

2B..BB10

EXHAUST MANIFOLD

 2
90116-08118

2B..BB10

L=39,S=11&13

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

2B..BB10

EXHAUST MANIFOLD

 2
90116-08065

2B..BB10

L=33 S=9&9

 8
92132-60822

2B..BB10

INTAKE MANIFOLD

 8
90116-10048

2B..BB10

EXHAUST MANIFOLD

 2
90116-08118

2B..BB10

L=39,S=11&13

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

2B..BB10

 4
17173-56020

2B..BB10

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

2B..BB10

 4
17173-56020

2B..BB10

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

2B..BB10

 4
17173-56020

2B..BB10

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

2B..BB10

 4
17173-56020

2B..BB10

 1
Common parts
90041-79052
90179-08128
94611-10800

(8008- )2B

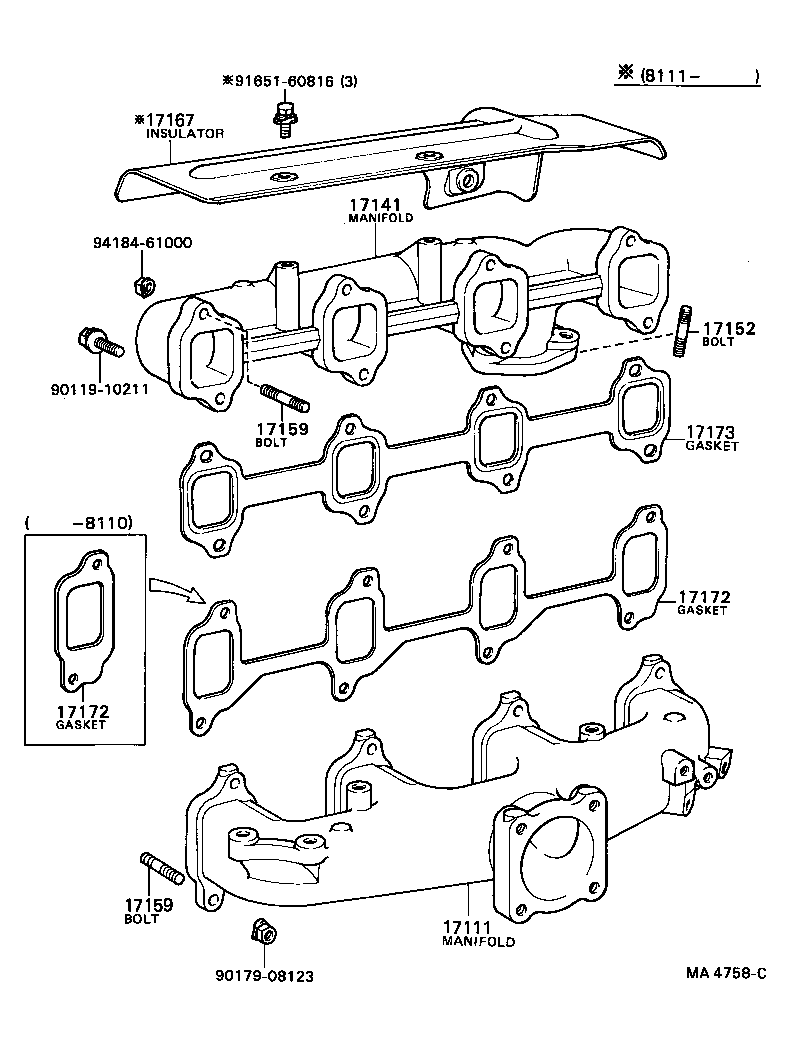

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910211 9017908123 9165160816 9418461000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56030

2B..BB10

 1
17111-56070

2B..BB10

 1
17111-56110

2B..BB10

 1
17141 - MANIFOLD, EXHAUST
17141-56010

2B..BB10

 1
17141-56030

2B..BB10

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10055

2B..BB10

L=40,S=17&17

 3
90116-10029

2B..BB10

L=42,S=16&23

 2
90116-10048

2B..BB10

L=40,S=19&12

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

2B..BB10

EXHAUST MANIFOLD

 2
90116-08065

2B..BB10

L=33 S=9&9

 8
92132-60822

2B..BB10

INTAKE MANIFOLD

 8
90116-10048

2B..BB10

EXHAUST MANIFOLD

 2
90116-08118

2B..BB10

L=39,S=11&13

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

2B..BB10

EXHAUST MANIFOLD

 2
90116-08065

2B..BB10

L=33 S=9&9

 8
92132-60822

2B..BB10

INTAKE MANIFOLD

 8
90116-10048

2B..BB10

EXHAUST MANIFOLD

 2
90116-08118

2B..BB10

L=39,S=11&13

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56020

2B..BB10

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56021

2B..BB10

 1
17172-56011

2B..BB10

 4
17172-56020

2B..BB10

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

2B..BB10

 4
17173-56020

2B..BB10

 1
Common parts
90119-10211
90179-08123
91651-60816
94184-61000
