Toyota Coaster BB10 WATER PUMP - JDM Part Detective

BB10R-MDZER (1979)

Toyota Coaster

Production Nov 1979 - Apr 1982

Engine 2B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

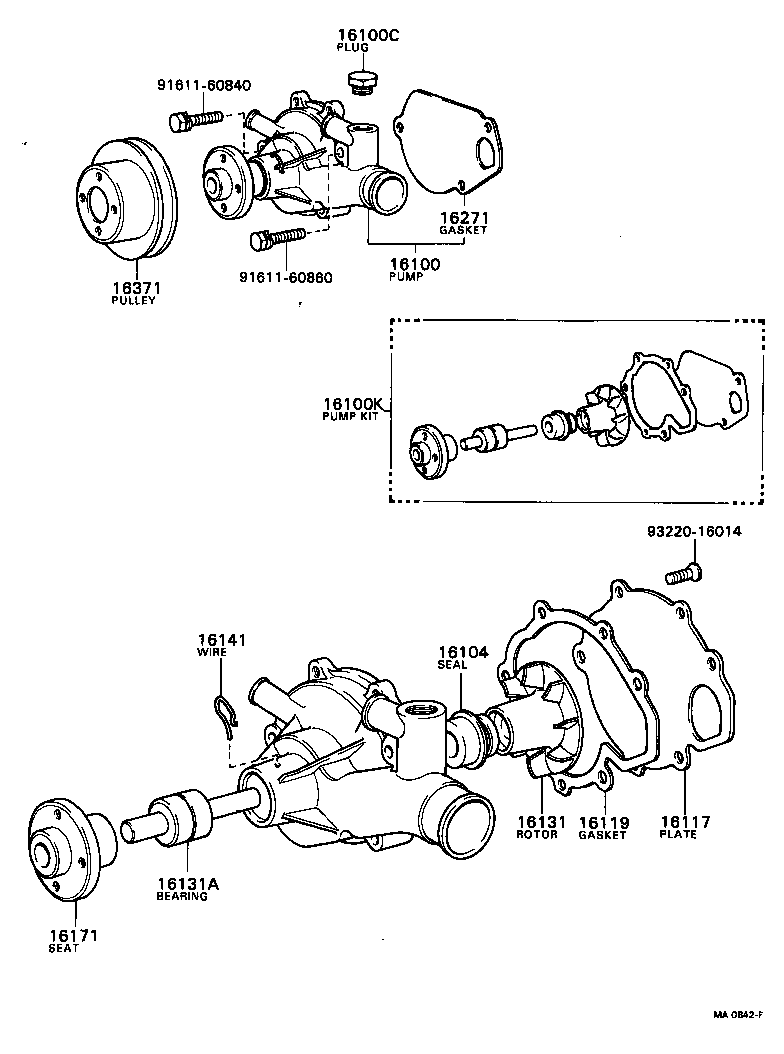

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59025	2B..BB10..BC	08/1977 - 04/1979	1
16100-59085	2B..BB10..BC	08/1980 - 04/1982	1
16100C - PLUG, W/HEAD TAPER SCREW
15184-15010	2B..BB10	08/1980 - 04/1982	1
90345-54021	2B..BB10 W/O HEATER	08/1977 - 05/1978	1
16100K - PUMP KIT, WATER
04161-57010	2B..BB10..BC	08/1977 - 08/1980	1
04161-56070	2B..BB10..BC	08/1980 - 04/1982	1
16104 - SEAL SET, WATER PUMP
16104-52010	2B..BB10..BC	08/1977 - 04/1979	1
16117 - PLATE, WATER PUMP
16117-56040	2B..BB10	08/1980 - 04/1982	1
16117-56010	2B..BB10	08/1977 - 08/1980	1
16119 - GASKET, WATER PUMP BODY
16119-56010	2B..BB10	08/1977 - 08/1980	1
16119-56040	2B..BB10	08/1980 - 04/1982	1
16131 - ROTOR, WATER PUMP
16131-87304	2B..BB10..BC	08/1977 - 08/1980	1
16131-56040	2B..BB10..BC	08/1980 - 04/1982	1
16131A - BEARING, WATER PUMP
90369-38001	2B..BB10..BC	08/1977 - 04/1982	1
16171 - SEAT, WATER PUMP PULLEY
16171-57011	2B..BB10..BC	08/1977 - 04/1982	1
16271 - GASKET, WATER PUMP
16271-56020	2B..BB10	08/1980 - 04/1982	1
16271-56012	2B..BB10	08/1977 - 08/1980	1
16371 - PULLEY, FAN
16371-57010	2B..BB10..BC	08/1977 - 08/1980	1
16371-56020	2B..BB10	08/1980 - 04/1982	1
Common parts
91611-60840
91611-60860
93220-16014

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59025	2B..BB10..BC	08/1977 - 04/1979	1
16100-59085	2B..BB10..BC	08/1980 - 04/1982	1
16100C - PLUG, W/HEAD TAPER SCREW
15184-15010	2B..BB10	08/1980 - 04/1982	1
90345-54021	2B..BB10 W/O HEATER	08/1977 - 05/1978	1
16100K - PUMP KIT, WATER
04161-57010	2B..BB10..BC	08/1977 - 08/1980	1
04161-56070	2B..BB10..BC	08/1980 - 04/1982	1
16104 - SEAL SET, WATER PUMP
16104-52010	2B..BB10..BC	08/1977 - 04/1979	1
16117 - PLATE, WATER PUMP
16117-56040	2B..BB10	08/1980 - 04/1982	1
16117-56010	2B..BB10	08/1977 - 08/1980	1
16119 - GASKET, WATER PUMP BODY
16119-56010	2B..BB10	08/1977 - 08/1980	1
16119-56040	2B..BB10	08/1980 - 04/1982	1
16131 - ROTOR, WATER PUMP
16131-87304	2B..BB10..BC	08/1977 - 08/1980	1
16131-56040	2B..BB10..BC	08/1980 - 04/1982	1
16131A - BEARING, WATER PUMP
90369-38001	2B..BB10..BC	08/1977 - 04/1982	1
16171 - SEAT, WATER PUMP PULLEY
16171-57011	2B..BB10..BC	08/1977 - 04/1982	1
16271 - GASKET, WATER PUMP
16271-56020	2B..BB10	08/1980 - 04/1982	1
16271-56012	2B..BB10	08/1977 - 08/1980	1
16371 - PULLEY, FAN
16371-57010	2B..BB10..BC	08/1977 - 08/1980	1
16371-56020	2B..BB10	08/1980 - 04/1982	1
Common parts
90119-08272
90119-08273
93220-16014
